Plastic Scintillator Meeting Agendas

• https://zzz.physics.umn.edu/cdms/doku.php?id=cdms:montecarlo:ebook:al_refl:
• Further work this (or upcoming) semester?

• Jake is re-doing the aluminum reflectivity study with Ryan's files
• Decide to re-do Gd(iPr)3
  • 0.2 cold bath
  • 0.2 hot bath
  • 0.5 cold bath
• Pictures will show up in the table under June 14

• Discussion of photocathode reflectivity

• Measurement of Eta
• Errors for Gaussian fits
• Extend active period for David-Michael's email address (degui008@umn.edu)

• Educational activities for Jake underway (and almost finished)
• Simulation matching; how to proceed?
• Replace XY plot with radial plot?

• Monochromator runs
• New scintillator samples
• Next steps for paper?
• New Experimental Overlays (PE at 1cm)
• Old Experimental Overlays (PE at 9 cm)
• PE Contour at 1 cm
• PE Contour at 9 cm

Quantum efficiency adjusted values and plots for paper

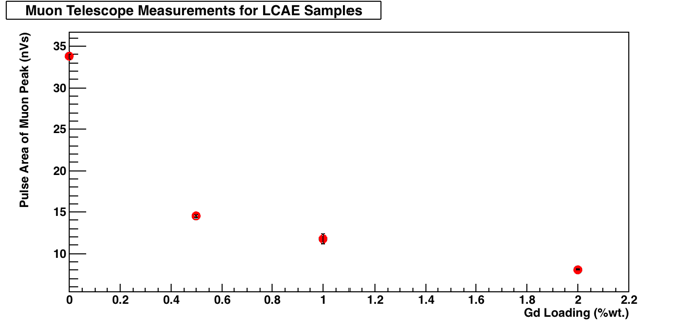

• Muon Spectrum results and WLS trapping photon comparison

• Does particle scattering inside scintillator lead to increased light output?
  • Short answer: No, it doesn't
• Updated computational section

• Updated attenuation length runs
• Stuff for paper
• Reminders:
  • DMP thesis talk: Monday 4/30 @ 4:40pm in TATE 301-20
  • RS thesis talk: Thursday 5/3 @ 10:10am in PAN 110

• "Attentuation length" measurement and comparison, page 3, updated
  • Jake was able to collect data for the 0.96 reflectivity measurements, the data is updated in the table on this page
• Picture ideas for paper [updated]

• Updated attenuation length runs
• PDE measurement summary

• "Attentuation length" measurement and comparison, page 3, updated
• Picture ideas for paper (v1)

• Background run with the new configuration

• "Attentuation length" measurement and comparison, page 3

• Updated attenuation length runs
• Background run with the new configuration

• Going to have Jake collect some data; what data do we want to make more robust? (Effective Attenuation Lengths?)
• Muon triggering system implemented, see demonstration (is this a valid approach?)
• Added super-long attenuation length (100m) to data from previous meeting's presentation

• "Attentuation length" measurement and comparison, page 2

• Updated NaI runs
• Potential collaboration with DarkSide
• Paper meeting on 3/26 @ 1:30pm
  • Ryan:
    • Thank you for sending paper section
    • I also need for paper:
      • Cf-252 initial neutron energy spectrum, text file
      • Gamma spectrum that results from neutron capture on Gd, text file
        • Visualization/description of how this was obtained is on this page
        • Version of the spectrum with 100 bins
        • Version of the spectrum with 1000 bins
      • Version of Geant4 which you are using
        • Geant4 10.02

• "Attentuation length" measurement and comparison

• NaI runs

• Reflectivity/WLS Efficiency Study, more robust data

• Reflectivity/WLS Efficiency Study, updated optical approach
• General Statements:
  • 1 mm air gap is detrimental; a small air gap is best
  • Painting back surface of scint to decrease reflections doesn't remove the shoulder of the distribution
  • Decreasing att. length just performs an overall reduction of PE counts

• NaI detector shielding
• “Feb 29, 2018” -DMP, 2/28/2018

• Reflectivity/WLS Efficiency Study, updated optical approach

• NaI detector shielding
• Monochrometer Measurements

• Optical Simulation Nuances in Geant4
• Overview: A collection of tiny details were altered to make the simulation more accurate. Net effect: no overall change to what we saw before, in mean, but changes in detected wavelength and peak shape

• Neutron capture efficiencies

• Reflectivity/WLS Efficiency Study (don't click; this data is unusable)

https://zzz.physics.umn.edu/cdms/doku.php?id=cdms:plasticscintillator:ebook:monochromatorprocedure

• 511 keV peak in small scintillator samples

Figure 1:	Figure 2:

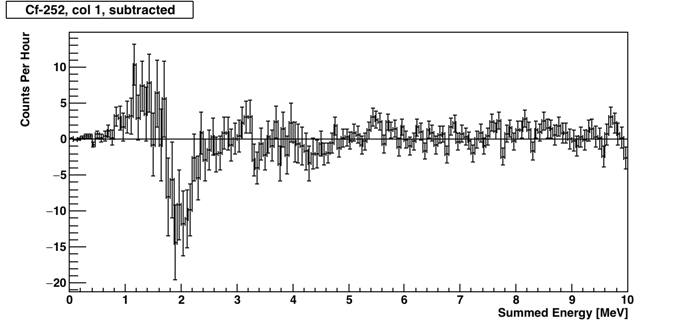

• NaI detectors: Cf-252 runs

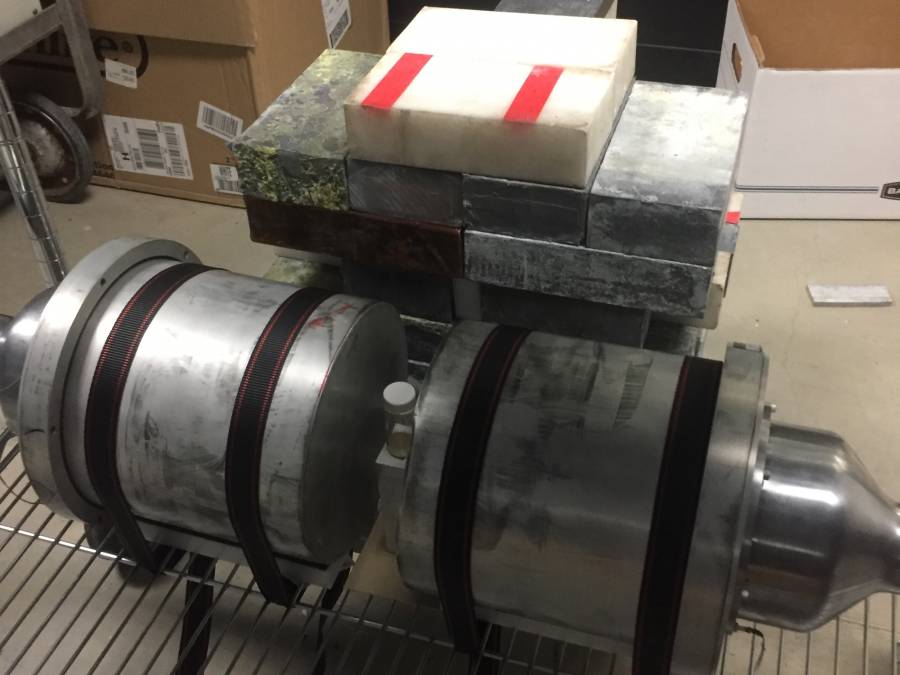

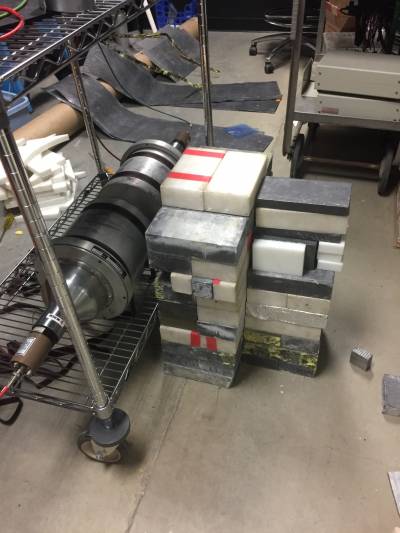

  • Large lead/poly shielding around source, nothing between source and Gd target
  • Not sure why source only run has a higher rate at low energies

Figure 3:	Figure 4:

Figure 5:

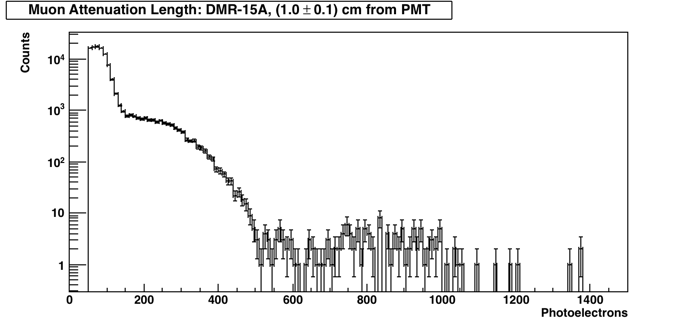

• Muon runs for attenuation length

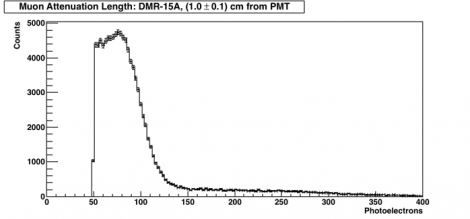

  • Commercial scintillator has attenuation length of 150cm for 1x20x200cm slab of BC-400 (the slabs we have)

Figure 6:

• Paper discussion

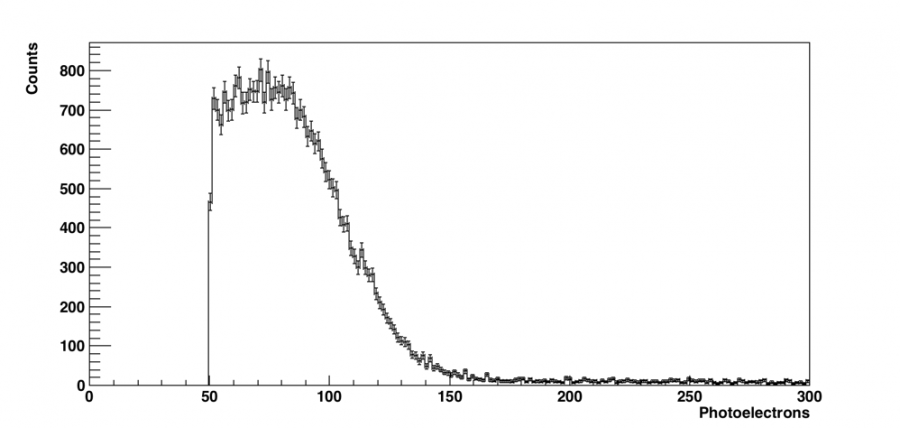

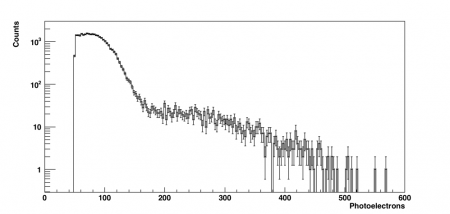

• Na-22 analysis
  • New energy deposition sim needed
• WLS fiber trapping efficiency
• NaI detectors

• Reflectivity/WLS Efficiency Study

• Neutron capture results

• WLS Trapping Efficiency comparison (light loss)

• Capture measurements using thermal neutron background
  • Upper bound of capture rate: 700 captures/hour
  • Coincidence between Detectors B and C (0.4 MeV thresholds)
  • Detectors summed, weighted by run time, neutron flux

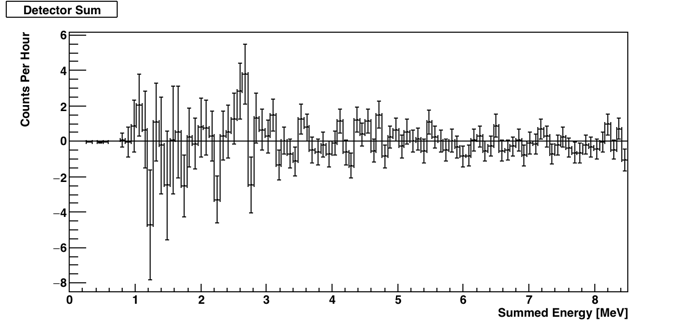

  • Background run subtracted from run with Gd
    • Background rate = ~1 Hz
  • Observed 1±10 counts/hour more between 0 and 8.5 MeV when Gd present
    • Limits of coincidence, gamma angles
• Will be using PuBe source for next set of runs

• NaI pulse shape analysis
• Cf-252 runs with NaI detector

• Cf-252 runs with NaI detector

• NaI detector characterization

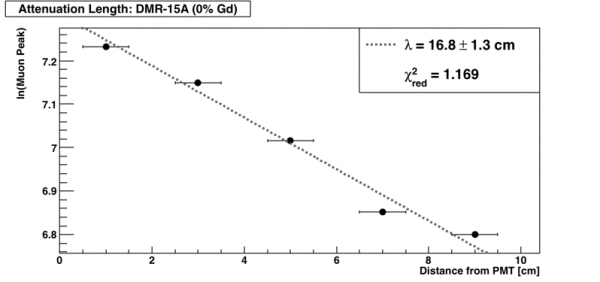

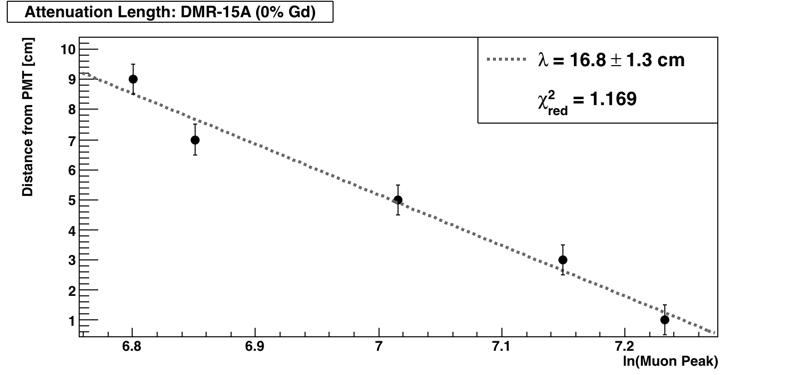

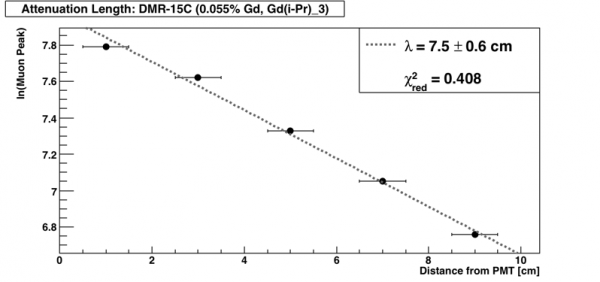

• DMR-15 attenuation length
• Paper draft will be locked starting Monday for edits
• Ignore below
  • SiPM response function
  • SiPM discussion
    • | Quote from CAEN
    • CMS SiPMs
    • Other options?

• Finished filling out paper figures list (with some minor questions still needing to be resolved)
  • Reference to Paper Figures

• Cf-252 runs
• Updated LCAE attenuation length analysis
• Paper discussion
  • Which samples do we want to discuss?
  • Include fiber trapping efficiency?
  • Author list
• SiPM issues
• TB4 board

• Energy of gammas entering scintillator (and a PE count set)
• Muon Energy Deposition in Scintillator
• See next week for paper figures list

• LCAE-01,04 attenuation length

• See Nov 9 meeting for updated Energy plots (added inspection of thermal neutron generation rate)

• Introduction and comments
• V4 -- Computational Contributions (Writeup I wrote before/during summer)

• LCAE sample attenuation length
• Sample mailed to SNOLAB for radiopurity measurement, should start counting Monday
• CAEN update – Hannah
• TB4 update
  • Waiting on response from Paul
  • Documentation says max trigger rate is ~10Hz
• Paper update
• Tanmay research project?

• Comparison plots: Cf252 Neutrons, Gammas, N+Bucket, N+Bucket+Gd

• See next week for updated results

• CAEN update
  • Need pre-amp for experimental setup
  • Will email Paul about TB4 board
• PDE measurements

• LCAE sample characterization
  • Rescale to photoelectrons?

• Updated old agenda details with pages and details
• Gamma Spectrum -- 1 keV neutron capture on Gd
  • Seems to indicate that high energy gammas were being produced by some process involving neutron capture with high energy neutrons

• Cf252 Neutron Spectrum (using this moving forward)
• New PE Count results with updated Cf252 spectrum (not much different from old spectrum)
• Possible other physics lists to use:
  • HP Neutron Capture Model G4HadronPhysicsShielding class reference
  • Conclusion: We are probably already using the data that these high precision neutron capture classes use, so there should be no problem
• Terminal Output of Gd Capture Events with total gamma energy>8.5 MeV

• PMT quantum efficiency measurement
• SiPM gain measurements

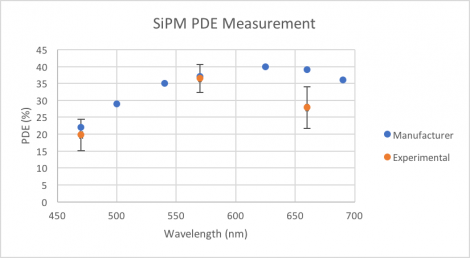

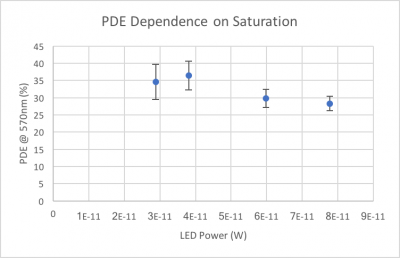

• SiPM PDE measurements
• Future plans:
  • ????
  • Cf-252 runs with Gd vial, poly
  • LCAE sample characterization
  • Paper
• Tanmay
  • Started training with basic experimental procedures
  • Safety training needs to be done (physics account??)
  • Install Root

• Gamma Spectrum Parameterization
• Possible spectra to consider when making our own Cf252 spectrum to use:
  • Cf-252 Low Energy Neutron Spectrum Paper
  • Cf252 Mid Energy Neutron Spectrum Paper
  • Cf252 High Energy Neutron Spectrum Paper
• Gamma Energy Spectrum due to capture: On H, On Gd

• PMT gain measurements
• PMT quantum efficiency measurement
• Cf-252 runs, update from previous discussion

• Cf-252 Energy Spectrum (wrong)
• Cf-252 Gamma Energy Spectrum (see 9/21 meeting above for parameterization that was shown)
• Gamma Energy Spectrum due to neutron capture on Gd, H (see page under 9/21 agenda for details)

• SiPMs:
  • Can't measure photocurrent directly. Current (~0.2 milliamps) is too large for Keithley 237 ammeter but current fluctuations are too small for microammeter to measure. This method also injects a lot of noise into the SiPM circuit so I wasn't able to see individual photoelectrons.
  • Tried a new method to measure SiPM PDE
    • Results are still being analyzed
• PMT:
  • Wrote LabVIEW program that histograms pulse amplitude as well as area in real time.
  • Began by self-triggering to get 1st photoelectron peak, but had trouble getting second photoelectron peak with light leaks.
    • 1st PE at about 16mV
  • Tried triggering on LED flashed using pulse generator to get individual photons
    • Do we have any pulse generators with faster rise times (<5nsec)?
    • Will measure single PE amplitude and area as a function of PMT bias this coming week.

• I had to move out of my apartment this past weekend so I will be out of town from tomorrow through Labor Day.
• I will be catching up on documentation and writing more of the paper.

• PE Counts in Gamma Catcher, Cf252 Neutrons with Trigger
• Eclipse vacation for past week took up time; will need to do commenting/editing run of paper in next few days before band starts on Thursday

• Finished TB4 board and SiPM characterization measurements
• Subsequently, the calculation of SiPM gains could be done
• PMT, SiPM quantum efficiency measurements
  • Measured anode responsivity of PMT successfully
  • Issues:
    • SiPM doesn't give good results
    • No known gain for PMT so anode responsivity cannot be converted to quantum efficiency
  • Is there a way to measure cathode responsivity directly?
  • How can we measure the gain of the PMT?
  • Should I add correction for photodetector surface area?

• DMR-16 characterization (varied BPO concentration, polymerization time)
• DMR-17 results (oven, WLS fiber)
• Updated monochromator runs on long Gd-loaded samples with new data
• LCAE sample characterization

• Cf-252 runs, update from previous discussion
  • Sum of PE peaks
  • Runs to do in future?
• Paper progress

• Early July: Paper revision
• Late July: Updated PE Count info
• Early August: Updated muon details

• TB4 board and SiPM characterization
  • SiPM C is bad, not channel 2
  • Several errors in prior analysis, code were misleading
• Cf-252 runs with poly, various triggers
• Various monochromator measurements
• Experimentations with the Test Equity 1000 Temperature Chamber
• DMR-17 Scintillator Samples
• Plans for this week
  • Paper edits
  • Monochromator runs on DMR-16 samples (BPO, polymerization time)
• Reminder: I will be gone on vacation from Friday 7/28 to Friday 8/4

• Results from this past week
  • Baseline subtraction methods
  • Haven't yet implemented new firmware
    • Channel 2 mostly useless
• Things I need from with Ryan:
  • Histogram of number of photoelectrons detected by SiPMs that were produced by gammas from thermal neutron capture on Gd
  • Coincidence percentage: the percentage of detections where more than one photoelectron was detected by more than one detector
  • Percentage of neutron capture events where no photoelectrons are detected by any detector

• See results from last week (if Prisca hasn't already seen them)
• Haven't yet tested new unloaded sample with uncut back

• Fixed Hannah's edits, want to go through paper again myself before D'Ann looks at it
• New samples polymerized - testing time in water bath, BPO concentrations
  • Have not yet polished/tested
• On vacation from 7/28-8/4 and 8/10-8/13

• Monochromator runs on new samples
• Cf-252 runs
  • Go after neutron captures via external triggering
  • Max pulse length = 500 bins (2.4 microseconds)
• New batch of samples is polymerizing (various BPO concentrations, cooling times)
• Muon runs on new samples (not finished)

• Monochromator runs on new samples
  • previous monochromator spectra
• TB4 issues identified
  • Ch. 2 stops working after 2.5 hrs (comes back after about an hour)
  • Add fan under board?
• External trigger, long analysis currently in progress
  • (see reduction code)

• Polished some samples, can see some crazing still on inside face
  • Top and bottom of samples machine quite differently
  • Bottom seems less polymerized than top of samples
• Observed dark room temperature fluctuations: +/- 0.1 C
• TB4 issues: SiPM 3/Ch. 2
• Cf-252 analysis questions

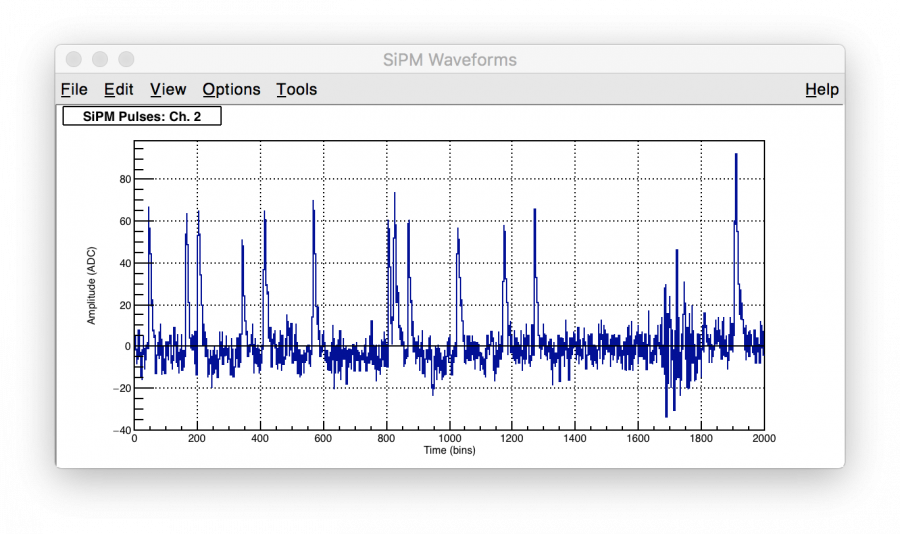

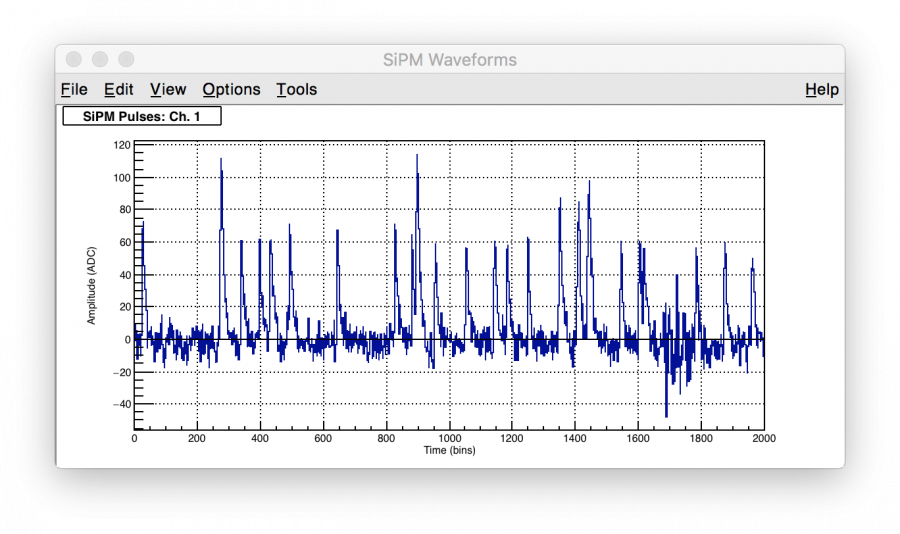

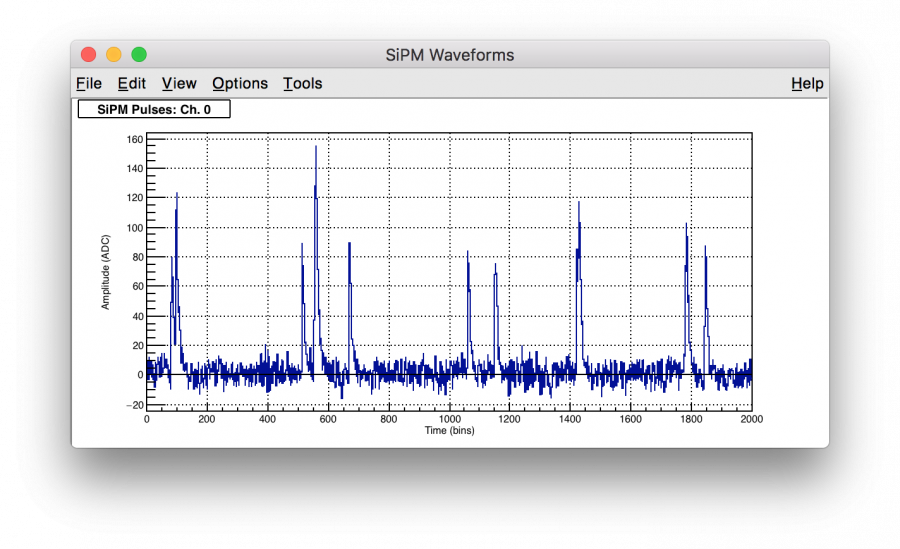

  • Number of counts per second for each channel
  • Total number of photoelectrons detected over 10 microseconds
  • Frequency with which all three channels are 1 PE or more within a certain time window (e.g. 10 nsec coincidence)
• Still have stuff to do from last meeting

Figure: Waveforms for long window, external trigger of TB4 SiPMs
Ch. 0
Ch. 1
Ch. 2

• 7 new samples made
• Fairly low on Gd(i-Pr)₃ after fabrication
• Gd(TMHD)₃ dissolved in sample H after 45 min of sonication
• Received samples from LCAE group
  • Have not been machined or polished yet

• TB4 firmware received from Paul – no idea how to write to board (nor does Hannah)
  • Need Xilinx cable
• Recent runs documentation and procedure are in the process of being written up
• Will try higher thresholds, new trigger possibilities next week

• Need to get .zip files from Ryan's computer
• Will play around with it this weekend, notes in Ryan's email

• Finished Hannah's edits
  • Check legality of discussion in “Gadolinium Compound Trials”, all of the information included had been disclosed in first email communication with LCAE group
• Is Ryan's section ready to Latex?

link to powerpoint

March 2, 2017 Scintillator Meeting

LCAE Presentation

CDMS Presentation

link to powerpoint

backup slides

link to powerpoint

link to powerpoint

link to powerpoint

link to powerpoint

link to powerpoint

link to powerpoint

link to powerpoint

link to powerpoint

link to powerpoint

link to powerpoint

link to powerpoint

link to powerpoint 2

link to powerpoint 3

link to powerpoint

link to powerpoint 2

link to powerpoint

link to powerpoint 2

link to powerpoint

link to powerpoint

link to powerpoint

link to powerpoint

link to powerpoint

link to powerpoint

link to powerpoint 2

link to powerpoint

link to powerpoint

link to powerpoint

1. Presentation by Ryan and David-Michael
   1. Latest muon results
   2. Computational update

1. Presentation by Ryan and David-Michael
   1. CAD design for gamma catcher
   2. Muon results, comparisons between samples
   3. Computational update
   4. Future plans: Na-22, monochromator

1. Presentation by Ryan and David-Michael
   1. New muon data - results are much closer to old data from Alex and Hannah
   2. Some computational issues resolved

1. Presentation by David-Michael and Ryan (give quick description of topic) link to presentation

2. Discussion about future meeting times (Thursdays around 3:00 or Thursday mornings if Prisca can call in)

3. ??

4. Status update on paper: Dropbox link

link to powerpoint

link to powerpoint 2

link to powerpoint

link to powerpoint
