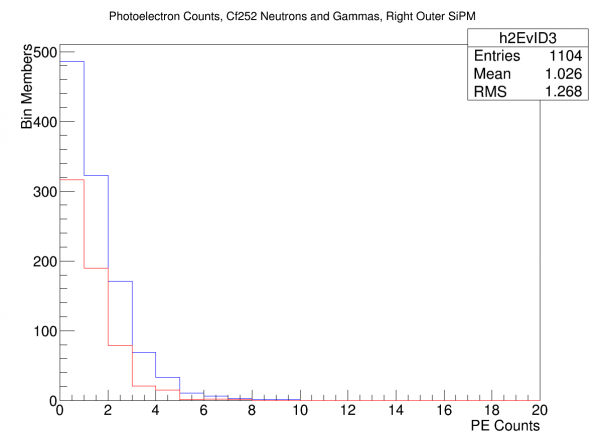

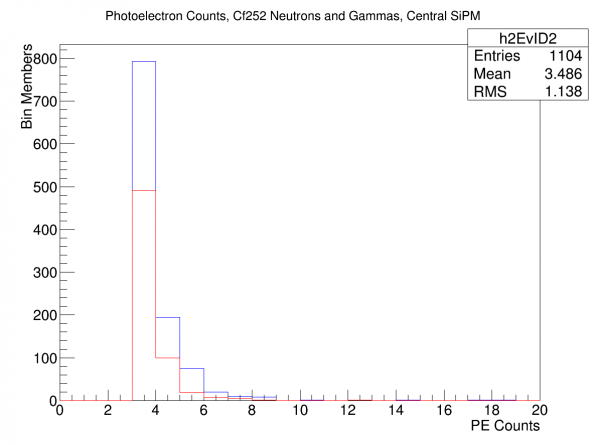

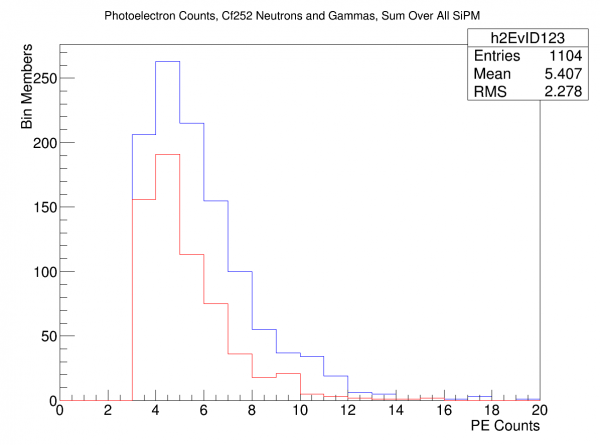

These are a comparison between Cf252 Neutrons and Gammas, placed 20.7 cm above the plastic scintillator slab, with no shielding.

Red = Neutrons Blue = Gammas

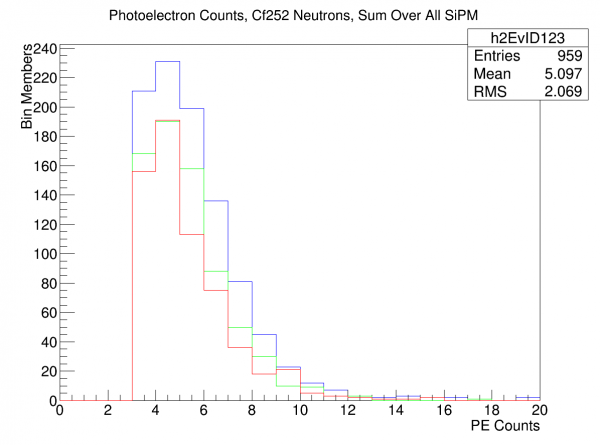

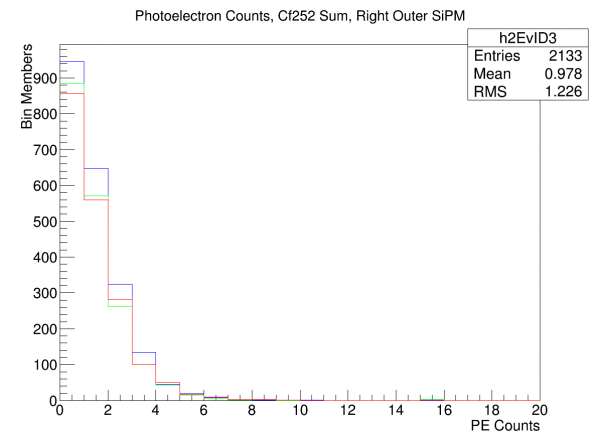

Comparison between Cf252 Neutrons with no shielding, with shielding, and with shielding and Gd vial

Red = No shielding Blue = Shielding, no Gd Green = Shielding, with Gd

[there are clear inconsistencies here; I want to investigate more to see if this is still a result of the same issue I was encountering on Tuesday.]

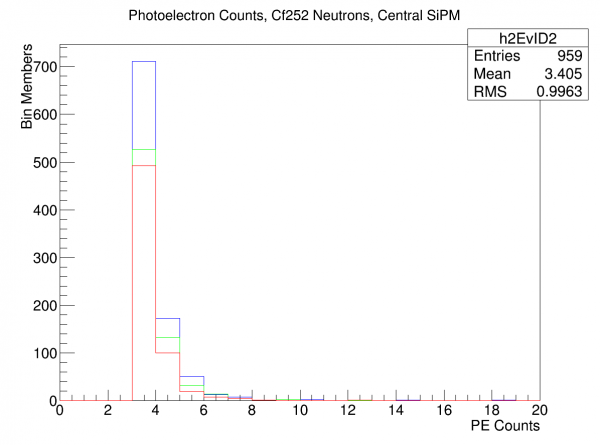

Figure 1: 3 PE Trigger, SiPM A	Figure 2: 3 PE Trigger, SiPM B

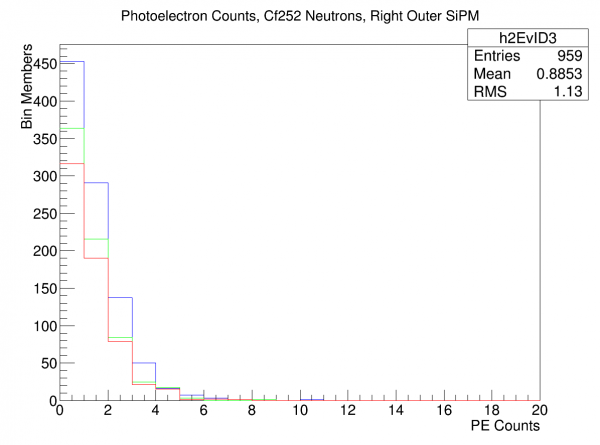

Figure 3: 3 PE Trigger, SiPM C	Figure 4: 3 PE Trigger, Sum of SiPMs A,B,C
Figure 5: 3 PE Trigger, Sum of SiPMs B,C

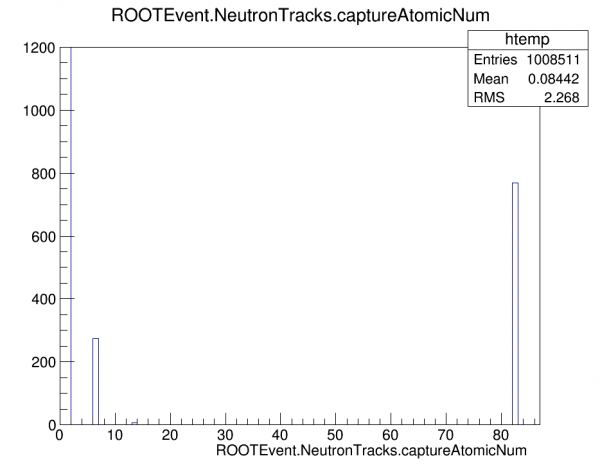

Figure 6: Neutron captures (in run with Gd present)

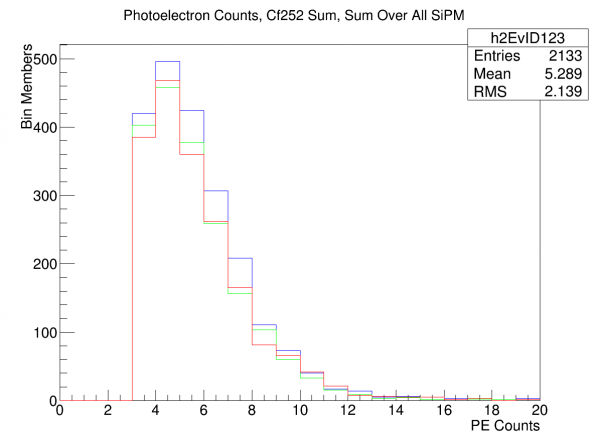

Same coloring convention as above: Red = No shielding Blue = Shielding, no Gd Green = Shielding, with Gd

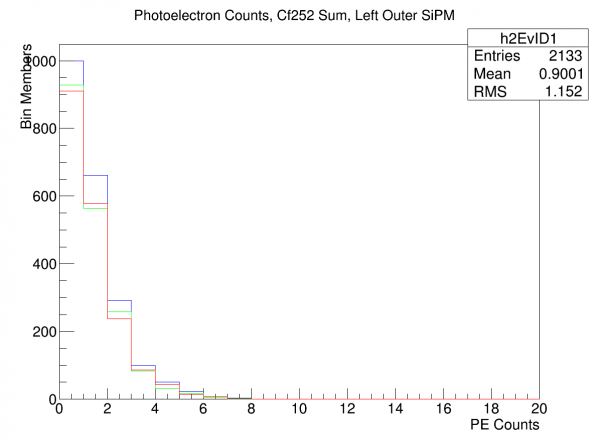

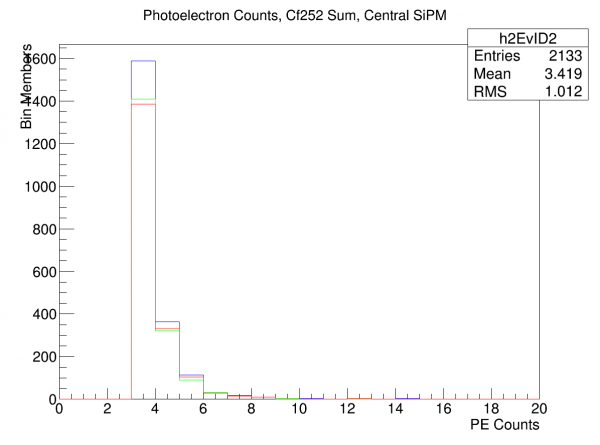

Figure 1: 3 PE Trigger, SiPM A	Figure 2: 3 PE Trigger, SiPM B
Figure 3: 3 PE Trigger, SiPM C	Figure 4: 3 PE Trigger, Sum of SiPMs A,B,C

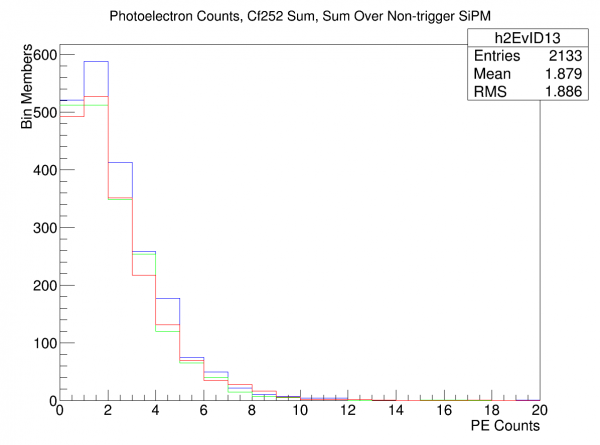

Figure 5: 3 PE Trigger, Sum of SiPMs B,C

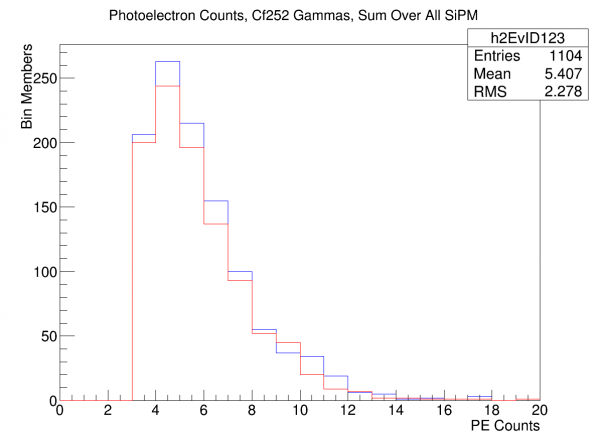

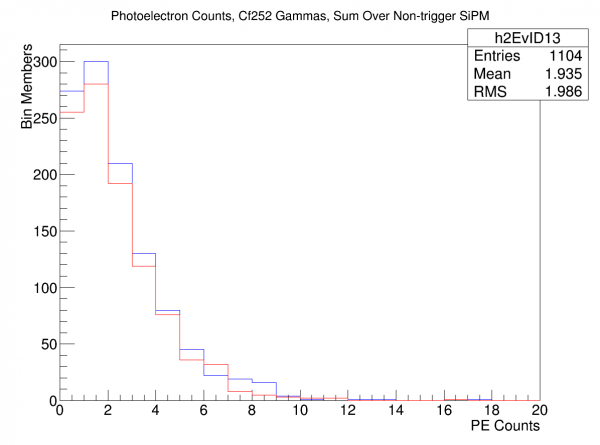

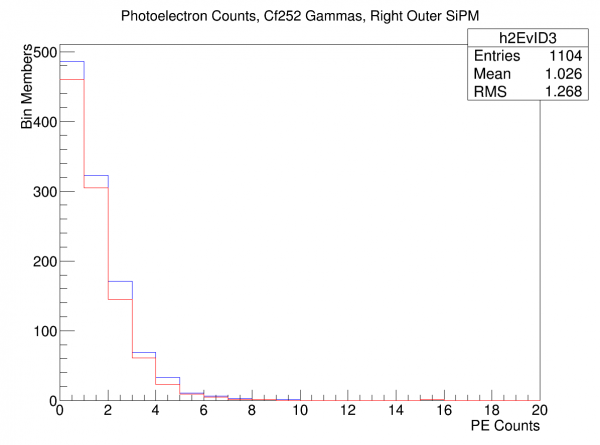

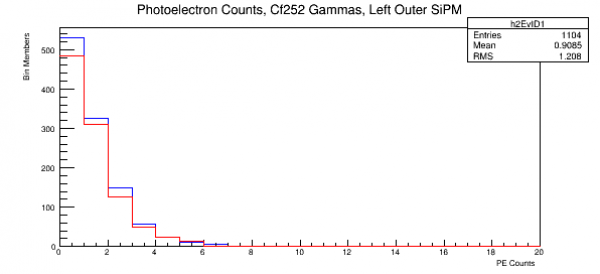

Blue = Unshielded Red = Shielded (with bucket)

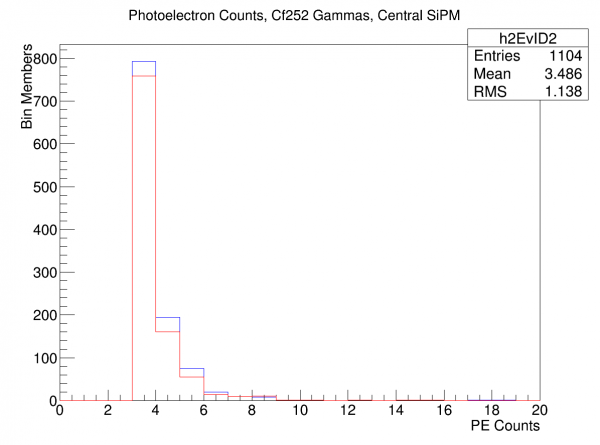

Figure 1: 3 PE Trigger, SiPM A	Figure 2: 3 PE Trigger, SiPM B
Figure 3: 3 PE Trigger, SiPM C	Figure 4: 3 PE Trigger, Sum of SiPMs A,B,C
Figure 5: 3 PE Trigger, Sum of SiPMs B,C
