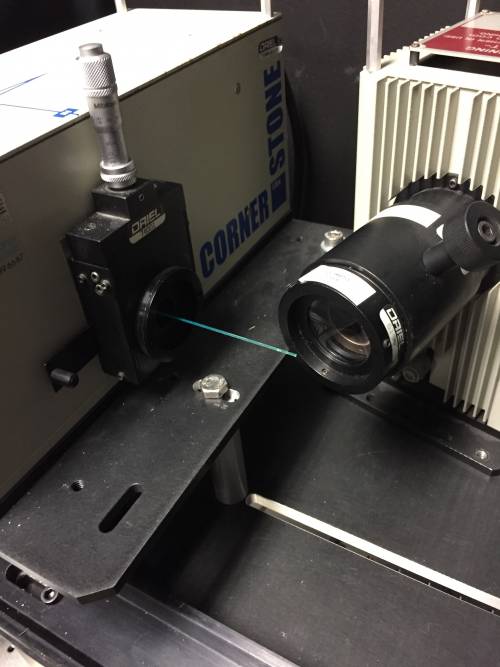

An Oriel 68830 Constant Current Power Supply) attached to a Xenon bulb mounted in an Oriel lamp housing was used to illuminate a 10cm long Kuraray Y-11 WLS fiber, as shown in Figure 1. The power supply was set to about 12W. The fiber was held in place by the monochromator input slits. A spectrum was taken with and without the fiber in place.
Notable differences were observed between the measurements previously recorded here.

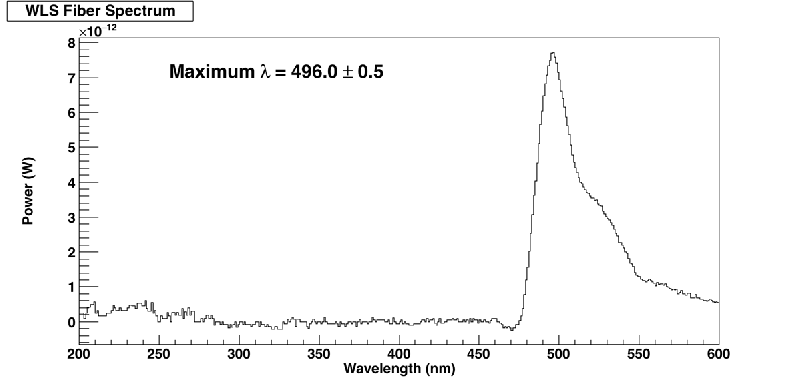

| Figure 2: WLS Fiber Spectrum |
 }} |
| Compare with manufacturer's spectrum here. |
The spectra of two different lamps found in the lab are shown below. No specific details are known about each light source. Lamp 1 was used to light the WLS fiber

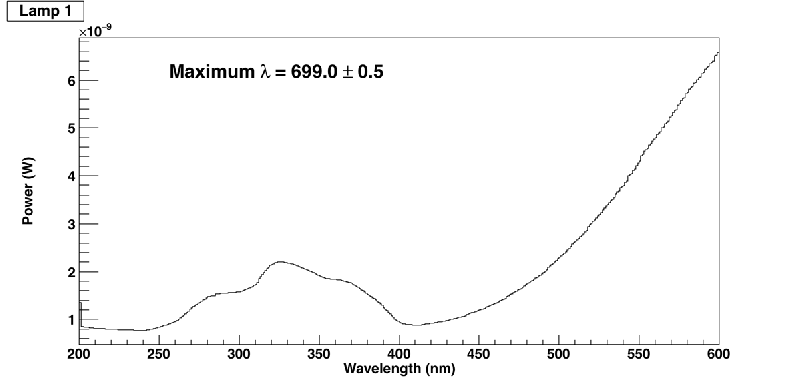

| Figure 3: Lamp 1 |
 |

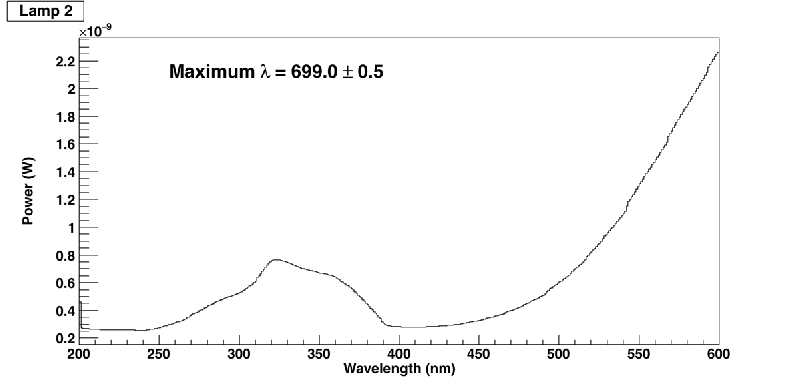

| Figure 4: Lamp 2 |
 |
