Cf-252 Runs on 2017/07/24

Table 1: SiPM Connection Setup
Channel	SiPM
0	A
1	B
2	C

Table 2: Summary of Run Trigger Rates
# Photoelectrons Triggered On	“No Source” Run Rate (Hz)	“Source” Run Rate (Hz)	“Shield” Run Rate (Hz)
2	16.9	16.9	16.9
3	16.9	16.9	16.9
4	16.1	16.6	16.4
5	12.4	15.3	14.5

The gain calculations to covert SiPM C's pulse area to photoelectrons may need to be tweaked slightly. The gain fit shown here was done with muons. However, it has been observed previously that SiPM C can be quite temperature-sensitive.

2 PE Trigger

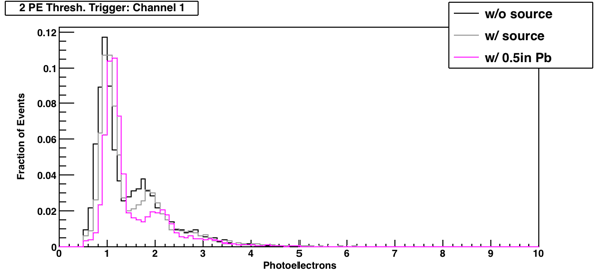

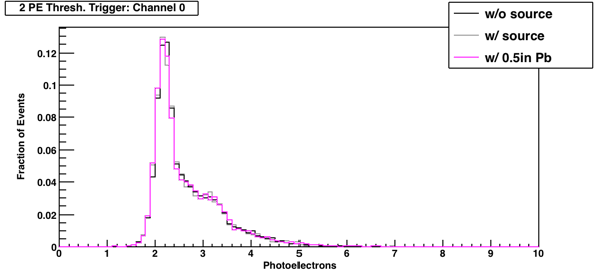

Figure 1: 2 PE Trigger, SiPM A	Figure 2: 2 PE Trigger, SiPM B

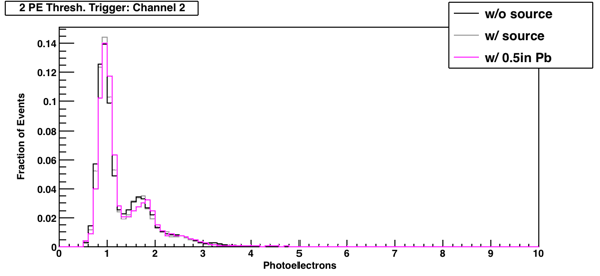

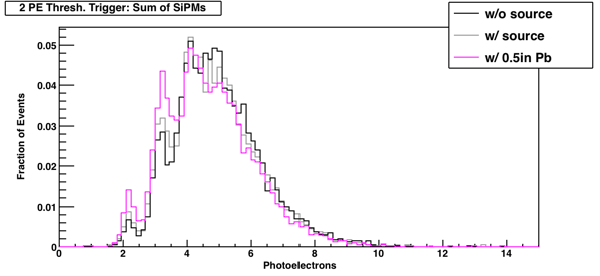

Figure 3: 2 PE Trigger, SiPM C	Figure 4: 2 PE Trigger, Sum of SiPMs A,B,C

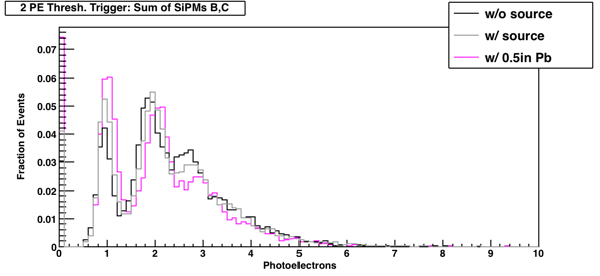

Figure 5: 2 PE Trigger, Sum of SiPMs B,C

3 PE Trigger

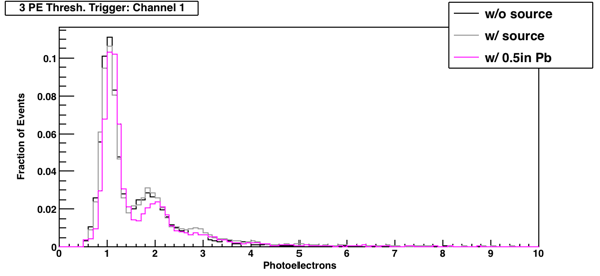

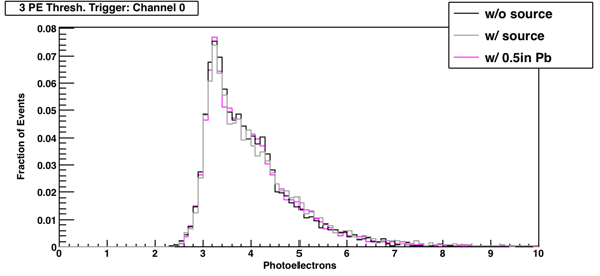

Figure 6: 3 PE Trigger, SiPM A	Figure 7: 3 PE Trigger, SiPM B

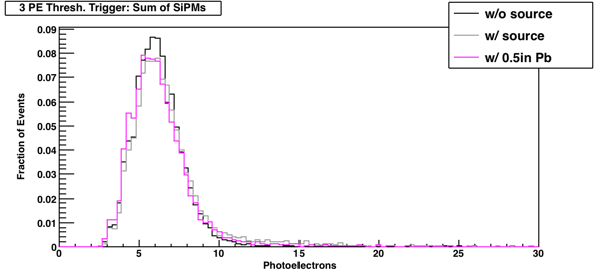

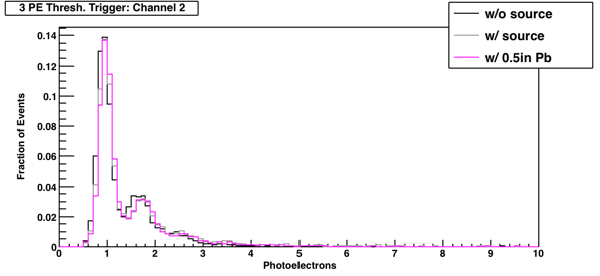

Figure 8: 3 PE Trigger, SiPM C	Figure 9: 3 PE Trigger, Sum of SiPMs A,B,C

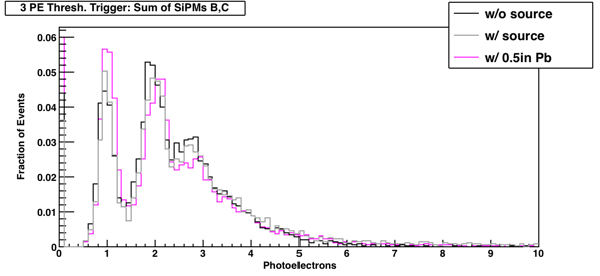

Figure 10: 3 PE Trigger, Sum of SiPMs B,C

4 PE Trigger

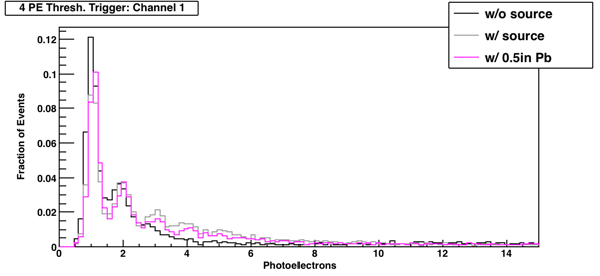

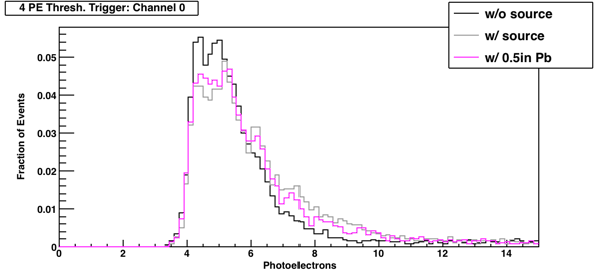

Figure 11: 4 PE Trigger, SiPM A	Figure 12: 4 PE Trigger, SiPM B

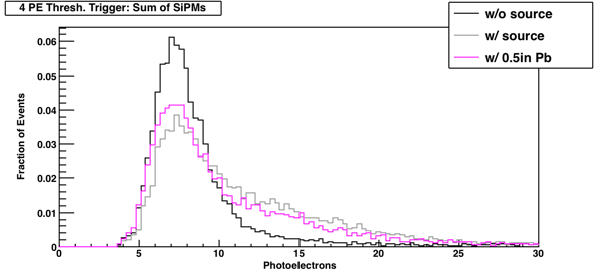

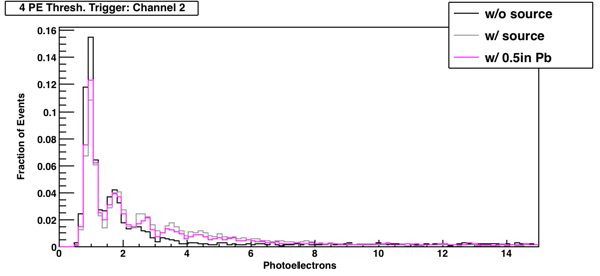

Figure 13: 4 PE Trigger, SiPM C	Figure 14: 4 PE Trigger, Sum of SiPMs A,B,C

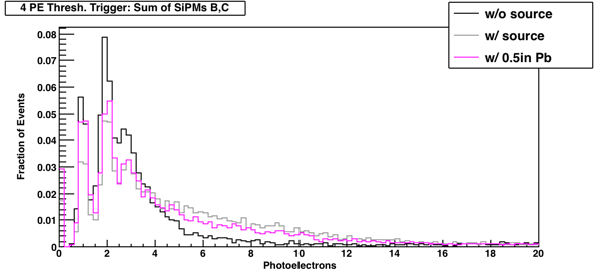

Figure 15: 4 PE Trigger, Sum of SiPMs B,C

5 PE Trigger

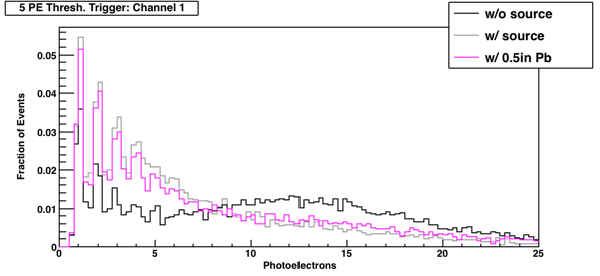

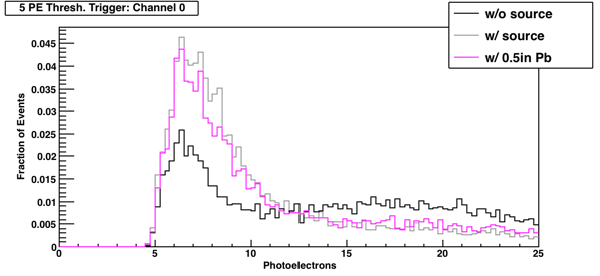

Figure 16: 5 PE Trigger, SiPM A	Figure 17: 5 PE Trigger, SiPM B

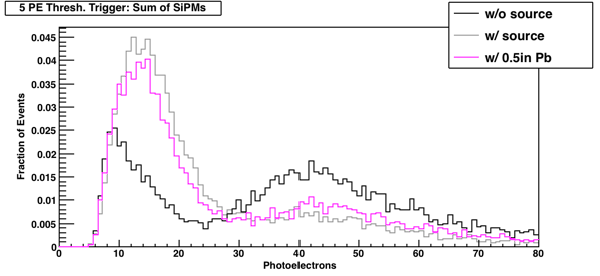

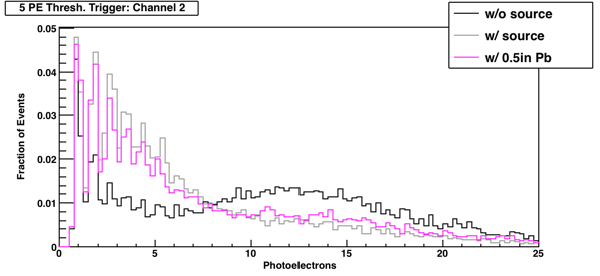

Figure 18: 5 PE Trigger, SiPM C	Figure 19: 5 PE Trigger, Sum of SiPMs A,B,C

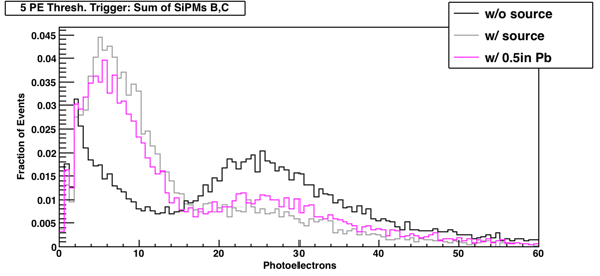

Figure 20: 5 PE Trigger, Sum of SiPMs B,C

Updated Analysis (done on 2017/09/11)

Data was rounded to the nearest integer to replicate accessible simulation data. Muon data was also cut out to give a clearer image of signal

2 PE Trigger

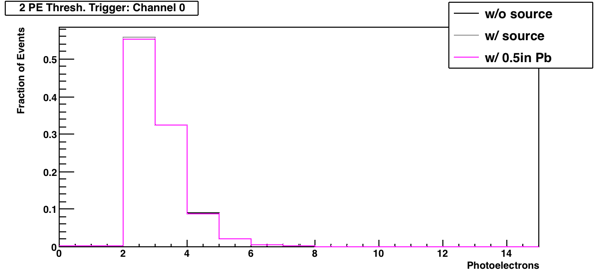

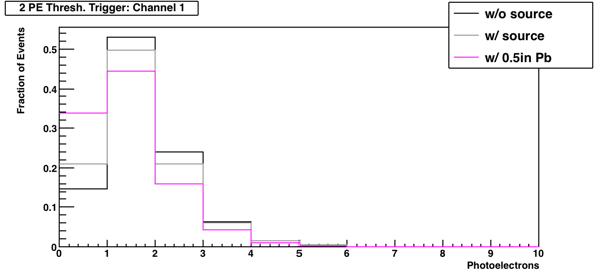

Figure 1: 2 PE Trigger, SiPM A	Figure 2: 2 PE Trigger, SiPM B

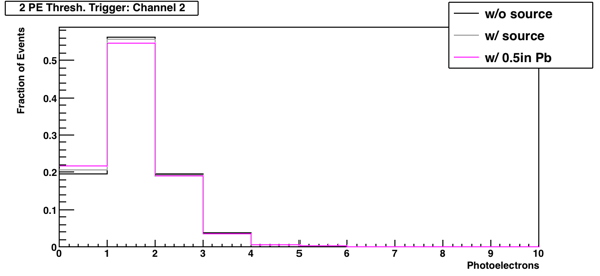

Figure 3: 2 PE Trigger, SiPM C	Figure 4: 2 PE Trigger, Sum of SiPMs A,B,C
	[image not archived: 20170911_cf252_2pe_sum.gif]

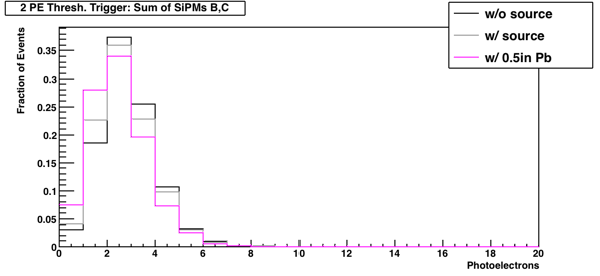

Figure 5: 2 PE Trigger, Sum of SiPMs B,C

3 PE Trigger

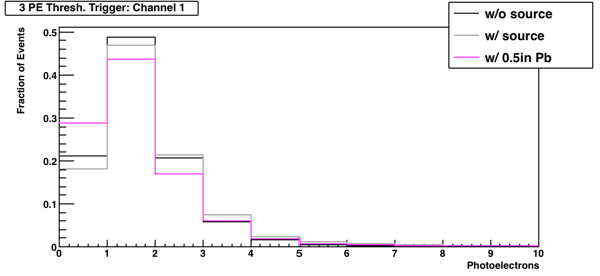

Figure 6: 3 PE Trigger, SiPM A	Figure 7: 3 PE Trigger, SiPM B

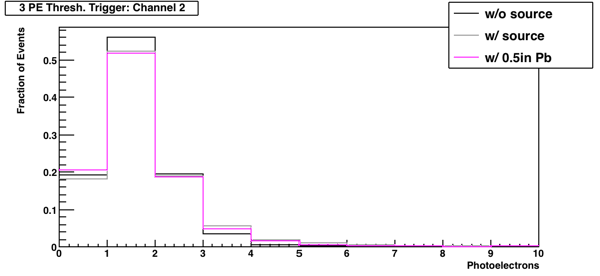

Figure 8: 3 PE Trigger, SiPM C	Figure 9: 3 PE Trigger, Sum of SiPMs A,B,C
	[image not archived: 20170911_cf252_3pe_sum.gif]

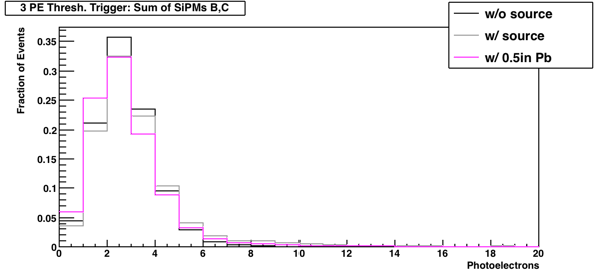

Figure 10: 3 PE Trigger, Sum of SiPMs B,C

4 PE Trigger

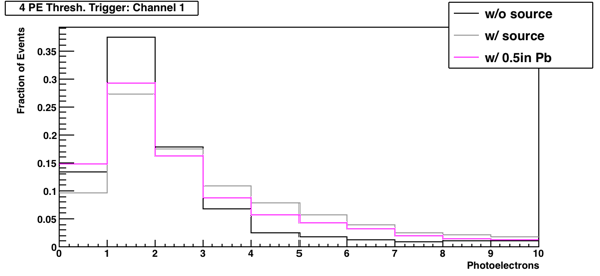

Figure 11: 4 PE Trigger, SiPM A	Figure 12: 4 PE Trigger, SiPM B

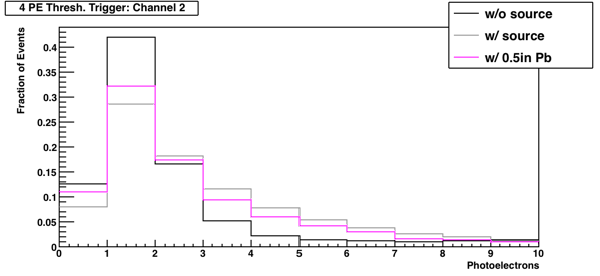

Figure 13: 4 PE Trigger, SiPM C	Figure 14: 4 PE Trigger, Sum of SiPMs A,B,C
	[image not archived: 20170911_cf252_4pe_sum.gif]

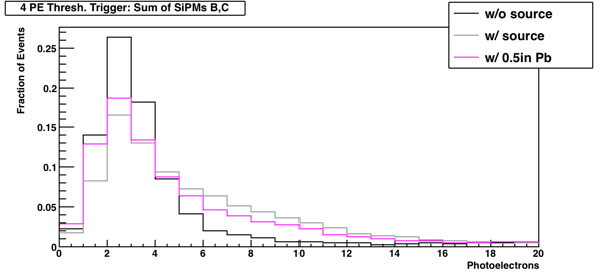

Figure 15: 4 PE Trigger, Sum of SiPMs B,C

5 PE Trigger

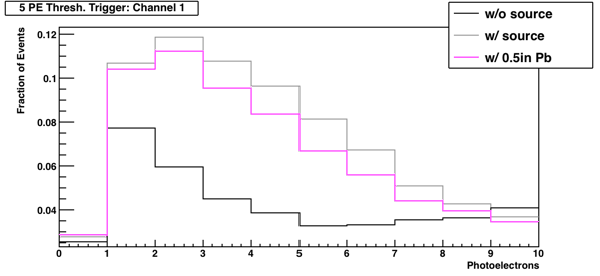

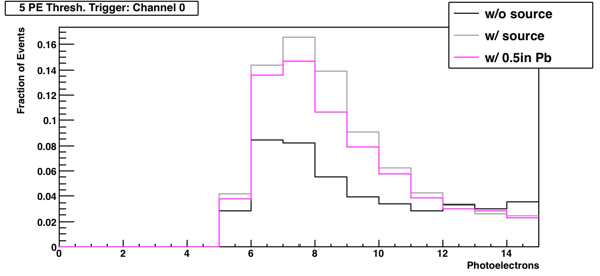

Figure 16: 5 PE Trigger, SiPM A	Figure 17: 5 PE Trigger, SiPM B

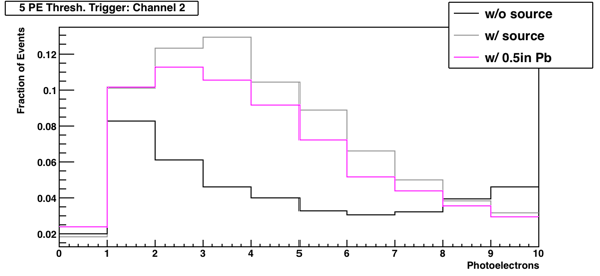

Figure 18: 5 PE Trigger, SiPM C	Figure 19: 5 PE Trigger, Sum of SiPMs A,B,C
	[image not archived: 20170911_cf252_5pe_sum.gif]

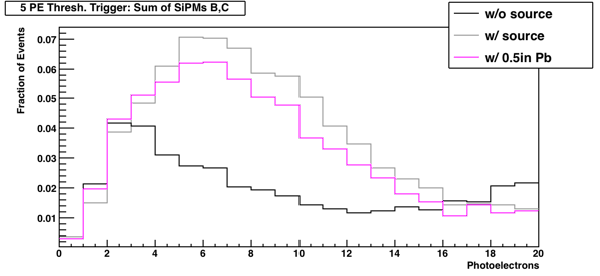

Figure 20: 5 PE Trigger, Sum of SiPMs B,C
