Neutron Capture Results

Na-22 Source Calibration

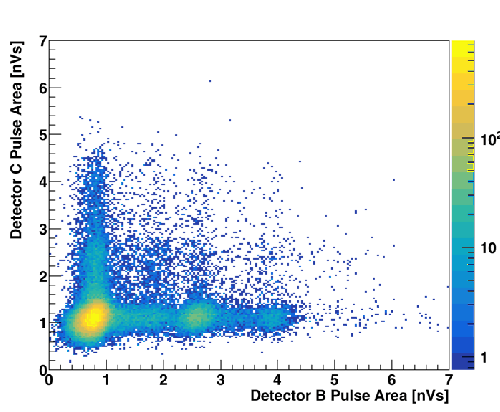

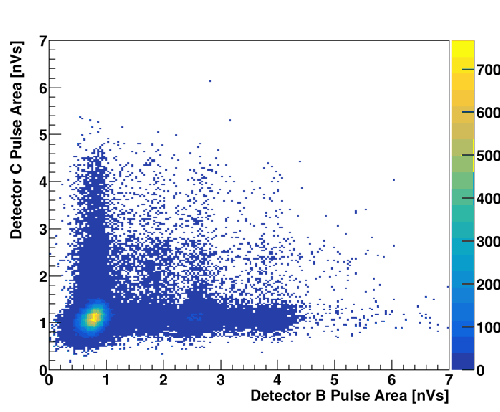

Figure 1: Coincidence plot for Na-22 Source data	Figure 2: Log plot for Z-axis

Table 1: Detector Calibrations
Detector	MeV/nVs
B	0.656
C	0.466

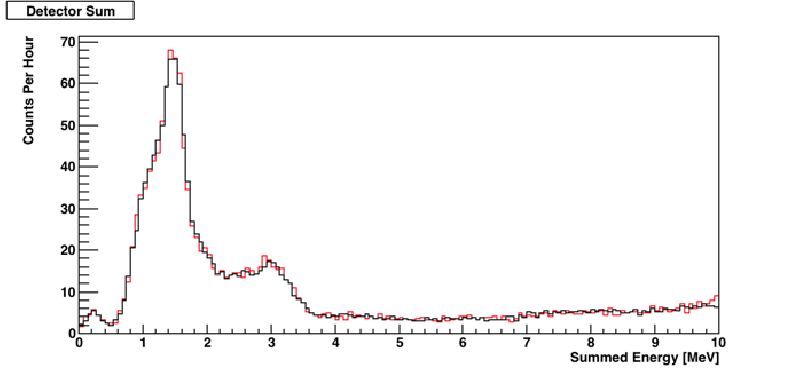

Figure 3: Sum of Detectors B and C, rescaled to gamma energy

Background in black. Gd in red. (need to add legend)

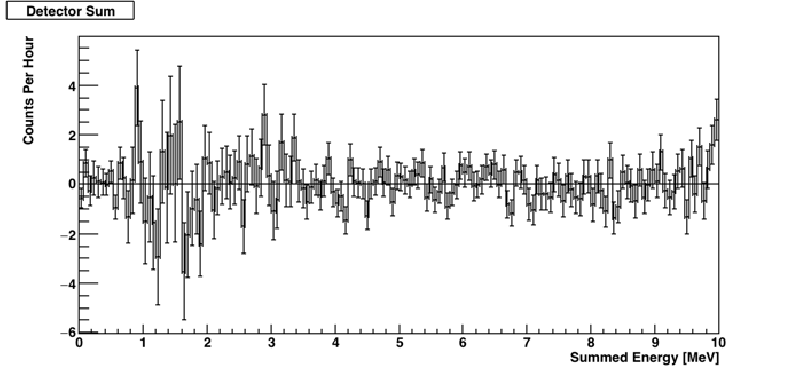

Figure 4:

Background: 34 hours of data
w/ Gd: 18 hours of data
Figure 4 integral from 0.5 to 8 MeV: 5.2 ± 10.5 counts per hour

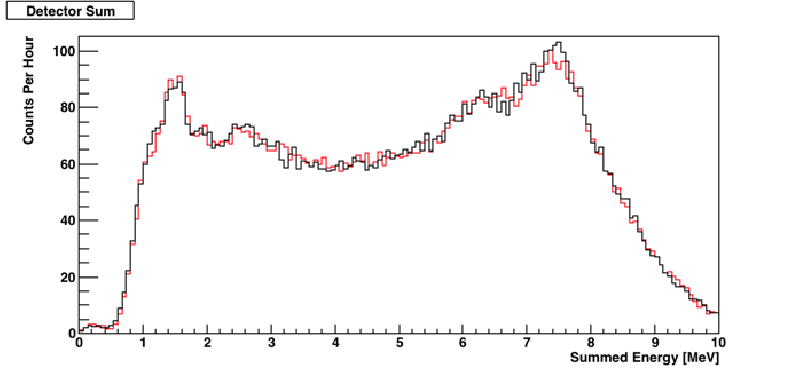

Figure 5:

Background in black. Gd in red. (need to add legend)

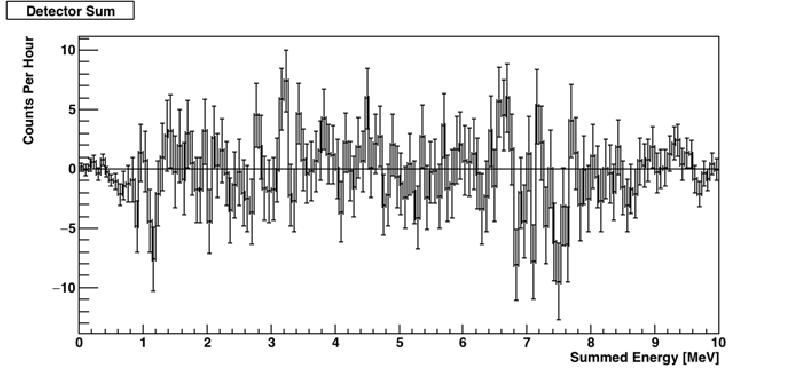

Figure 6:

Background: 17 hours of data
w/ Gd: 21 hours of data
Figure 6 integral from 0.5 to 8 MeV: -10.2 ± 29.8 counts per hour
