SiPM Gain Measurements, 20170912
Procedure
A pulse generator was used to externally trigger the TB4 board at random intervals.
Data

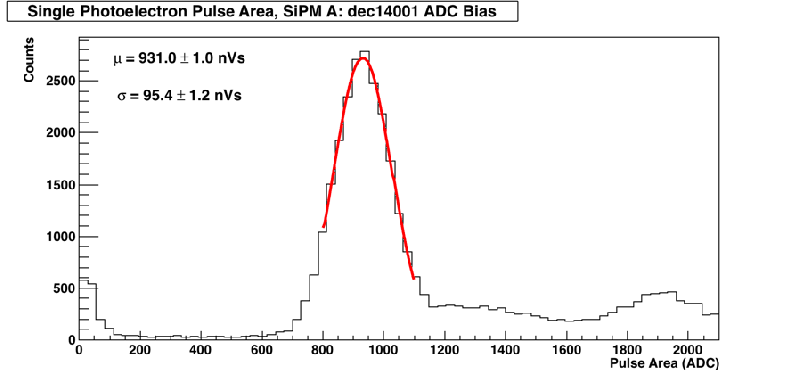

| Figure: |
|---|
 |

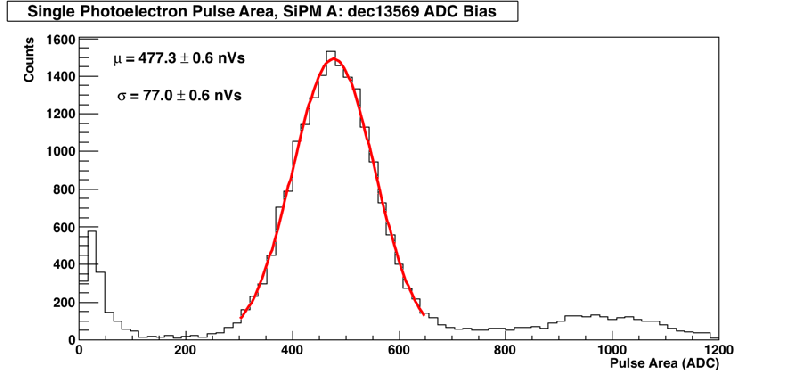

| Figure: |
|---|
 |

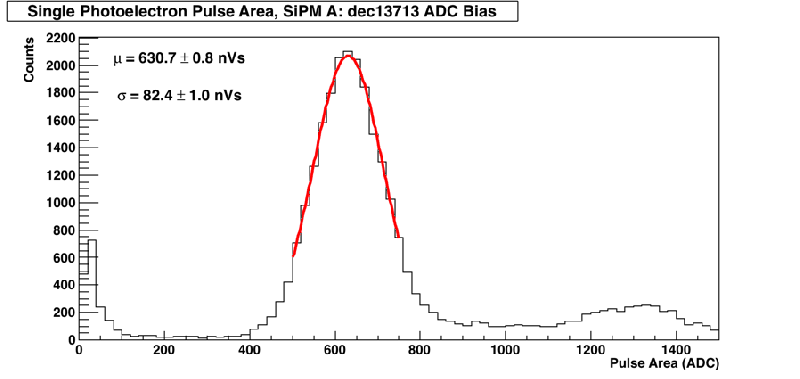

| Figure: |
|---|
 |

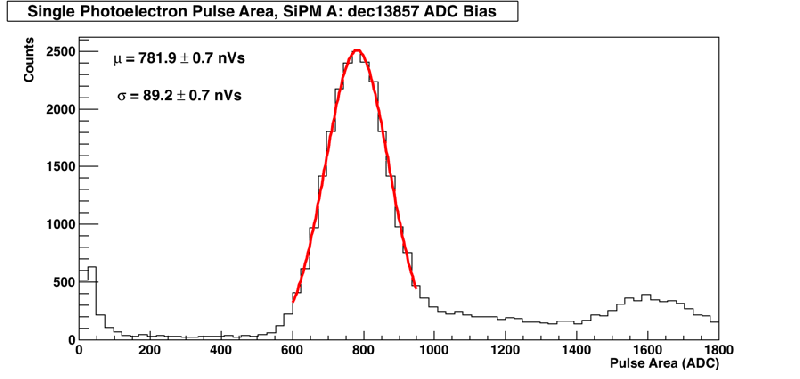

| Figure: |
|---|
 |

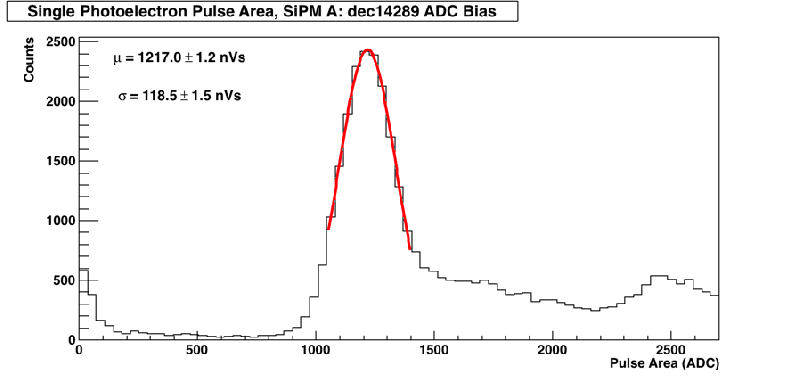

| Figure: |
|---|
 |

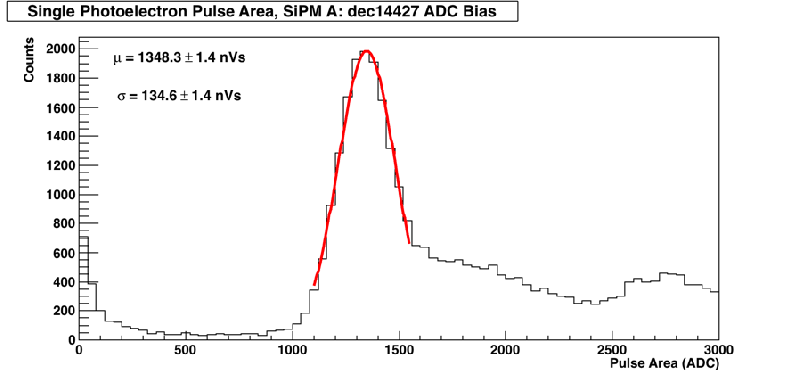

| Figure: |
|---|
 |

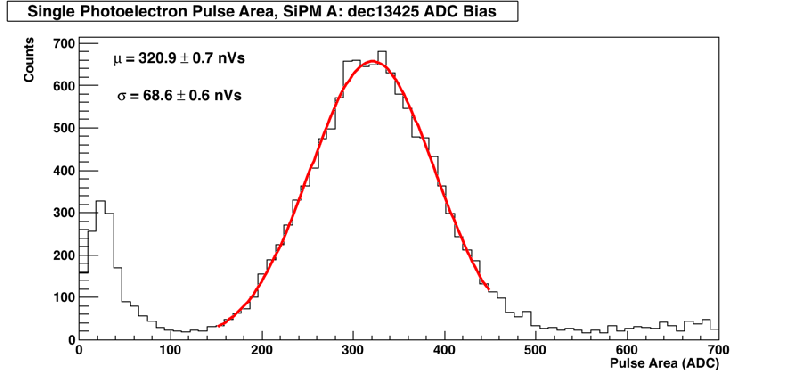

| Figure: |
|---|
 |
| Figure: |
|---|
 |
Analysis

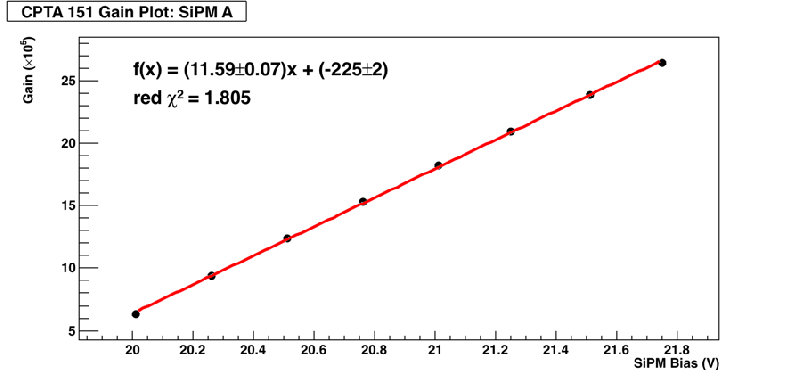

| Figure: |
|---|
 |
Dark Count Rates
| Table 1: SiPM A Dark Count Rates | |
|---|---|
| Bias | Dark Count Rate (MHz) (±0.001) |
| 20.00 | 0.563 |
| 20.25 | 0.903 |
| 20.50 | 1.206 |
| 20.75 | 1.508 |
| 21.00 | 1.754 |
| 21.25 | 1.982 |
| 21.50 | 2.207 |
| 21.75 | 2.196 |
need to fix thresholds and recalc dark counts
Analysis Notes
- Background subtraction method
- Subtract initial value
- Histogram amplitudes for pulse
- Find maximum bin of histogram
- Fit gauss with range of (max-20, max+10) b/c max bin often to right and b/c goes further down bottom side of pulse
- Subtract mean of gauss fit from entire pulse
