Na-22 Analysis

Computational Data

A Monte Carlo simulation was done to determine the amount of energy deposited in a 2.5cm diameter scintillator sample by a pencil beam of 0.511 MeV gammas.

Without collimator

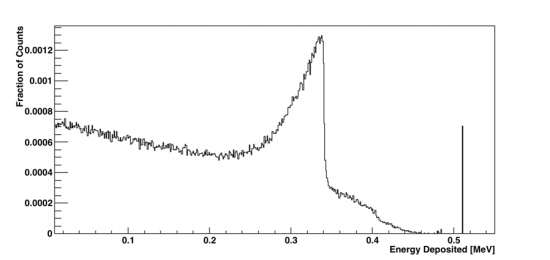

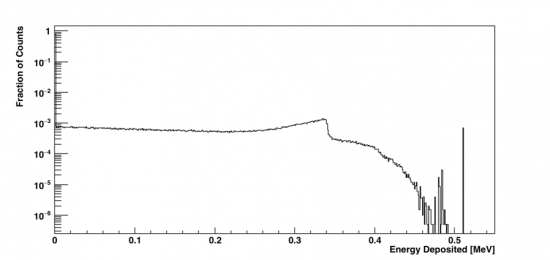

Figure 1: Computational Data, Normal Plot	Figure 2: Computational Data, Log Plot

The most probable value for energy deposited is (0.337±0.031) MeV, with another local maximum at 0.511 MeV
With collimator

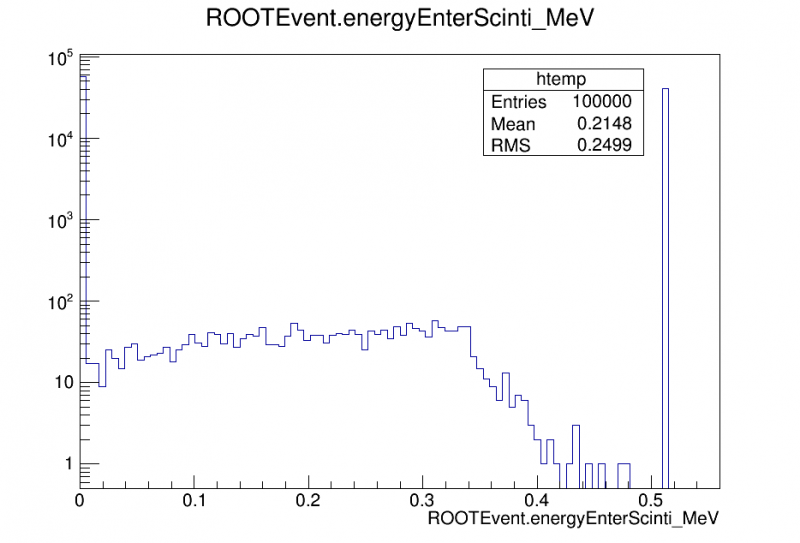

Figure 3: Computational Data, Normal Plot

Wrong geometry, need to fix

Experimental Data

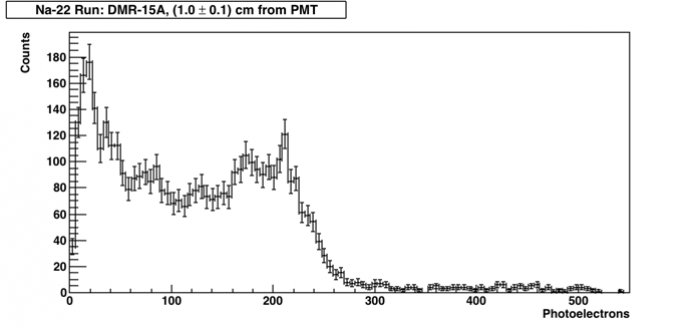

Figure 4: DMR-15 Samples

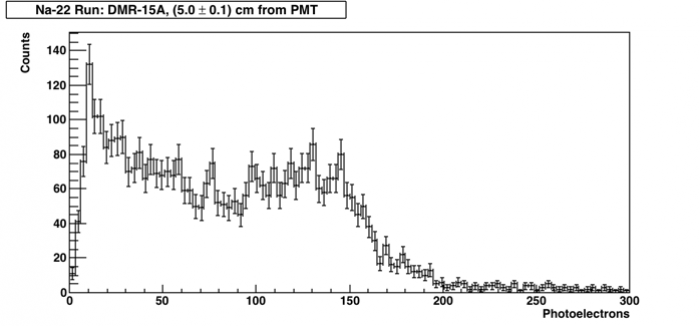

Figure 5: DMR-15 Samples

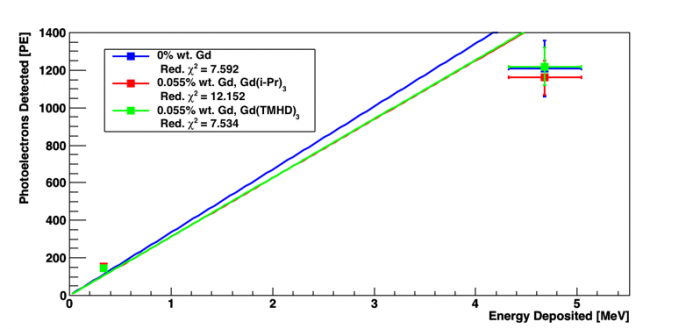

Linearity of Scintillator Response

Figure 6: DMR-15 Samples
