LCAE Sample Attenuation Length
Experimental
LCAE-01: run at 1700V LCAE-01, defect: flipped sample around, run at 2000V LCAE-04: run at 2000V
Data
LCAE-01, defect

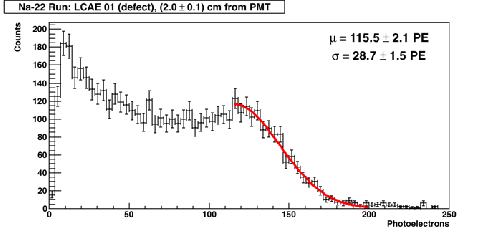

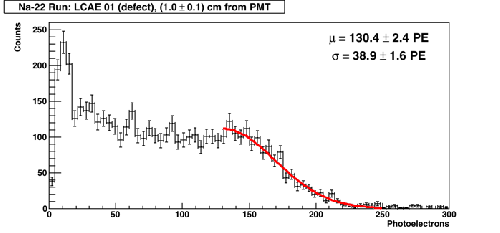

| Figure: Pulse Area Histogram at 1cm | Figure: Pulse Area Histogram at 2cm |
|---|---|
 |  |

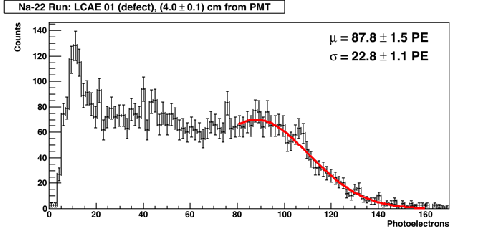

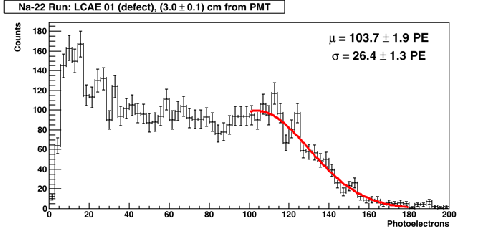

| Figure: Pulse Area Histogram at 3cm | Figure: Pulse Area Histogram at 4cm |
 |  |

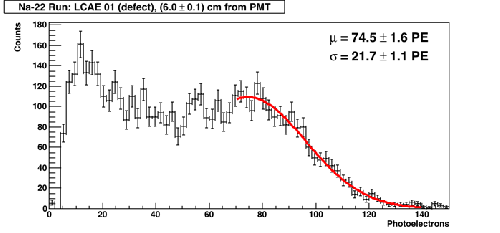

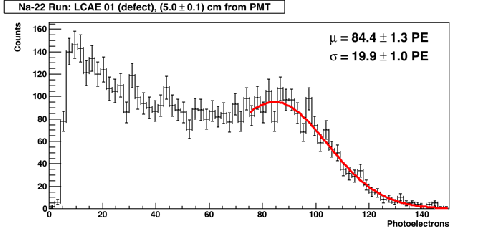

| Figure: Pulse Area Histogram at 5cm | Figure: Pulse Area Histogram at 6cm |
 |  |

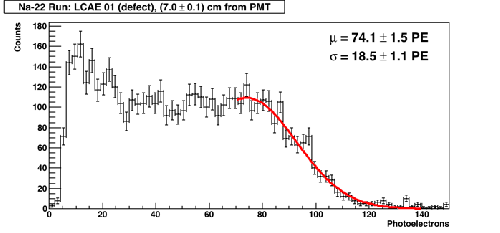

| Figure: Pulse Area Histogram at 7cm | |
 |
LCAE-01

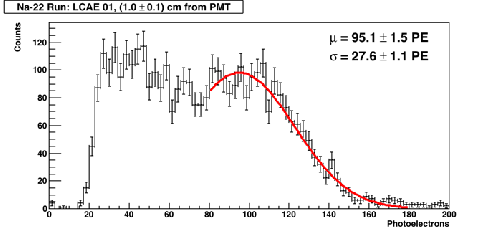

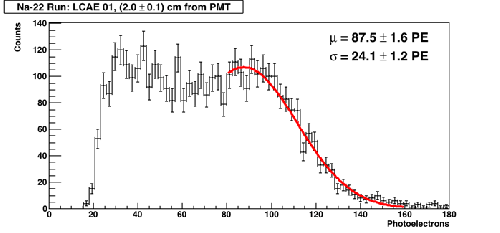

| Figure: Pulse Area Histogram at 1cm | Figure: Pulse Area Histogram at 2cm |
|---|---|
 |  |

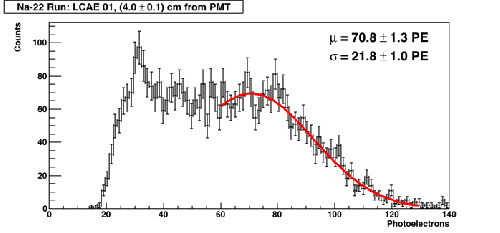

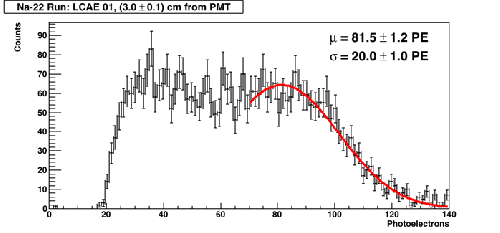

| Figure: Pulse Area Histogram at 3cm | Figure: Pulse Area Histogram at 4cm |
 |  |

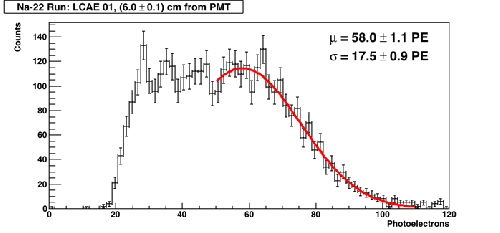

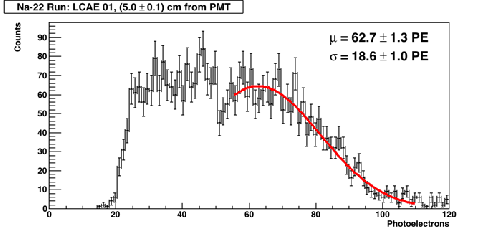

| Figure: Pulse Area Histogram at 5cm | Figure: Pulse Area Histogram at 6cm |
 |  |
LCAE-04

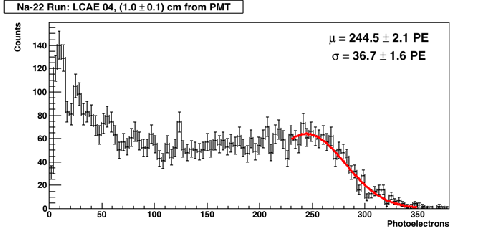

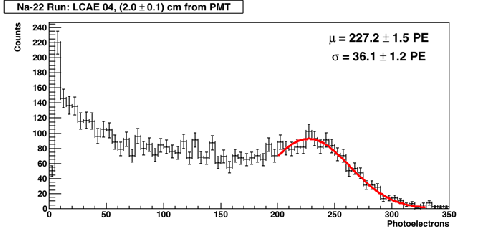

| Figure: Pulse Area Histogram at 1cm | Figure: Pulse Area Histogram at 2cm |
|---|---|
 |  |

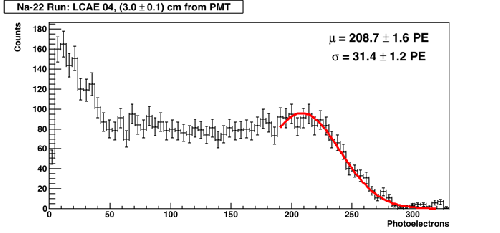

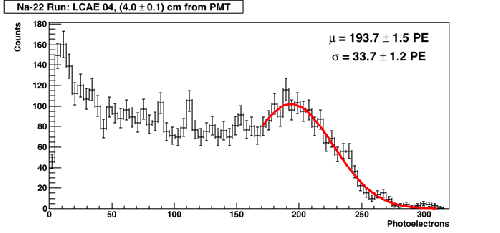

| Figure: Pulse Area Histogram at 3cm | Figure: Pulse Area Histogram at 4cm |
 |  |

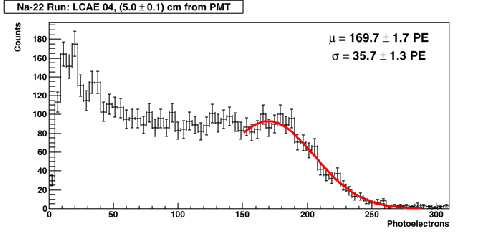

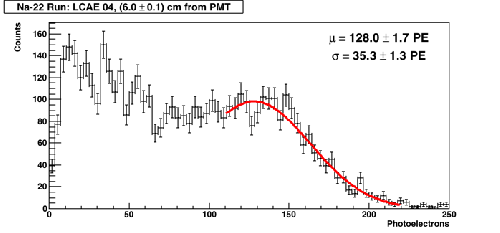

| Figure: Pulse Area Histogram at 5cm | Figure: Pulse Area Histogram at 6cm |
 |  |

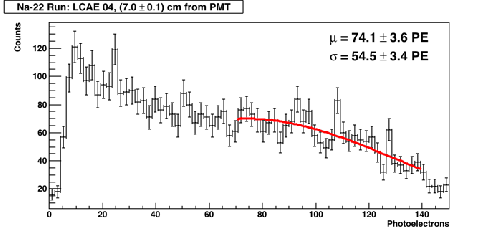

| Figure: Pulse Area Histogram at 7cm | |
 |
Analysis
LCAE-01, defect

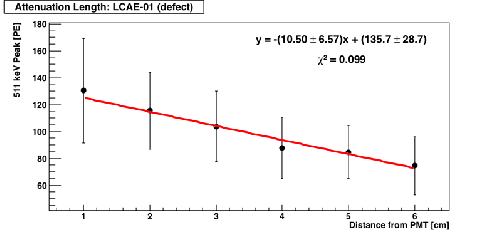

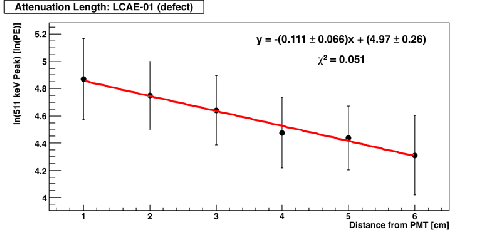

| Figure: LCAE-01, defect (linear, 6 points) | Figure: LCAE-01, defect (exponential, 6 points) |
|---|---|
 |  |

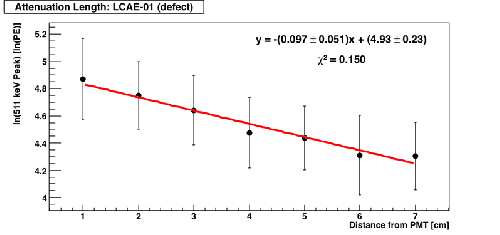

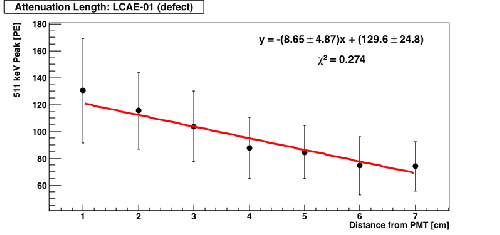

| Figure: LCAE-01, defect (linear, 7 points) | Figure: LCAE-01, defect (exponential, 7 points) |
 |  |
Fix the errors on these graphs.
LCAE-01

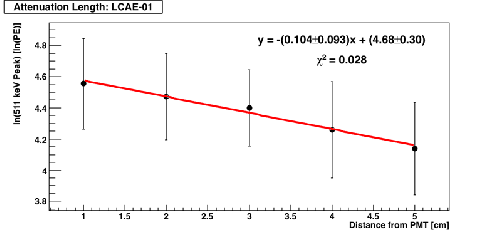

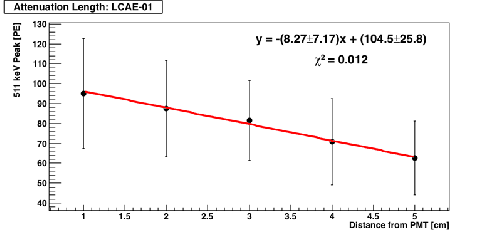

| Figure: LCAE-01 (linear, 5 points) | Figure: LCAE-01 (exponential, 5 points) |
|---|---|
 |  |

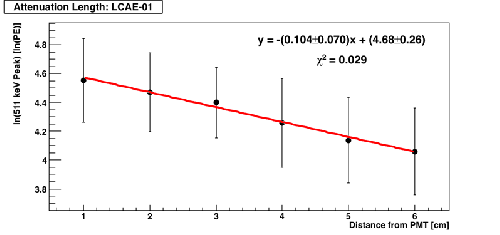

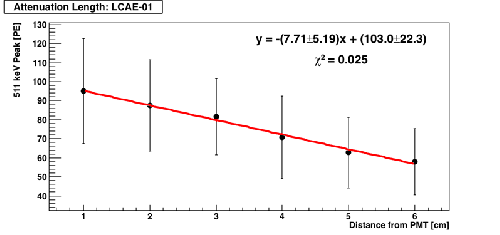

| Figure: LCAE-01 (linear, 6 points) | Figure: LCAE-01 (exponential, 6 points) |
 |  |
LCAE-04

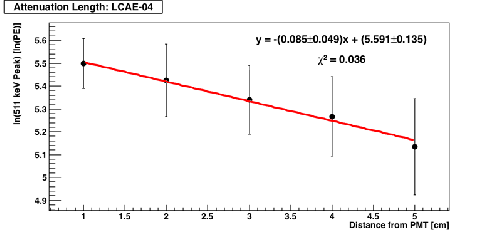

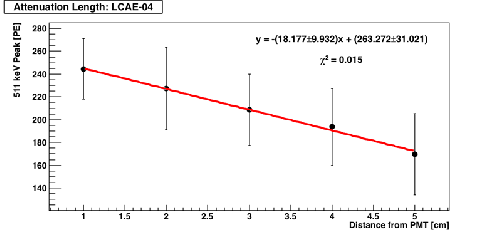

| Figure: LCAE-04 (linear, 5 points) | Figure: LCAE-04 (exponential, 5 points) |
|---|---|
 |  |

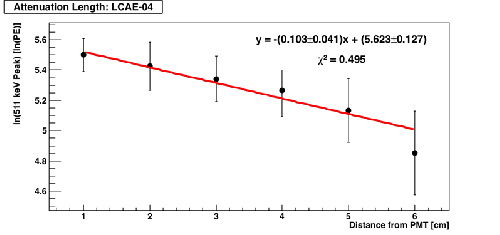

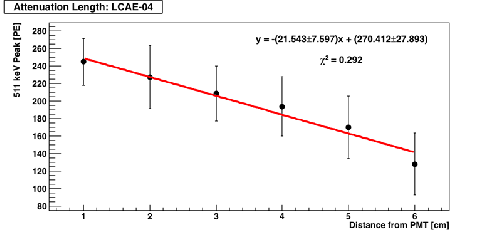

| Figure: LCAE-04 (linear, 6 points) | Figure: LCAE-04 (exponential, 6 points) |
 |  |
