Zero volt 2-sided Si background data pulse analysis: Energy Spread

The following data is 2-sided Americium data with PBS2, PCS2, and PDS2 disabled triggering on PES1.

Failed zero-volt one-sided date can be found Here Original 50V work Here Original 2-sided work Here

After looking at the original 60keV peaks with and without the cut or the peak itself, I tried to set up a Energy Spread of the all of the data. Here is a preliminary plot with risetime on the y-axis, falltime on the x-axis, and calibrated energy as the color. I also needed to apply an energy cut in order to “wash out” a bunch of uninteresting data points i.e. energies less than 10 keV and greater than 400keV.

Side 1 Data

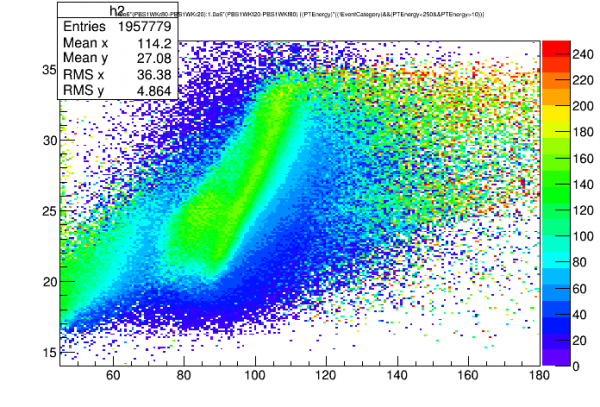

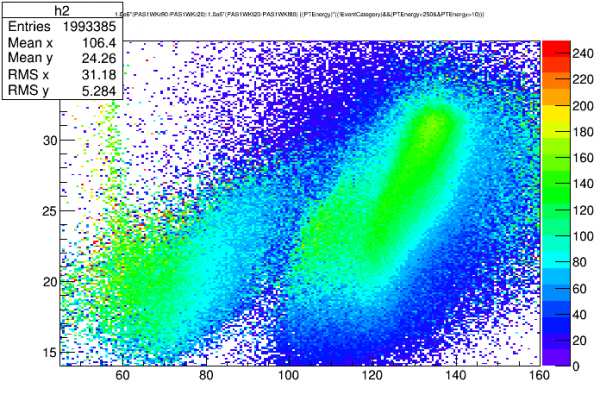

PA	PB

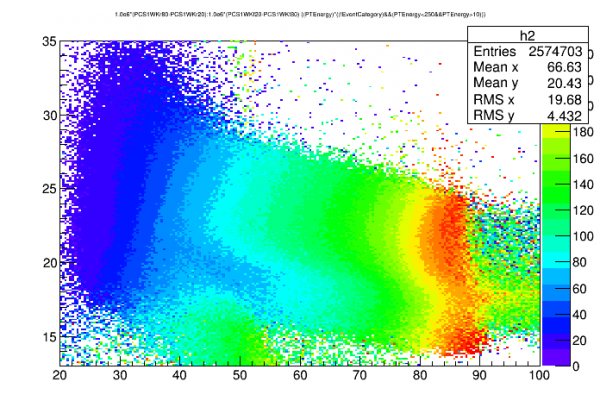

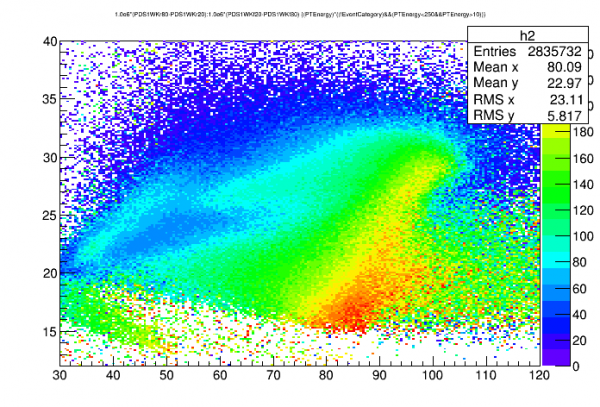

PC	PD

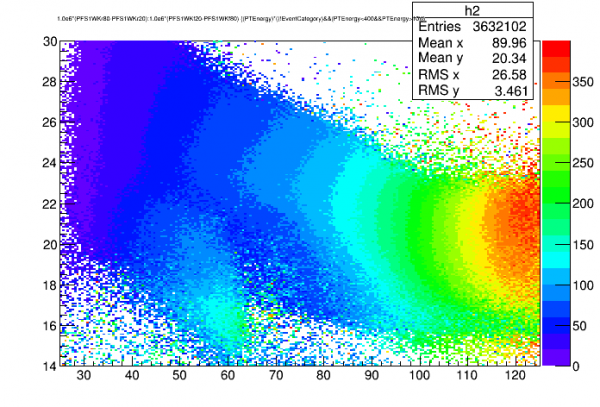

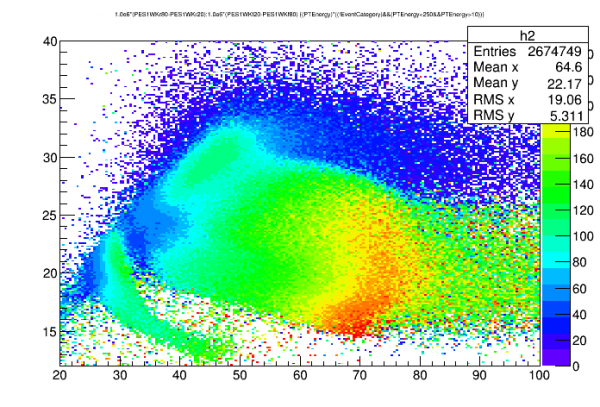

PE	PF

Side 2 Data

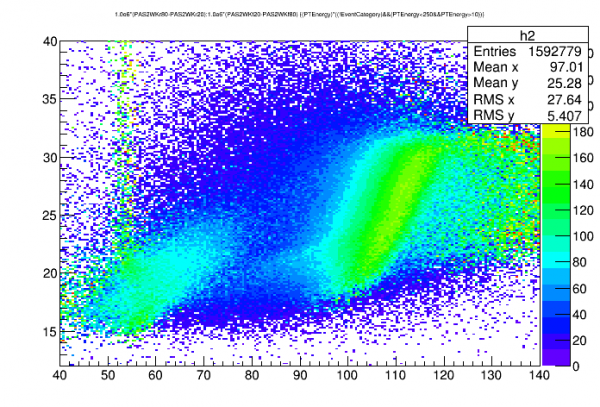

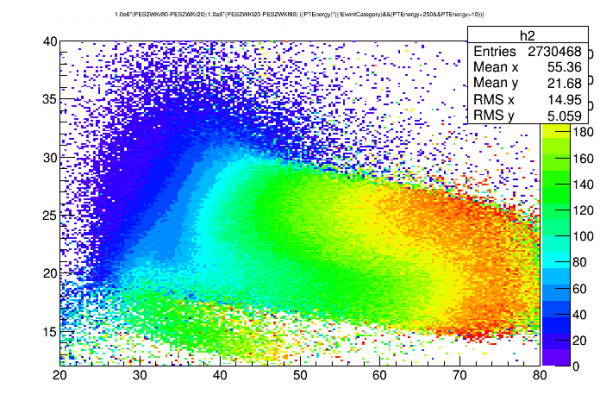

PA	PE

PTotal Data
