Run 71 Summary
Setup
 |  |  |

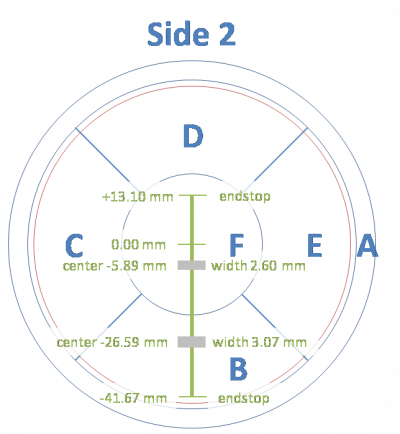

| Confluence page for iZIPv6 | 48 steps/rotation, 32 thread/inch = 16.54 μm/step |
| Qinner radii | 0 to 43.2 mm |
|---|---|
| Qouter radii | 43.2 to 50 mm |
| Pinner radii | 0 to 19.2 mm |
| Pmiddle radii | 19.2 to 44.8 mm |
| Pouter radii | 44.8 to 50 mm |
General wiring plan: run071_wiring.xls

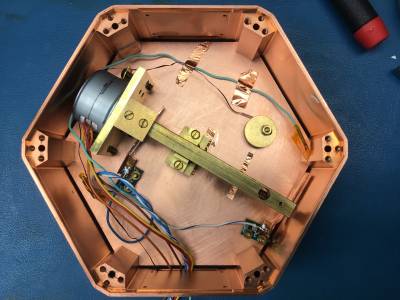

Arduino and stepper motor notes: 48 step/rev * 32 rev/inch ⇒ 1/1536 inch/step = 0.01654 mm/step
SQUET plan (for G106a, iZIP with 12/4 phonon/charge channels):
| ZC-70 | no modified shunt resistances |
|---|---|
| ZC-39 | no modified shunt resistances |
| ZC-74 | pB and pC are modified, need to remove wirebonds done on Sep 16 |
notes:
- none of the above has any known problems in phonon or charge channels
- none of the above were used in Run 70, so there will still be a set of SQUETs to use with HV detectors
