2023/01/25 (Wednesday)

Previous Day

  • Lab in-personnel: Himangshu, Zach, Shubham
Status Run 77 preparation
Setup IVC open. Turbo valved out. tower installation in progress
1107 Electrical check of ZC-31 after connecting to Stripline 41 on Tower Face 5
1210 Check contents of warm LN2 Trap 1: 8.7 mbar. Pump it out with the scroll pump.
1217 G1 = 1.9 mbar and stable, stop pumping on trap 1.
1219 Check contents of warm LN2 Trap 2: 3.5 mbar. Pump it out with the scroll pump.
1223 G1 = 1.7 mbar and stable, stop pumping on trap 2.
1227 Insert cold trap 1 into the LN2 bath, fill bath
1230 Turn on the 3He pump
1235 Begin cryocleaning through cold trap 1
1241 Open V6 to 12.2% to start flow
1259 Open V6 to 12.5% to restart flow, then reduce to 12.4%

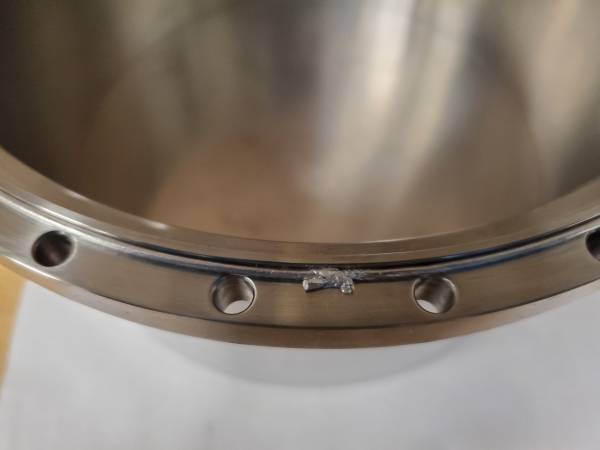

1315 Added indium around IVC cap, ended up making it a bit shorter than Matt usually does, but should work.
1329 Open V6 to 12.6% to restart flow
1335 Squet ZC-74 (with the jumper cables) shows some open squid channels after installing, de-install for more electrical checks.
1337 Installed some of the heatsinks. Quickly check squet ZC-31 again, feedback A reads too high, a slight press on the interposer board fixes this
1412 Open V6 to 12.7% to restart flow, then reduce to 12.3% to stop the flow from rising too high
1425 Squet ZC-74 seems fine on the bench, but again has some open channels when connected to the striplines. Check the stripline connection (30 and 42 for squid channel D) with a 200 Ohm resistor, it is fine
1445 Stop cryocleaning through cold trap 1, pump mixture to dump
1455 G1 = 1.8, P1 < 0.1 mbar, close all valves, leaving 724.5 mbar in the dump
Added the condition that P1 < 0.1 mbar before stopping pumping mixture to dump, want to conserve mixture as much as possible
Barometric pressure = 29.85“ (source is https://w1.weather.gov/data/obhistory/KMSP.html.) G2 = 724.5 mbar. Corrected dump pressure = 722.1 mbar

Ptrue[mbar] = Pdisplay[mbar] + ( Pbar[inHg] - 29.92 ) * 33.86

1506 Pull cold trap 1 out of the LN2 bath, put cold trap 2 in
1515 Begin cryocleaning through cold trap 2
1519 Open V6 to 12.5% to start flow, then reduced to 12.4%
1520 Squet ZC-74 has a similar issue to squet ZC-31, the connection to the stripline can change in angle, changing which channels are open.
1524 Open V6 to 12.6% to restart flow, then reduced to 12.5%
1558 Open V6 to 12.7% to restart flow, then reduced to 12.6%
1635 Still having trouble with Squet ZC-74's connection, use sandpaper attached to a tweezers to rough up the pins.
1645 Stop cryocleaning through cold trap 2, pump mixture to dump
1657 P1 is low (<0.2mbar) Open V6 further to 30%
1702 G1 = 2.0, P1 = 0.055 mbar, close all valves, leaving 727.3 mbar in the dump
1712 Turn off 3He pump and pull cold trap 2 out of the LN2 bath
Detector: S104 BH:
SC: none
Face: 5 Date
SQUET: ZC-31 Who
Signal Pos. lead Gnd lead Nominal Actual
SQUID bias A/Ret 4 20 3 - 5 k 4.234 k
SQUID bias B/Ret 19 34 4.045 k
SQUID bias C/Ret 8 24 4.511 k
SQUID bias D/Ret 23 39 4.133 k
Feedback A/Ret 37 21 15 - 25 k 26.61k
Feedback B/Ret 2 18 26.19k
Feedback C/Ret 41 25 28.05k
Feedback D/Ret 22 6 26.83k
QET A/Ret 3 1, 13, 14, 17, 32 60 - 80 open, 79, open, open, open
QET B/Ret 35 29, 33, 47, 48 85, 85, open, open
QET C/Ret 7 5, 9, 10, 28 82, 74, open, open
QET D/Ret 38 36, 40, 43, 44 71, 72, open, open
QET A/QET B 3 35 584
QET A/QET C 3 7 0.753k
QET A/QET D 3 38 2.142k
QET B/QET C 35 7 509
QET B/QET D 35 38 1.967k
QET C/QET D 7 38 1.91k
FET heater +/- 45 46 1.0 - 1.1 k
Qi bias/QET Ret 15 24 - 26 nS
Qo bias/QET Ret 11
Qi feedback/Drain/Source 50 16, 31 15 - 17 nS
Qo feedback/Drain/Source 30 12, 27
Qi drain 16 chassis < 0.1 nS
Qo drain 12 chassis
Qi source 31 chassis
Qo source 27 chassis
FET Tsense +/FET heater- 49 46 0.6 - 0.7 V
LED 1 42 chassis 1.0 - 1.1 V 1.105
LED 2 26 chassis 1.664
Motor coil X1 pAr3 pAr4 200 Ohm 1.1k
Motor coil X2 pAr5 pDr3 200 Ohm 1.14k
Motor coil Y1 pBr3 pBr4 200 Ohm 169
Motor coil Y2 pCr3 pCr4 200 Ohm 159
Piezoelectric sensor pAr1 pDr4 30 mVac no signal
1155 Electrical check of ZC26 after connecting to Stripline 43 on Tower Face 2
Detector: S104 BH:
SC: none 300 K
Face: 2 Date 1/25/2023
SQUET: ZC-26 Who SP, HN
Signal Pos. lead Gnd lead Nominal Actual Chassis
(Gnd lead)
Nominal:
< 0.1 nS
SQUID bias A/Ret 4 20 3 - 5 k 4.762k ok
SQUID bias B/Ret 19 34 3.9k ok
SQUID bias C/Ret 8 24 3.5k ok
SQUID bias D/Ret 23 39 3.38k ok
Feedback A/Ret 37 21 15 - 25 k 1.1k ok
Feedback B/Ret 2 18 16.78k ok
Feedback C/Ret 41 25 21.23k ok
Feedback D/Ret 22 6 20.63k ok
QET A/Ret 3 1, 13, 14, 17, 32 60 - 80 148,90.1,82.5,84,147.3 ok
QET B/Ret 35 29, 33, 47, 48 89.3,89.3,109.3,89.2 ok
QET C/Ret 7 5, 9, 10, 28 79,68.3,58.8,67.4 ok
QET D/Ret 38 36, 40, 43, 44 86.7,67.1,66.1,66.5 ok
QET A/QET B 3 35 816
QET A/QET C 3 7 1.641k
QET A/QET D 3 38 1.380k
QET B/QET C 35 7 1.76k
QET B/QET D 35 38 1.647k
QET C/QET D 7 38 2.028k
FET heater +/- 45 46 1.0 - 1.1 k
Qi bias/QET Ret 15 24 - 26 nS
Qo bias/QET Ret 11
Qi feedback/Drain/Source 50 16, 31 15 - 17 nS
Qo feedback/Drain/Source 30 12, 27
Qi drain 16 chassis < 0.1 nS
Qo drain 12 chassis
Qi source 31 chassis
Qo source 27 chassis
FET Tsense +/FET heater- 49 46 0.6 - 0.7 V
LED 1 chassis 42 1.0 - 1.1 V
LED 2 chassis 26
1225 Electrical check for ZC74 on stripline 48 on Tower Face 3
1704 ZC74 seems to have issues after connecting at the stripline. First, firmly pressing the stripline head against the SQUET FET board seems to keep some squids/feedback open. We tried sanding on the SQUET pins which look to have some rust on them and won't make all the pins go in nicely. But we observe that keeping a mm of space at the stripline head and trying different angles of the FET board seems to help making those open connections go live.
