2020/12/04 (Friday)
- Lab in-person: Zach
- Virtual partner: Matt
| Status | Run 73 deinstallation. 1K Pot pumped out and isolated. Fridge and 4He and LN2 Trap 1 isolated, not pumped out. Cryostat vacuum jacket pumped out. IVC open, all stages removed, ready to remove tower. |
|---|---|
| 1445 | Zach body temp = 98.0 |
| 1505 | Zach enters lab. |
| 1520 | Remove tower and stand from purge cabinet |
| 1535 | Remove 30mK can adapter ring from tower |
| 1550 | Disconnect accessory wires from tower pins and remove side coaxes from tower. |
| 1605 | Remove nuts from threaded rods at top of stack |
| 1610 | Remove electrode housing from stack |
| 1615 | Remove detector (G101d) from stack and put lid and crown on the housing (not screwed on yet) |

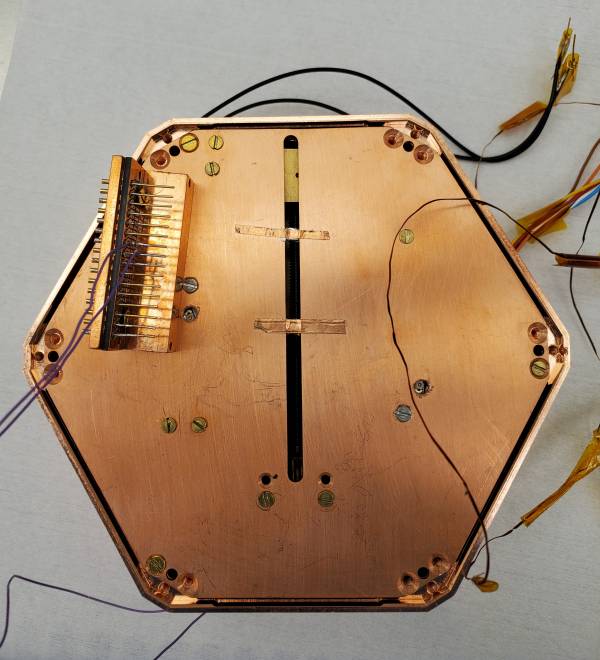

| 1620 | Remove source holder housing from stack. The purple wires from the housing are still soldered to pins on the side coax extender. |
| 1625 | Remove threaded rods from tower crown, then put tower in purge cabinet |
| 1630 | Screw lid and crown onto G101d detector housing. |
| 1635 | Put G101d in purge cabinet |
| 1645 | Pick up hand soap dispenser refills from mail room. |
| 1650 | Zach leaves lab |
