2020/06/05 (Friday)

Previous Day

  • Lab in-person: Matt
  • Virtual partner: Zach
1514 Matt Fritts body temperature = 98 F
1553 Turbo on IVC = 14 nbar.
1613 With the turbo valved out for 5 min, IVC = 0.74 ubar.
1620 Squirted helium above the knurled ring for 1 second, leak rate 19 pbar*l/s → 137 pbar*l/s.
1625 Applied Apiezon Q sealing compound as a last resort to prevent leaks.

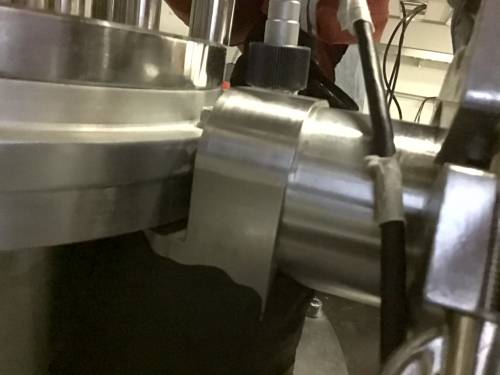

Q compound on stripline joint.
Further leak tests
signal reported is rise above base, base~20 pbarL/s
blast 1 sec from hose top of knurled knob 177
squirt 1 sec from needle top of knob to North 47
squirt 1 sec from needle top of knob to East 20
squirt 1 sec from needle various spots around KF flange <10 generally
1 m of tube length, through needle top of knob to North 27
1 m of tube length, through needle base of lower knob to North 0
1 m of tube length, through needle joint between knobs to North 80

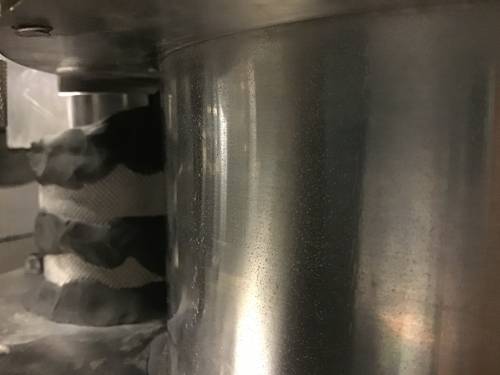

Try pushing Q-compound more thoroughly into knurls, trying to close gaps
1 m of tube length, through needle joint between knobs to North 31

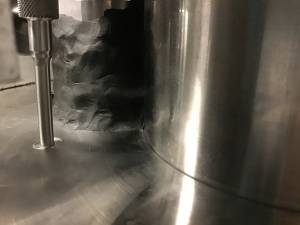

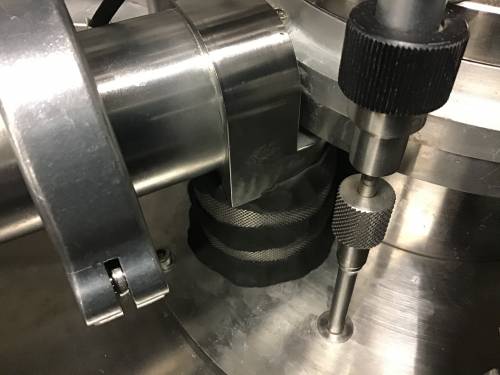

apply more Q-compound to make a complete sleeve, covering knurled knobs
1 m of tube length, through needle top of knob to North 0
1 m of tube length, through needle base of lower knob to North 0
1 m of tube length, through needle joint between knobs to North 17
looks like it's improving, will try more next time.

1752 Quitting for now, shutting off leak checker, pumping on IVC with turbo.
1805 Matt leaves lab for the day.
2140 Matt Fritts body temperature = 98.8 F
