2020/05/20 (Wednesday)

Previous Day

  • Lab in-person: Matt
  • Virtual partner: Zach
1548 Filling LN2 cold trap dewar.
1513 Matt Fritts body temperature = 98 F
1545 Matt arrives in lab
1550 Turbo on IVC = 25 nbar.
1600 Start cryocleaning mixture through LN2 Cold Trap 1, V6 = 12.4%
1605 Increase V6 → 12.5% to speed up flow
1615 Increase V6 → 12.6% to restart flow
1625 Increase V6 → 12.7% to speed up flow
1635 Increase V6 → 12.8% to speed up flow
1700 Stop cleaning through Trap 1 after 60 min. G2 flow pressure was 550-655 mbar. Pump mixture to dump.
Removed 11.4 mbar.
1715 Start cryocleaning mixture through LN2 Cold Trap 2, V6 = 13.0%
1800 Increase V6 → 13.1% to speed up flow
1815 Stop cleaning through Trap 2 after 60 min. G2 flow pressure was 605-725 mbar. Pump mixture to dump.
Removed 7.3 mbar.
1830 Finished cleaning, pumped mixture to dump. Leaving both LN2 traps out to warm up overnight.
1835 Leaving lab for the day.
1912 Matt Fritts body temperature = 99.3 F. Note - I was overheated after the bike ride home, which is typical on warm & sunny days.
2147 Matt Fritts body temperature = 98.1 F

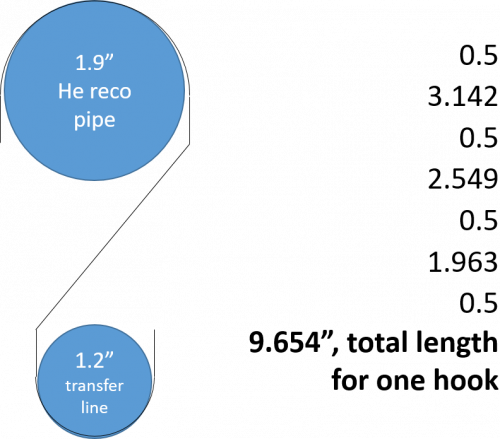

Idea for making 1-person He transfers easier:
make aluminum hooks to hang the horizontal part of the transfer lines. These
hooks will hang from the gray LHe transfer pipe. Before bringing in the Dewar,
you can hang the transfer line from these hooks, placing it roughly in position
to insert into the storage Dewar.

make 4 hooks, 0.75“ X 9.6” strips of aluminum.
