2020/02/04 (Tuesday)
| 1000 | Continue work on source mover motor, pulling out solder connections and planning to heat sink them. |
|---|
 |  |  |

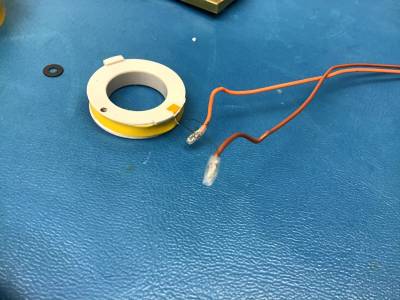

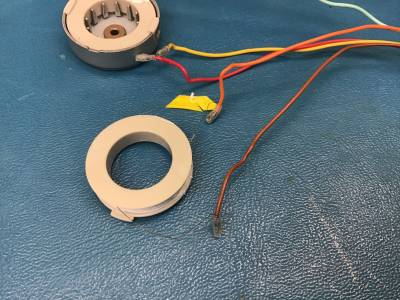

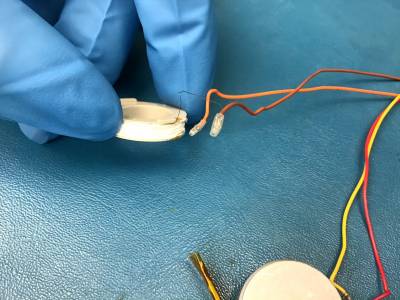

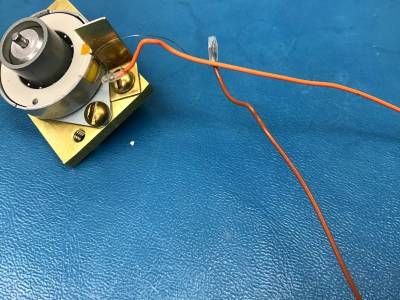

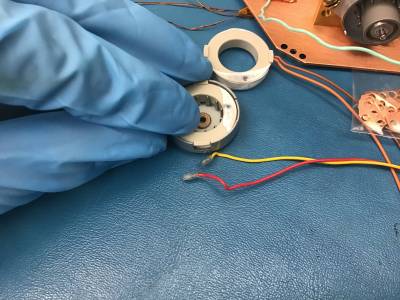

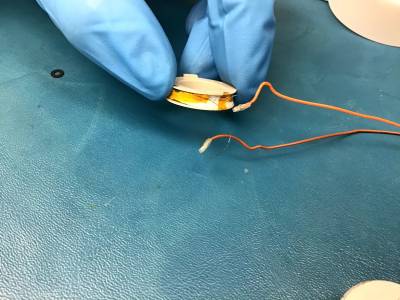

| Both joints in the outer coil can feed out of the big slot, but the yellow one is pretty short | A look at the two joints in the outer coil and how far they extend out of the slot. | Pulling out the joints from the inner coil, after removing Teflon tape and yellow tape. |
 |  |  |

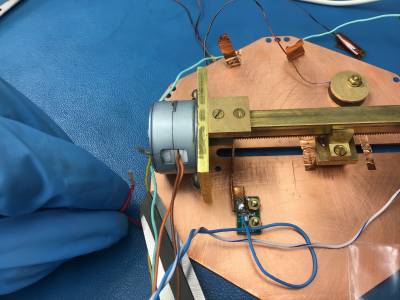

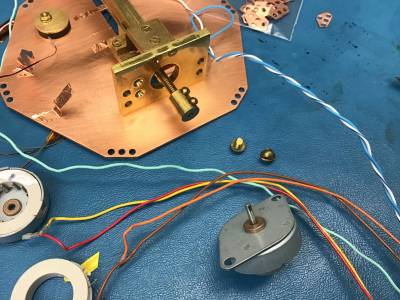

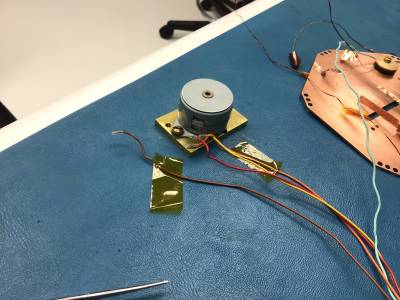

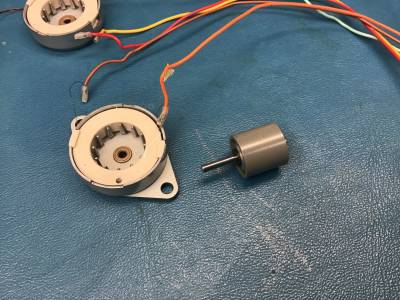

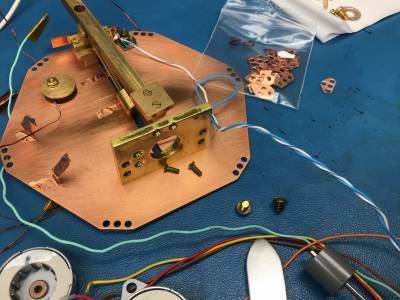

| Motor removed from base plate and decoupled from threaded rod | Rotor removed | Rectangular guide rod detached from motor base plate |
 |  |  |

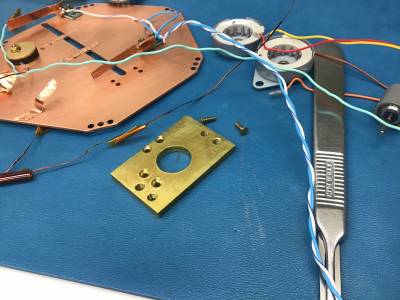

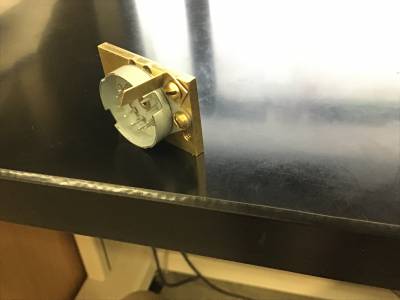

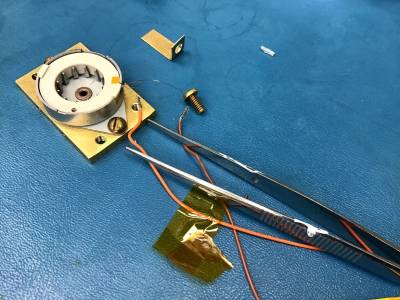

| Motor base plate removed from housing base plate | All solder joints can be pulled out of the big slots | The plan: a little tab along the motor housing slots, idea is to epoxy all joints to this. |

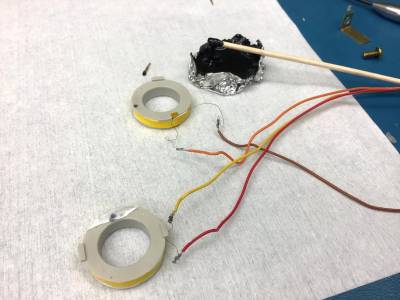

| 1340 | Continue work on source mover motor wiring heatsinking in the clean room. | {:cdms:k100:run_diary:img_2937.jpg?400}} |
|---|
 |  |  |
| Applied kapton tape holding the coil ends in place on the inner coil | Applied teflon tape over the inner coil | Applied yellow tape over the inner coil |
 |  |  |

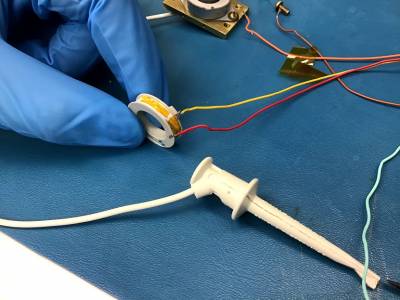

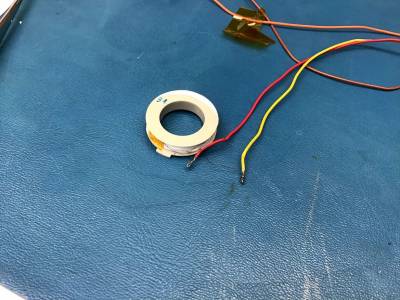

| Assembled inner coil in the housing | Removed the shrink wrap on the solder joints, once removed the wire was able to be extended somewhat | Applied kapton tape and removed the shrink wrap for the outer coil, the solder joints on this coil did not extend as far out |
 |  |  |

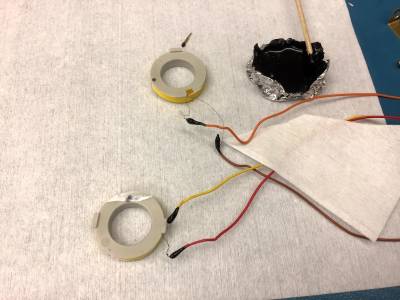

| Applied teflon tape and yellow tape over the outer coil | Inner and outer coil joints ready to be coated in stycast | Stycast coated over the joints, left to cure |
| 1500 | Modified G101c arrives from TAMU |
|---|---|
| 1530 | Pump out GHS and LN2 traps in preparation for cryocleaning. Before pumpout, G1/P1/Trap1/Trap2 = 45.7/4.5/2.3/3.1 mbar. |
| 1540 | G101c brought into clean room for electrical checks. |
| 1550 | Channel B on DIB4 gives 118.3 Ohms, all other channels found to be open, no shorts to ground found. |
