2020/02/03 (Monday)

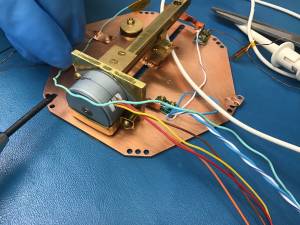

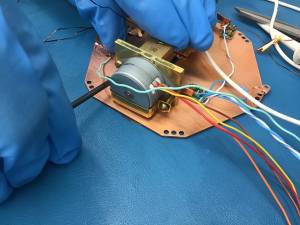

| 1525 | Take some measurements of the source holder plate |
|---|
| Plate thickness | 1.15 mm | 0.047 inches |
|---|---|---|
| Gap from source carriage to plate | ~ 50 mil | |
| Gap from plate to motor | 0.30 mm | 0.010 inches |
| Diameter of motor | 24.67 mm | 0.971 inches |

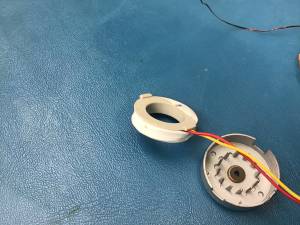

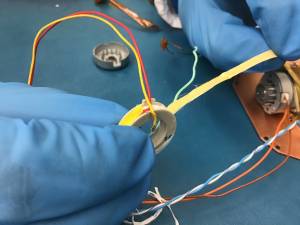

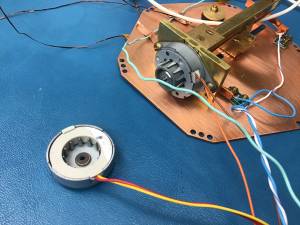

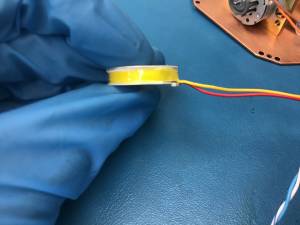

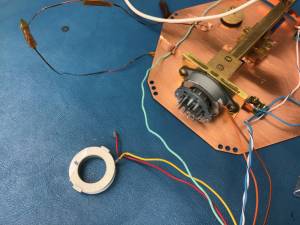

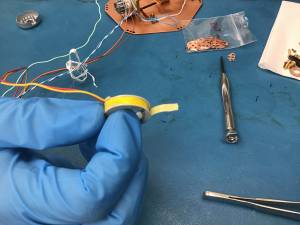

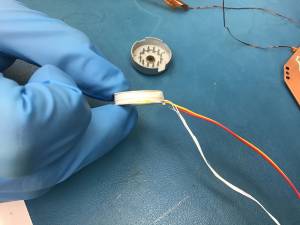

| 1600 | Disassemble source mover motor, working on getting the solder joints out so we can heat sink them externally |
|---|
 |  |  |
 |  |  |
 |  |  |
