| 1040 | Perform tower electrical check before moving tower to clean tent. |
| Detector | USD1 | DIB | 1 | |
| side coax | ZB1-1-11 | date/who: | 2016-05-26 | AK&DS |
| face | 1 | | | |
| + lead | -lead | signal | typical | measured |
| 9 | chassis | LED1 Rforward | 8 to 9 MΩ | 783kΩ |
| 9 | chassis | LED1 Vforward | 1.0 to 1.1 V | 1.107V |
| chassis | 9 | LED1 Rreverse | <1 nS | <0.2nS |
| 10 | chassis | LED2 Rforward | 8 to 9 MΩ | 785kΩ |
| 10 | chassis | LED2 Vforward | 1.0 to 1.1 V | 1.109V |
| chassis | 10 | LED2 Rreverse | <1 nS | <0.6nS |
| 11 | 7 | Qo Rbias | 24 to 26 nS | 25nS |
| 11 | 12 | Qo C coupling | <1 nS | <.1nS |
| 13 | 12 | Qo Rfeedback | 24 to 26 nS | 25nS |
| 14 | 7 | Qi Rbias | 24 to 26 nS | 25nS |
| 14 | 15 | Qi C coupling | <1 nS | <0.2nS |
| 16 | 15 | Qi Rfeedback | 24 to 26 nS | 25nS |
| 1-8, 11-16 | chassis | Chassis shorts | <1 nS | <1.5nS |
| Detector | USD1 | DIB | 2 | |
| side coax | ZB1-6/ZB1-1-6 | date/who: | 2016-05-26 | AK&DS |
| face | 4 | | | |
| + lead | -lead | signal | typical | measured |
| 9 | chassis | LED1 Rforward | 8 to 9 MΩ | 726kΩ |
| 9 | chassis | LED1 Vforward | 1.0 to 1.1 V | 1.110V |
| chassis | 9 | LED1 Rreverse | <1 nS | <1.5nS |
| 10 | chassis | LED2 Rforward | 8 to 9 MΩ | 735kΩ |
| 10 | chassis | LED2 Vforward | 1.0 to 1.1 V | 1.111V |
| chassis | 10 | LED2 Rreverse | <1 nS | <0.3nS |
| 11 | 7 | Qo Rbias | 24 to 26 nS | 26nS |
| 11 | 12 | Qo C coupling | <1 nS | <.1nS |
| 13 | 12 | Qo Rfeedback | 24 to 26 nS | 26nS |
| 14 | 7 | Qi Rbias | 24 to 26 nS | 26nS |
| 14 | 15 | Qi C coupling | <1 nS | <0.2nS |
| 16 | 15 | Qi Rfeedback | 24 to 26 nS | 26nS |
| 1-8, 11-16 | chassis | Chassis shorts | <1 nS | <4nS |
All is well. Bag up tower and bring to clean tent for installation.
| 1130 | Tower successfully installed to 30mK can. DIB1 is facing East, DIB 2 is facing West. |
| 1245 | Thermometer wire connected and taped. 100mK rings and heat-sinks connected. |

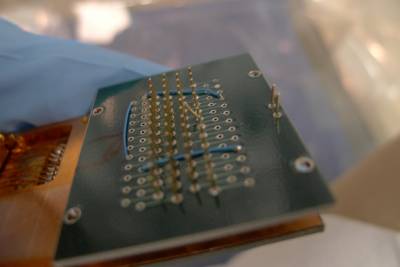

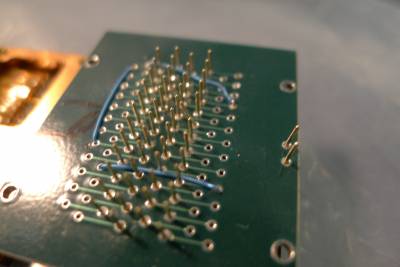

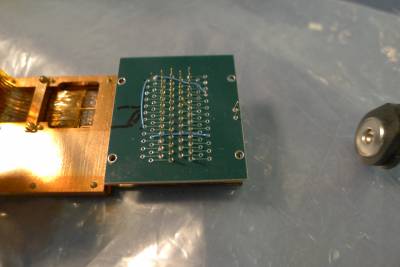

| 1458 | During installation, noticed Stripline 19 cold end diverter board had a bent pin 7. Pin bent back into place before proceeding. Pictures below. |
| 1605 | Install SQUETs, with ZC-39 on DIB 1/Stripline 19 and ZC-13 on DIB2/Stripline 27, and conduct electrical check. Everything looks alright. Continue with installation. |
| 1730 | Close check valve. Seal up IVC and begin pumping on IVC with scroll pump. Turn on turbo pump. |
| 1845 | At IVC pressure of 4.6E-2 mbar, switch to turbo pump. Pump out IVC overnight. |
