Na-22 Measurements of DMR-12 (long sample)

Na-22 Measurements of DMR-12 (long sample)

Experimental Set Up

Identical setup as was used here. However, the long sample, comprised of the short samples cemented together, was used. Face A of the sample was connected to the middle PMT. Measurements were taken at 30mm, 90mm, 150mm, and 210mm from the PMT face, at the center of each of the component samples.

Data

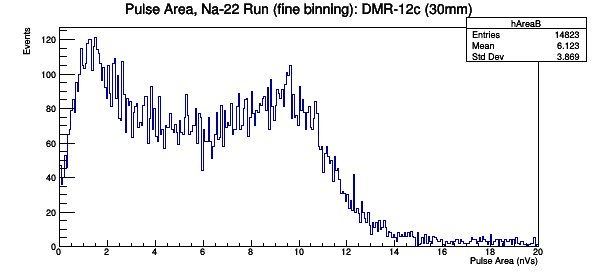

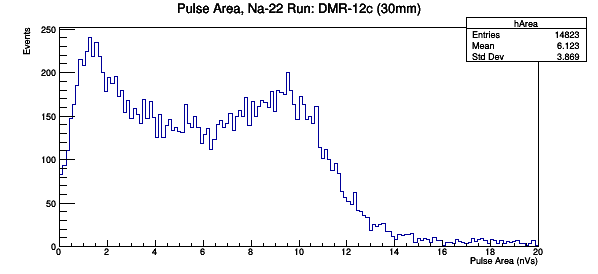

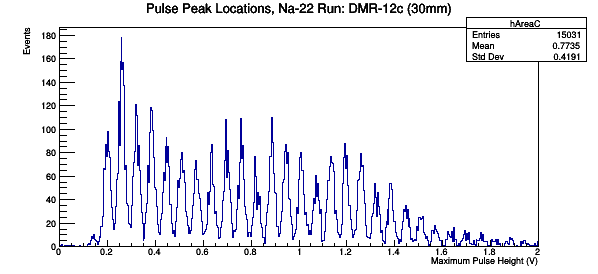

DMR-12A, 30mm

Figure 1: DMR-12 Measurements

Figure 2: DMR-12 Measurements

Figure 3: DMR-12 Measurements

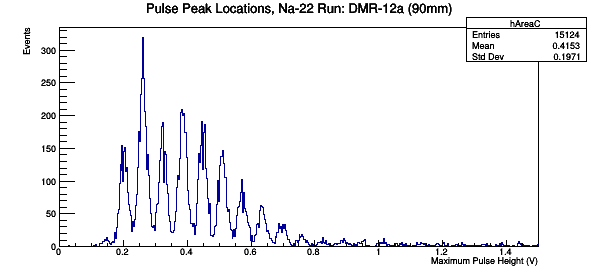

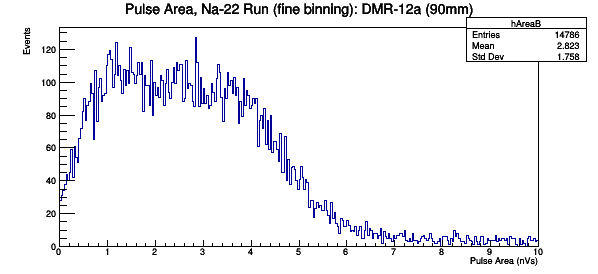

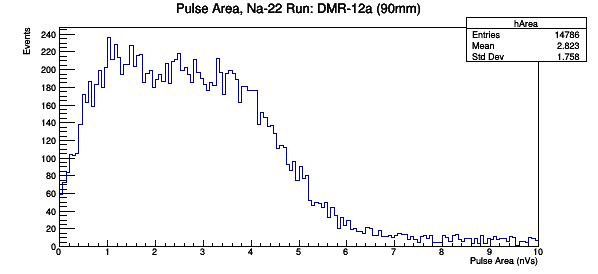

DMR-12A, 90mm

Figure 4: DMR-12 Measurements

Figure 5: DMR-12 Measurements

Figure 6: DMR-12 Measurements

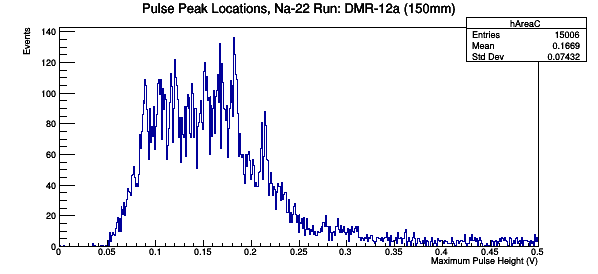

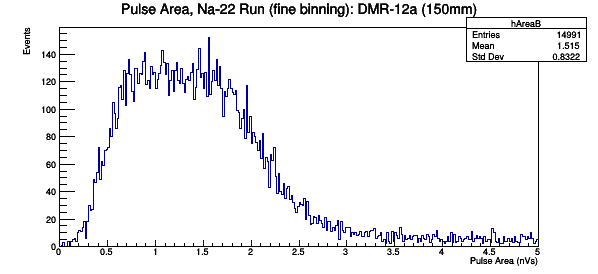

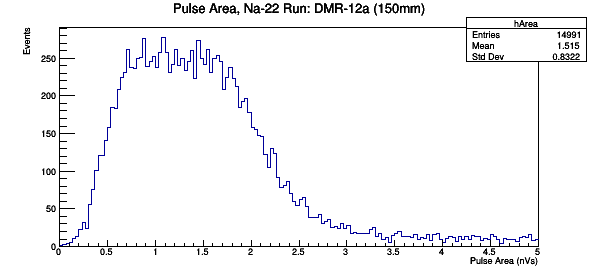

DMR-12A, 150mm

Figure 7: DMR-12 Measurements

Figure 8: DMR-12 Measurements

Figure 9: DMR-12 Measurements

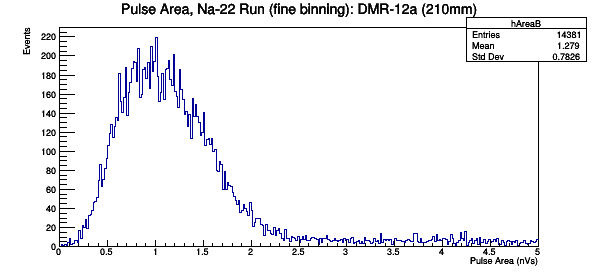

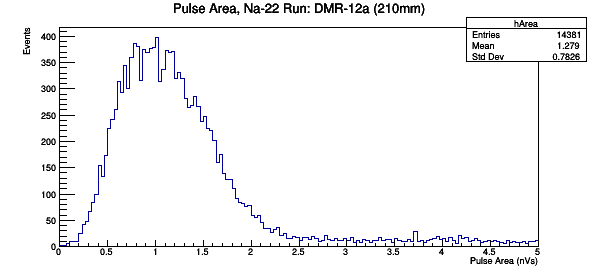

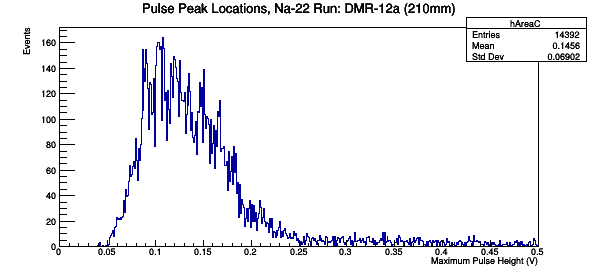

DMR-12A, 210mm

Figure 10: DMR-12 Measurements

Figure 11: DMR-12 Measurements

Figure 12: DMR-12 Measurements

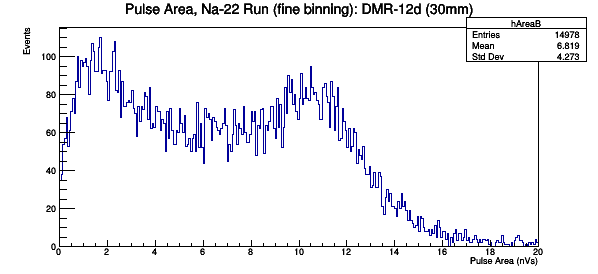

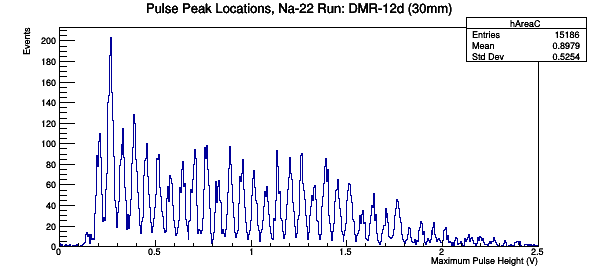

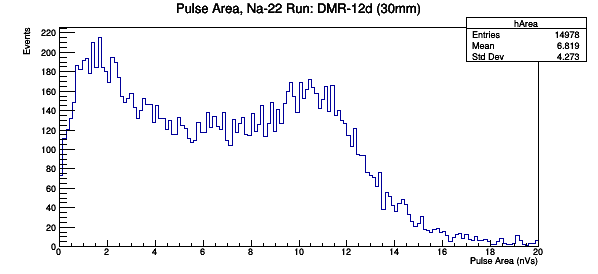

DMR-12D, 30mm

Figure 13: DMR-12 Measurements

Figure 14: DMR-12 Measurements

Figure 15: DMR-12 Measurements

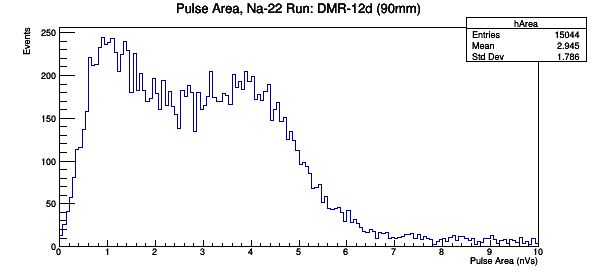

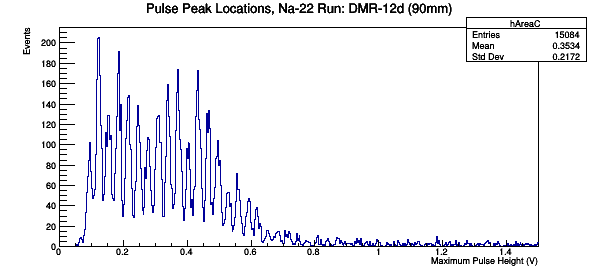

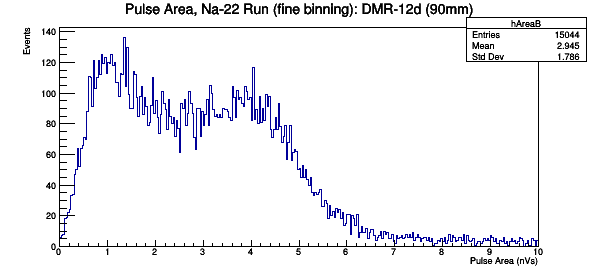

DMR-12D, 90mm

Figure 16: DMR-12 Measurements

Figure 17: DMR-12 Measurements

Figure 18: DMR-12 Measurements

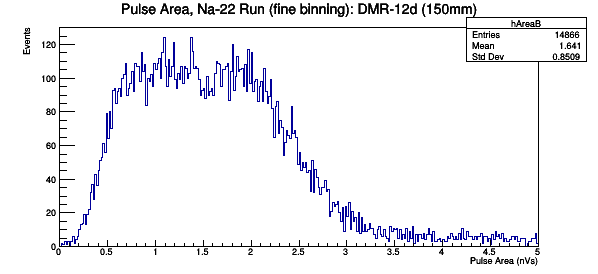

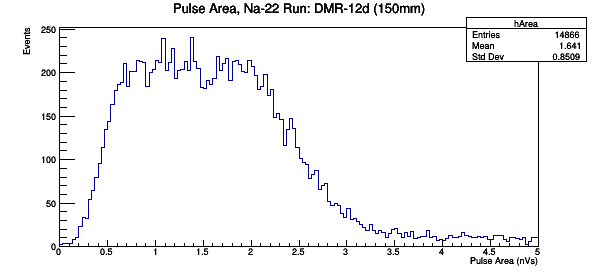

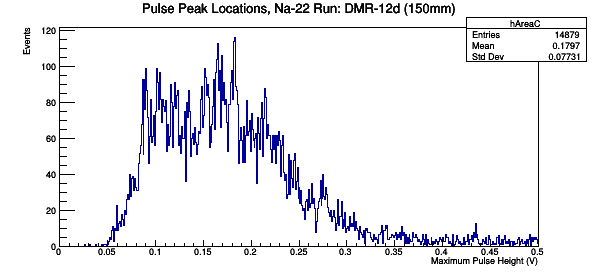

DMR-12D, 150mm

Figure 19: DMR-12 Measurements

Figure 20: DMR-12 Measurements

Figure 21: DMR-12 Measurements

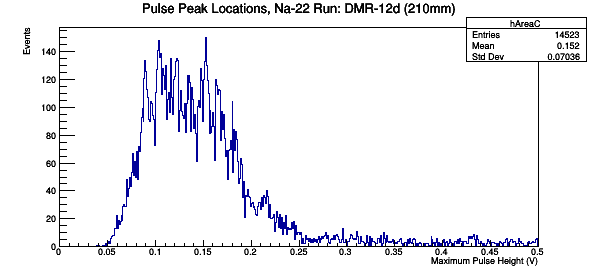

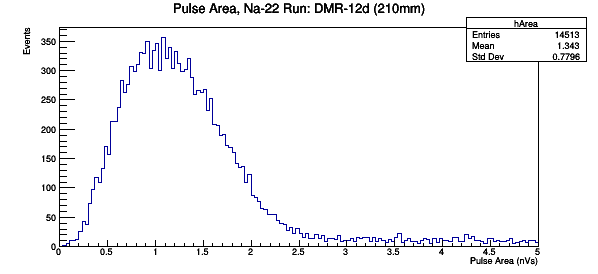

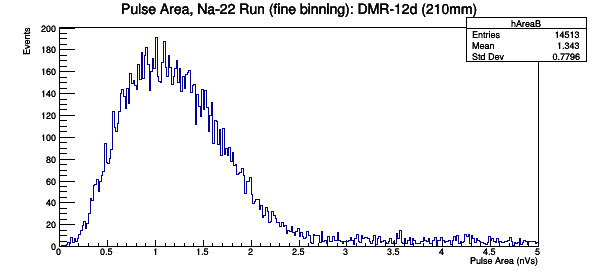

DMR-12D, 210mm

Figure 22: DMR-12 Measurements

Figure 23: DMR-12 Measurements

Figure 24: DMR-12 Measurements

Analysis

Face	Distance of Source from PMT (mm)	Peak Location (nVs)
A	30	9.5
D	30	10.75
A	90	3.2
D	90	4.0
A	150	1.6
D	150	1.9
A	210	1.2
D	210	1.1
