Na-22 Measurements of DMR-10 (long sample)
Experimental Set Up
Identical setup as was used here. However, the long sample, comprised of the short samples cemented together, was used. Face A of the sample was connected to the middle PMT. Measurements were taken at 20mm, 80mm, 140mm, and 200mm from the PMT face, at the center of each of the component samples.
Data

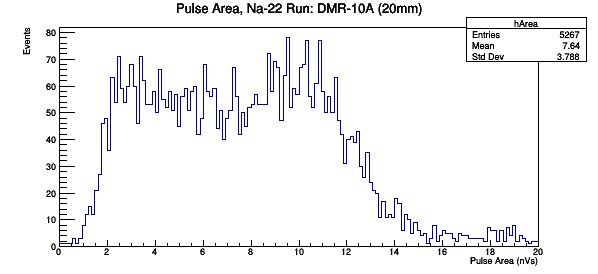

DMR-10A, 20mm

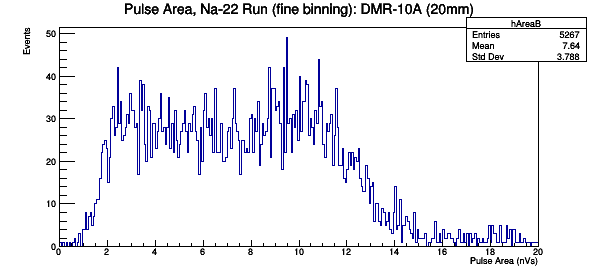

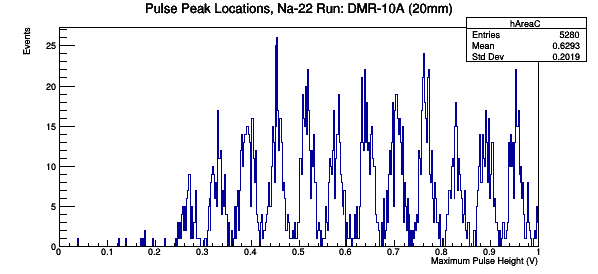

| Figure 1: DMR-10 Measurements |
|---|
 |
| Figure 2: DMR-10 Measurements |
|---|
 |
| Figure 3: DMR-10 Measurements |
|---|
 |

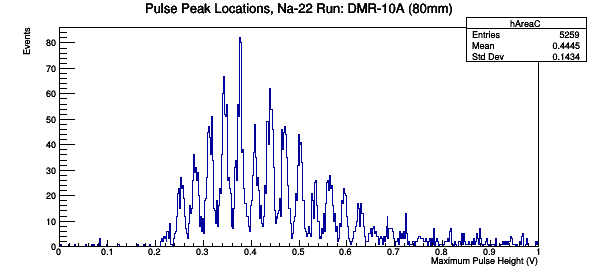

DMR-10A, 80mm

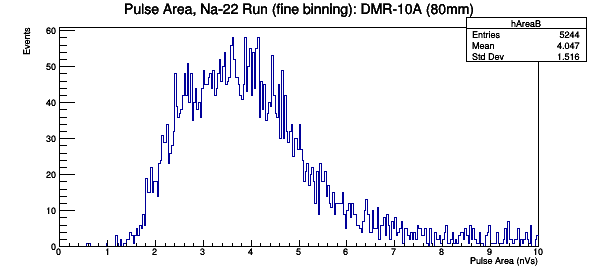

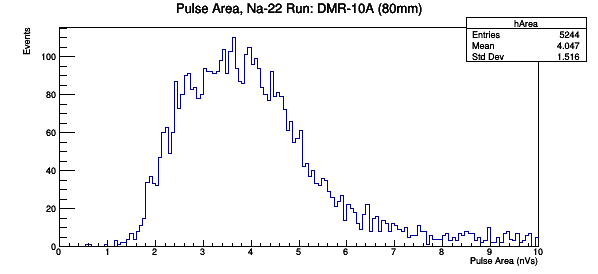

| Figure 4: DMR-10 Measurements |
|---|
 |
| Figure 5: DMR-10 Measurements |
|---|
 |
| Figure 6: DMR-10 Measurements |
|---|
 |

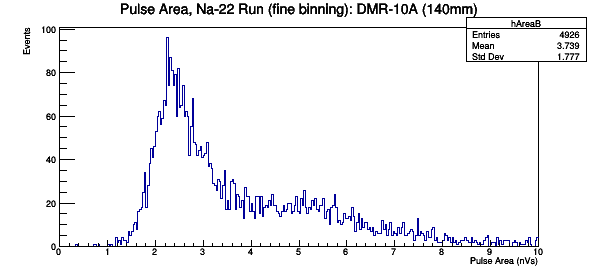

DMR-10A, 140mm

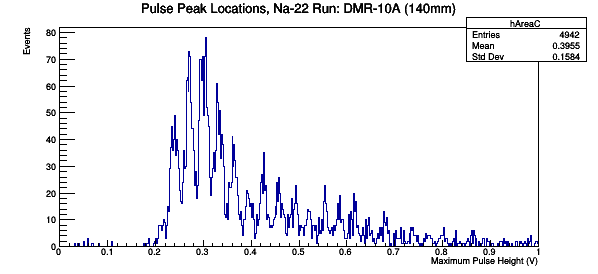

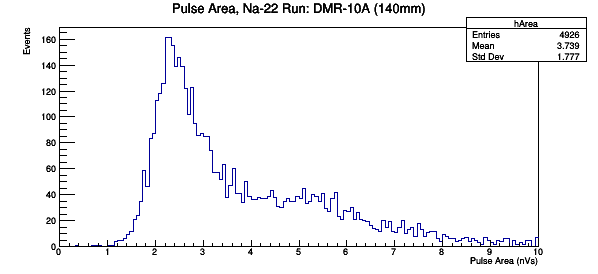

| Figure 7: DMR-10 Measurements |
|---|
 |
| Figure 8: DMR-10 Measurements |
|---|
 |
| Figure 9: DMR-10 Measurements |
|---|
 |

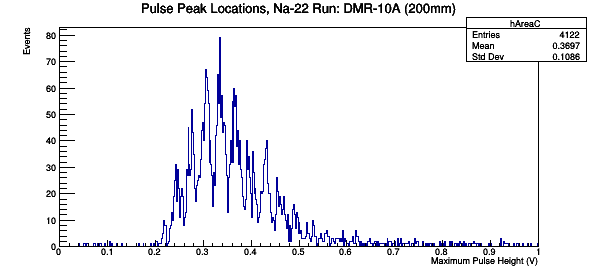

DMR-10A, 210mm

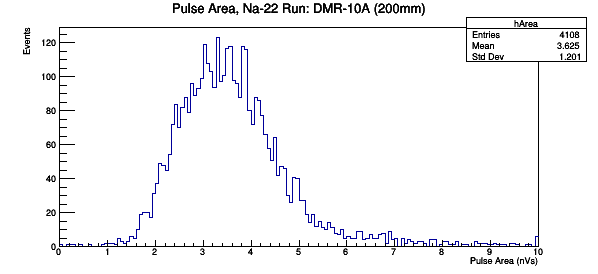

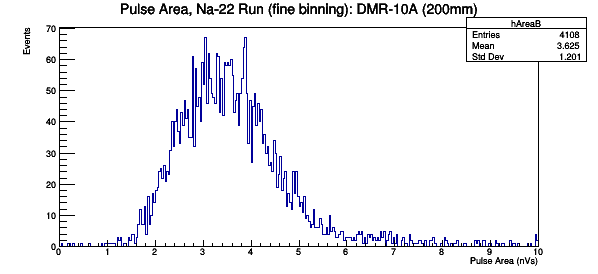

| Figure 10: DMR-10 Measurements |
|---|
 |
| Figure 11: DMR-10 Measurements |
|---|
 |
| Figure 12: DMR-10 Measurements |
|---|
 |
Analysis
| Face | Distance of Source from PMT (mm) | Peak Location (nVs) | ||
|---|---|---|---|---|
| A | 30 | 9.5 | ||
| D | 30 | 10.75 | ||
| A | 90 | 3.2 | ||
| D | 90 | 4.0 | ||
| A | 150 | 1.6 | ||
| D | 150 | 1.9 | ||
| A | 210 | 1.2 | ||
| D | 210 | 1.1 |
