First look at data from Run 55, G106a iZIPv6 with internal Pb210 source
Retriggering

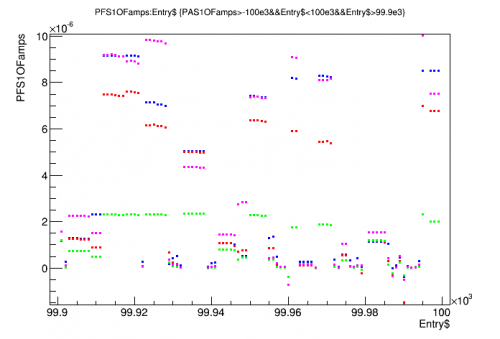

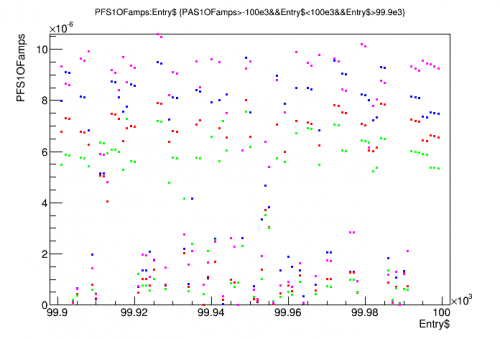

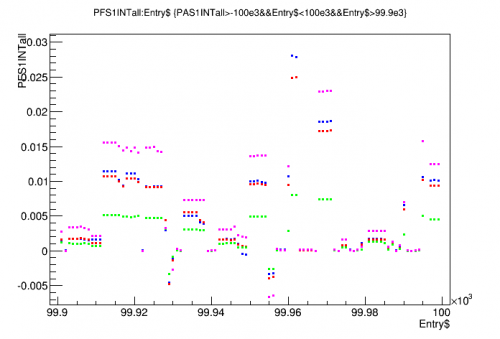

| Phonon Amplitude versus Event Number, four different channels | |
|---|---|
| Optimal Filter amplitude | Integral amplitude |
 |  |
| around 3 seconds of data (99 events) taken on 2015 December 8 16:40 | |
| OR trigger on all phonon channels, no pileup elimination | |

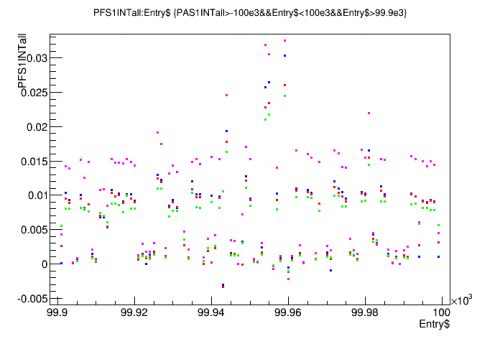

| Phonon Amplitude versus Event Number, four different channels | |
|---|---|
| Optimal Filter amplitude | Integral amplitude |
 |  |
| around 3 seconds of data (99 events) taken on 2015 December 14 17:50 | |
| trigger on a single phonon channel, pileup threshold 0.1 ms | |
Note that in both cases above the recorded event rate is about 30 Hz.
Charge plots
- Qinner and Qinner-chisquare cuts applied
- Side 1 Qinner calibrated to 511 keV line
- Side 2 Qinner calibrated to Side 1 Qinner

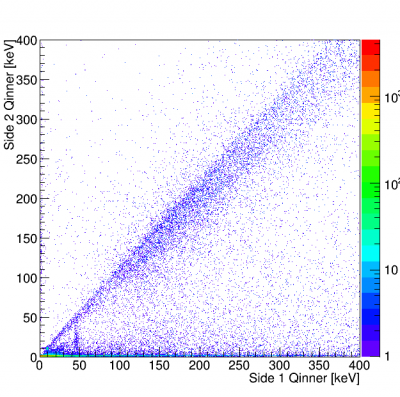

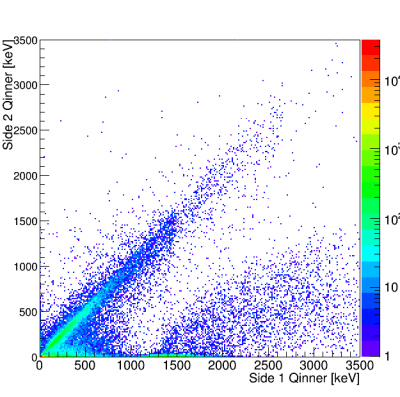

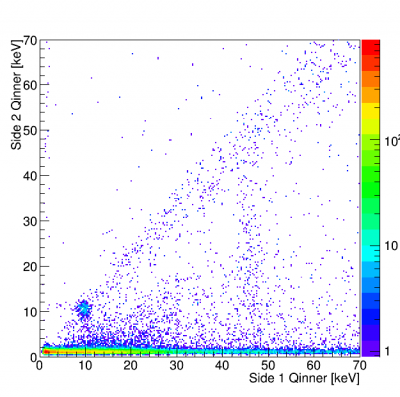

| Side 2 Qinner versus Side 1 Qinner | ||
|---|---|---|
 |  |  |

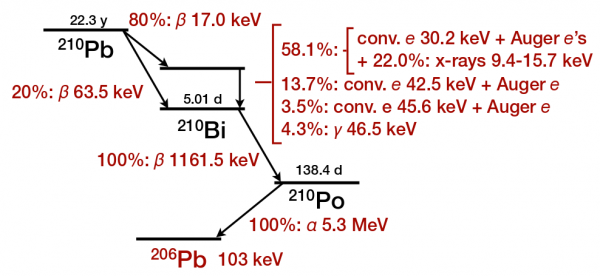

| Lead-210 events apparent: alphas at ~1500 keV (charge asymmetric), 46 keV gammas | ||

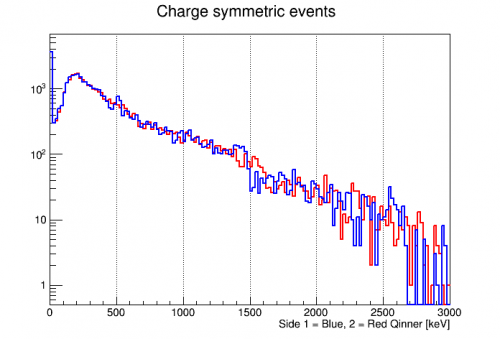

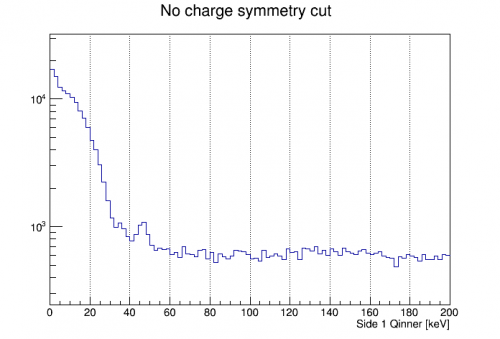

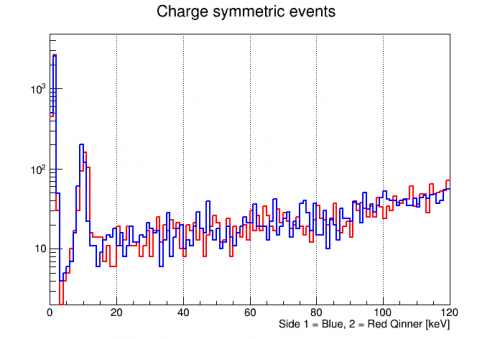

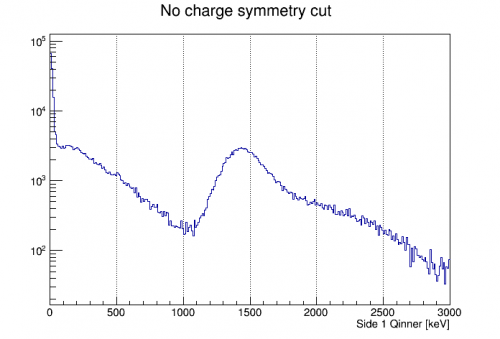

| Charge spectra | |
|---|---|
 |  |
 |  |
| Ambient radiation lines seen: 511keV, 1.4keV (potassium), 2.6MeV (thorium). Not quite visible on Side 2. | |
| Looks like the Side 2 calibration may be a little too high | |
Phonon and Yield plots

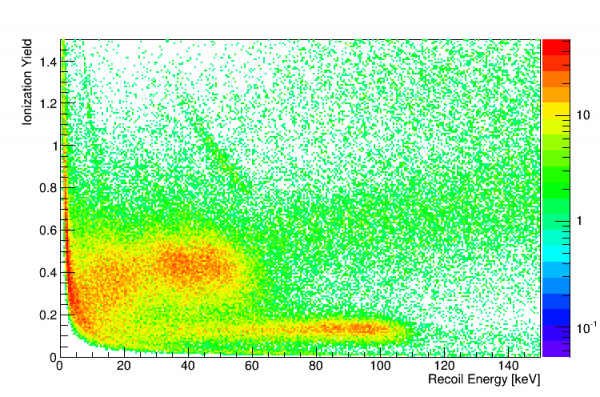

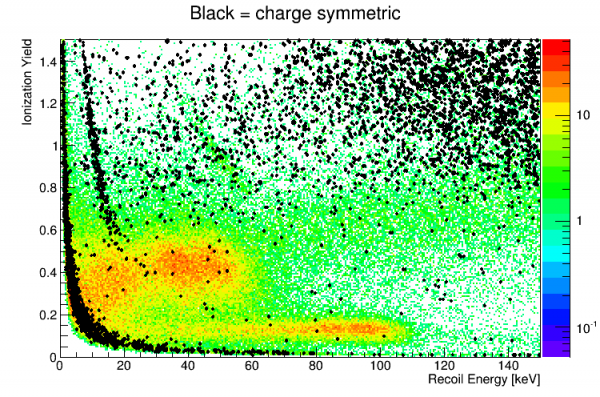

| Yield versus Energy plots | |
|---|---|
 |  |

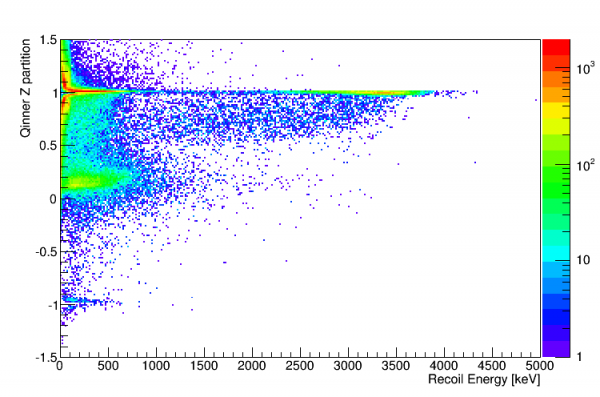

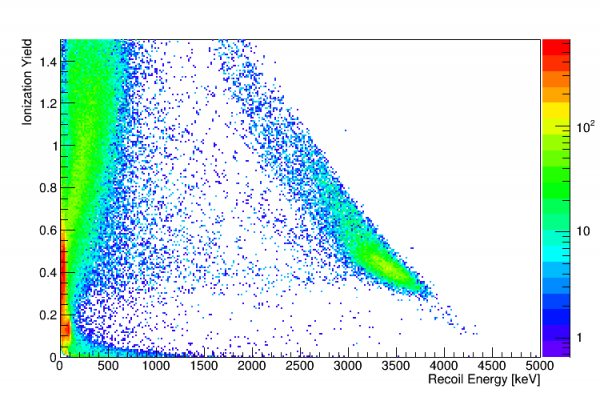

| Yield versus Energy and Charge Z Partition versus Energy up to high energies | |
|---|---|
 |  |
