Charge Bias Inventory

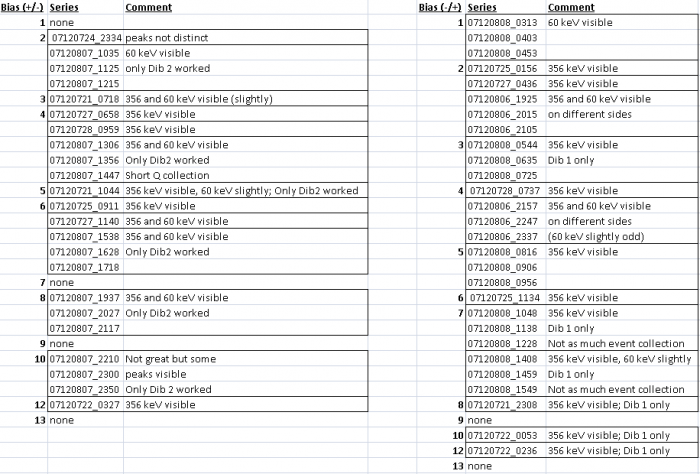

A quick table to show what figures I'm presenting below:

Some biases have multiple plots because I just felt like showing them. Some of the initial data taken by Hassan are presented below to fill in the bias gaps we had. Not all of that data is analyzed because I thought we had enough data from other series to get spectra for the rest of the biases.

Bias Series Board Configuration Trigger Data Run Time Length

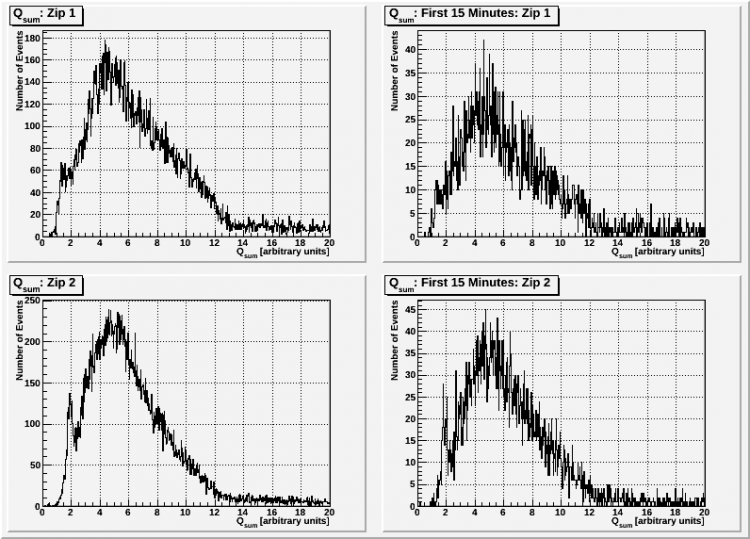

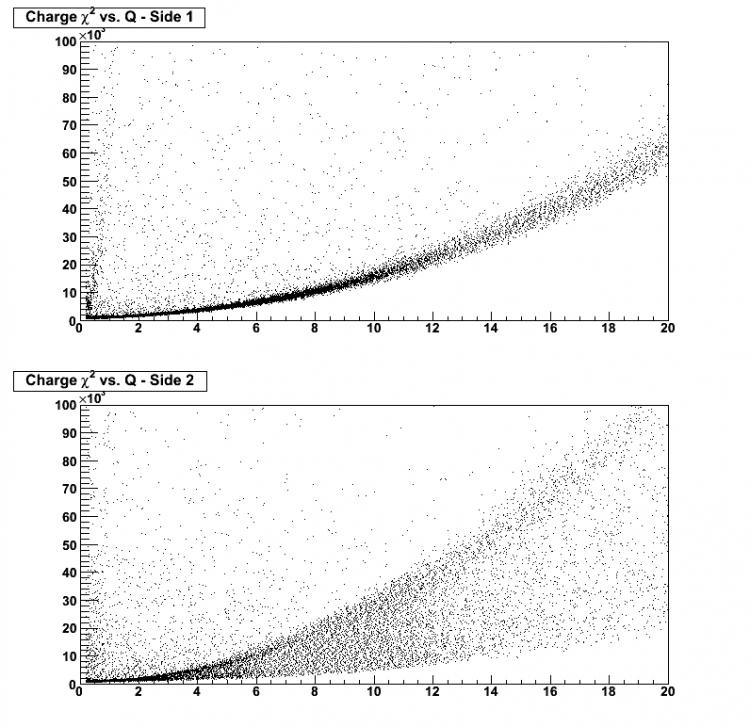

-/+ 1V 07120808_0313
07120808_0403
07120808_0453 		Dib1=DCRC 33, Dib2= DCRC32 Charge channels 30 min/series
Bias Series Board Configuration Trigger Data Run Time Length

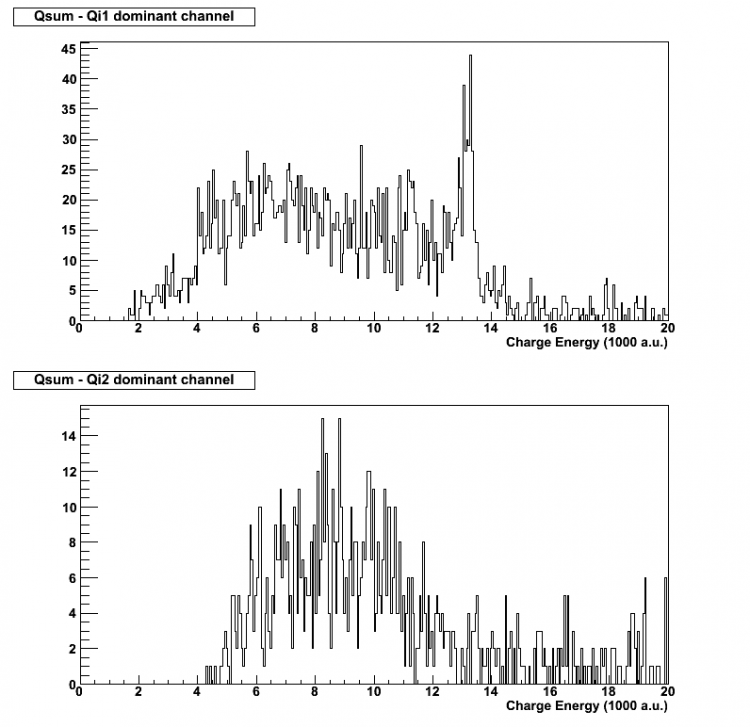

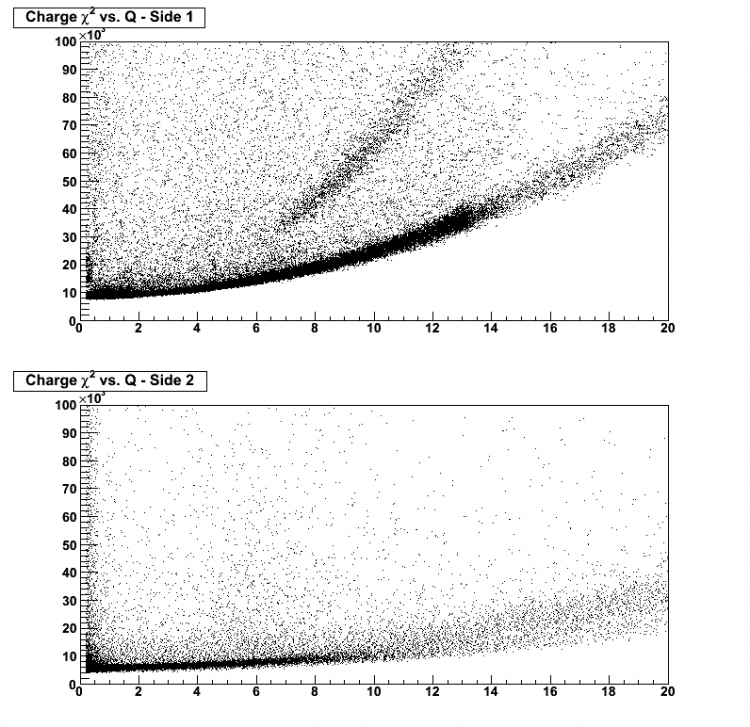

-/+ 2V 07120727_0436 Dib1=DCRC 33, Dib2= DCRC32, Dib3=DCRC31 12 phonon channels 2 hours

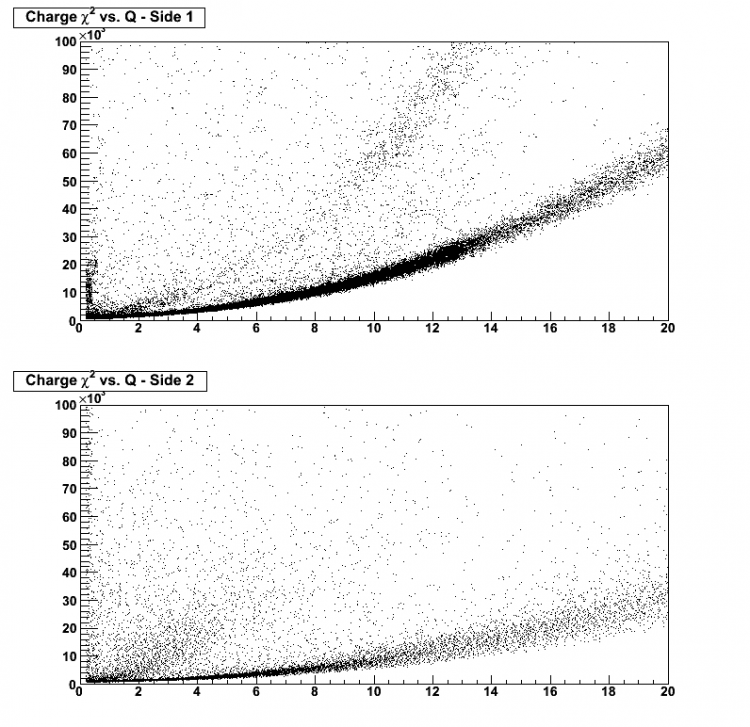

-/+ 2V 07120806_1925
07120806_2015
07120806_2105 		Dib1=DCRC 33, Dib2= DCRC32 Charge channels 30 min/series
Bias Series Board Configuration Trigger Data Run Time Length

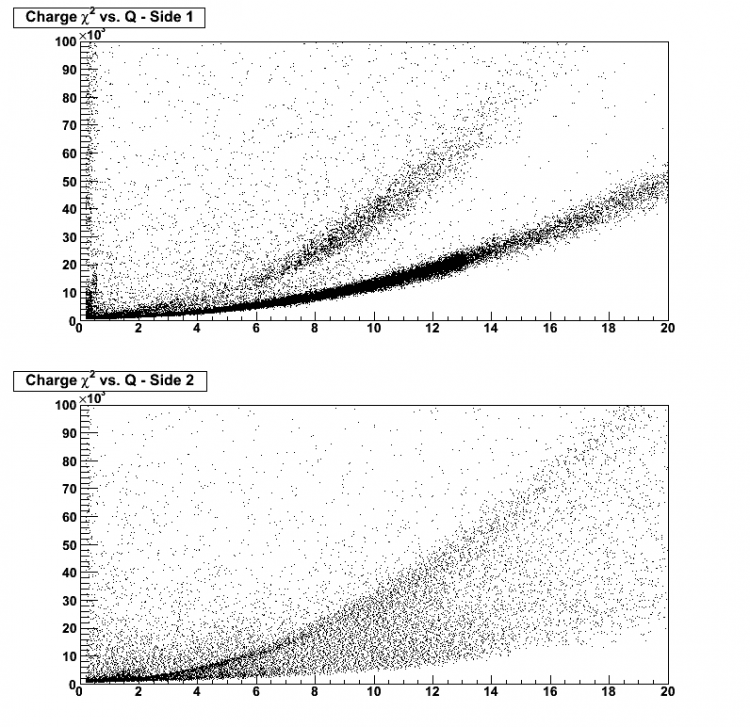

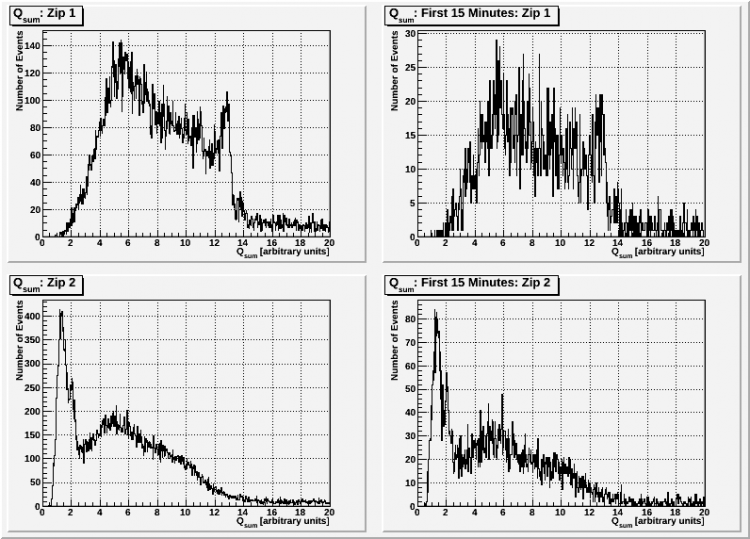

-/+ 3V 07120808_0544
07120808_064NICH835
07120808_0725 		Dib1=DCRC 33, Dib2= DCRC32 Charge channels 30 min/series
Bias Series Board Configuration Trigger Data Run Time Length

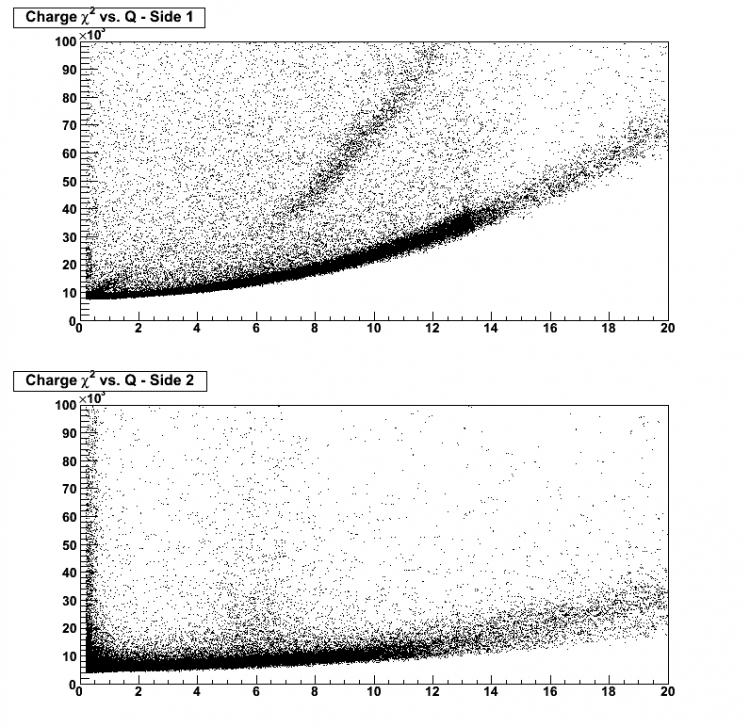

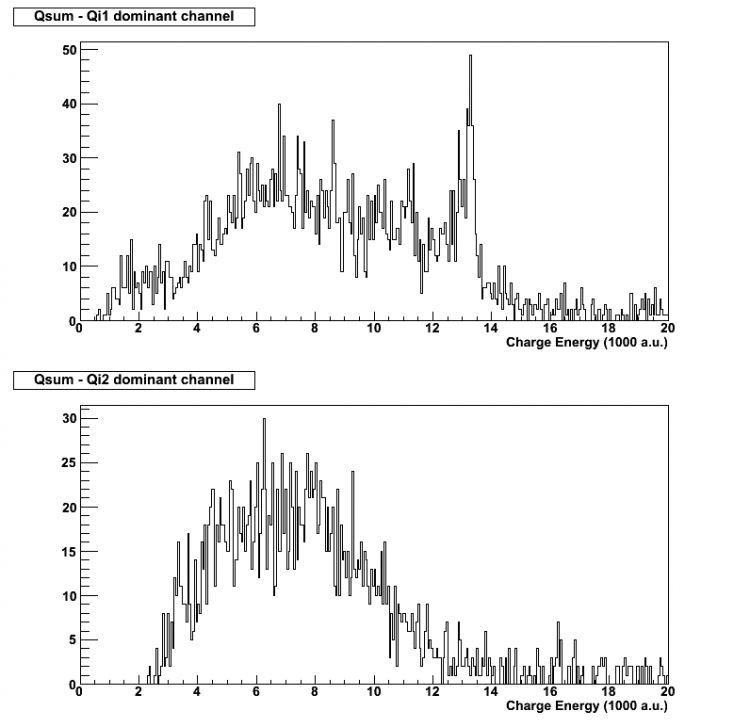

-/+ 4V 07120728_0737 Dib1=DCRC 33, Dib2= DCRC32, Dib3=DCRC31 Phonon channels 2 hours

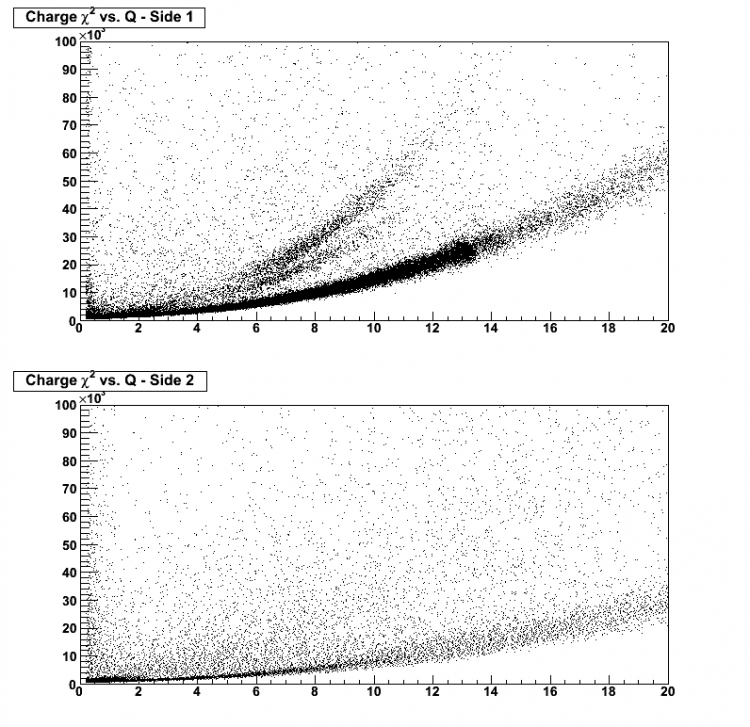

-/+ 4V 07120806_2157
07120806_2247
07120806_2337 		Dib1=DCRC 33, Dib2= DCRC32 Charge channels 30 min/series
Bias Series Board Configuration Trigger Data Run Time Length

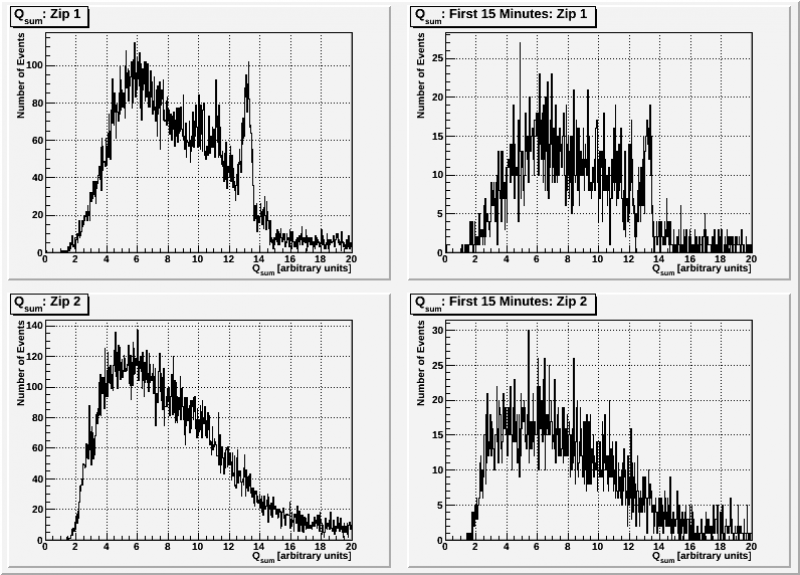

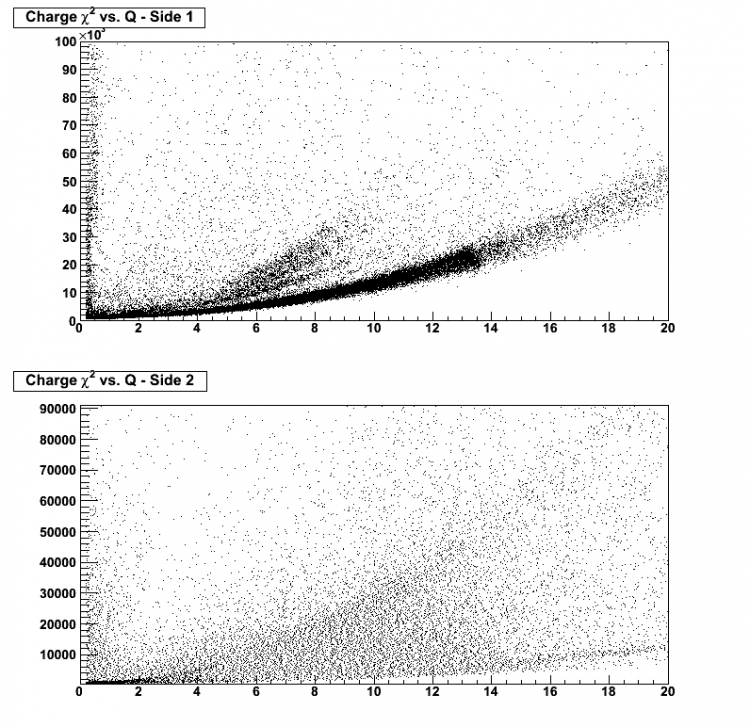

-/+ 5V 07120808_0816
07120808_0906
07120808_0956 		Dib1=DCRC 33, Dib2= DCRC32 Charge channels 30 min/series
Bias Series Board Configuration Trigger Data Run Time Length

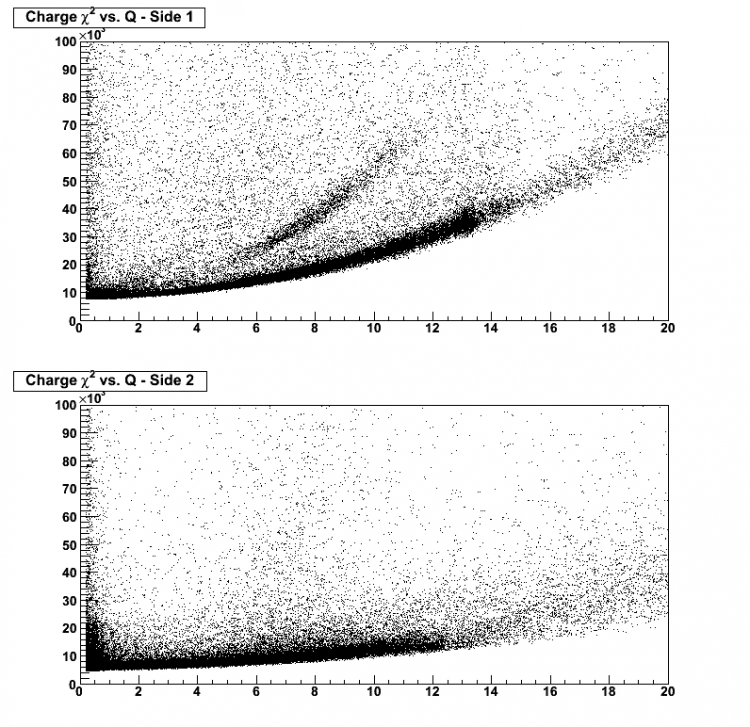

-/+ 6V 07120725_1134 Dib1=DCRC 33, Dib2= DCRC32 Phonon channels 2 hours
Bias Series Board Configuration Trigger Data Run Time Length

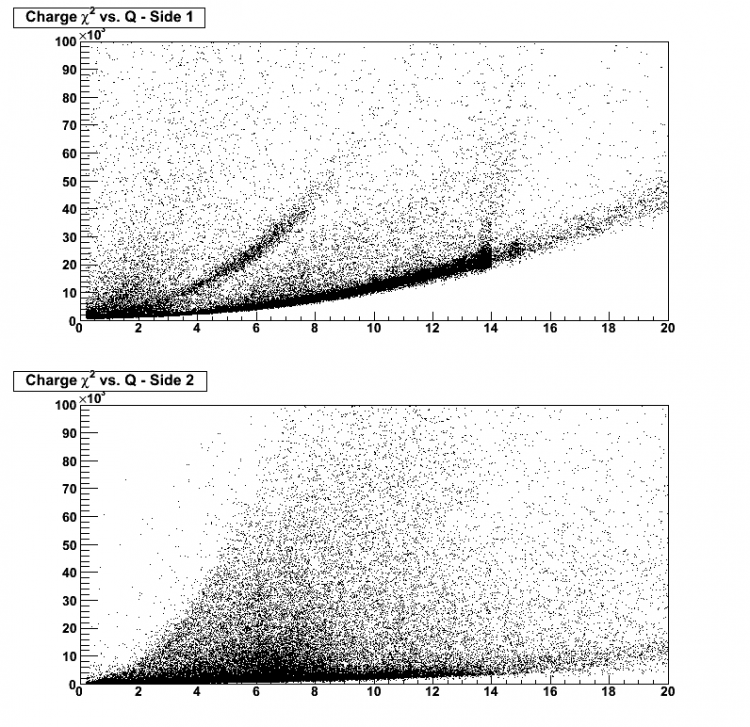

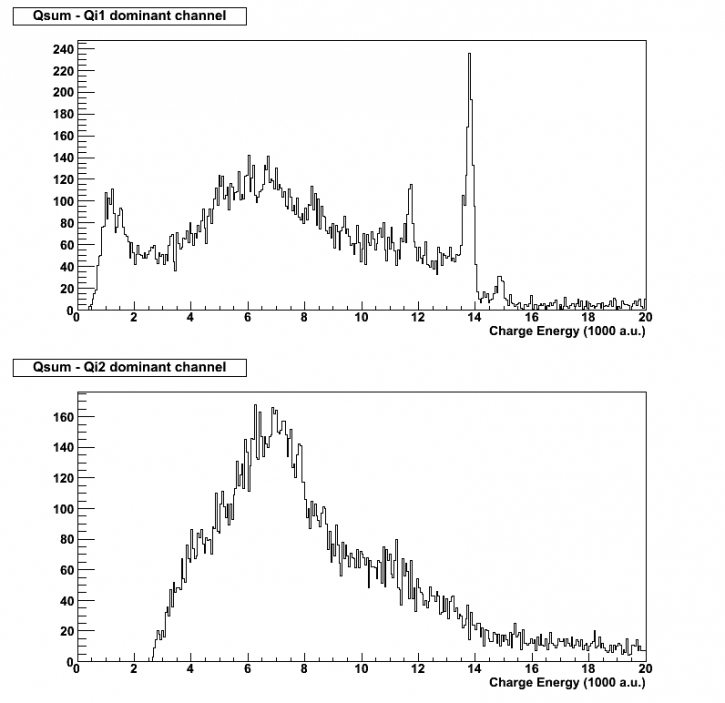

-/+ 8V 07120721_2308 Dib1=DCRC 32, Dib2= DCRC33 8 phonon channels 30 min
Bias Series Board Configuration Trigger Data Run Time Length

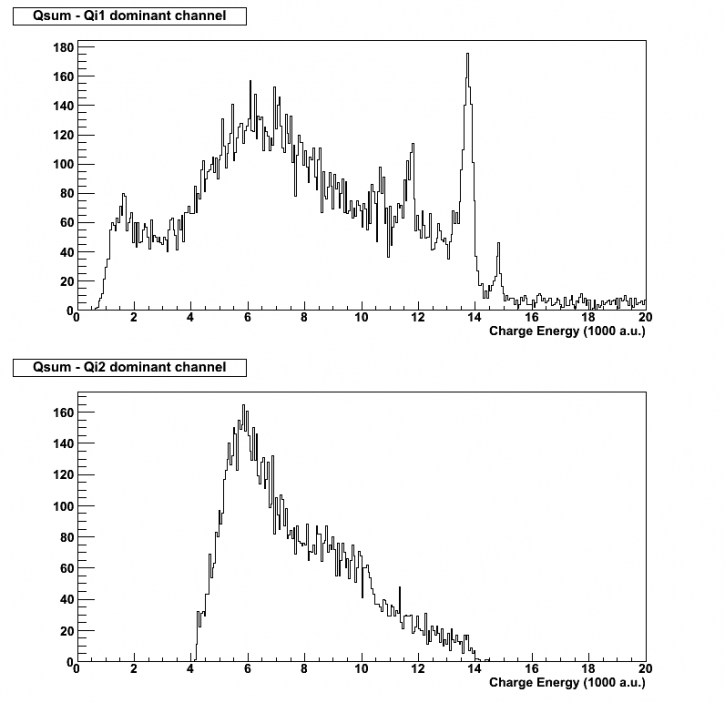

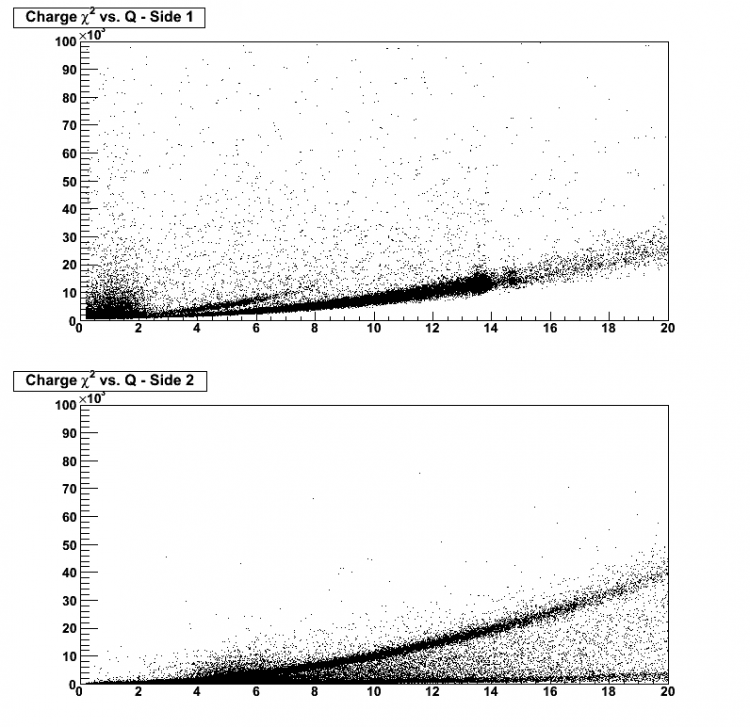

-/+ 10V 07120722_0053 Dib1=DCRC 32, Dib2= DCRC33 8 phonon channels 30 min
Bias Series Board Configuration Trigger Data Run Time Length

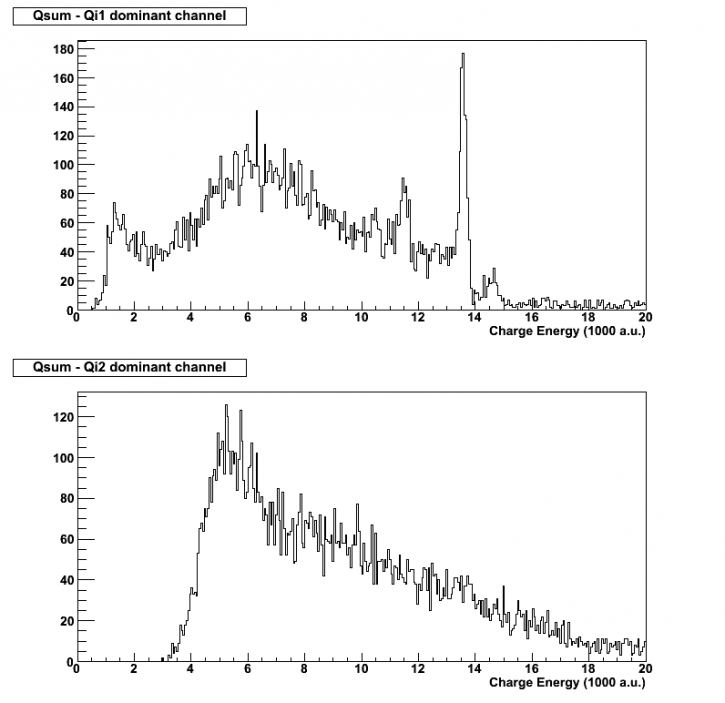

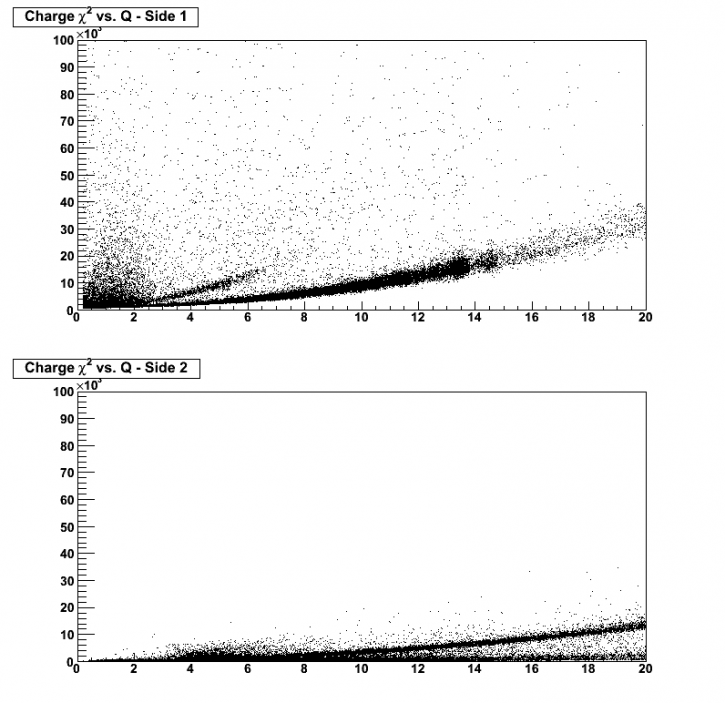

-/+ 12V 07120722_0236 Dib1=DCRC 32, Dib2= DCRC33 8 phonon channels 30 min
Bias Series Board Configuration Trigger Data Run Time Length

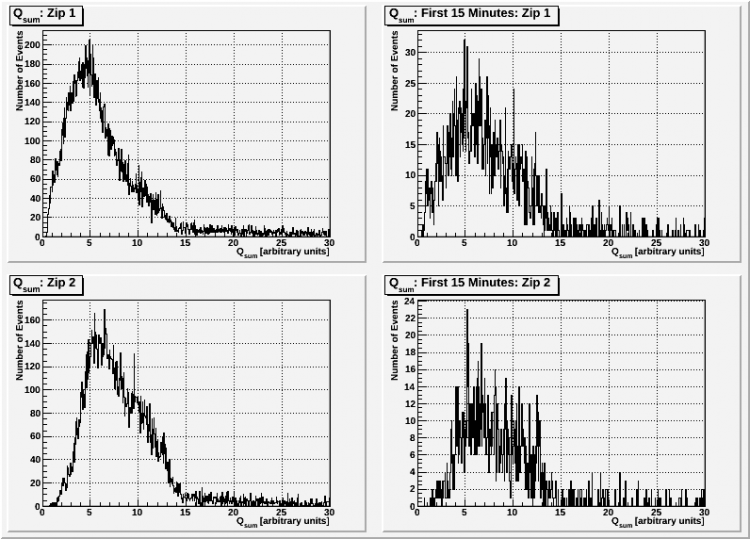

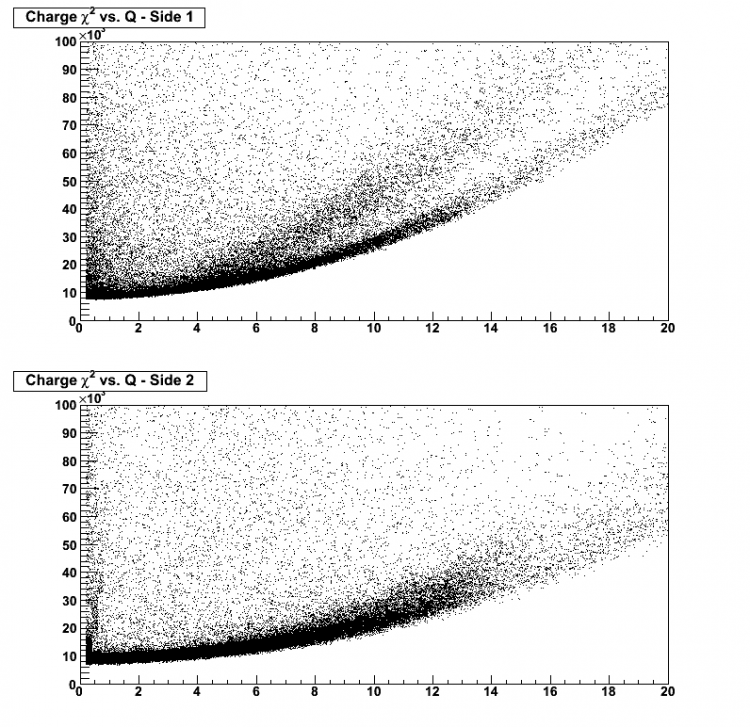

+/- 2V 07120724_2334 Dib1=DCRC 33, Dib2= DCRC32 12 phonon channels 2 hours

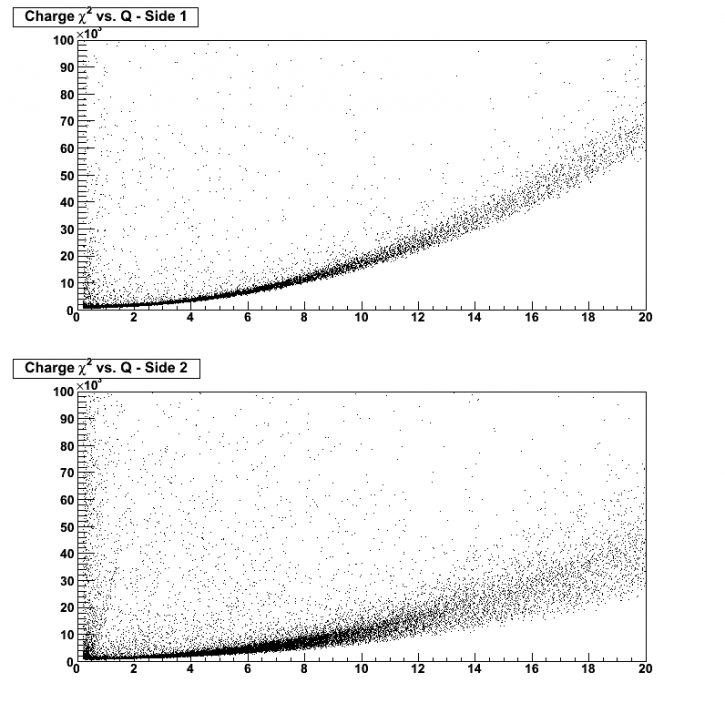

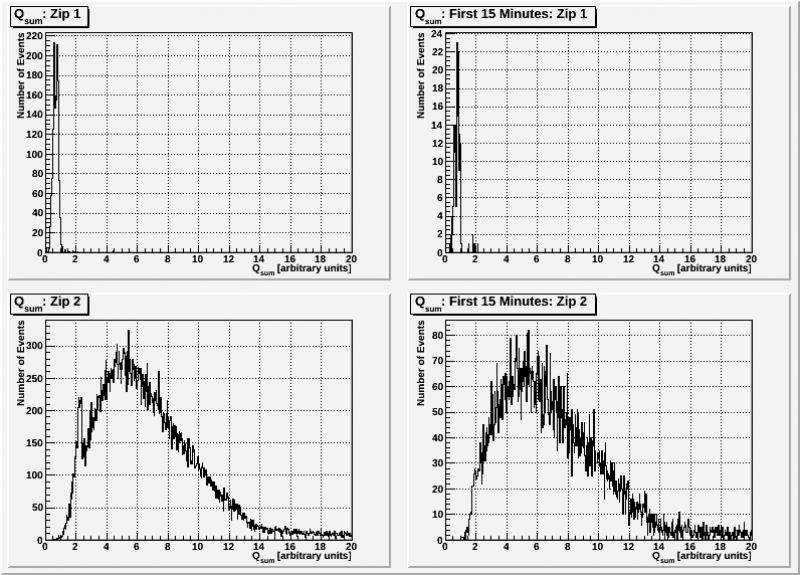

+/- 2V 07120807_1035
07120807_1125
07120807_1215 		Dib1=DCRC 33, Dib2= DCRC32 Charge channels 30 min/series
Bias Series Board Configuration Trigger Data Run Time Length

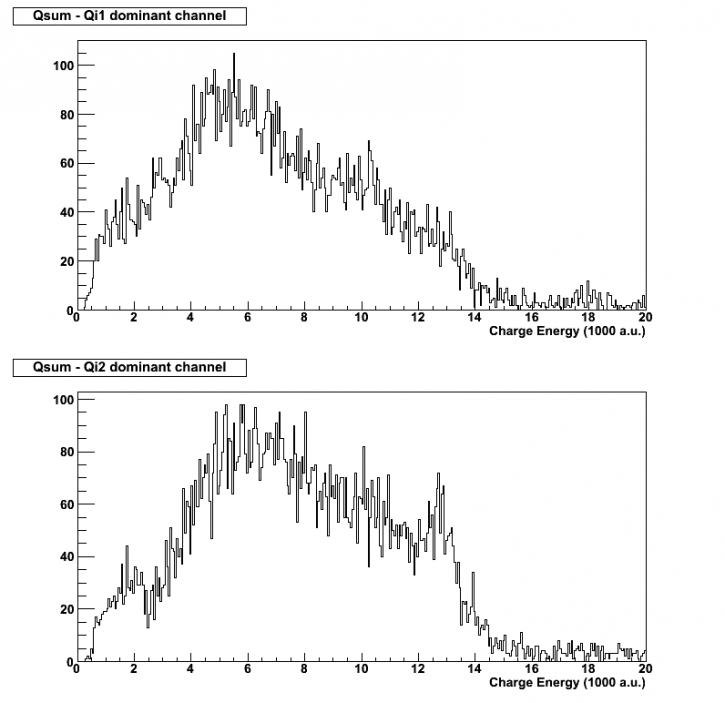

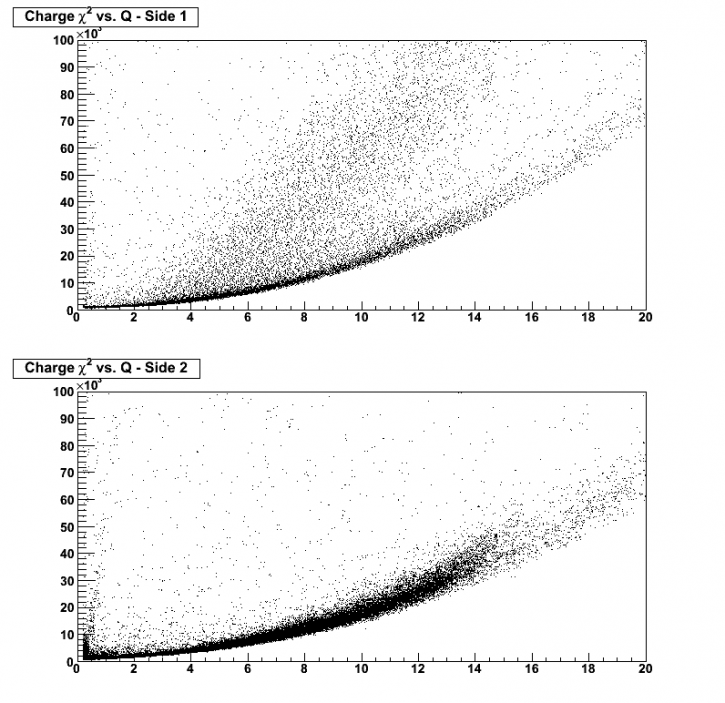

+/- 3V 07120721_0718 Dib1=DCRC 32, Dib2= DCRC33 8 phonon channels 30 min
Bias Series Board Configuration Trigger Data Run Time Length

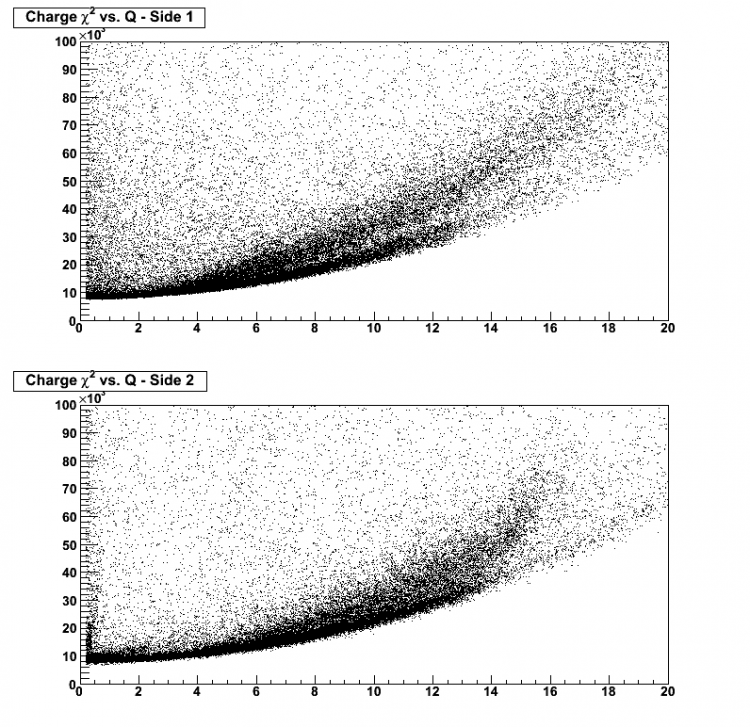

+/- 4V 07120727_0658 Dib1=DCRC 33, Dib2= DCRC32, Dib3=DCRC31 12 phonon channels 2 hours
+/- 4V 07120728_0959 Dib1=DCRC 33, Dib2= DCRC32, Dib3=DCRC31 12 phonon channels 2 hours

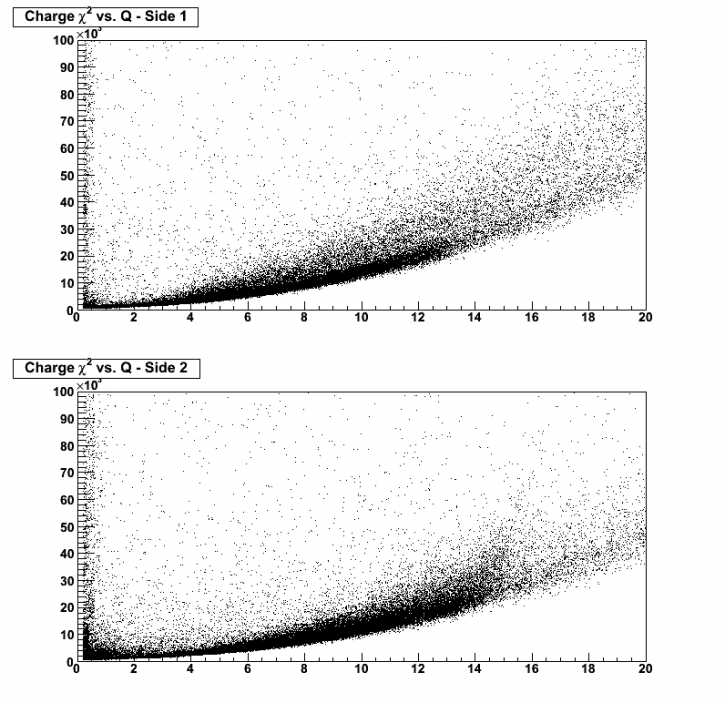

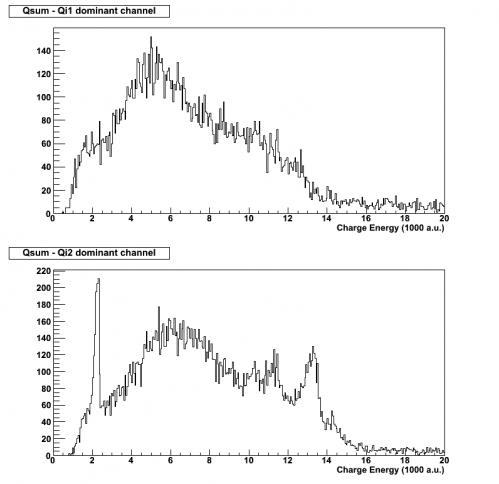

+/- 4V 07120807_1306
07120807_1356
07120807_1447 		Dib1=DCRC 33, Dib2= DCRC32 Charge channels 30 min/series
Bias Series Board Configuration Trigger Data Run Time Length

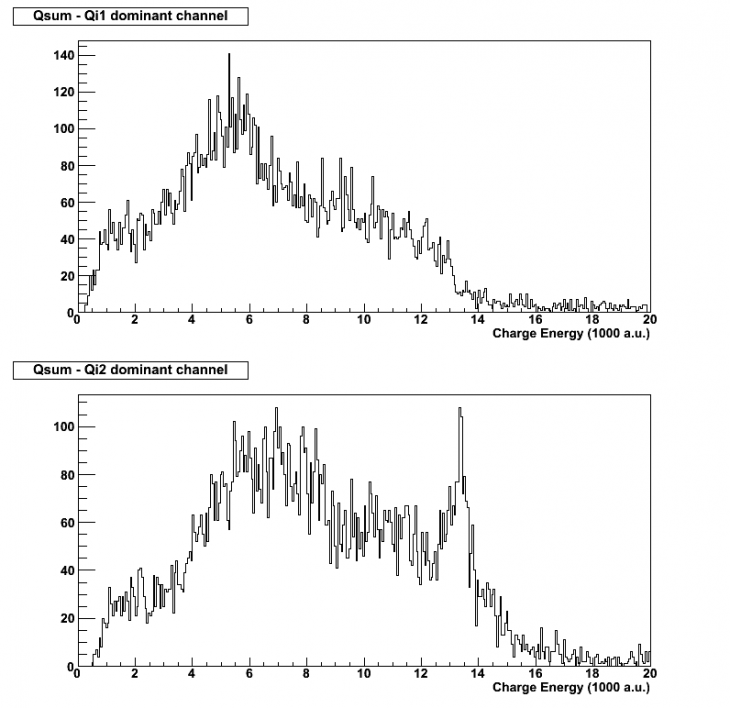

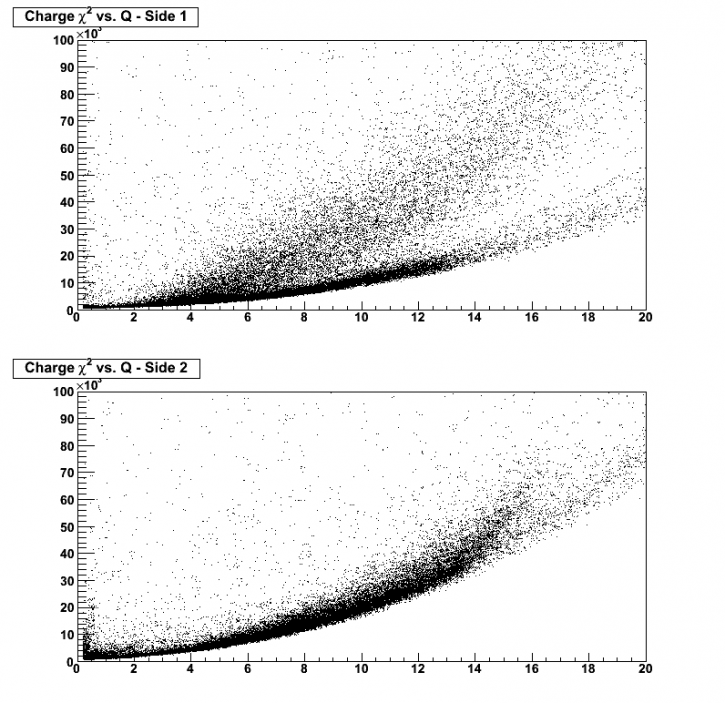

+/- 5V 07120721_1044 Dib1=DCRC 33, Dib2= DCRC32 8 phonon channels 30 min
Bias Series Board Configuration Trigger Data Run Time Length

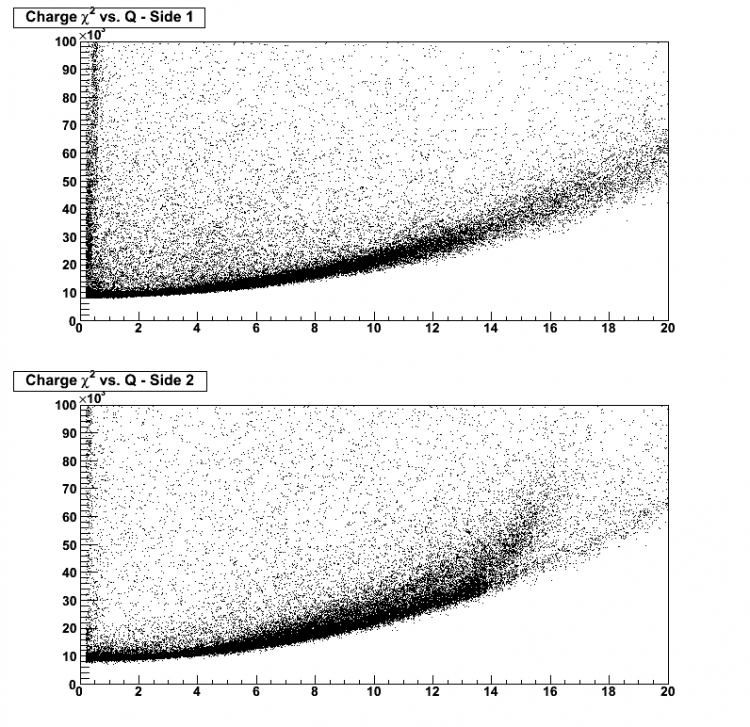

+/- 6V 07120727_1140 Dib1=DCRC 33, Dib2= DCRC32, Dib3=DCRC31 12 phonon channels 2 hours
Bias Series Board Configuration Trigger Data Run Time Length

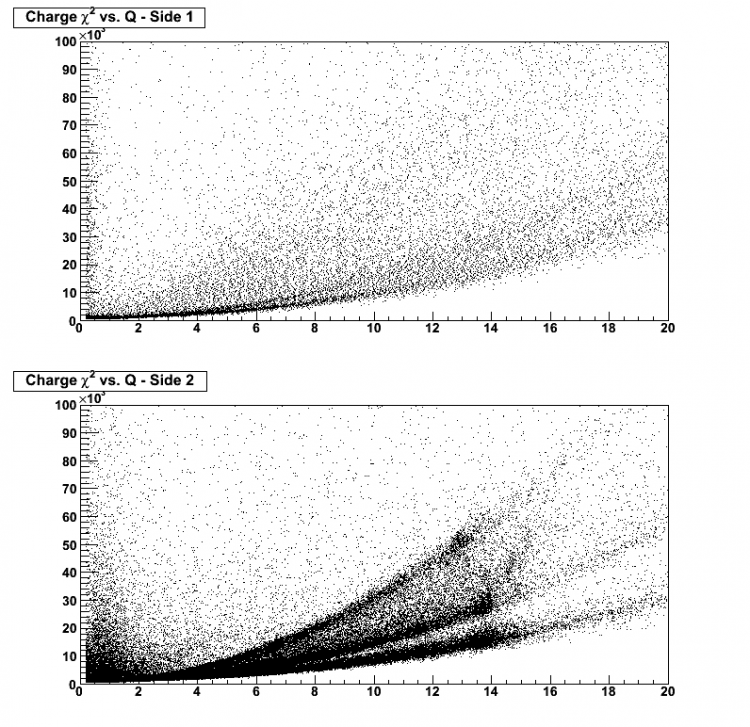

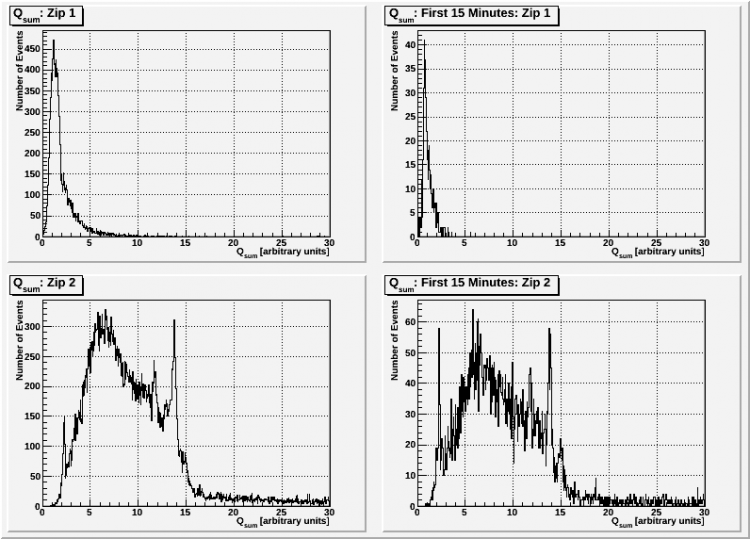

+/- 8V 07120807_1937
07120807_2027
07120807_2117 		Dib1=DCRC 33, Dib2= DCRC32 Charge channels 30 min/series
Bias Series Board Configuration Trigger Data Run Time Length

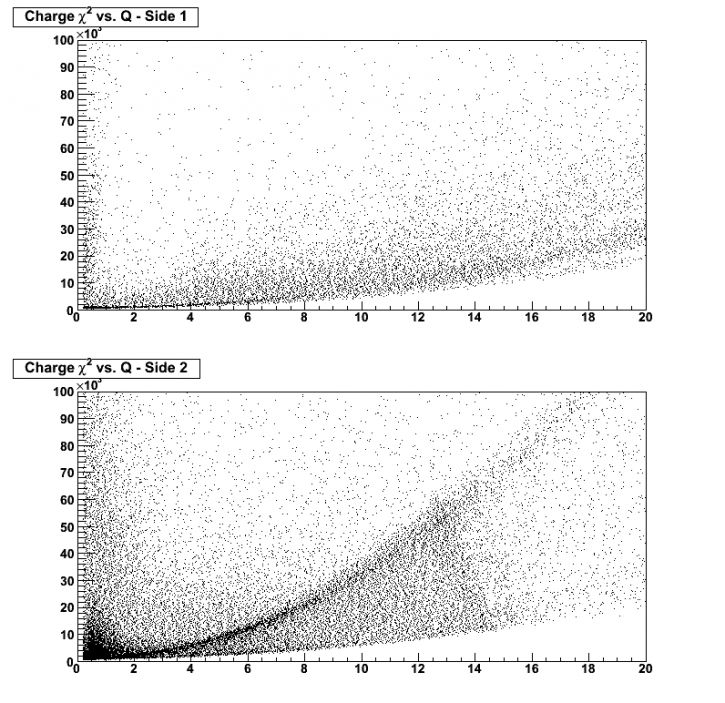

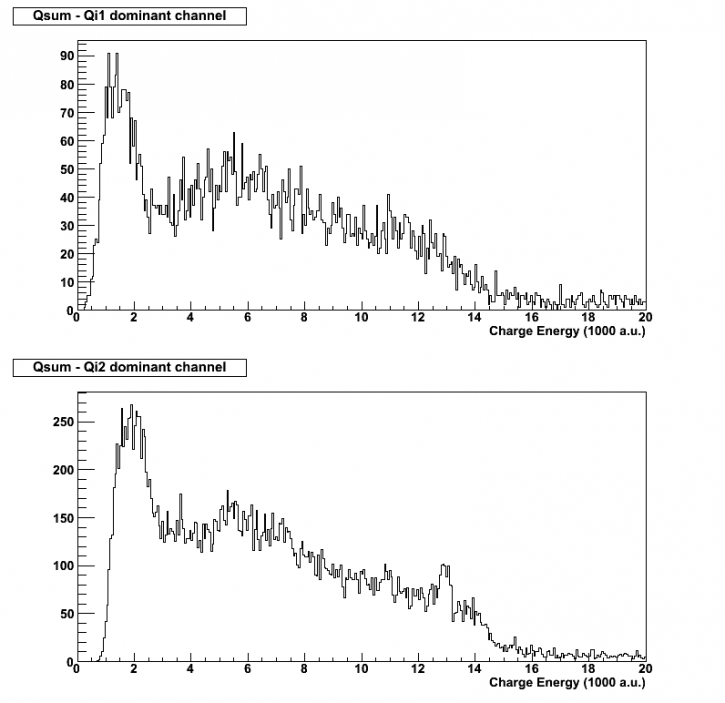

+/- 10V 07120807_2210
07120807_2300
07120807_2350 		Dib1=DCRC 33, Dib2= DCRC32 Charge channels 30 min/series
Bias Series Board Configuration Trigger Data Run Time Length

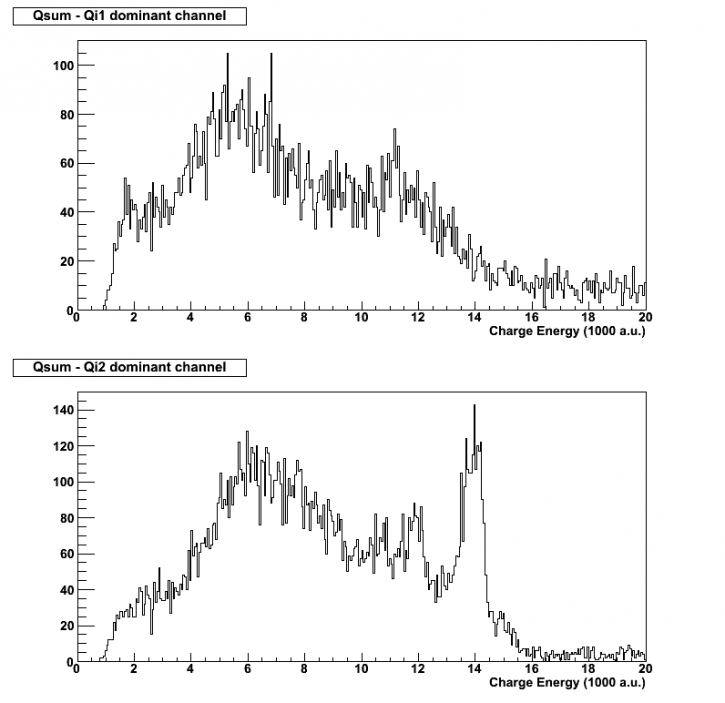

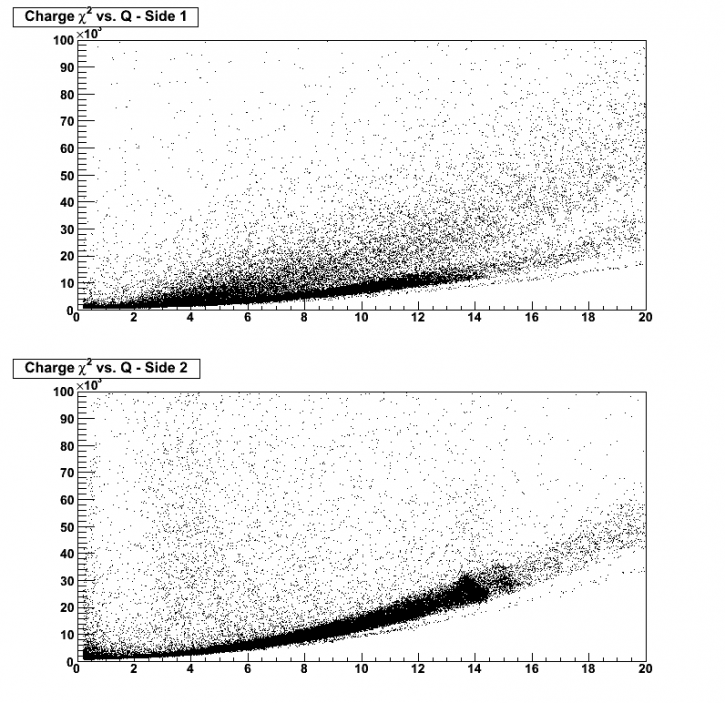

+/- 12V 07120722_0327 Dib1=DCRC 32, Dib2= DCRC33 8 phonon channels 30 min
