2021/01/21 (Thursday)
- Lab in-person: Matt
- Virtual partner: Zach
| Status | Run 74 prep. 1K Pot pumped out and isolated. Fridge and 4He and LN2 Trap 1 isolated, not pumped out. Cryostat vacuum jacket pumped out. IVC open, tower installation in progress. |
|---|---|
| 1520 | Matt enters lab. |
| 1530 | Find same SQUETS used in Run67: ZC-13 for DIB1, ZC-39 for DIB2, plus interposer board |

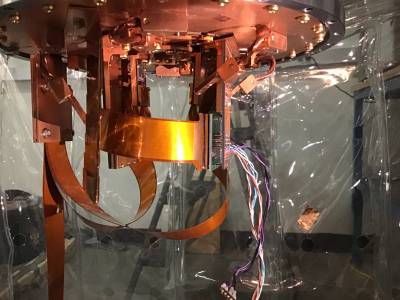

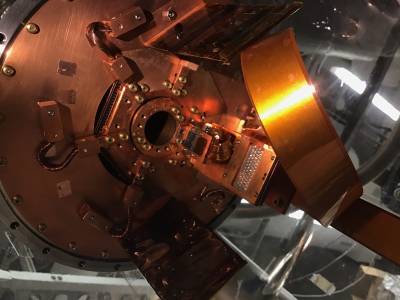

| 1550 | For DIB 1 (Face 2) install SQUET ZC-13 connected to Stripline 41  Note - should have put cover of bottom of tower first, hard to do after SQUETs installed. |
| 1605 | For DIB 2 (Face 5) install SQUET ZC-39 connected to Stripline 43 with interposer board.  |

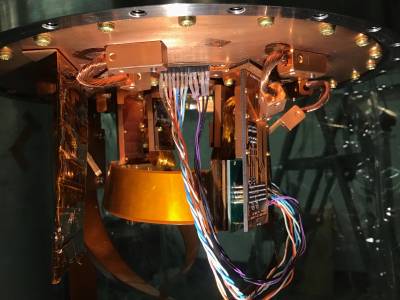

| 1615 | Plug connectors from interposer board into Face 4. Connector 1: socket 1-7, bn/w-bn/org/w-org/blu/w-blu/grn. Connector 2: socket 8-11, v/v/blk/blk  |

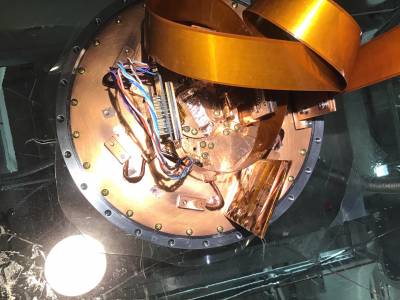

| 1650 | Reattach heat sinks and, after a lot of effort, put cap on tower bottom. Just taped it up. Note that SQUET cards can't be attached, they have to go on later.  |
| 1705 | Matt leaves lab. |
