2017/01/05 (Thursday)

Previous Day

Status: IVC open, tower removed. Main bath vacuum jacket is evacuated. 1K Pot needle valve closed. LN2 traps clean. Mixture is in dump, fridge evacuated.
1125 Remove S101 from purge cabinet and bag it for transport to wirebonder lab
1140 Remove S101 from bag in wirebonder lab
1150 Rebond DIB4 Side2 Pin4. Electrical check looks good, with and without lid on.
1155 Put S101 back in bag
1205 Return S101 to purge cabinet
1246 Remove S101 from purge cabinet
1315 Assemble stack, with DIB1 aligned with Tower Face 15, and the LED hole on the opposite side from DIB1. At first electrical checks showed a slight short, a few kOhm, from some pins to chassis. We removed the source holder and pushed down some wires, then replaced it, and all channels are still continuous with no obvious shorts to chassis.
DIBs 1/3/4 → Faces 5/3/1

Detector electrical check after tower assembly:

Detector S101 DIB 1
date/who: 2017-01-05 MF & GR
+lead - lead signal typical measured
1 2 QET A 100 to 200 Ω 304 Ω
3 4 QET B 100 to 200 Ω 110 Ω
5 6 QET C 100 to 200 Ω 397 Ω
7 8 QET D 100 to 200 Ω 289 Ω
9 chassis LED1 Rforward 8 to 9 MΩ 167 kΩ
9 chassis LED1 Vforward 1.0 to 1.1 V 1.002 V
chassis 9 LED1 Rreverse <1 nS 570 kΩ
10 chassis LED2 Rforward 8 to 9 MΩ 750 kΩ
10 chassis LED2 Vforward 1.0 to 1.1 V 1.041 V
chassis 10 LED2 Rreverse <1 nS <0.5 nS
11 12 Qo-Qi n/a
12 11 Qi-Qo n/a
1-8 chassis <1 nS <0.4 nS
Detector S101 DIB 3
date/who: 2017-01-05 MF & GR
+lead - lead signal typical measured
1 2 QET A 100 to 200 Ω 139 Ω
3 4 QET B 100 to 200 Ω 26 Ω
5 6 QET C 100 to 200 Ω 27 Ω
7 8 QET D 100 to 200 Ω open
9 chassis LED1 Rforward 8 to 9 MΩ n/a
9 chassis LED1 Vforward 1.0 to 1.1 V n/a
chassis 9 LED1 Rreverse <1 nS n/a
10 chassis LED2 Rforward 8 to 9 MΩ n/a
10 chassis LED2 Vforward 1.0 to 1.1 V n/a
chassis 10 LED2 Rreverse <1 nS n/a
11 12 Qo-Qi n/a
12 11 Qi-Qo n/a
1-8 chassis <1 nS <0.4 nS
Detector S101 DIB 4
date/who: 2017-01-05 MF & GR
+lead - lead signal typical measured
1 2 QET A 100 to 200 Ω 353 Ω
3 4 QET B 100 to 200 Ω 422 Ω
5 6 QET C 100 to 200 Ω 349 Ω
7 8 QET D 100 to 200 Ω 380 Ω
9 chassis LED1 Rforward 8 to 9 MΩ n/a
9 chassis LED1 Vforward 1.0 to 1.1 V n/a
chassis 9 LED1 Rreverse <1 nS n/a
10 chassis LED2 Rforward 8 to 9 MΩ n/a
10 chassis LED2 Vforward 1.0 to 1.1 V n/a
chassis 10 LED2 Rreverse <1 nS n/a
11 12 Qo-Qi n/a
12 11 Qi-Qo n/a
1-8 chassis <1 nS <0.3 nS
1330 Notice on side coax st-3-10, pin 1 has a socket attached to it that came off of G101C.
1350 Solder two of the LED wires to pins 9 and 10 of the side coax extender for ST-3-9, then plug this into DIB3
1405 Solder two of the LED wires to pins 9 and 10 of the side coax extender for ST-3-10, then plug this into DIB4
1410 Plug ST-3-3 into DIB1
1415 Tower electrical check:
Detector S101 DIB 1
side coax ST-3-3 date/who: 2017-01-05 MF GR
face 5
+lead - lead signal typical measured
1 2 QET A 100 to 200 Ω 406 Ω
2 4 QETA-B 100 to 200 Ω 4240 Ω
3 4 QET B 100 to 200 Ω 209 Ω
4 6 QETB-C 100 to 200 Ω 4420 Ω
5 6 QET C 100 to 200 Ω 495 Ω
6 8 QETC-D 100 to 200 Ω 3800 Ω
7 8 QET D 100 to 200 Ω 376 Ω
2 8 QETA-D 100 to 200 Ω 3900 Ω
9 chassis LED1 Rforward 8 to 9 MΩ 183 kΩ
9 chassis LED1 Vforward 1.0 to 1.1 V 1.053 V
chassis 9 LED1 Rreverse <1 nS 270 kΩ
10 chassis LED2 Rforward 8 to 9 MΩ 760 kΩ
10 chassis LED2 Vforward 1.0 to 1.1 V 1.095 V
chassis 10 LED2 Rreverse <1 nS 0.2 nS
All pins → Ground <1.0nS (Except for LED pins) all <0.3 nS
Detector S101 DIB 3
side coax ST-3-9 date/who: 2016-10-10 MF NM
face 3
+lead - lead signal typical measured
1 2 QET A 100 to 200 Ω 246 Ω
2 4 QETA-B 100 to 200 Ω 3170 Ω
3 4 QET B 100 to 200 Ω 129 Ω
4 6 QETB-C 100 to 200 Ω 4675 Ω
5 6 QET C 100 to 200 Ω 132 Ω
6 8 QETC-D 100 to 200 Ω inf Ω
7 8 QET D 100 to 200 Ω inf Ω
2 8 QETA-D 100 to 200 Ω inf Ω
9 chassis LED1 Rforward 8 to 9 MΩ 790 kΩ
9 chassis LED1 Vforward 1.0 to 1.1 V 1.093 V
chassis 9 LED1 Rreverse <1 nS 0.3 nS
10 chassis LED2 Rforward 8 to 9 MΩ 790 kΩ
10 chassis LED2 Vforward 1.0 to 1.1 V 1.092 V
chassis 10 LED2 Rreverse <1 nS 0.2 nS
All pins → Ground <1.0nS (Except for LED pins) all <0.3 nS
Detector S101 DIB 4
side coax ST-3-10 date/who: 2017-01-05 MF GR
face 1
+lead - lead signal typical measured
1 2 QET A 100 to 200 Ω 458 Ω
2 4 QETA-B 100 to 200 Ω 4750 Ω
3 4 QET B 100 to 200 Ω 526 Ω
4 6 QETB-C 100 to 200 Ω 6000 Ω
5 6 QET C 100 to 200 Ω 453 Ω
6 8 QETC-D 100 to 200 Ω 4900 Ω
7 8 QET D 100 to 200 Ω 483 Ω
2 8 QETA-D 100 to 200 Ω 5700 Ω
9 chassis LED1 Rforward 8 to 9 MΩ 800 kΩ
9 chassis LED1 Vforward 1.0 to 1.1 V 1.093 V
chassis 9 LED1 Rreverse <1 nS <0.1 nS
10 chassis LED2 Rforward 8 to 9 MΩ 790 kΩ
10 chassis LED2 Vforward 1.0 to 1.1 V 1.090 V
chassis 10 LED2 Rreverse <1 nS 0.2 nS
All pins → Ground <1.0nS (Except for LED pins) all <0.4 nS

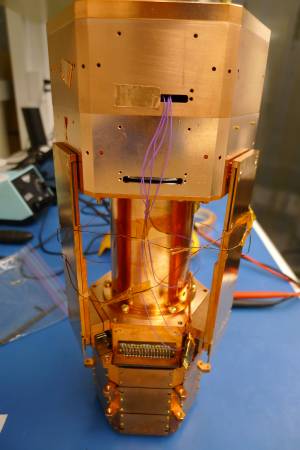

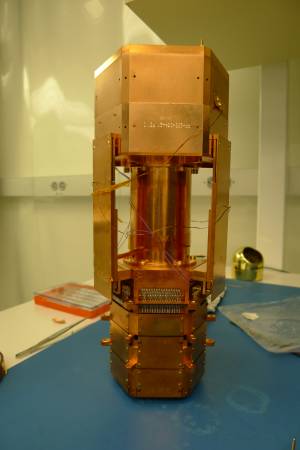

1450 Tape down LED wires to tower spool.
1455 Put tower in purge cabinet
S101 DIB 1 3 4
Tower face 5 3 1
Side coax ST-3-3 ST-3-9 ST-3-10
