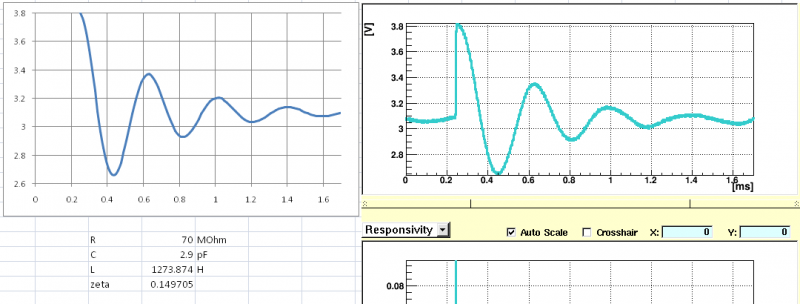

| Assuming 70 MΩ feedback resistance, fitting the pulse shape (no added resistor case) to the form of a parallel RLC circuit results in the following: |
|---|
 |

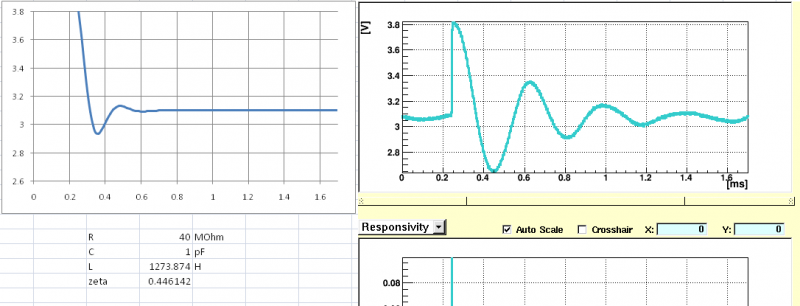

| Adjusting the resistance and capacitance to the standard values but leaving the inductance the same result in: |
|---|
 |
