PMT with new Discriminator

The upper and lower PMTs were switched to a new discriminator. Data file is new-descrim_1100v_cross_6.5cm.dat.

Pulse Examples

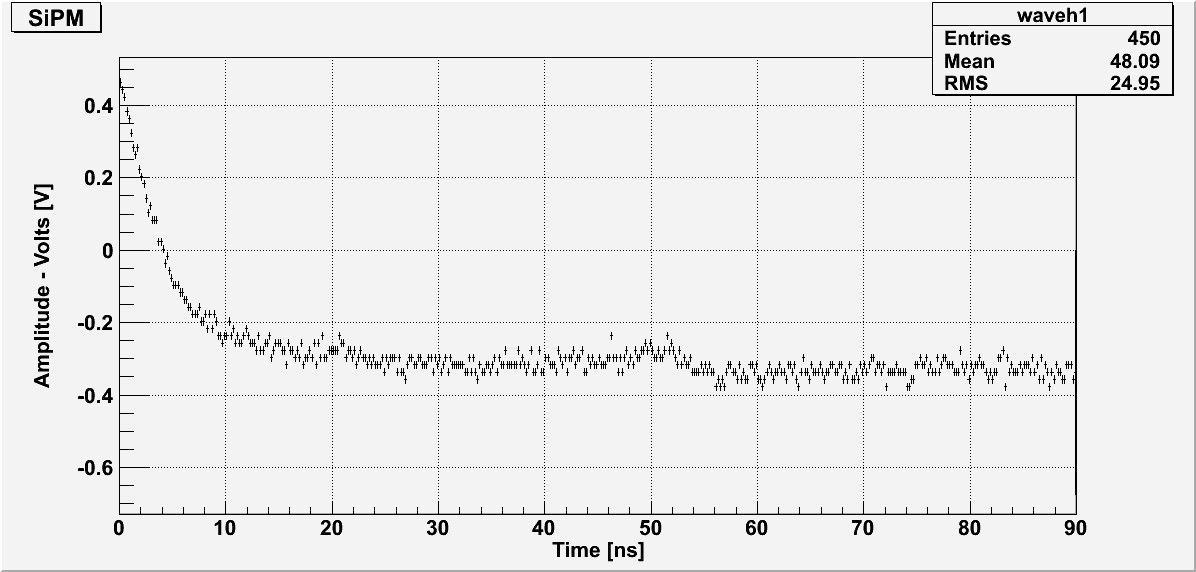

Figure 1: A very early pulse.

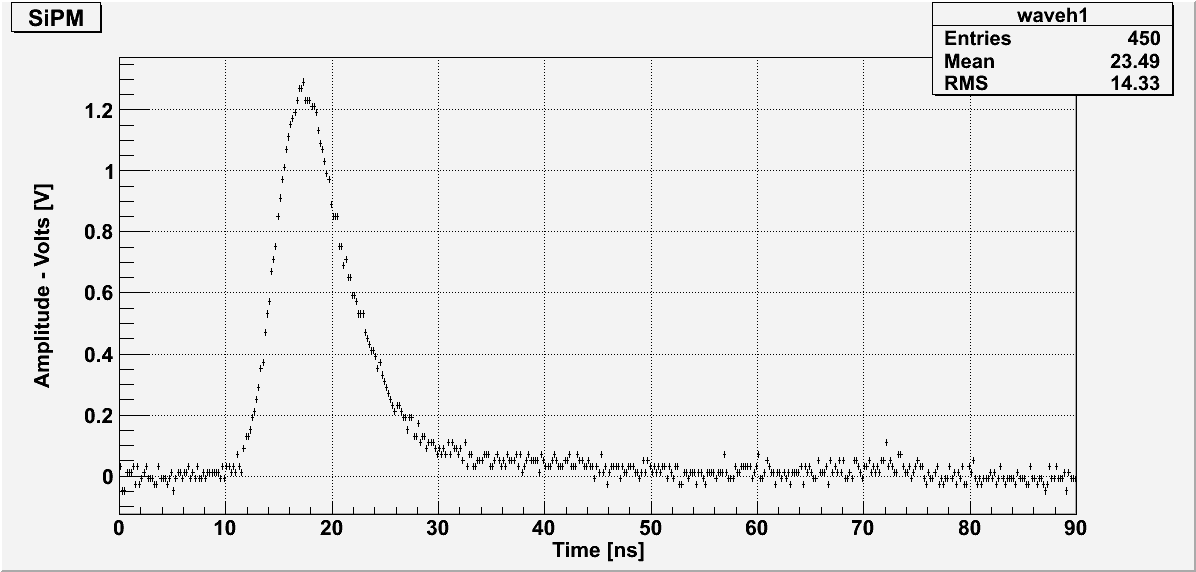

Figure 2: A somewhat early pulse.

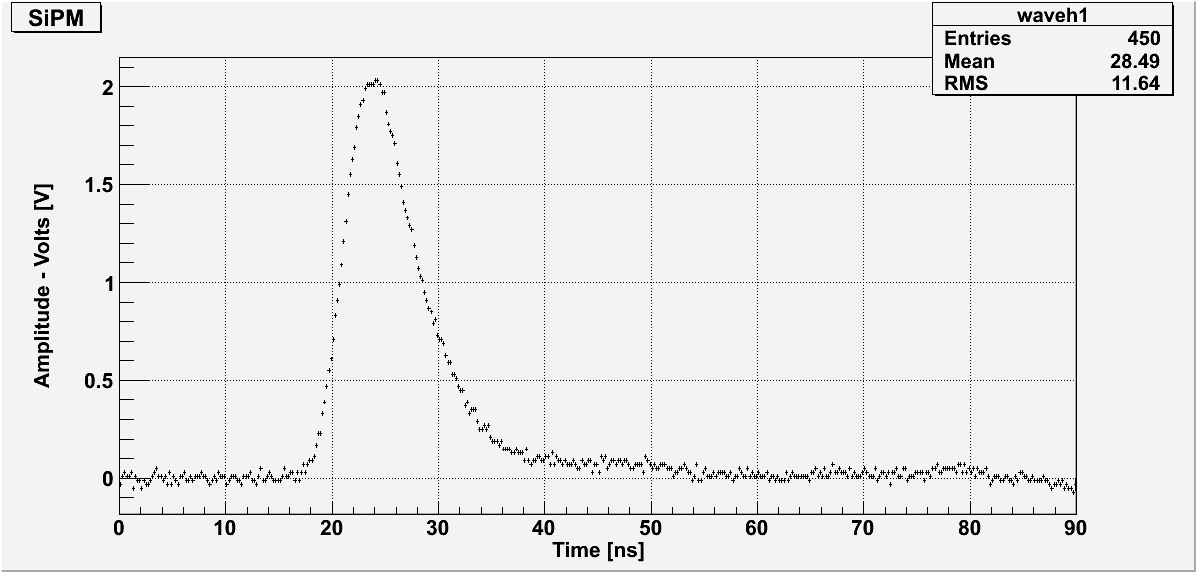

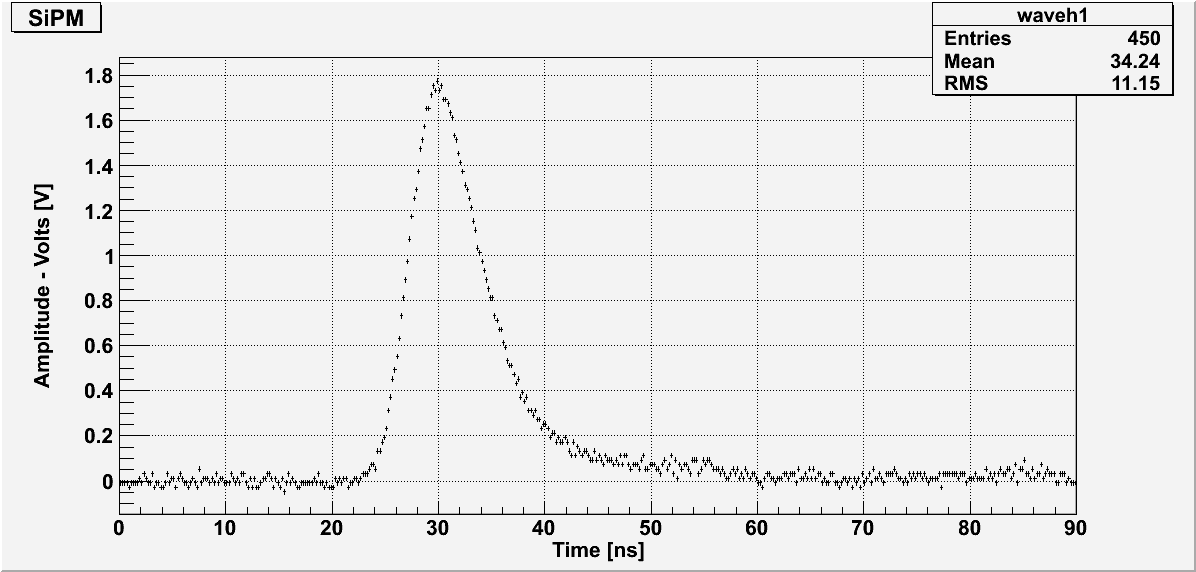

Figure 3: An okay pulse.

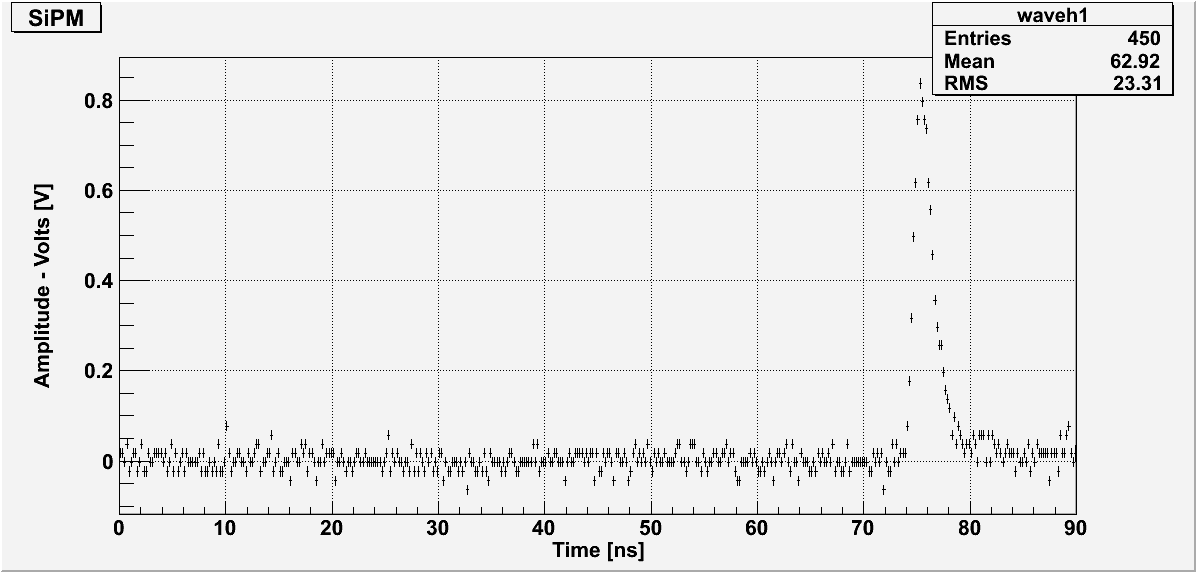

Figure 4: A somewhat late pulse.

Figure 5: A very late pulse.

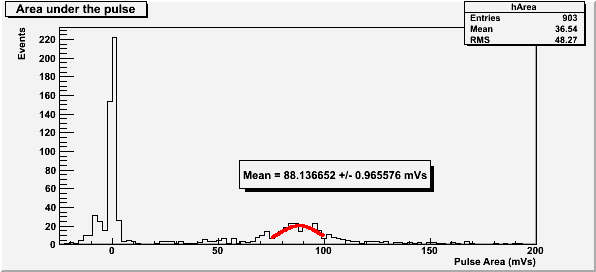

Figure 6: Gaussian Peak

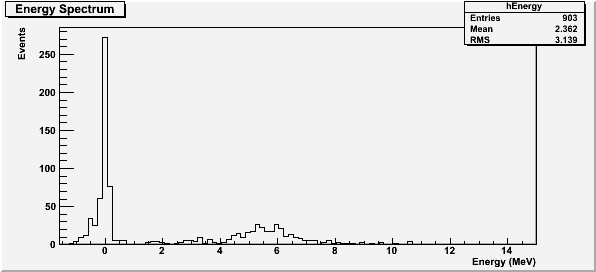

Figure 7: Converted Energy Spectrum

Table 1: Empty Count
Total Number Events	Number of Empties	Percentage Empties	Total time (s)	Total Rate (Hz)	Rate less Empties (Hz)
903	513	56.8%	238855	0.00378	0.00163
