Muon Telescope Data

Experimental Set Up

Smaller top and bottom scintillators were used (width: 1.0 cm, height: 1.9 cm, length: 4.5 cm) in the hopes of determining an attenuation coefficient of light in the scintillator. The coincidence cross section was set up to be 1.5 cm centered along the diameter of the sample and 1 cm down the length of the sample, as shown in Figure 1.

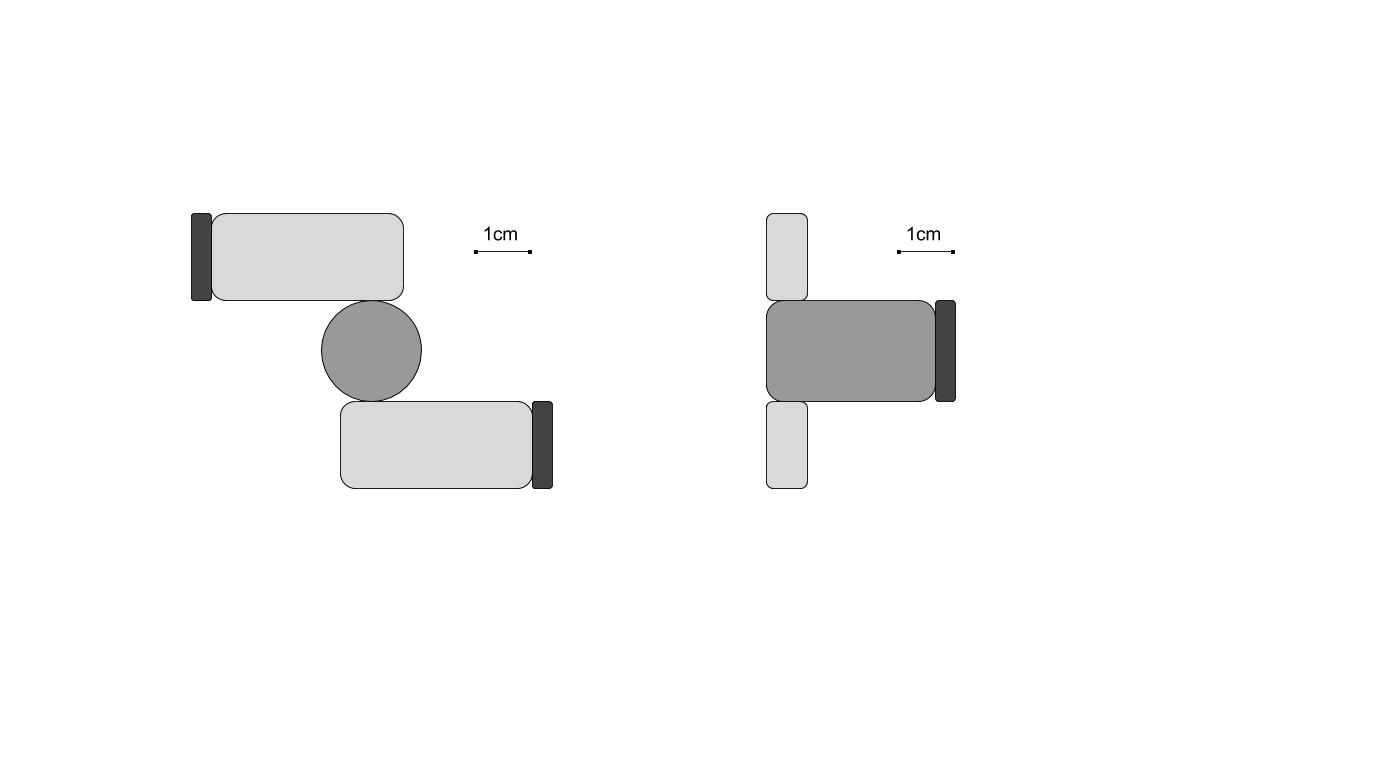

Figure 1: Muon Telescope setup, side views

Data

Table 1: List of Muon Telescope Results
Date	Sample Tested	GdTIP Loading Mass Percentage (need to be confirmed)	Distance from PMT face	Middle PMT Bias Voltage (kV)	Raw Data File	Fit Mean (nVs)	Fit Range
2016/07/01	DMR-09	0.15%	Large trigger, center of sample	2.00	20160701_muon_2000v_DMR09.dat	118.4 +/- 2.6	109-128
2016/08/01, 2016/08/02	DMR-09	0.15%	3.781 +/- 0.002	2.00	20160801_muon_2000v_DMR09.dat, 20160802_muon_2000v_DMR09.dat	115.0 +/- 2.6	105.25-125
	DMR-09	0.15%	3.781 +/- 0.002
	DMR-09	0.15%	3.781 +/- 0.002

Furthest from PMT face, ___ cm

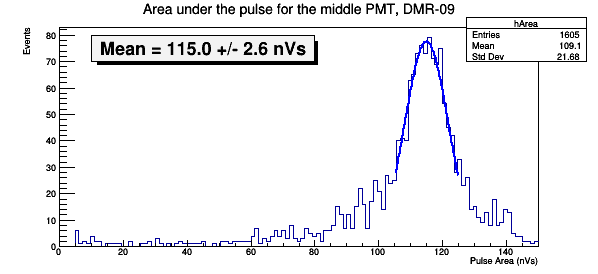

Figure 2: Area under the pulse fit to a gaussian.

Muon run. channel 0: middle PMT, R1332 @ -1990V, DMR-07 Gd-loaded scintillator. channel 1: bottom PMT, 8575B @ -1703V, generic scintillator, -300mV discriminator threshold. channel 2: top PMT #14 @ -1230.V, generic scintillator, -180mV threshold. scope triggers when channel 1 & 2 are above threshold within 100 ns coincidence window.
