Naming scheme key:
- Drum = source in the black paraffin drum
- Howitzer = source in Howitzer
- +8,16 or 24 = number of steel sheets between the source and the detector
- +HDPE = poly sheets are between the source and detector or added as an additional wall to permanent shield walls
- +HDPEb = poly sheets are behind the detector
- +Fridge = fridge wall (8 poly sheets and lead) is between the detector and the source
- +2Fridge = 2 fridge walls used with them on the sides of the detector
- +2Fridgefb = 2 fridge walls used one in front and one behind the detector
- +3Fridge = 2 fridge walls used with one complete wall of HDPE (8 sheets)
- +Fridgeb = fridge wall is behind the detector
- +Fridgefb = Fridge walls with lead are in front of and behind the detector
- +Cl = salt is near the detector
NaI Data:

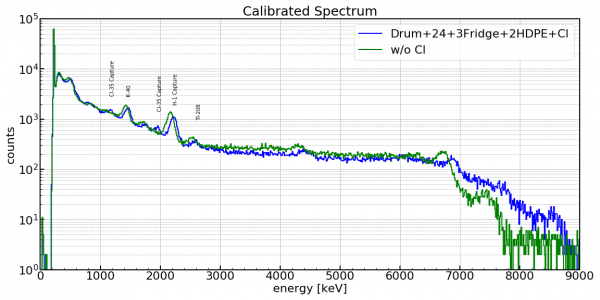

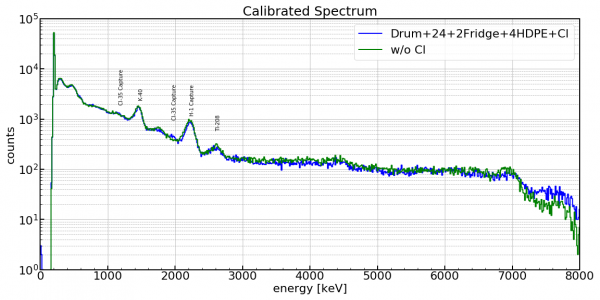

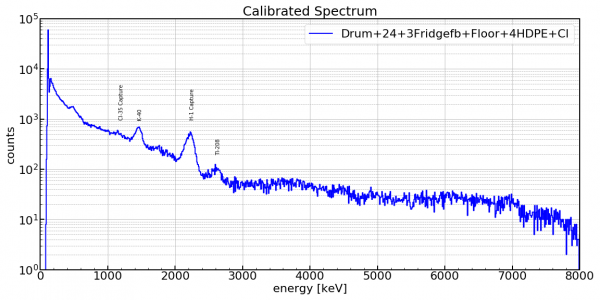

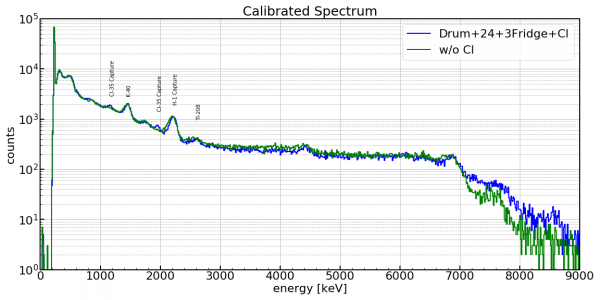

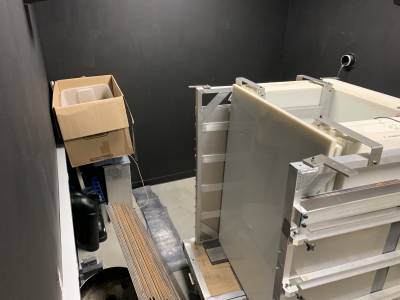

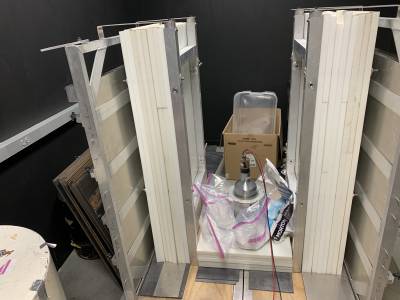

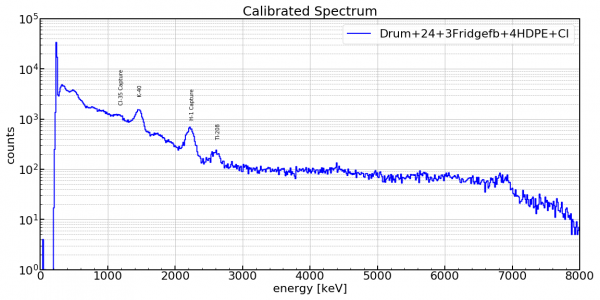

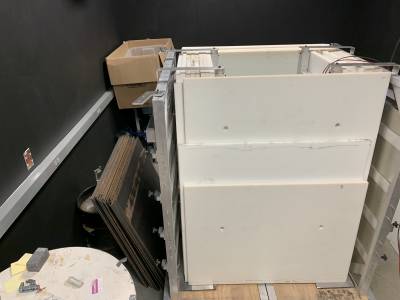

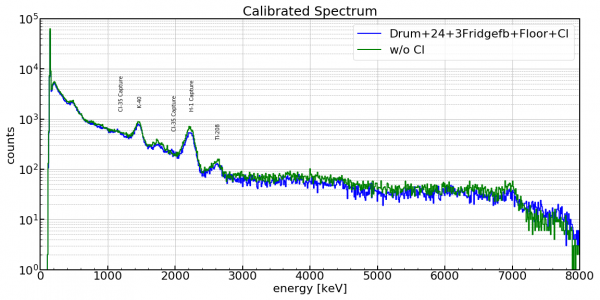

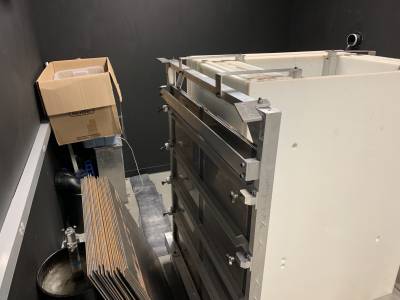

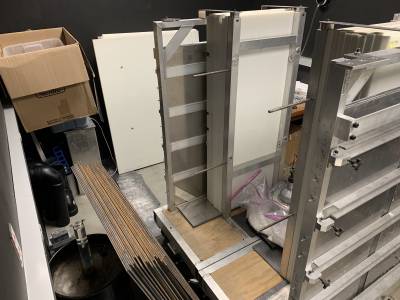

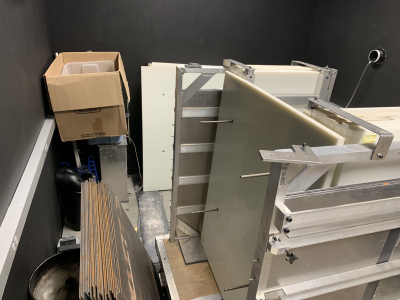

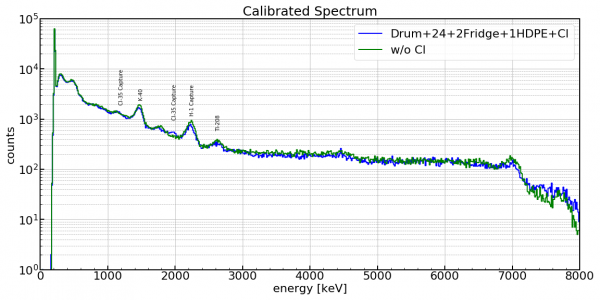

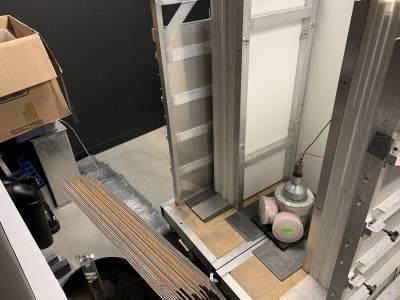

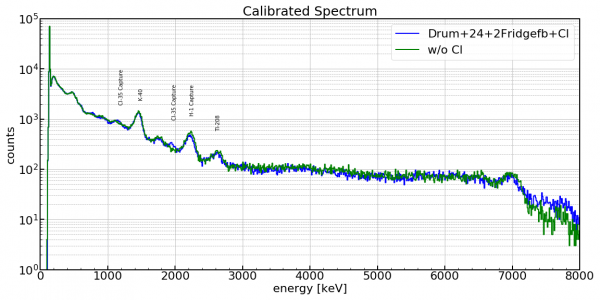

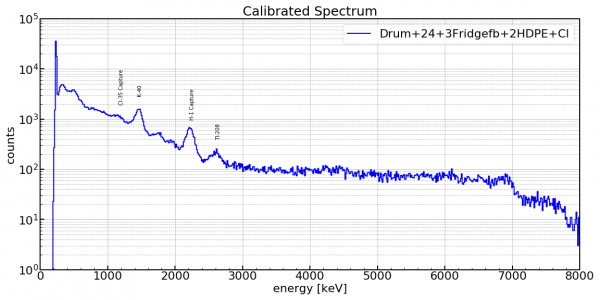

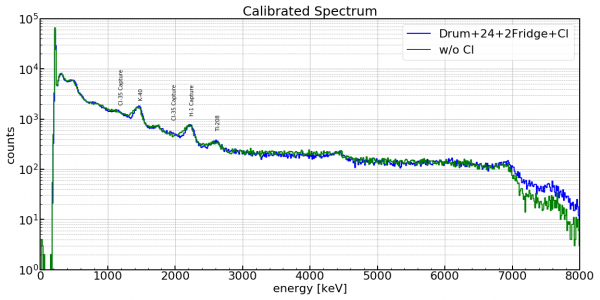

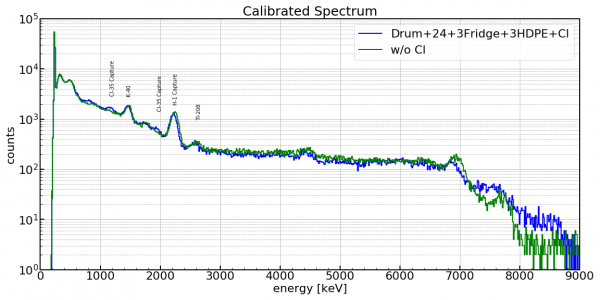

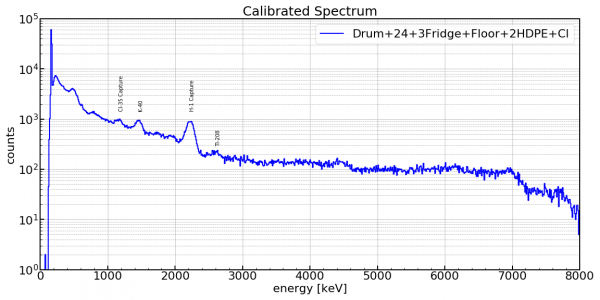

| Date | Setup Image | Spectrum |
|---|---|---|
| 7/6/2021 |  |  |
| 7/7/2021 | same as previous one, but with 2 HDPE sheets on front |  |
| 7/7/2021 | same as previous one, but with 4 HDPE sheets on front |  |
| 7/8/2021 |  |  |
| 7/8/2021 |  |  |
| 7/8/2021 |  |  |
| 7/9/2021 |  |  |
| 7/9/2021 |  |  |
| 7/26/2021 |  |  |
| 7/26/2021 | same as previous but with salt instead of Si detectors |  |
| 7/30/2021 |  |  |
| 7/30/2021 | same as previous but with only 1 HDPE sheet on front |  |
| 7/30/2021 | same as previous but with 3 HDPE sheets on front |  |
| 7/30/2021 | same as previous but with 4 HDPE sheets on front |  |
| 7/30/2021 |  |  |
| 7/30/2021 | same as previous but with 4HDPE sheets on side |  |
| 7/30/2021 |  |  |
| 8/1/2021 |  |  |
| 8/1/2021 | same as previous but with 2 HDPE in front |  |
| 8/1/2021 | same as previous but with 3 HDPE in front |  |
| 8/1/2021 | same as previous but with 4 HDPE in front |  |
nai_data.zip
HPGe Data:

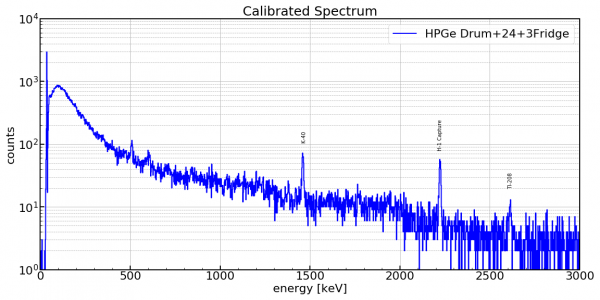

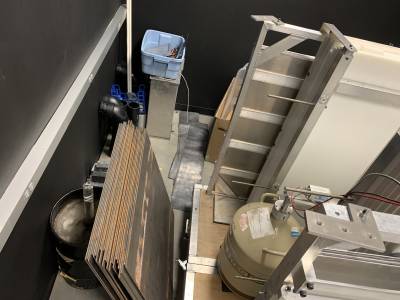

| Date | Setup Image | Spectrum |
|---|---|---|
| 6/30/2021 |  |  |
| 7/01/2021 |  |  |
| 7/01/2021 |  |  |
hpge_data.zip
Analysis:
Jupyter notebooks used: analysis_notebooks.zip
Will need to install maestro to use the notebooks. For Mac, in the terminal, use: “pip install maestro”
Spreadsheet with Cl-35 and H-1 capture peak areas: peak_analysis.xlsx
Spreadsheet finding the thermal neutron flux: chlorinevssilicon_v2.xlsx
