| Status | Run 82 Stable Base at 45 mK. |
| | MC(H35) = 45 mK, Tower(U02844) = 112 mK, flat. |
| 1230 | Turned on DCRCs |
| | SQUID Tuning: DCRC3 on Cable 1 |

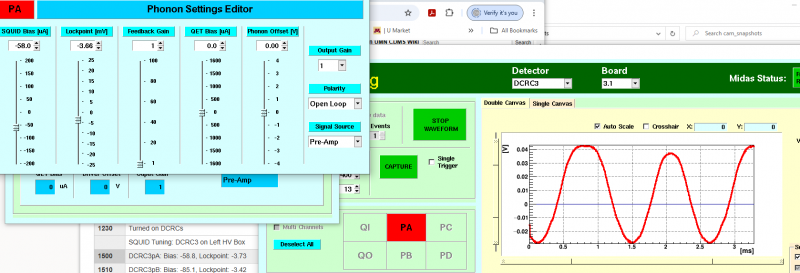

| | DCRC3pA: Bias: -58.8, Lockpoint: -3.73 |
| |  |

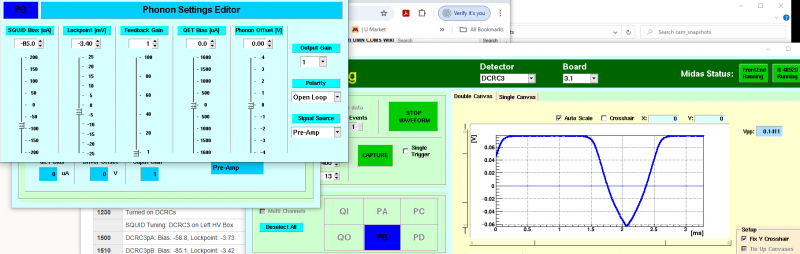

| | DCRC3pB: Bias: -85.1, Lockpoint: -3.42 |
| |  |
| | DCRC3pD: Bias: -75.3, Lockpoint: -3.62 |
| | SQUID Tuning: DCRC3 on Cable 1 |

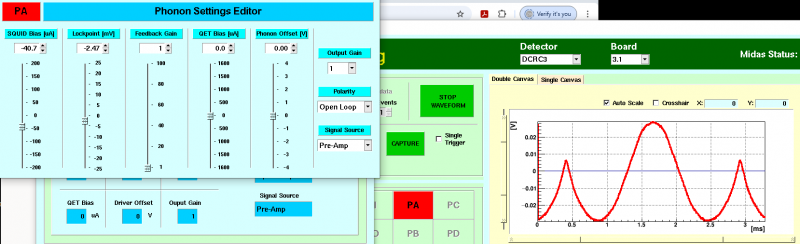

| | DCRC3pA: Bias: -58.8, Lockpoint: -3.73 |
| |  |
| | DCRC3pB: Bias: -85.1, Lockpoint: -3.42 |
| |  |
| | SQUID Tuning: DCRC3 on Cable 2 |

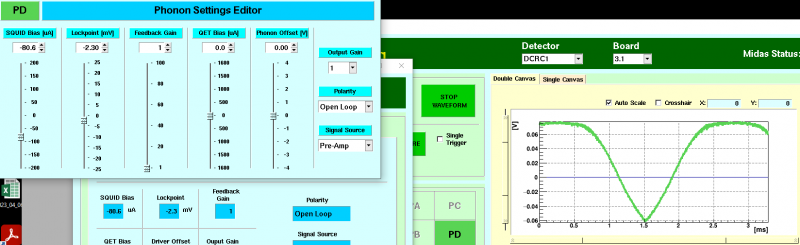

| | DCRC3pD: Bias: -80.6, Lockpoint: -2.30 |
| |  |
| | Added mixture chamber heater wiring. R_MC = 475 ohm, R_Still = 469 ohm . The maximum current that can be sourced from sample heater output is 100 mA. Max Power = 1W, With R_MC = 475 ohm, P = Ie+2 R ⇒ 1 W = (0.1)**2 R ⇒ R = 100 ohm. Maximum power for a range is the lower of the two; P = I2R and P = V2/R where P is heater power in watts, I is the maximum current for the range and V is the compliance voltage of 10 V. For R = 475 ohm, I(100mA) P = 210 mW, I(31.6 mA) P = 474 210 mW |
| | Adding 50 uW of power to MC. |
