2018/01/16 (Tuesday)
| Status: warming up. All mixture in dump, fridge isolated. LN2 traps warm and pumped out. 1K Pot needle valve open. Around 1 bar @300 K N2 in IVC. | |
| 1005 | MC(Cernox) = 290 K. |

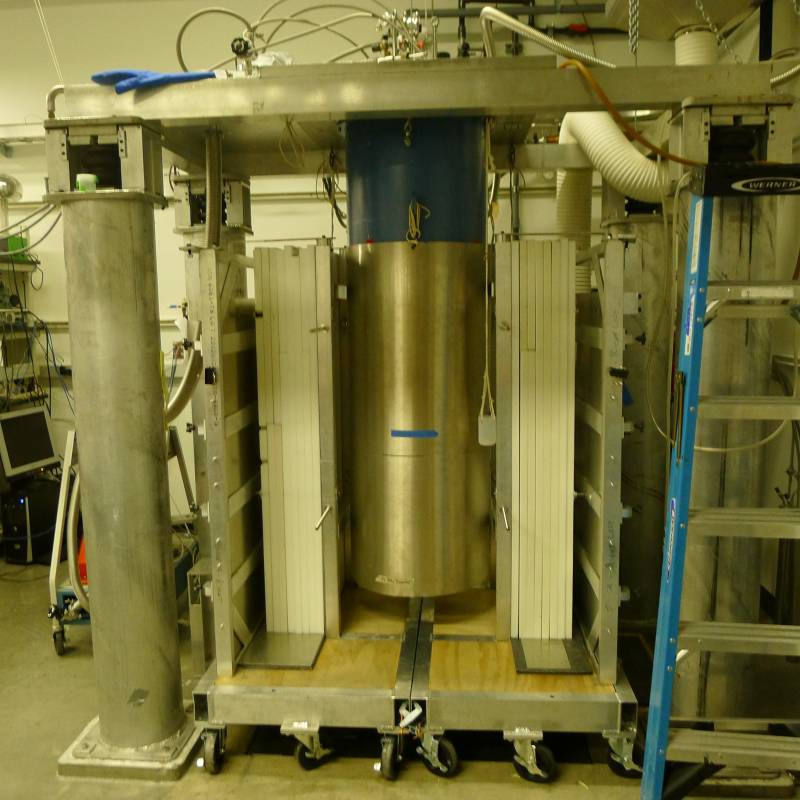

| 1050 | Finish lead/poly shield disassembly, remove shield walls from lab |
| 1100 | Close 1K Pot needle valve Close He recovery valve from MB |
|---|---|
| 1305 | Lower cryostat into pit |
notes on pit dimensions:
- pit depth = 76 inches
- pit x-section = 44.75 × 44.75 inches
- lip = 1.5 inches deep, 1.5 inches wide
| 1430 | Erect clean tent around fridge. Open IVC. |
|---|
