Mounting USD1

2016 April 27 (Wednesday) 16:05-16:35

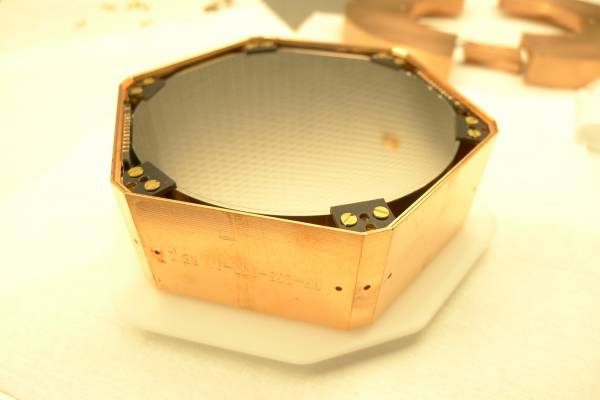

Housing with clamps on one side Lower housing clamp-side-up onto detector on plinth Make sure DIBs line up with flats and that charge pins are on the correct side Not shown: screw crown onto top

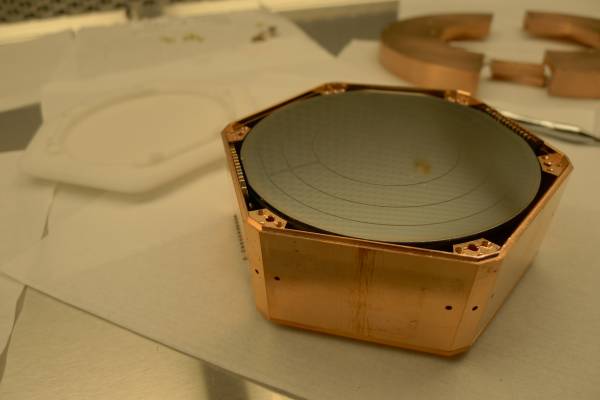

Flip plinth and housing over, remove plinth

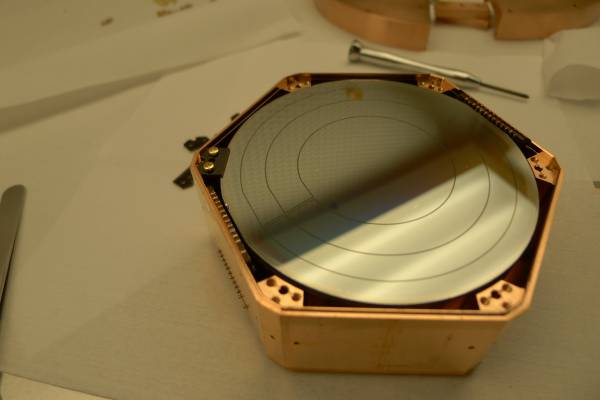

Attach one clamp. Only using one of the two spacers per clamp.

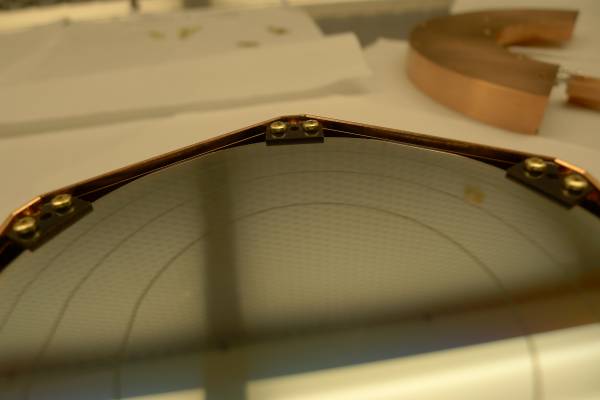

More clamps screwed on

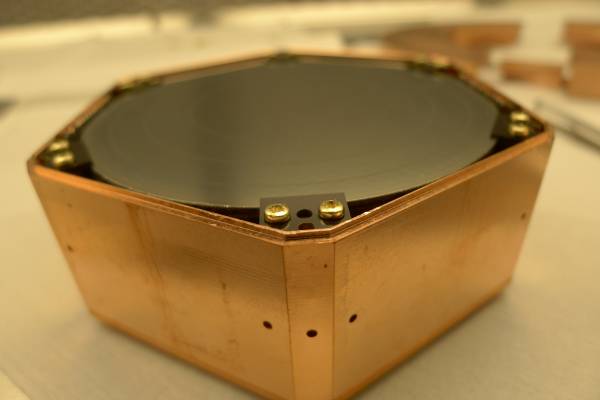

All clamps attached
