2015/05/29 (Friday)

1600	Begin detector uninstallation from tower.
1615	Perform detector electrical check on G110.

+lead	- lead	signal	typical	measured
Detector	G110	DIB	1
		date/who:	2015-05-29	NM AK
1	2	QET A	100 to 200 Ω	123 Ω
3	4	QET B	100 to 200 Ω	127 Ω
5	6	QET C	100 to 200 Ω	29 Ω
7	8	QET D	100 to 200 Ω	73 Ω
9	chassis	LED1 Rforward	8 to 9 MΩ	164 kΩ
9	chassis	LED1 Vforward	1.0 to 1.1 V	1.000 V
chassis	9	LED1 Rreverse	<1 nS	closed
10	chassis	LED2 Rforward	8 to 9 MΩ	722kΩ
10	chassis	LED2 Vforward	1.0 to 1.1 V	1.014 V
chassis	10	LED2 Rreverse	<1 nS	53 nS
11	12	Qo-Qi		68Ω
12	11	Qi-Qo		59Ω

+lead	- lead	signal	typical	measured
Detector	G110	DIB	2
		date/who:	2015-05-29	NM AK
1	2	QET A	100 to 200 Ω	99 Ω
3	4	QET B	100 to 200 Ω	28 Ω
5	6	QET C	100 to 200 Ω	80 Ω
7	8	QET D	100 to 200 Ω	29 Ω
9	chassis	LED1 Rforward	8 to 9 MΩ	700kΩ
9	chassis	LED1 Vforward	1.0 to 1.1 V	1.012V
chassis	9	LED1 Rreverse	<1 nS	< 7 nS
10	chassis	LED2 Rforward	8 to 9 MΩ	640 kΩ
10	chassis	LED2 Vforward	1.0 to 1.1 V	1.013V
chassis	10	LED2 Rreverse	<1 nS	closed
11	12	Qo-Qi		63Ω
12	11	Qi-Qo		52Ω

+lead	- lead	signal	typical	measured
Detector	G110	DIB	3
		date/who:	2015-05-29	NM AK
1	2	QET A	100 to 200 Ω	80 Ω
3	4	QET B	100 to 200 Ω	108 Ω
5	6	QET C	100 to 200 Ω	98 Ω
7	8	QET D	100 to 200 Ω	57 Ω
9	chassis	LED1 Rforward	8 to 9 MΩ	open
9	chassis	LED1 Vforward	1.0 to 1.1 V	open
chassis	9	LED1 Rreverse	<1 nS	open
10	chassis	LED2 Rforward	8 to 9 MΩ	open
10	chassis	LED2 Vforward	1.0 to 1.1 V	open
chassis	10	LED2 Rreverse	<1 nS	open
11	12	Qo-Qi		open
12	11	Qi-Qo		open

Run 52 prep

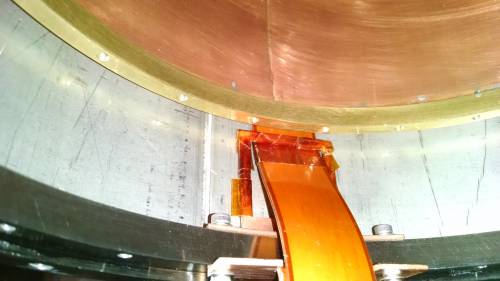

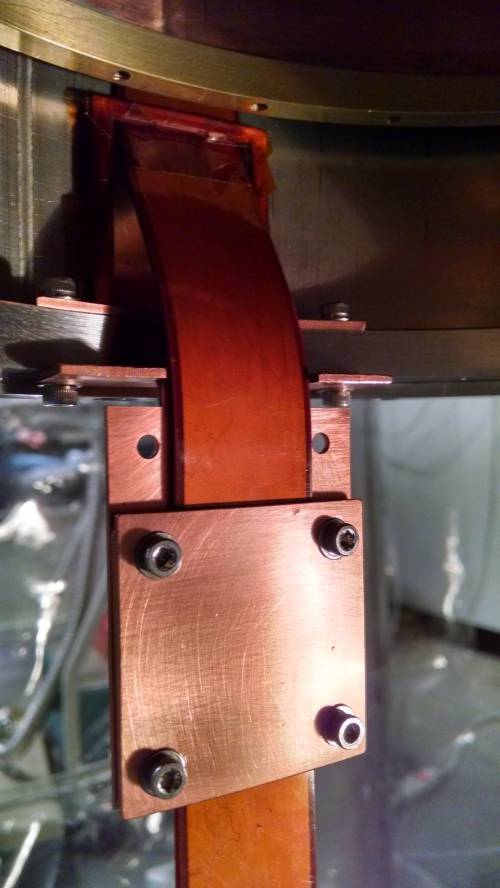

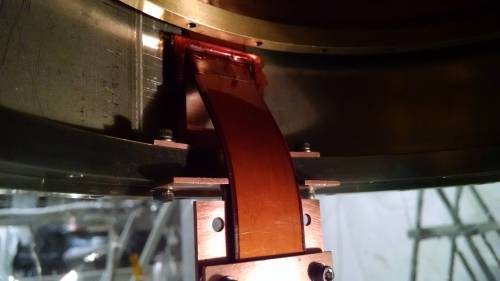

1050	Rearrange stripline buckle & lower heat-sink. Previously the lower heat-sink and the buckle were attached together to the upper surface of the ring at the bottom of the IVC middle-section. Now the buckle is attached by itself to the top surface, and the heat-sink bracket is attached to the bottom surface. This lowers the top of the buckle so that it is more comfortably clear of the bottom of the 100mK can. Now even if the can is tilted all the way to the side it won't touch the buckle (it would touch the striplines if tilted very severely). See photos:

1050

Rearrange stripline buckle & lower heat-sink. Previously the lower heat-sink and the buckle were attached together to the upper surface of the ring at the bottom of the IVC middle-section. Now the buckle is attached by itself to the top surface, and the heat-sink bracket is attached to the bottom surface. This lowers the top of the buckle so that it is more comfortably clear of the bottom of the 100mK can. Now even if the can is tilted all the way to the side it won't touch the buckle (it would touch the striplines if tilted very severely). See photos:
