2013/10/03
| 1130 | Fill LN2 coldtrap full. |
|---|---|

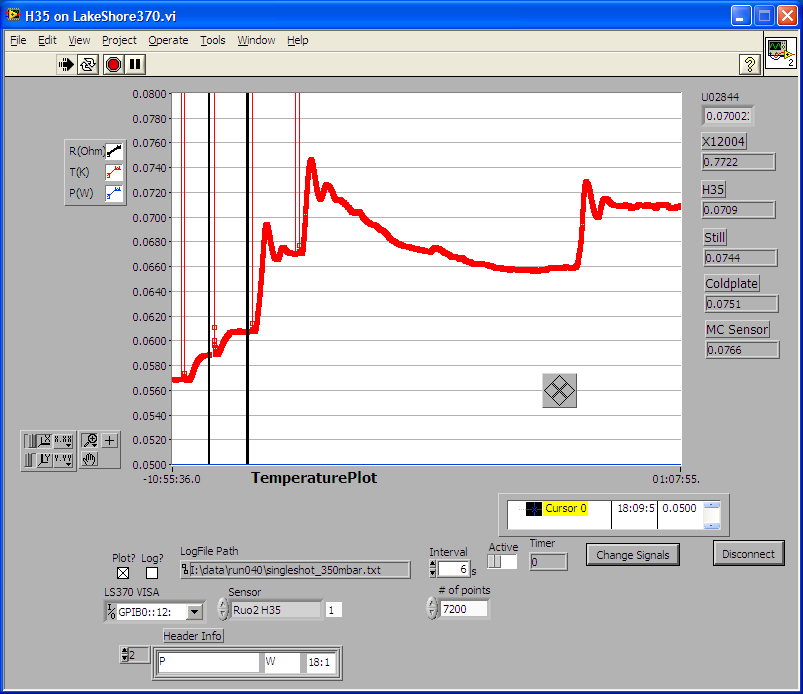

| 1315 | Mixing chamber temperature stabilized at 56.9 mK. Begin still heater tests. |
| Still Heater Power [mW ± 0.05 mW] | H35 Thermometer [mK] | Still pressure [μbar] | Still Thermometer [kΩ ± 0.01 kΩ] | Cold Plate Thermometer [kΩ ± 0.01 kΩ] |
|---|---|---|---|---|
| 0 | 56.9 ± 0.05 | 60 ± 2.5 | 4.64 | 17.61 |
| 1 | 58.8 ± 0.05 | 75 ± 2.5 | 4.57 | 17.09 |
| 2 | 60.5 ± 0.05 | 90 ± 2.5 | 4.52 | 16.82 |
| 3 | 63.0 ± 0.05 | 100 ± 5 | 4.50 | 16.71 |
| 4 | 65.8 ± 0.05 | 110 ± 5 | 4.48 | 16.54 |
| 5 | 71.2 ± 0.05 | 130 ± 5 | 4.44 | 16.47 |
