2013/07/23
| 0015 | Fill N2 cold trap full. |
|---|---|
| 1300 | Finished taking data with all possible DCRC/stripline combinations. |
| 1513 | Filled LN2 coldtrap full. |
| Begin warm up procedures. Begin pumping mixture to dump. Stop 1K pot and switch from recovery to exhaust. Current He level at 4.2% |
PSDs
Configuration definitions:
- DCRC 32 connected to flexible side coax, DCRC 33 connected to vacuum side coax
- DCRC 33 connected to flexible side coax, DCRC 32 connected to vacuum side coax
- DCRC 32 connected to both side coaxes
- DCRC 33 connected to both side coaxes
Flexible Coax is stripline 19.
Vacuum Coax is stripline 27.

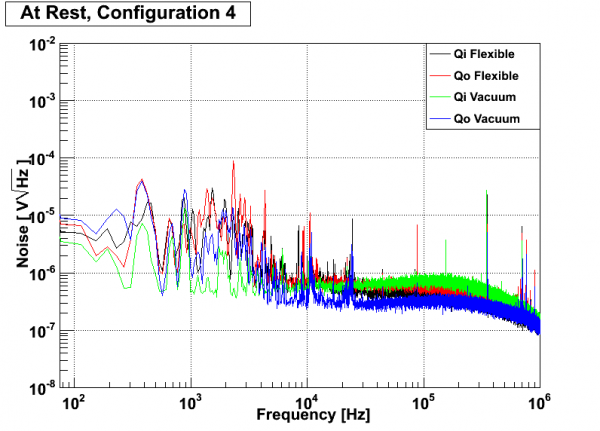

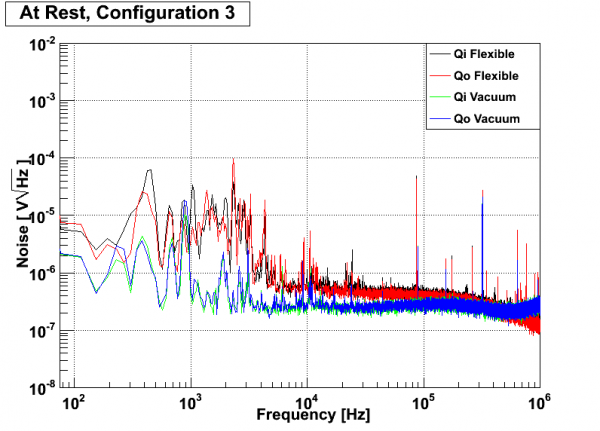

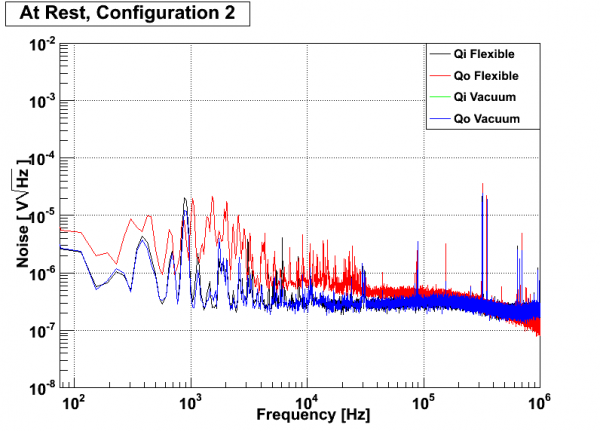

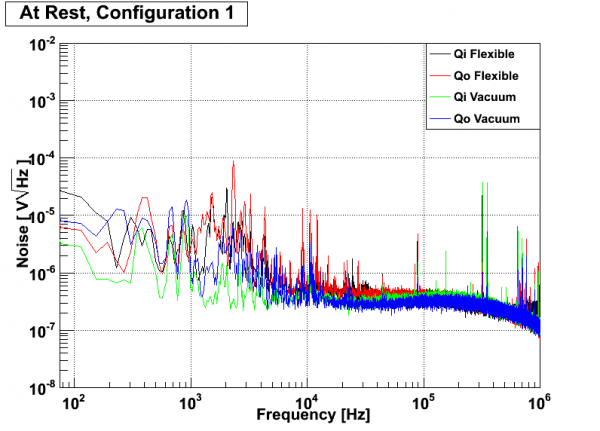

At Rest

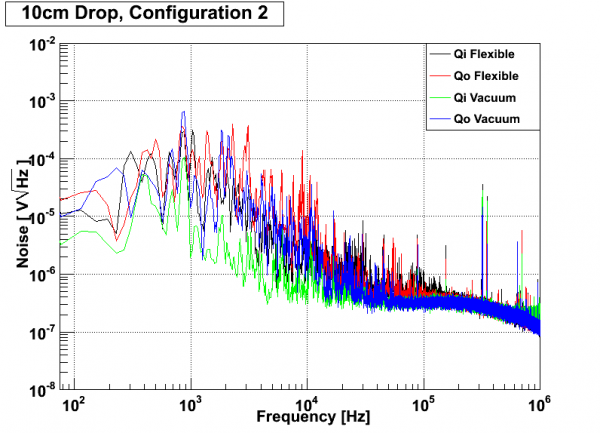

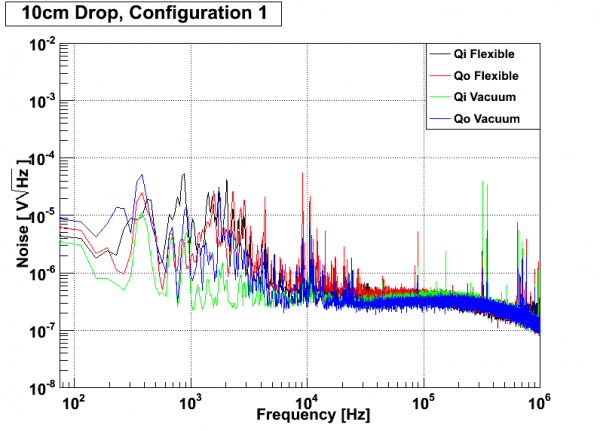

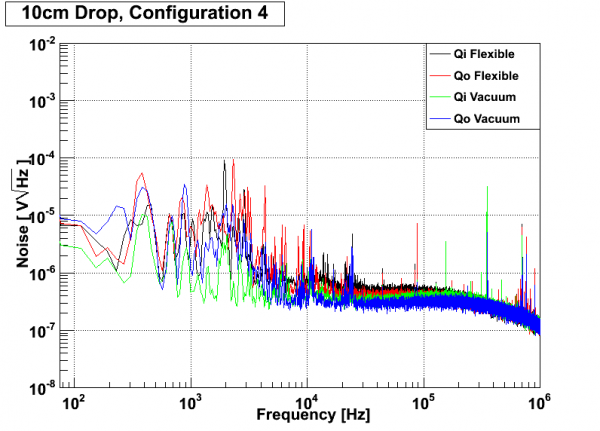

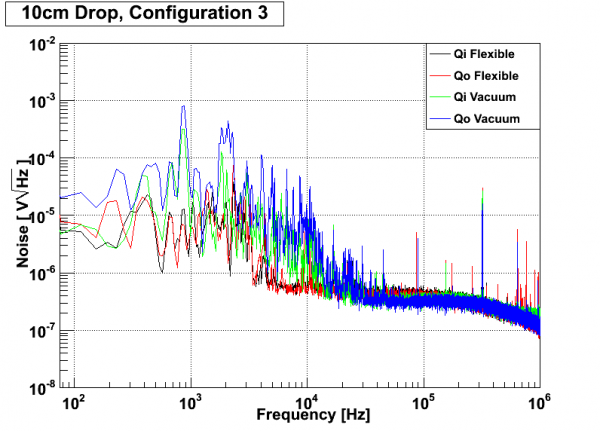

10cm Drop

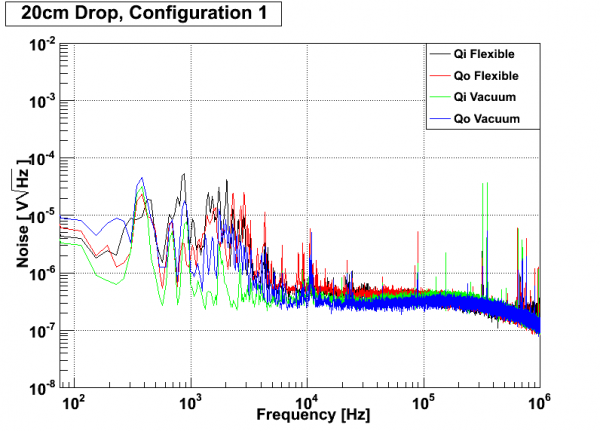

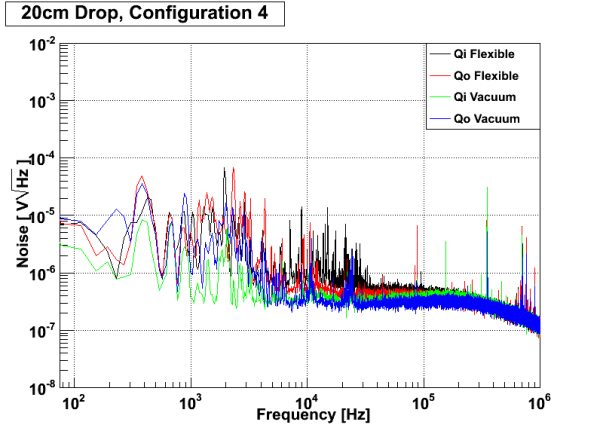

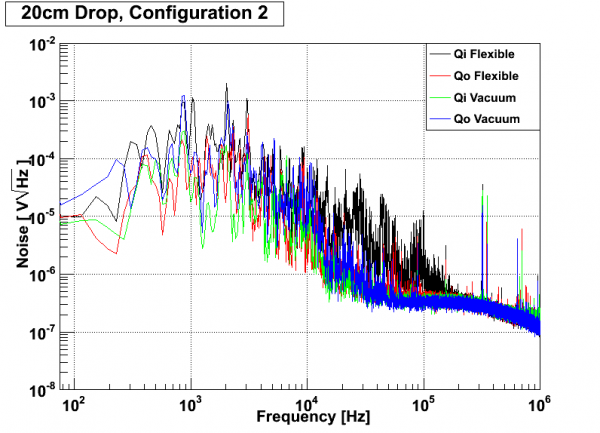

20cm Drop

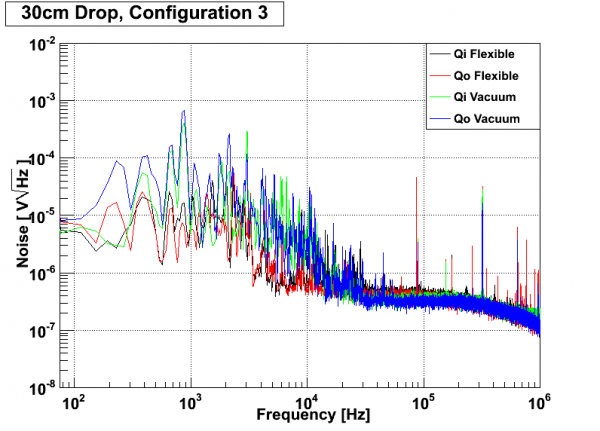

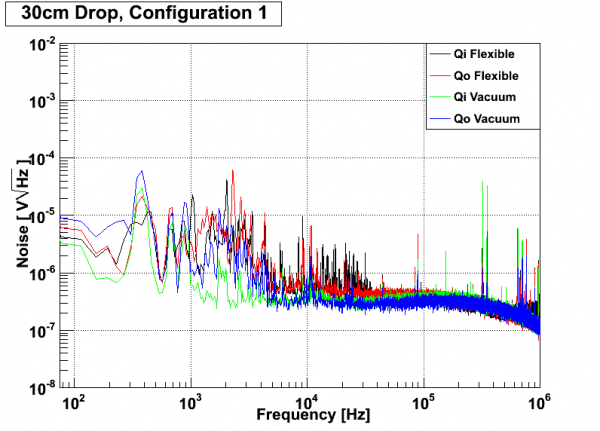

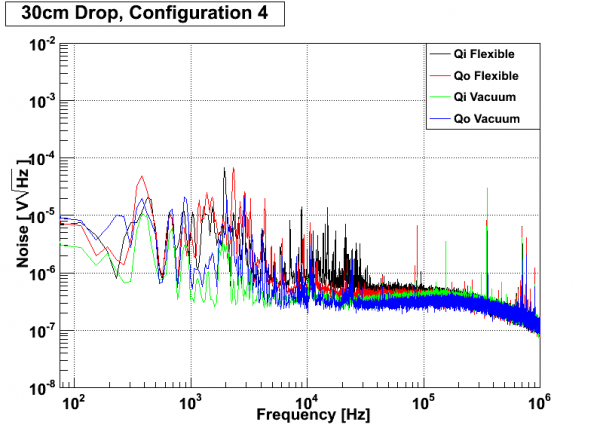

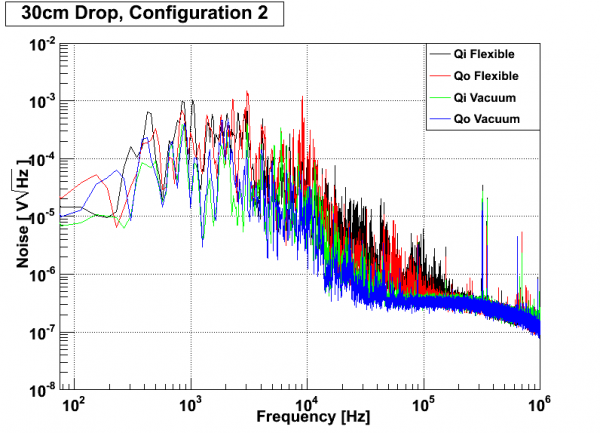

30cm Drop

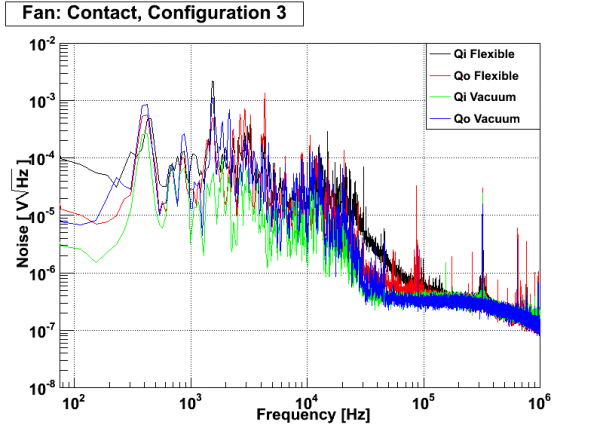

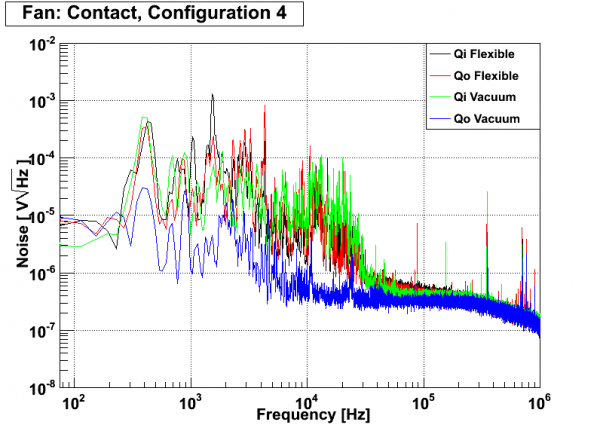

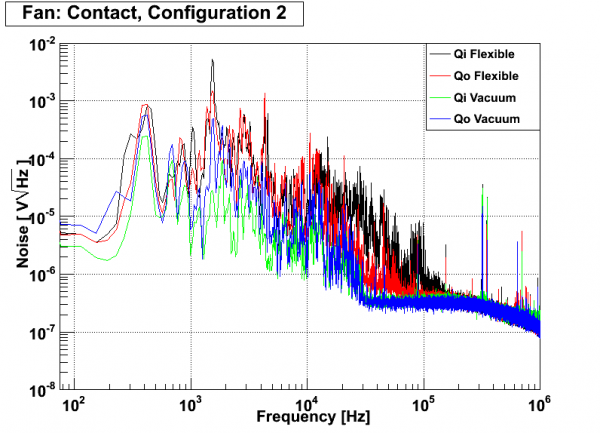

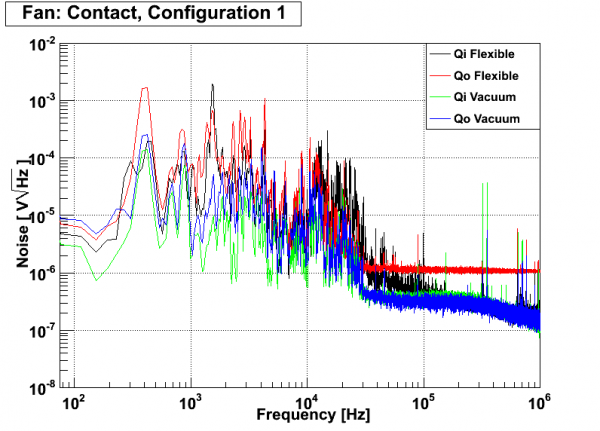

Fan

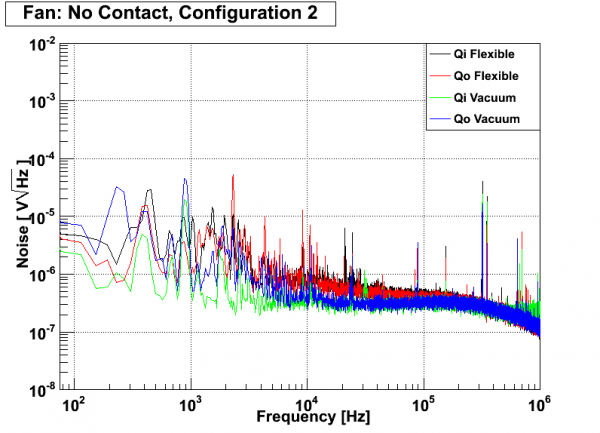

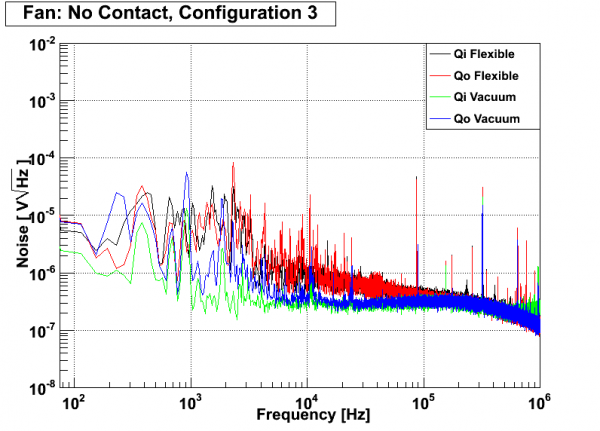

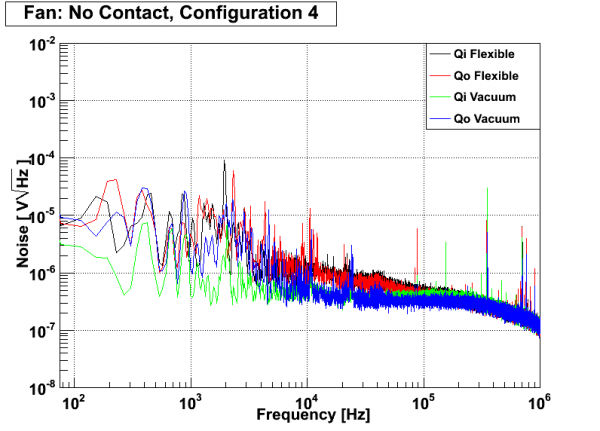

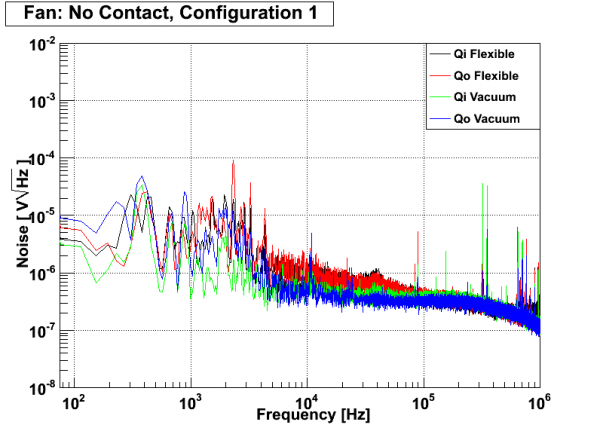

Fan: No Contact

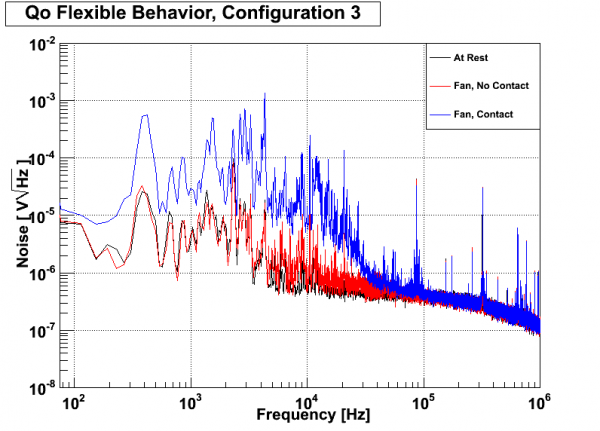

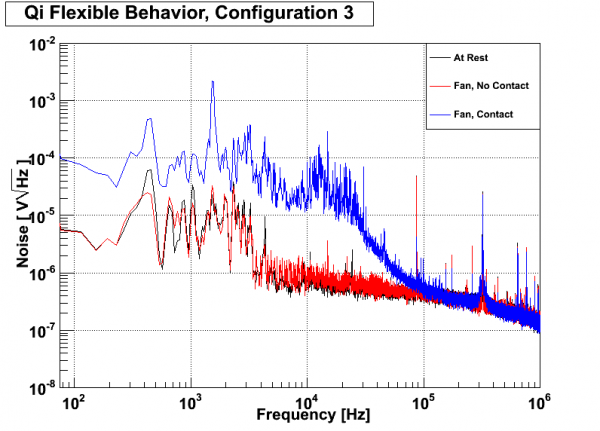

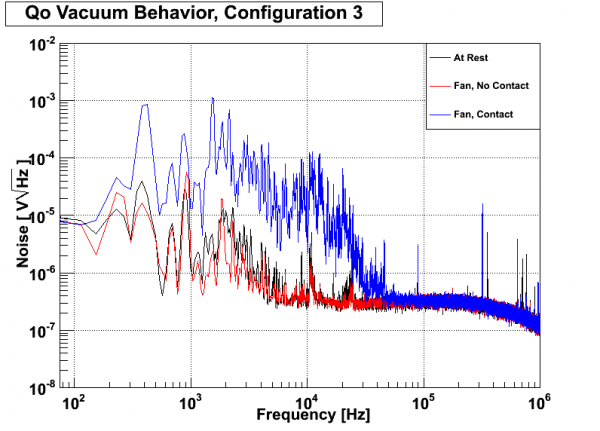

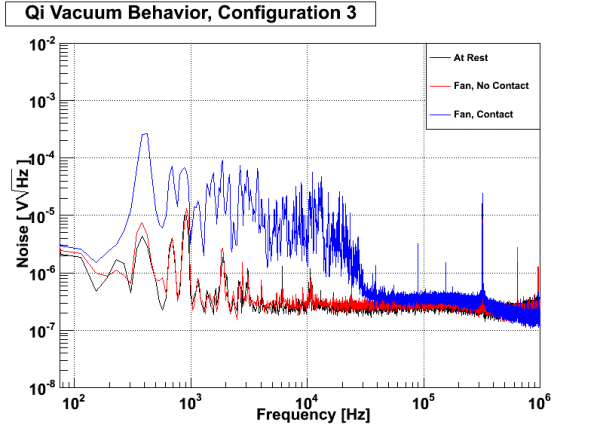

Behaviors

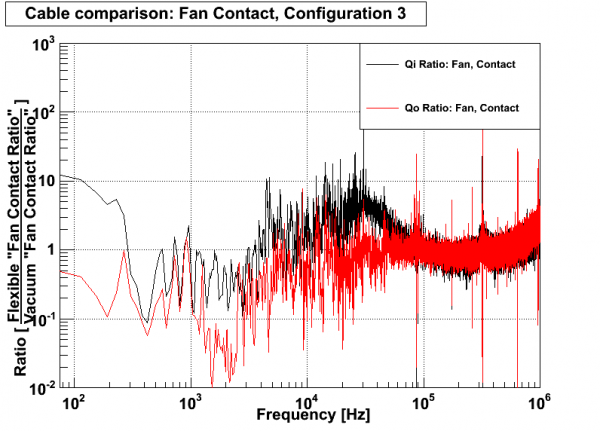

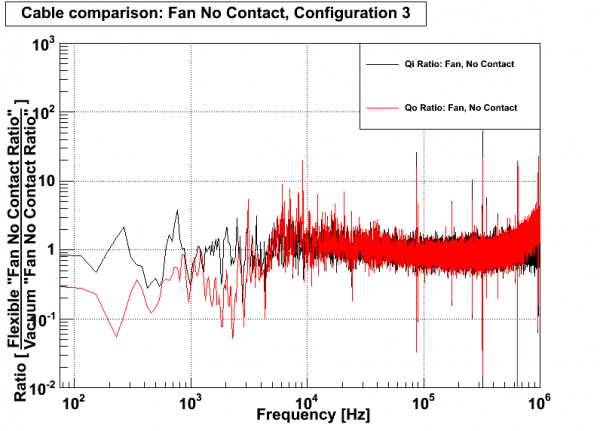

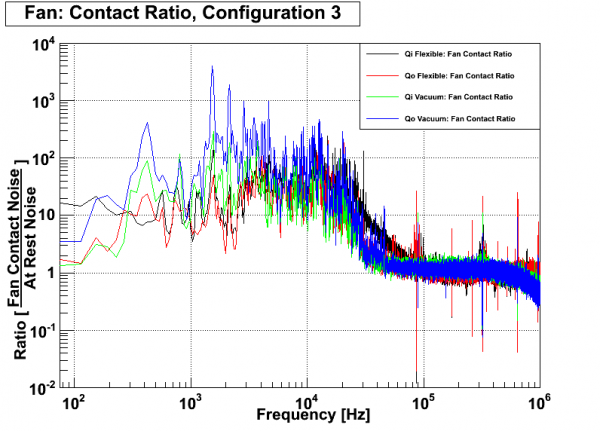

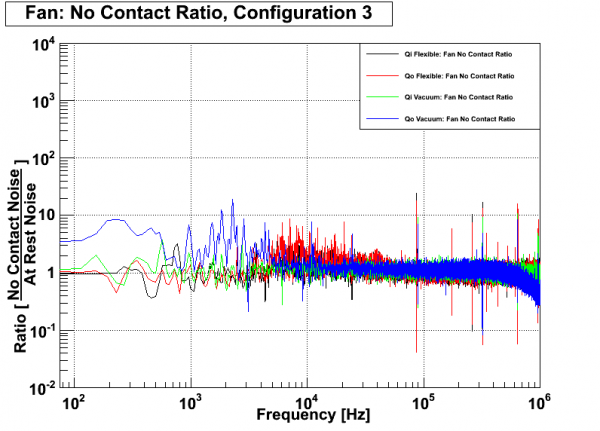

Ratios
