2013/07/12
| 830 | Filled LN2 cold trap. |
|---|---|
| 1430 | Filled LN2 cold trap. |
| 1445 | Returned Ba-133 source to the safe. |
| 1855 | Start data taking process, p0.5, p2.5, p4.0 V. |
+/- 0.5V
* total exposure time: 60 minutes
* OR trigger on Qi and Qo channels (32/28 ADC bins for Dib 1/2)
* Am_241, Pb_210 sources installed on side 2.

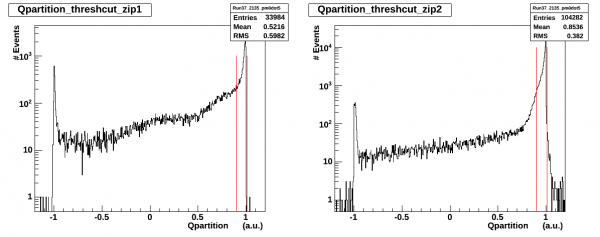

| Fig. 1: Q_partition, side 1 and side 2 with low energy thresh cut |
|---|
 |

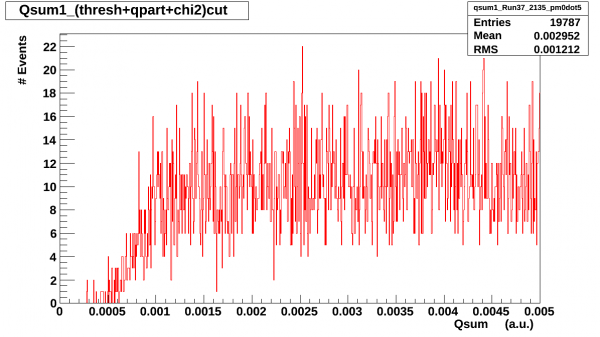

| Fig. 2: Qsum 1, with thersh, q_partition and chi2 cuts |
|---|
 |

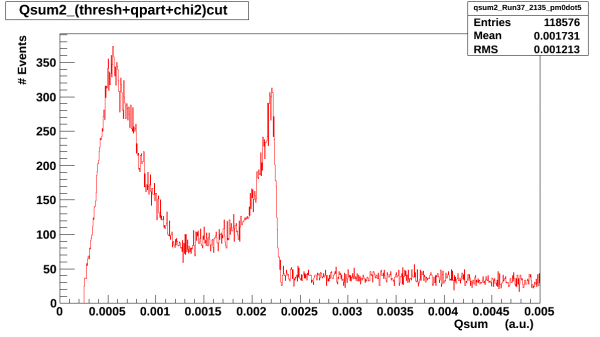

| Fig. 3: Qsum 2, with thersh, q_partition and chi2 cuts |
|---|
 |

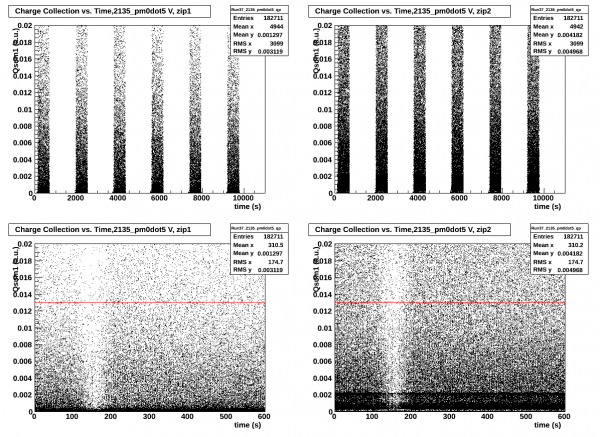

| Fig. 4: Qsum1 and Qsum2 vs time |
|---|
 |

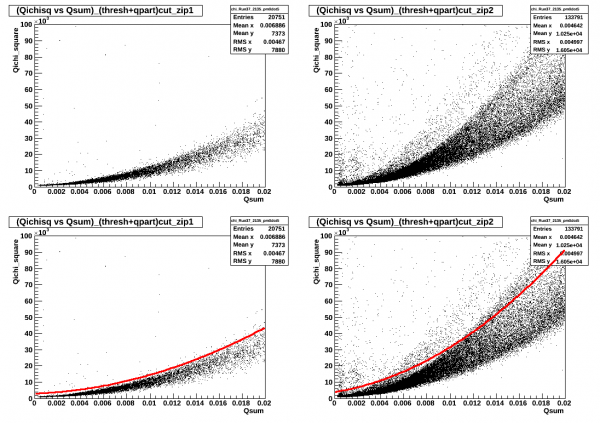

| Fig. 5: Qsum1 and Qsum2, with thersh, q_partition cuts vs CHI_2 |
|---|
 |

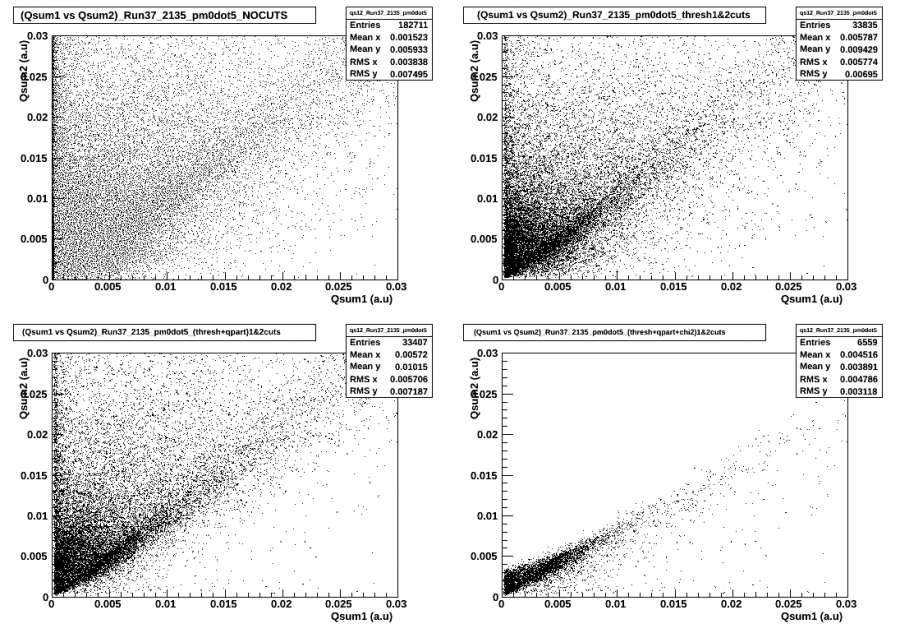

| Fig. 6: Qsum 1 vs. Qsum 2 |
|---|
 |
+/- 2.5V
* total exposure time: 60 minutes
* OR trigger on Qi and Qo channels (32/28 ADC bins for Dib 1/2)
* Am_241, Pb_210 sources installed on side 2.

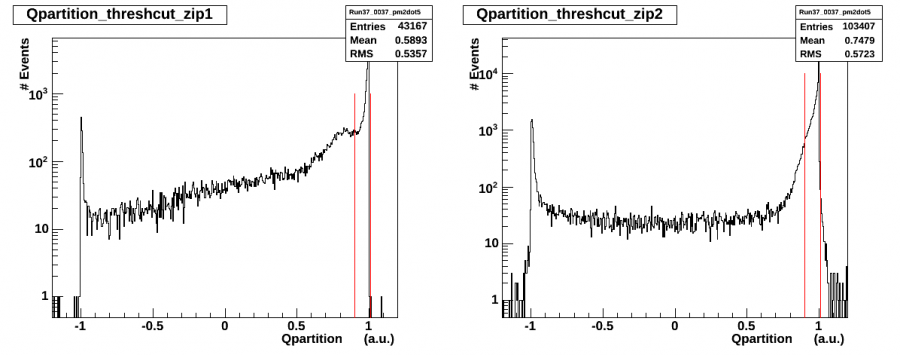

| Fig. 1: Q_partition, side 1 and side 2 with low energy thresh cut |
|---|
 |

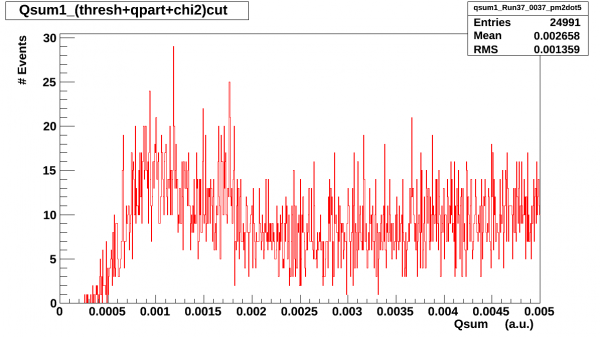

| Fig. 2: Qsum 1, with thersh, q_partition and chi2 cuts |
|---|
 |

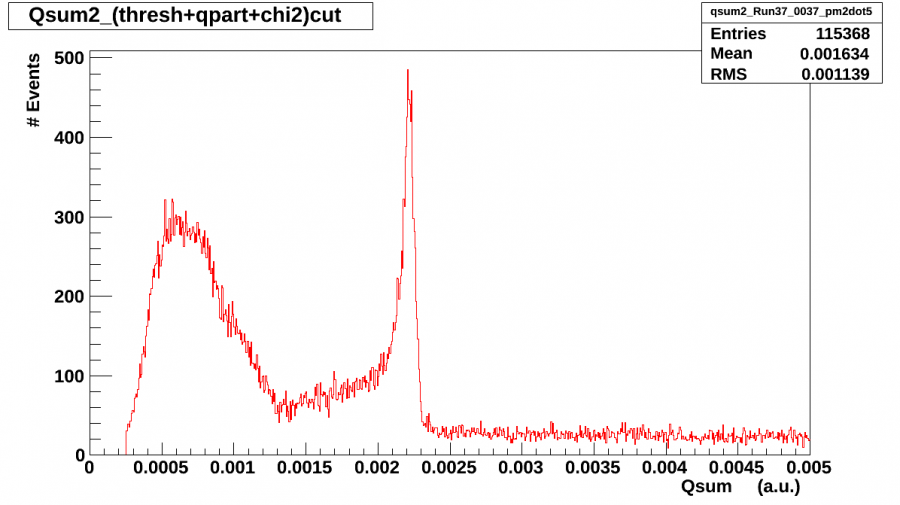

| Fig. 3: Qsum 2, with thersh, q_partition and chi2 cuts |
|---|
 |

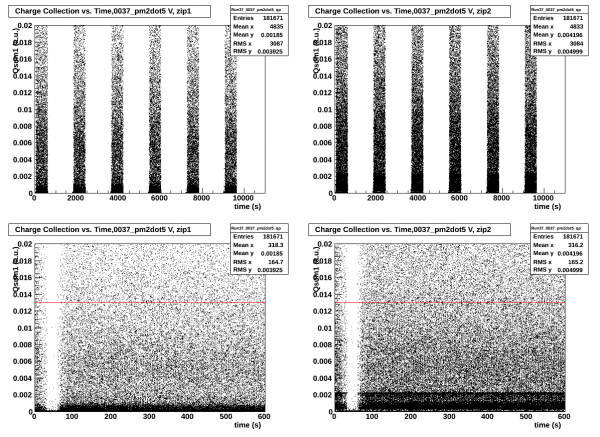

| Fig. 4: Qsum1 and Qsum2 vs time |
|---|
 |

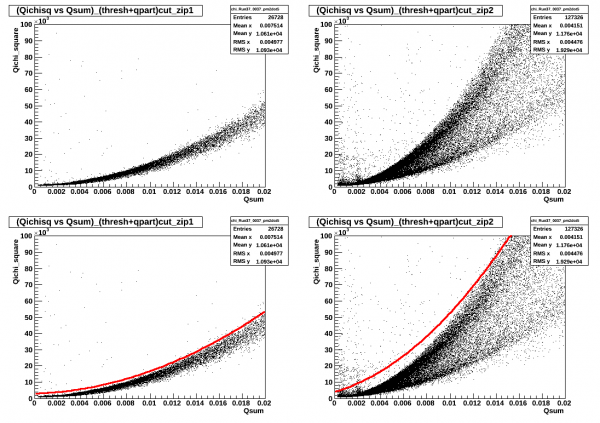

| Fig. 5: Qsum1 and Qsum2, with thersh, q_partition cuts vs CHI_2 |
|---|
 |

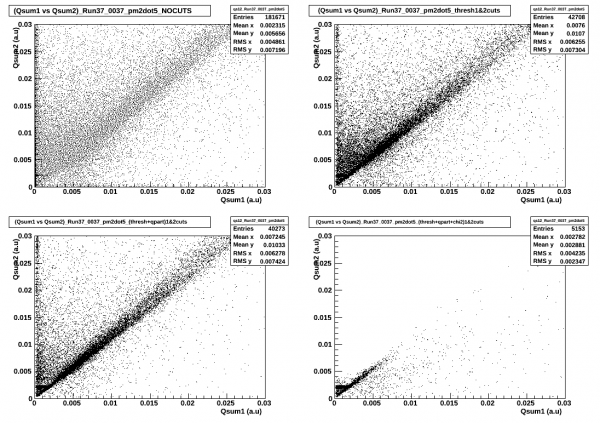

| Fig. 6: Qsum 1 vs. Qsum 2 |
|---|
 |
+/- 4V
* total exposure time: 60 minutes
* OR trigger on Qi and Qo channels (32/28 ADC bins for Dib 1/2)
* Am_241, Pb_210 sources installed on side 2.

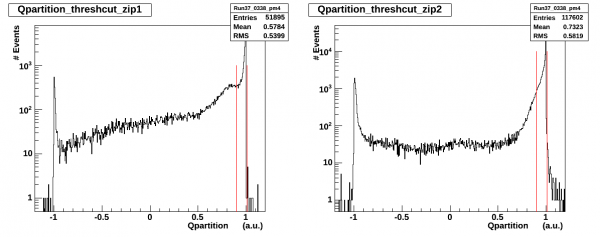

| Fig. 1: Q_partition, side 1 and side 2 with low energy thresh cut |
|---|
 |

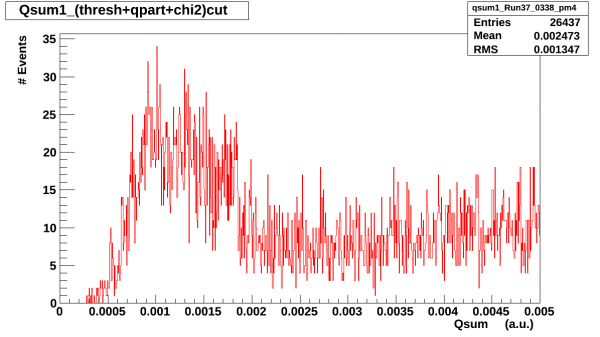

| Fig. 2: Qsum 1, with thersh, q_partition and chi2 cuts |
|---|
 |

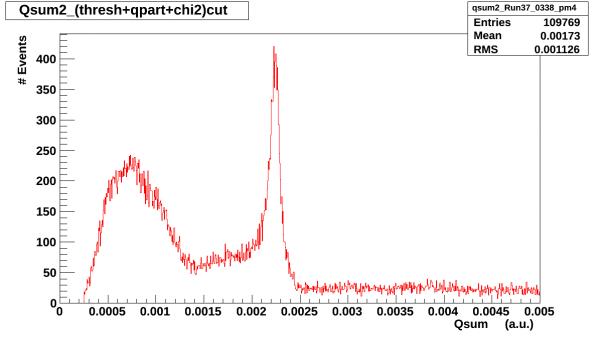

| Fig. 3: Qsum 2, with thersh, q_partition and chi2 cuts |
|---|
 |

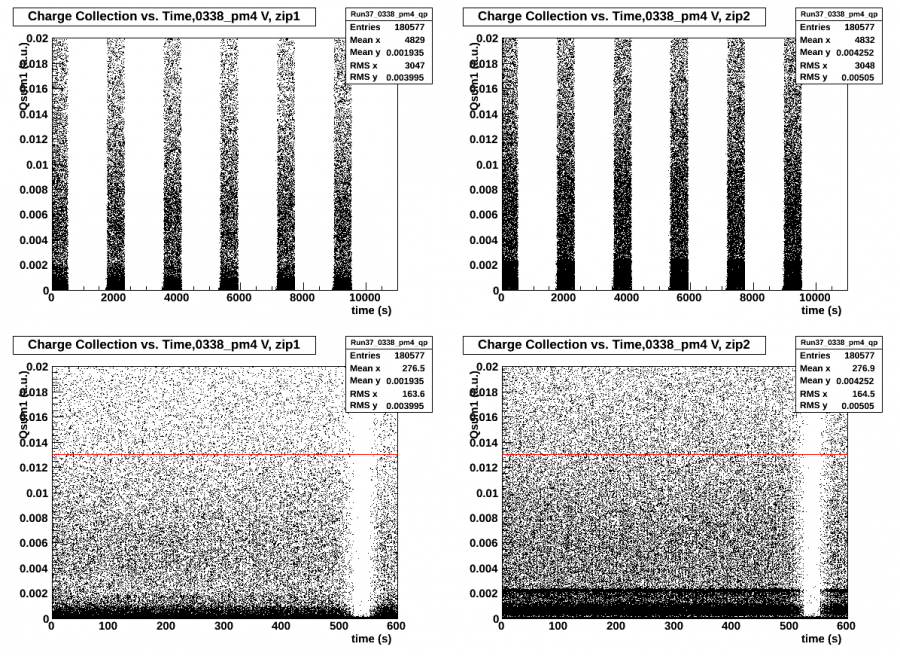

| Fig. 4: Qsum1 and Qsum2 vs time |
|---|
 |

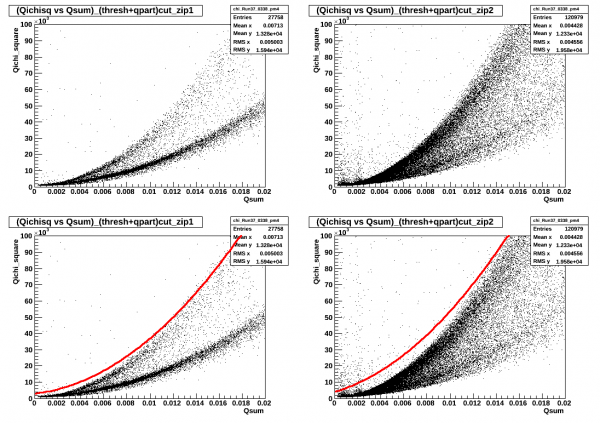

| Fig. 5: Qsum1 and Qsum2, with thersh, q_partition cuts vs CHI_2 |
|---|
 |

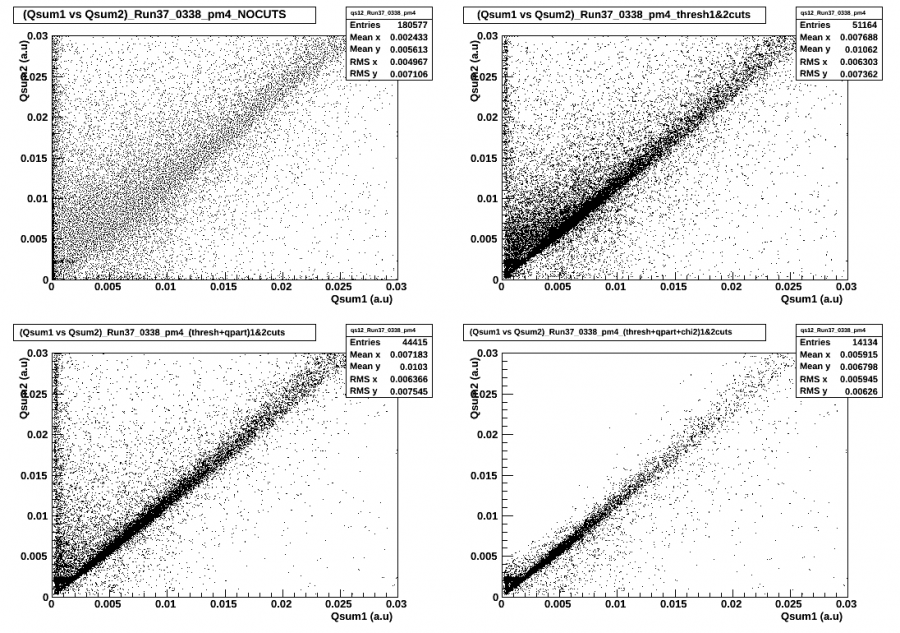

| Fig. 6: Qsum 1 vs. Qsum 2 |
|---|
 |
