2013/07/11
| 1133 | Started helium transfer. Main bath at 48.2%. |
|---|---|
| 1205 | Commence data acquisition: flash for 1 hour followed by 2 hours cool-down; 3 series at +/-5 V bias followed by 3 series at -/+5 V, repeat for 8V, 10V, 12V (+/- and then -/+ for each bias); OR trigger on Qi and Qo channels; DIB 1 trigger at 32 ADC bins, DIB 2 trigger at 28 ADC bins; 20/0.1/20 minutes acquisition/flash/cool-down cycle. |
| 1210 | End LHe transfer (95.8%) |
| 1230 | Filled LN2 cold trap full. |
| 2135 | Filled LN2 cold trap full. |
+/- 5V
* total exposure time: 60 minutes
* OR trigger on Qi and Qo channels (32/28 ADC bins for Dib 1/2)
* Am_241, Pb_210 and Ba_133 sources installed on side 2.

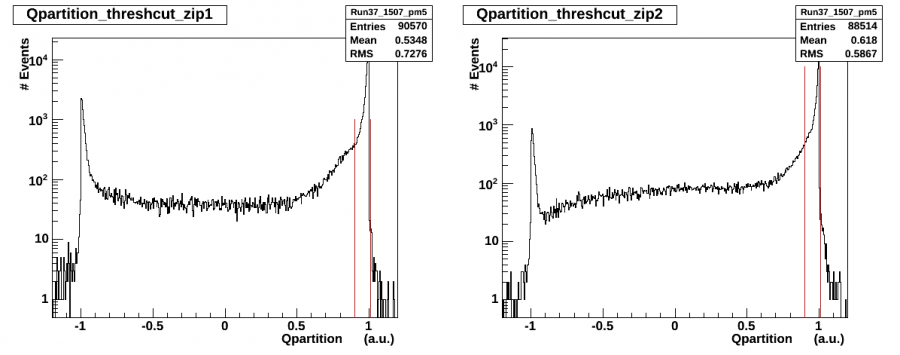

| Fig. 1: Q_partition, side 1 and side 2 with low energy thresh cut |
|---|
 |

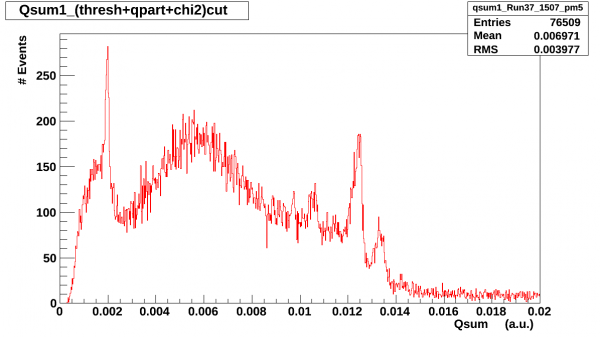

| Fig. 2: Qsum 1, with thersh, q_partition and chi2 cuts |
|---|
 |

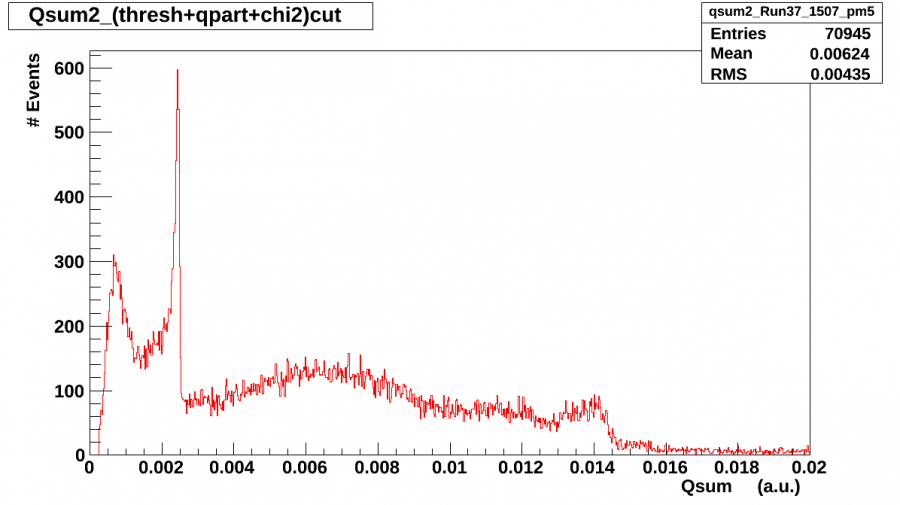

| Fig. 3: Qsum 2, with thersh, q_partition and chi2 cuts |
|---|
 |

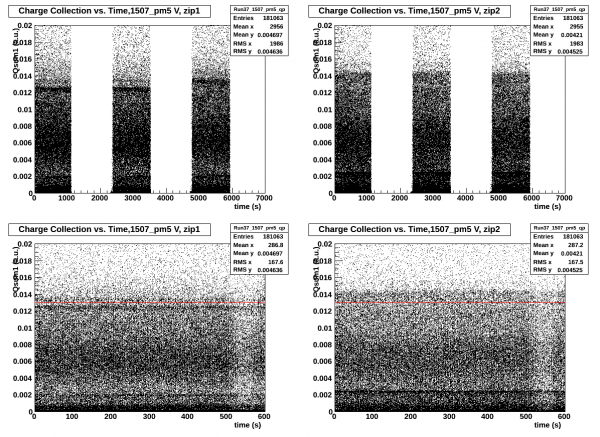

| Fig. 4: Qsum1 and Qsum2 vs time |
|---|
 |

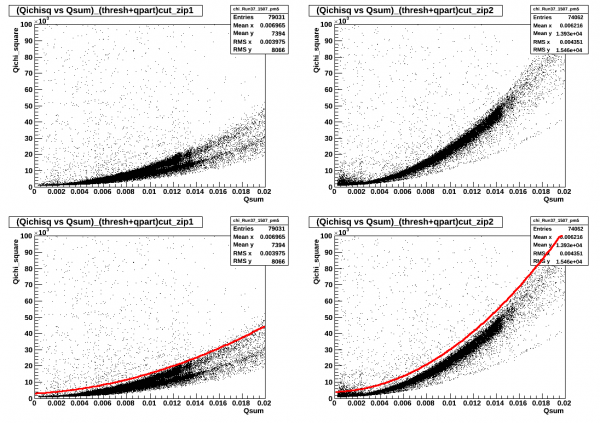

| Fig. 5: Qsum1 and Qsum2, with thersh, q_partition cuts vs CHI_2 |
|---|
 |
| Fig. 6: Qsum 1 vs. Qsum 2 |
|---|
 |
-/+ 5V
* total exposure time: 60 minutes
* OR trigger on Qi and Qo channels (32/28 ADC bins for Dib 1/2)
* Am_241, Pb_210 and Ba_133 sources installed on side 2.
| Fig. 1: Q_partition, side 1 and side 2 with low energy thresh cut |
|---|
 |

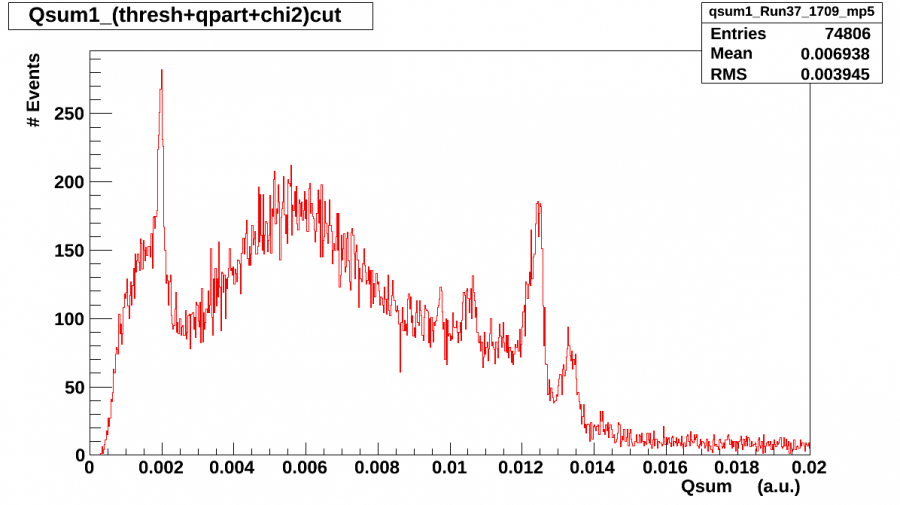

| Fig. 2: Qsum 1, with thersh, q_partition and chi2 cuts |
|---|
 |
| Fig. 3: Qsum 2, with thersh, q_partition and chi2 cuts |
|---|
 |

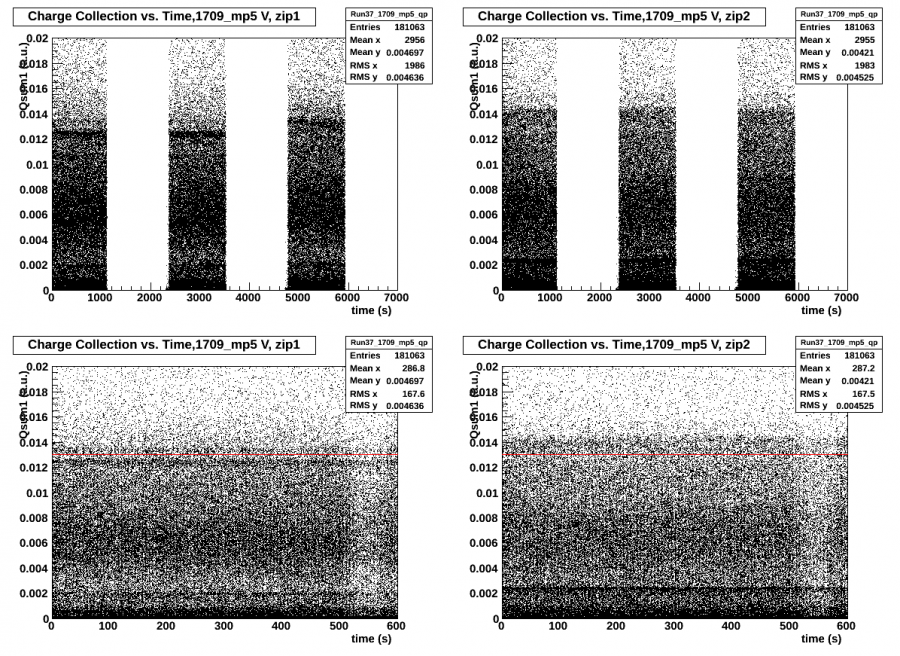

| Fig. 4: Qsum1 and Qsum2 vs time |
|---|
 |
| Fig. 5: Qsum1 and Qsum2, with thersh, q_partition cuts vs CHI_2 |
|---|
 |

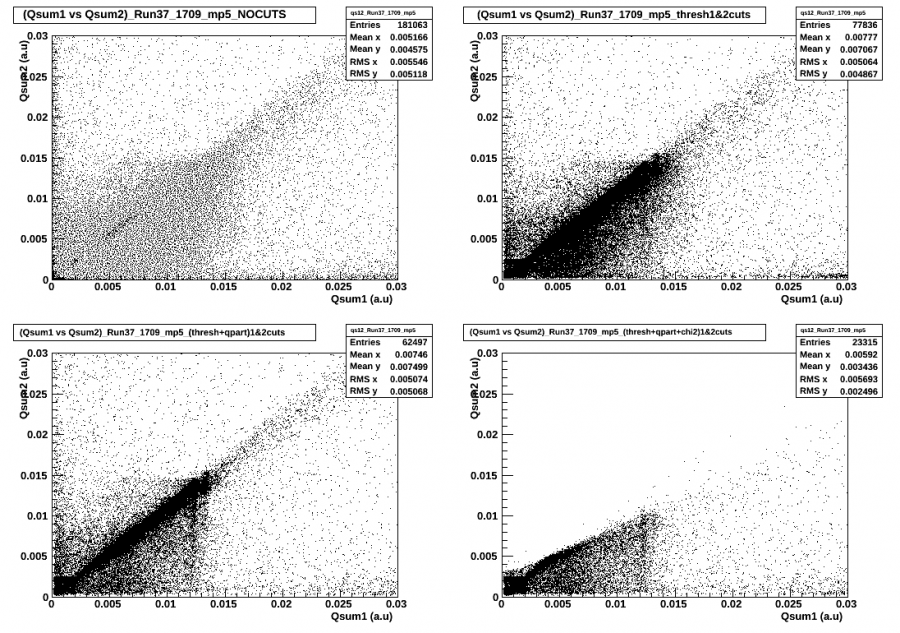

| Fig. 6: Qsum 1 vs. Qsum 2 |
|---|
 |
+/- 8V
* total exposure time: 60 minutes
* OR trigger on Qi and Qo channels (32/28 ADC bins for Dib 1/2)
* Am_241, Pb_210 and Ba_133 sources installed on side 2.

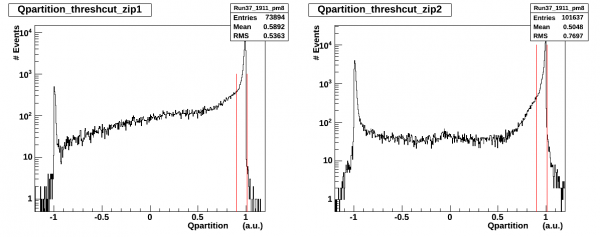

| Fig. 1: Q_partition, side 1 and side 2 with low energy thresh cut |
|---|
 |

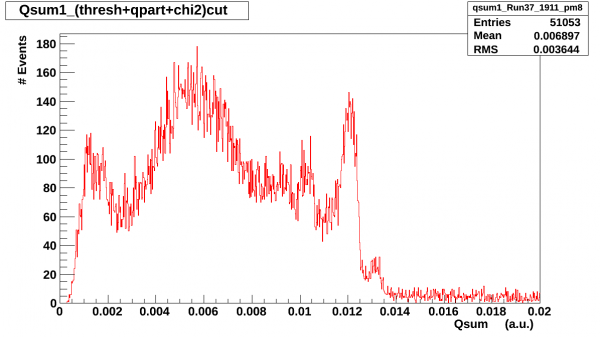

| Fig. 2: Qsum 1, with thersh, q_partition and chi2 cuts |
|---|
 |

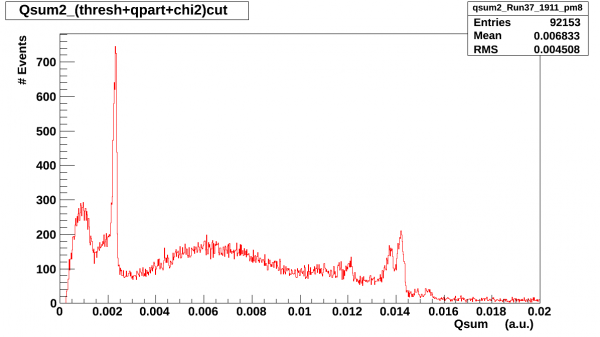

| Fig. 3: Qsum 2, with thersh, q_partition and chi2 cuts |
|---|
 |

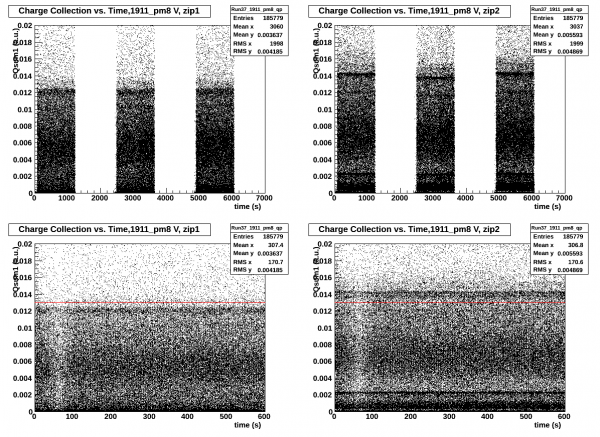

| Fig. 4: Qsum1 and Qsum2 vs time |
|---|
 |

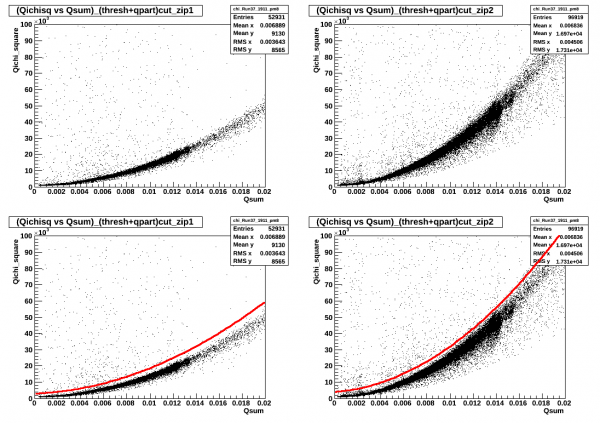

| Fig. 5: Qsum1 and Qsum2, with thersh, q_partition cuts vs CHI_2 |
|---|
 |

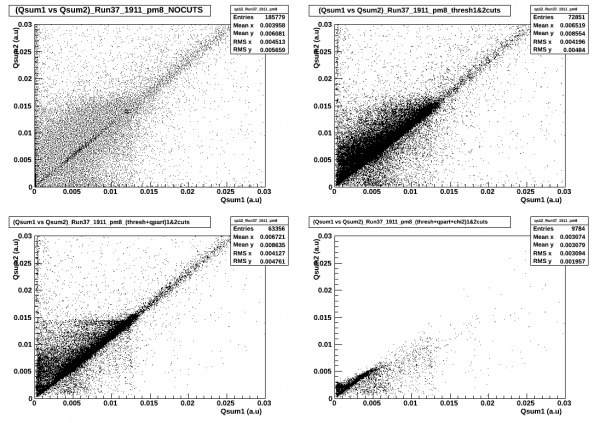

| Fig. 6: Qsum 1 vs. Qsum 2 |
|---|
 |
-/+ 8V
* total exposure time: 60 minutes
* OR trigger on Qi and Qo channels (32/28 ADC bins for Dib 1/2)
* Am_241, Pb_210 and Ba_133 sources installed on side 2.

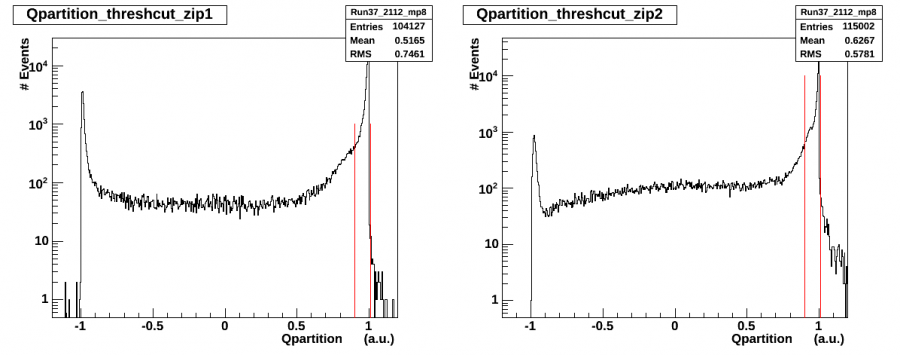

| Fig. 1: Q_partition, side 1 and side 2 with low energy thresh cut |
|---|
 |

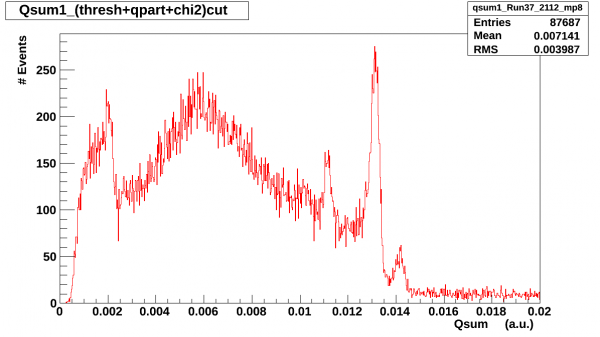

| Fig. 2: Qsum 1, with thersh, q_partition and chi2 cuts |
|---|
 |

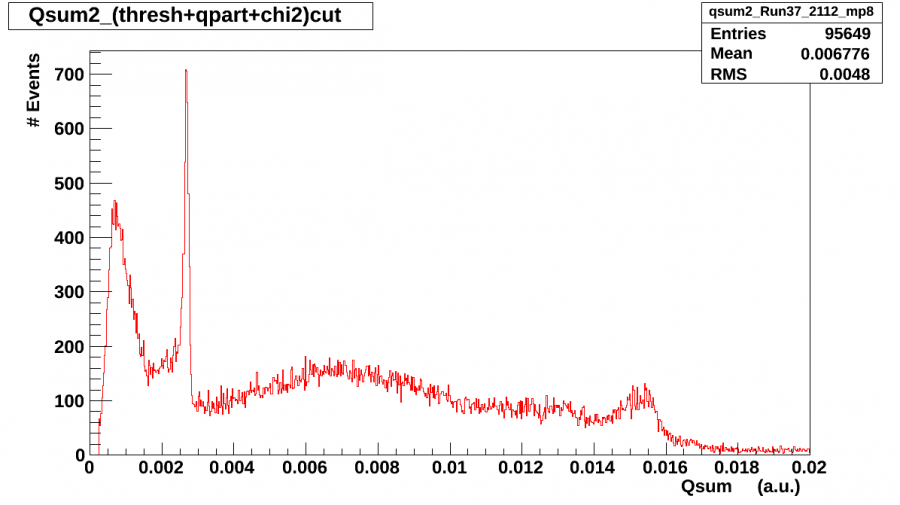

| Fig. 3: Qsum 2, with thersh, q_partition and chi2 cuts |
|---|
 |

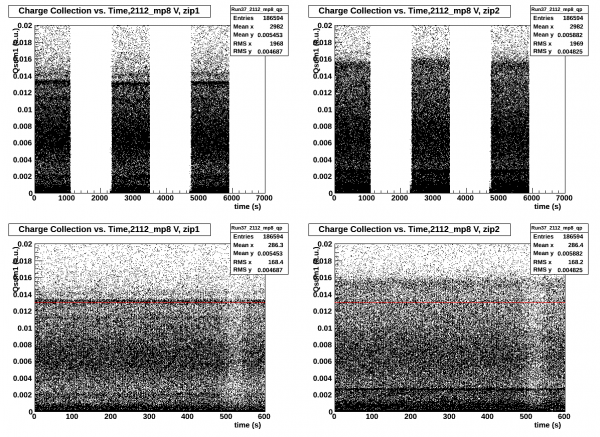

| Fig. 4: Qsum1 and Qsum2 vs time |
|---|
 |
| Fig. 5: Qsum1 and Qsum2, with thersh, q_partition cuts vs CHI_2 |
|---|
 |
| Fig. 6: Qsum 1 vs. Qsum 2 |
|---|
 |
+/- 10V
* total exposure time: 60 minutes
* OR trigger on Qi and Qo channels (32/28 ADC bins for Dib 1/2)
* Am_241, Pb_210 and Ba_133 sources installed on side 2.

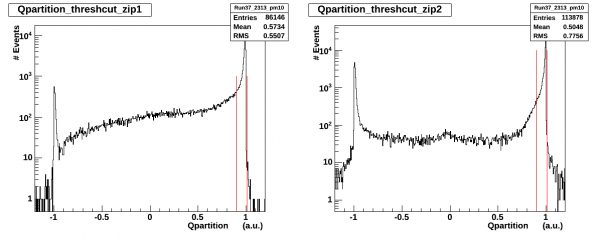

| Fig. 1: Q_partition, side 1 and side 2 with low energy thresh cut |
|---|
 |

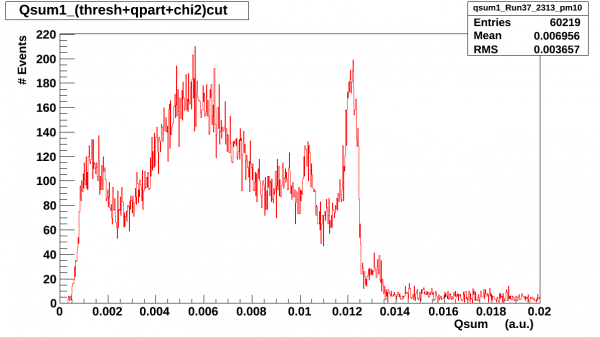

| Fig. 2: Qsum 1, with thersh, q_partition and chi2 cuts |
|---|
 |

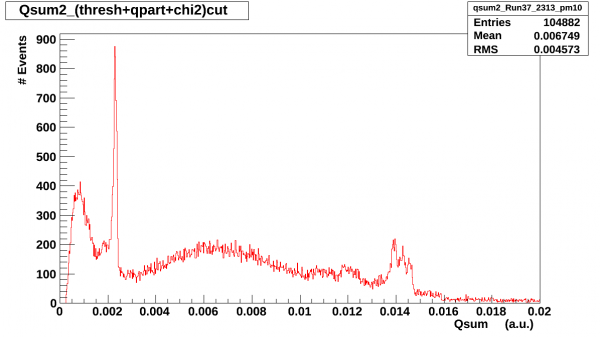

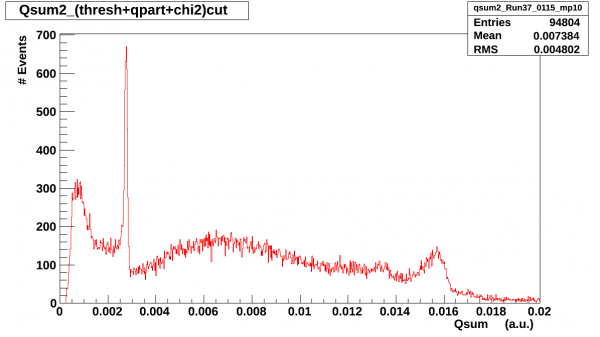

| Fig. 3: Qsum 2, with thersh, q_partition and chi2 cuts |
|---|
 |

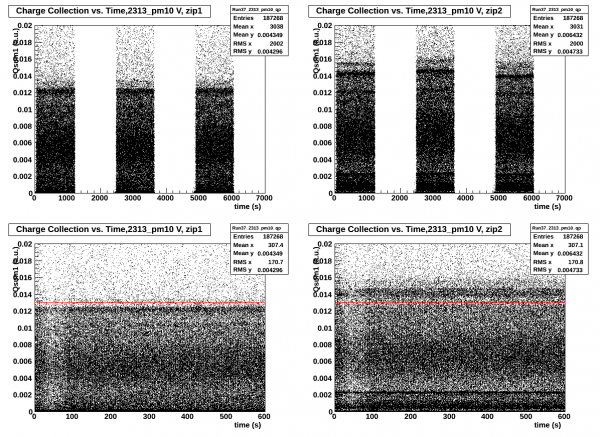

| Fig. 4: Qsum1 and Qsum2 vs time |
|---|
 |

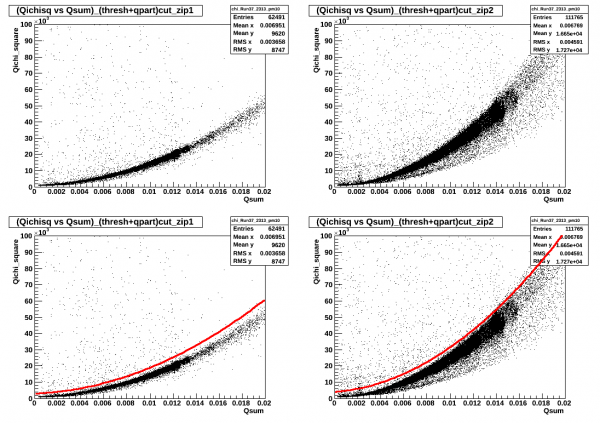

| Fig. 5: Qsum1 and Qsum2, with thersh, q_partition cuts vs CHI_2 |
|---|
 |

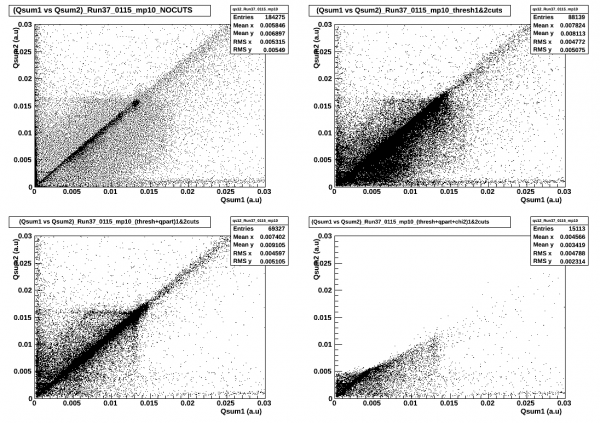

| Fig. 6: Qsum 1 vs. Qsum 2 |
|---|
 |
-/+ 10V
* total exposure time: 60 minutes
* OR trigger on Qi and Qo channels (32/28 ADC bins for Dib 1/2)
* Am_241, Pb_210 and Ba_133 sources installed on side 2.

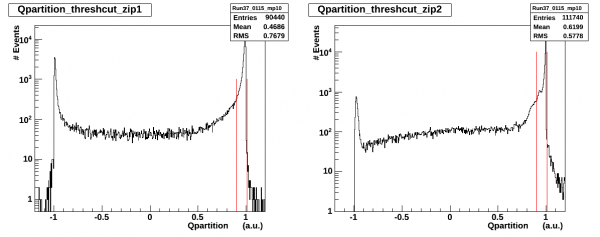

| Fig. 1: Q_partition, side 1 and side 2 with low energy thresh cut |
|---|
 |

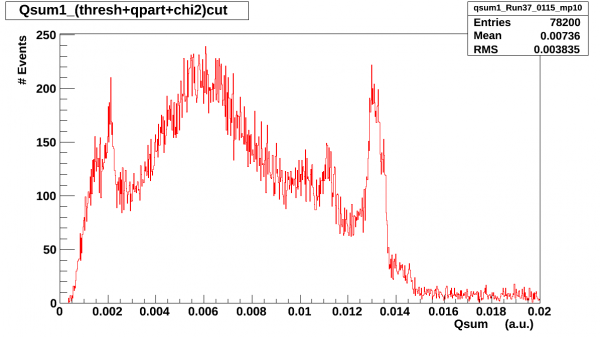

| Fig. 2: Qsum 1, with thersh, q_partition and chi2 cuts |
|---|
 |
| Fig. 3: Qsum 2, with thersh, q_partition and chi2 cuts |
|---|
 |

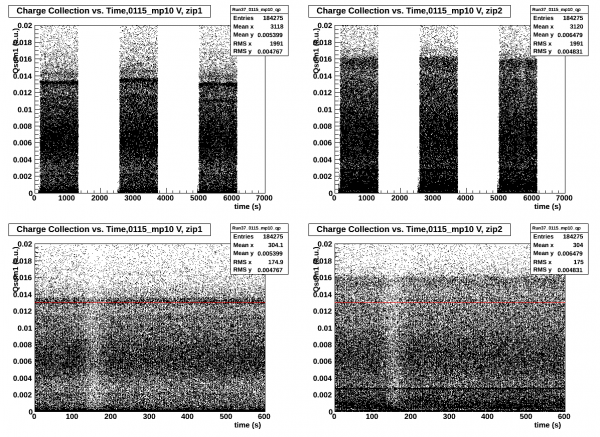

| Fig. 4: Qsum1 and Qsum2 vs time |
|---|
 |
| Fig. 5: Qsum1 and Qsum2, with thersh, q_partition cuts vs CHI_2 |
|---|
 |
| Fig. 6: Qsum 1 vs. Qsum 2 |
|---|
 |
+/- 12V
* total exposure time: 60 minutes
* OR trigger on Qi and Qo channels (32/28 ADC bins for Dib 1/2)
* Am_241, Pb_210 and Ba_133 sources installed on side 2.

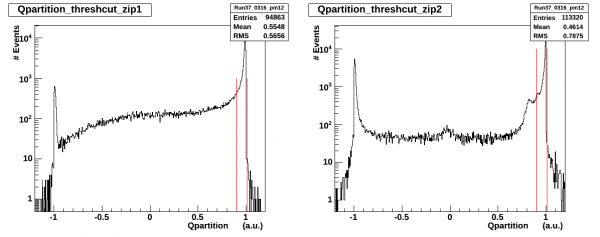

| Fig. 1: Q_partition, side 1 and side 2 with low energy thresh cut |
|---|
 |

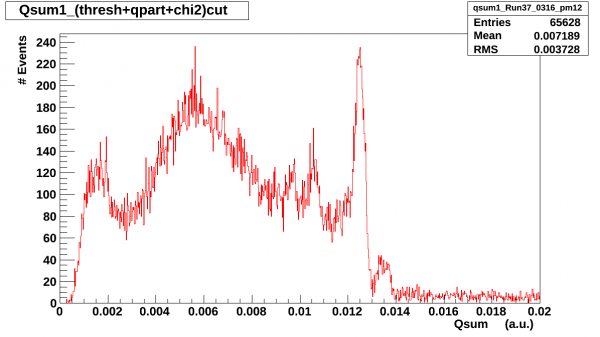

| Fig. 2: Qsum 1, with thersh, q_partition and chi2 cuts |
|---|
 |

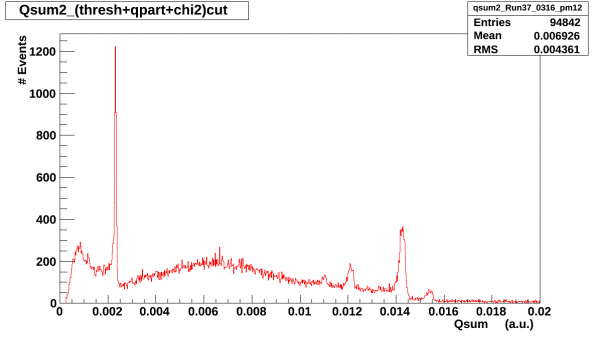

| Fig. 3: Qsum 2, with thersh, q_partition and chi2 cuts |
|---|
 |

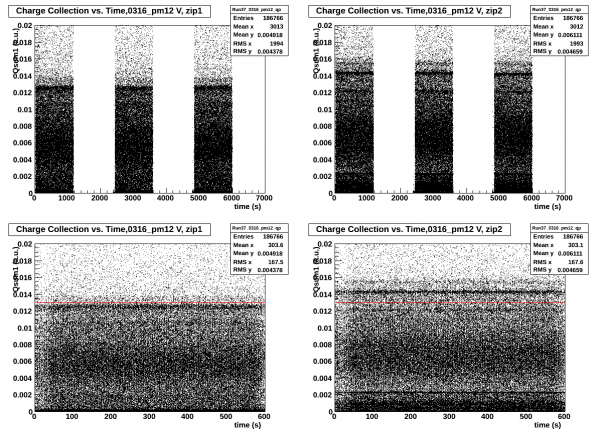

| Fig. 4: Qsum1 and Qsum2 vs time |
|---|
 |

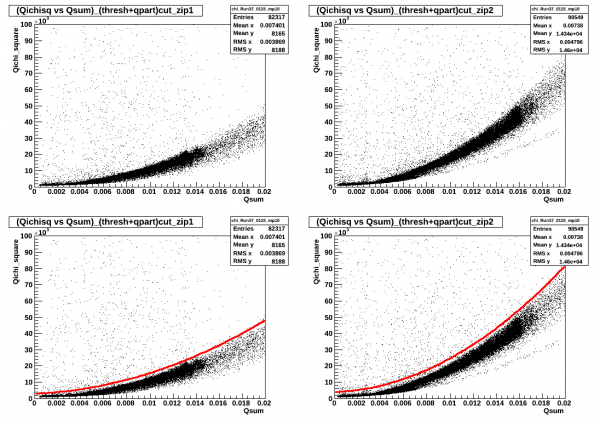

| Fig. 5: Qsum1 and Qsum2, with thersh, q_partition cuts vs CHI_2 |
|---|
 |
| Fig. 6: Qsum 1 vs. Qsum 2 |
|---|
 |
-/+ 12V
* total exposure time: 60 minutes
* OR trigger on Qi and Qo channels (32/28 ADC bins for Dib 1/2)
* Am_241, Pb_210 and Ba_133 sources installed on side 2.

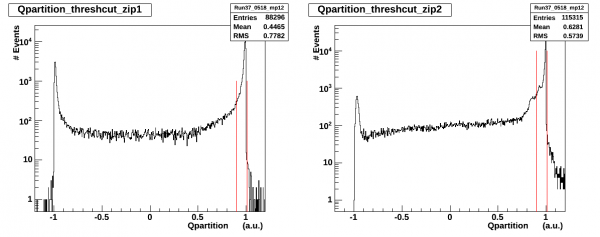

| Fig. 1: Q_partition, side 1 and side 2 with low energy thresh cut |
|---|
 |

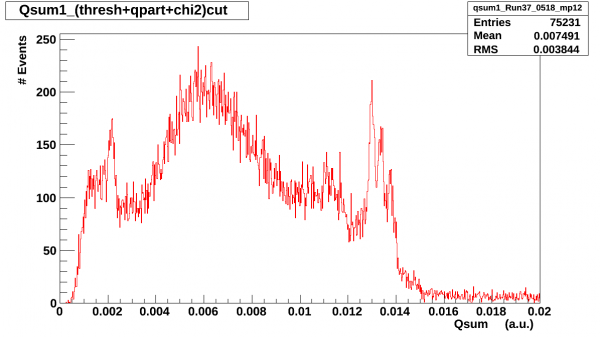

| Fig. 2: Qsum 1, with thersh, q_partition and chi2 cuts |
|---|
 |

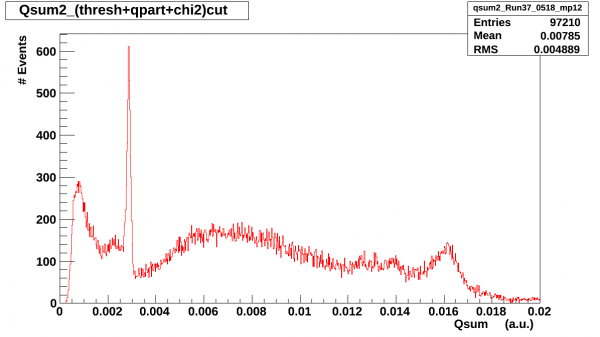

| Fig. 3: Qsum 2, with thersh, q_partition and chi2 cuts |
|---|
 |

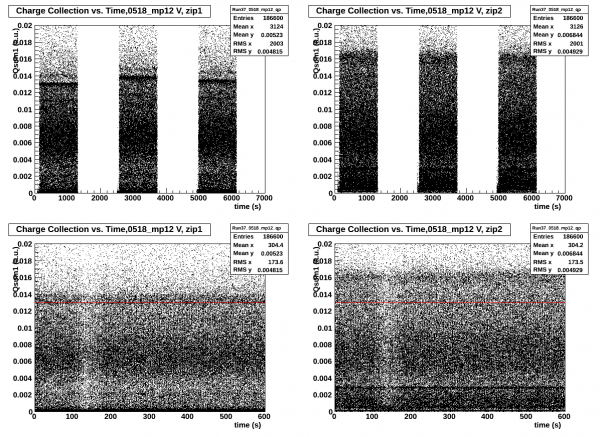

| Fig. 4: Qsum1 and Qsum2 vs time |
|---|
 |

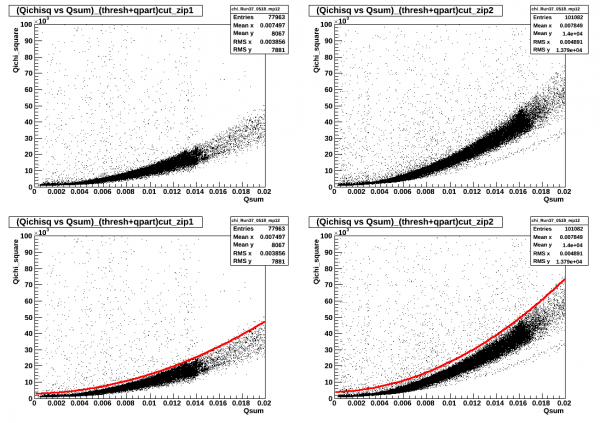

| Fig. 5: Qsum1 and Qsum2, with thersh, q_partition cuts vs CHI_2 |
|---|
 |

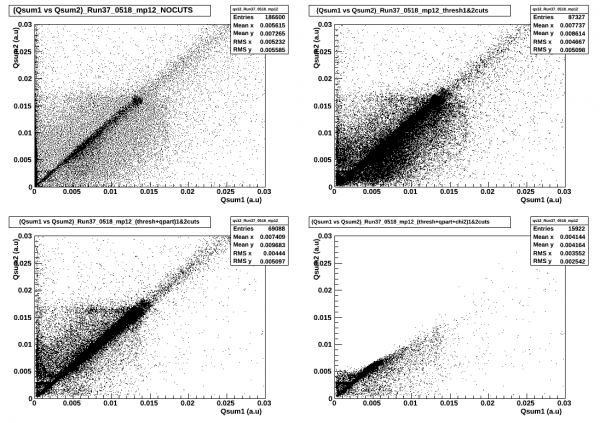

| Fig. 6: Qsum 1 vs. Qsum 2 |
|---|
 |
