2013/02/05
| 0950 | Filled LN2 cold trap. |
|---|---|
| Fed Cricket 4 pellets. | |
| 1145 | Begin LHe transfer (6.4%) |
| 1240 | End LHe transfer (90.4%). |
| 1807 | Begin taking data. First flash detector for 6 seconds with both LEDs on Dibs 1/2. Cool down for 30 min. Then take data with Dib 1/2 biased at +/- 3 V, 2.5 V, 2 V, 1.5 V, 1 V, and 0.5 V. At each bias there is a 30 min series, followed by 6 seconds of flashing and 20 minutes of cool down. End with 60 min of flashing, 60 min of cool down. Trigger on Qi/Qo on Dib 2 only at 40/40 ADC bins, respectively. |
| Filled LN2 cold trap. |

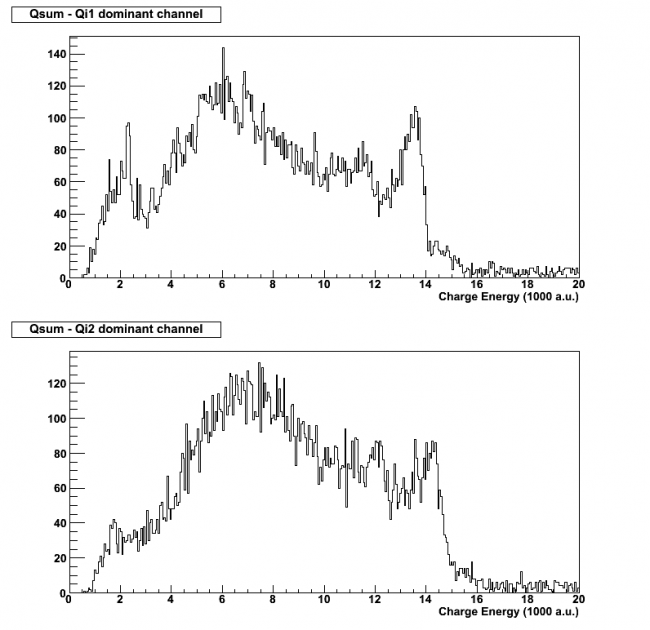

| All Qsum figures below have threshold, qpart, chi2, and timing cuts. |
| Bias | Series | Board Configuration | Trigger | Data Run Time Length |
|---|---|---|---|---|
| -/+ 3V | 07130205_0024 | Dib1=DCRC 33, Dib2= DCRC32 | Qi/Qo on Dib1 | 30 min |

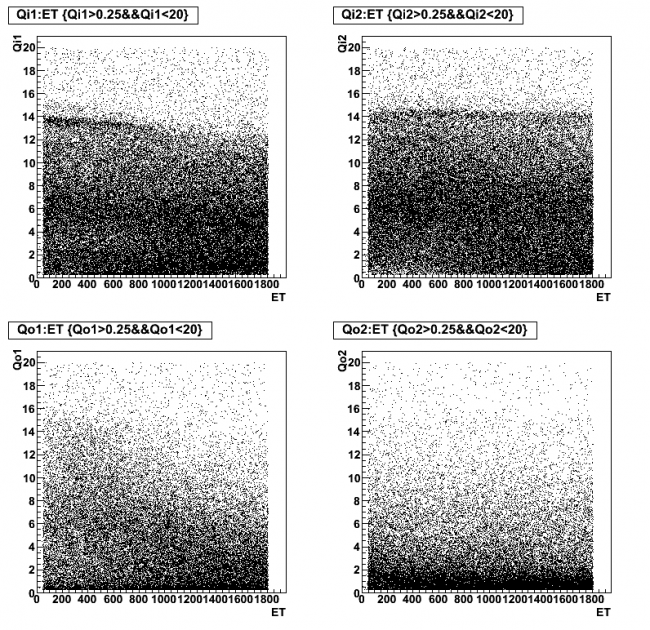

| Fig 1: First 15 Minutes | Charge vs. Time |
 |  |
|---|
| Bias | Series | Board Configuration | Trigger | Data Run Time Length |
|---|---|---|---|---|
| -/+ 2V | 07130205_0115 | Dib1=DCRC 33, Dib2= DCRC32 | Qi/Qo on Dib1 | 30 min |
| Fig 2: First 15 Minutes | Charge vs. Time |
 |  |
|---|
| 1811 | Fed Cricket 5 pellets. |
|---|
