2012/11/23

0600 Fill N2 cold trap full.
0725 Start data acquisition: file size reduced to 1000 traces; 1000 random triggers at various QET & Q biases as listed here:
Data Series Comment
07121123_0726 0 V; final QET settings
07121123_0729 0 V; final QET bias minus 20 μA for all channels
07121123_0732 0 V; final QET bias plus 20 μA for all channels
07121123_0735 0 V; final QET bias plus 40 μA for all channels
07121123_0738 0 V; final QET bias plus 60 μA for all channels
07121123_0741 0 V; final QET bias plus 80 μA for all channels
07121123_0744 0 V; final QET bias plus 100 μA for all channels
07121123_0747 +/-1 V; final QET settings
07121123_0750 -/+1 V; final QET settings
07121123_0753 +/-2 V; final QET settings
07121123_0756 -/+2 V; final QET settings
07121123_0759 +/-3 V; final QET settings
07121123_0802 -/+3 V; final QET settings
07121123_0805 +/-4 V; final QET settings
07121123_0808 -/+4 V; final QET settings
07121123_0811 +/-5 V; final QET settings
07121123_0814 -/+5 V; final QET settings
07121123_0817 +/-6 V; final QET settings
07121123_0820 -/+6 V; final QET settings
07121123_0823 +/-7 V; final QET settings
07121123_0827 -/+7 V; final QET settings
07121123_0830 +/-8 V; final QET settings
07121123_0833 -/+8 V; final QET settings
07121123_0836 +/-9 V; final QET settings
07121123_0839 -/+9 V; final QET settings
07121123_0842 +/-10 V; final QET settings
07121123_0845 -/+10 V; final QET settings
07121123_0848 +/-11 V; final QET settings
07121123_0851 -/+11 V; final QET settings
07121123_0854 +/-12 V; final QET settings
07121123_0857 -/+12 V; final QET settings

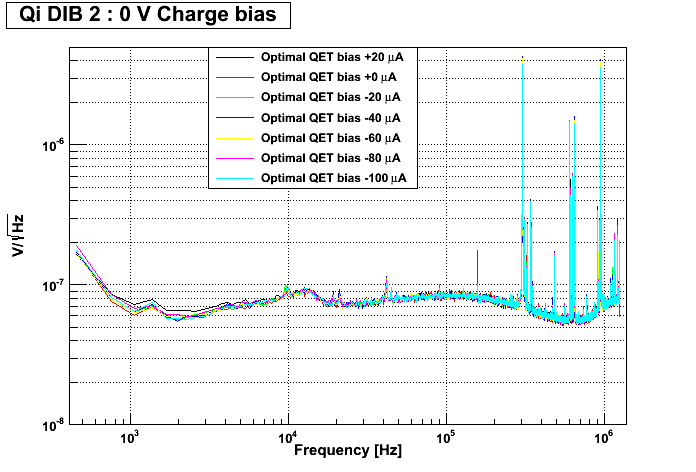

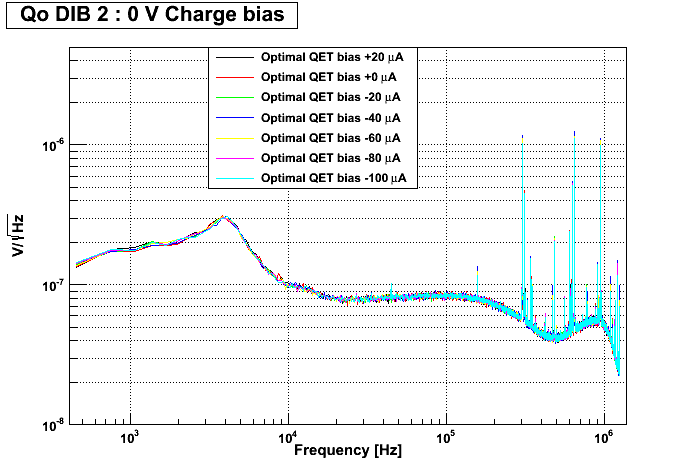

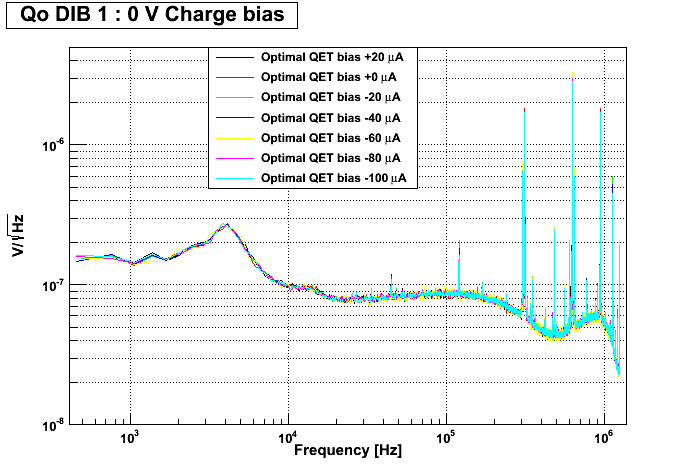

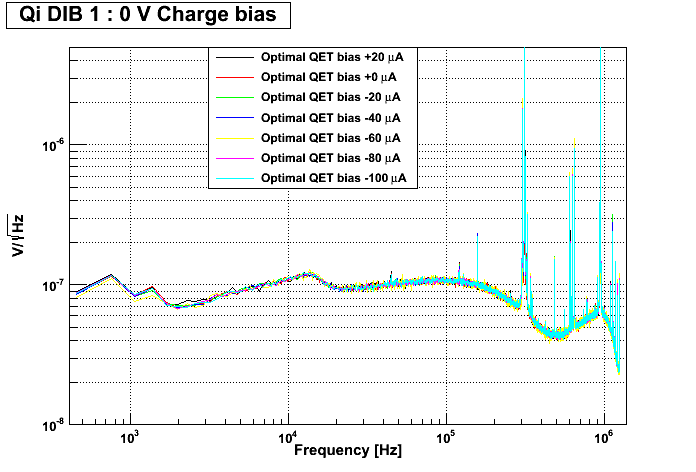

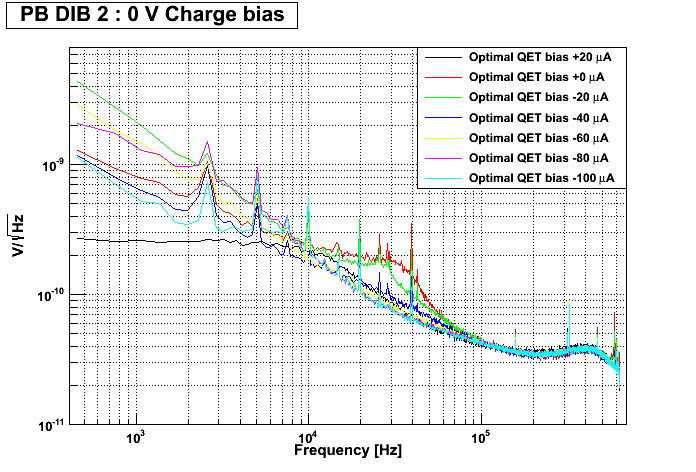

Figure 1: Charge PSDs at 0 V charge bias and various QET biases. No charge electrodes are present on DIB 3.

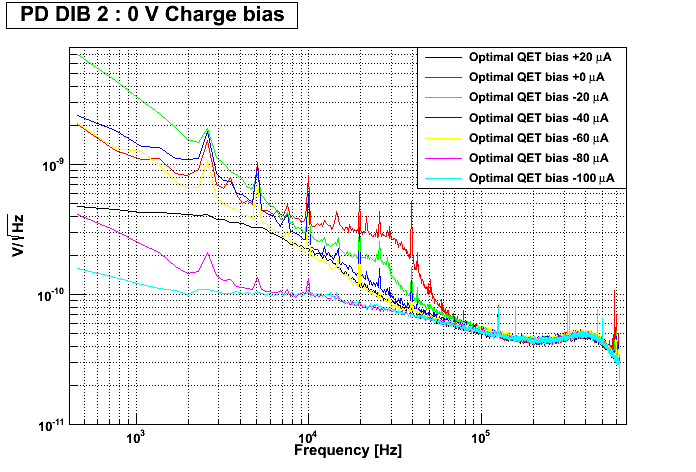

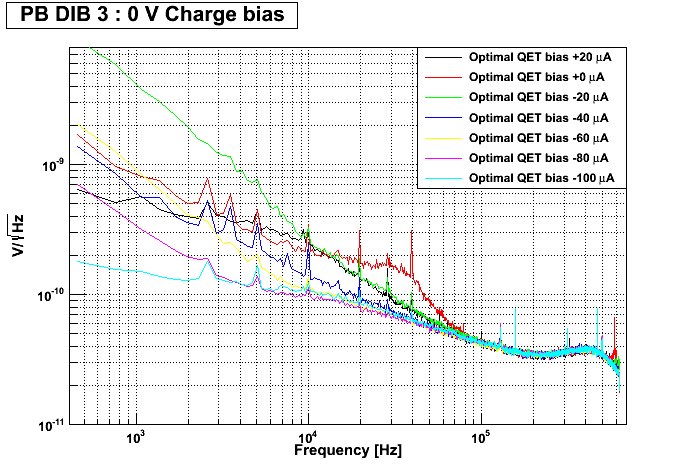

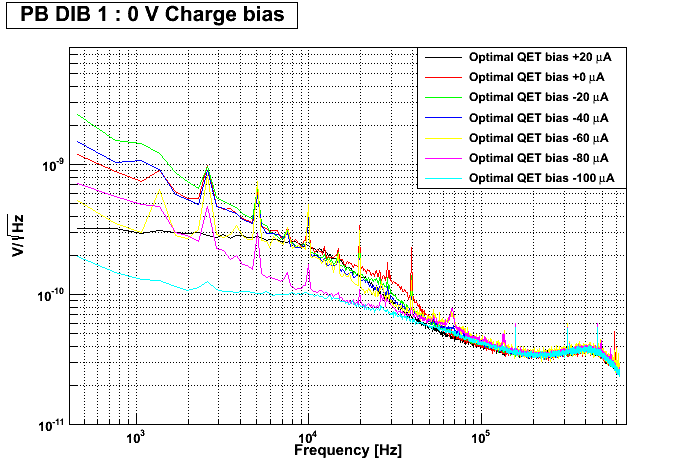

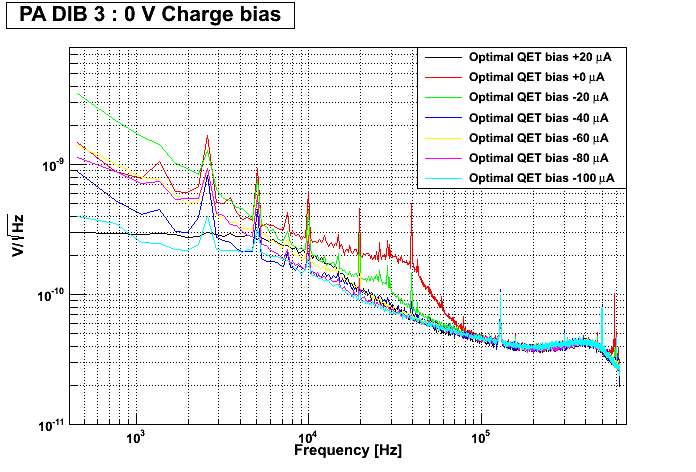

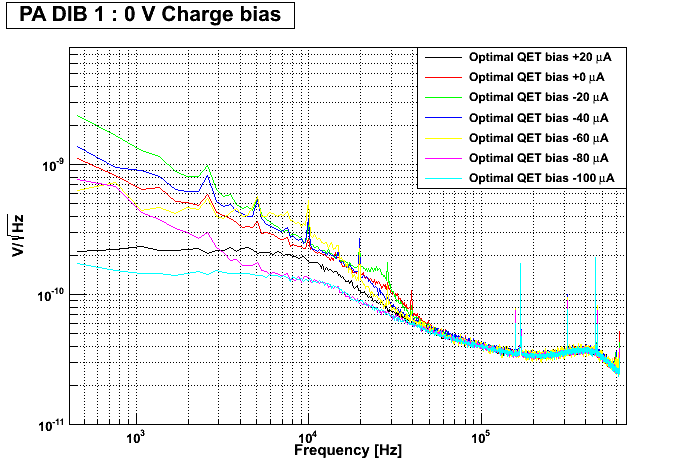

Figure 2: Side 1 and Side 2 phonon PSDs for inner quadrant channels at 0 V charge bias and various QET biases.
Side 1 Side 2

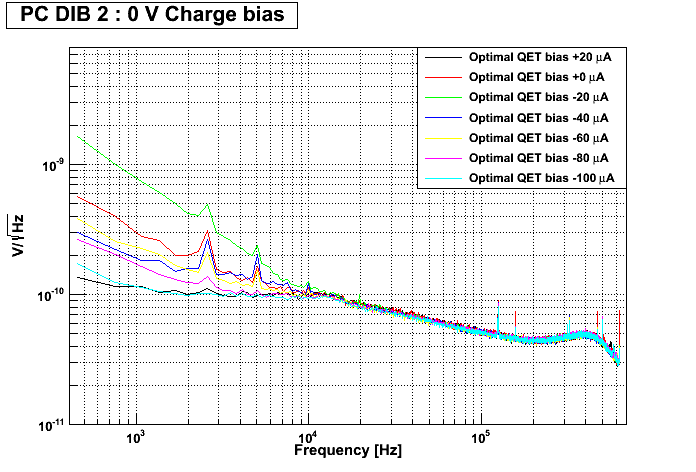

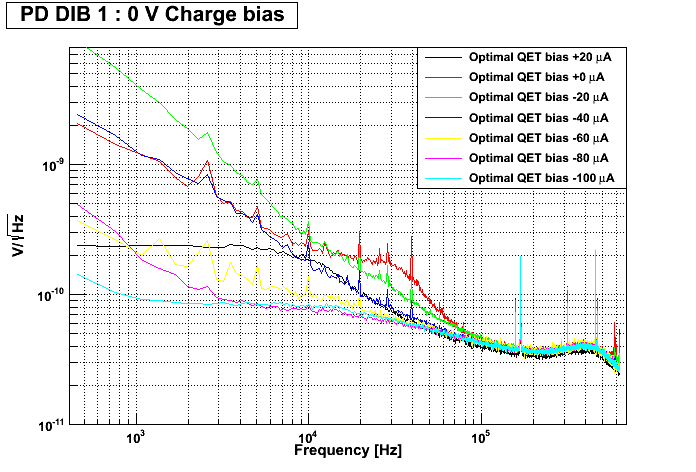

Figure 3: Side 1 and Side 2 phonon PSDs for inner circle channels at 0 V charge bias and various QET biases.
Side 1 Side 2

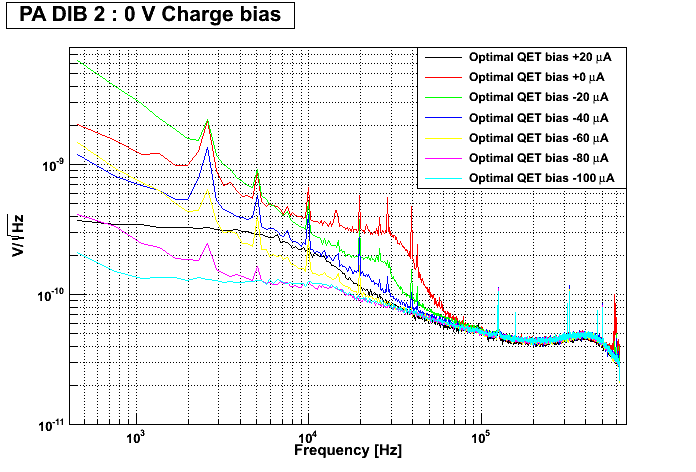

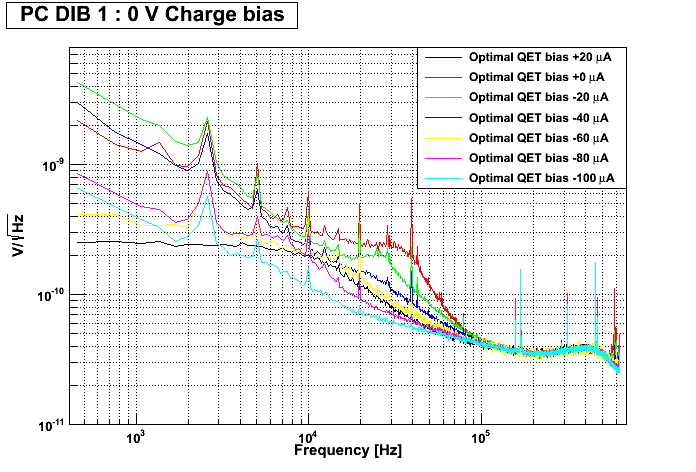

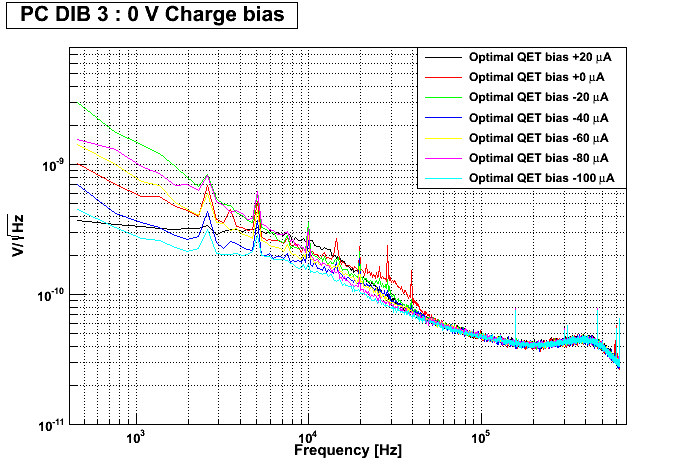

Figure 4: Side 1 and Side 2 phonon PSDs for outer ring channels at 0 V charge bias and various QET biases.
Side 1 Side 2
1330 Fed Cricket 3 pellets.
2255 Fill N2 cold trap full.
