2012/08/08

1005 Fed Cricket 3 pellets.
1045 Filled LN2 cold trap.
1300 Interrupted data taking so the rest of the top shield could be installed.
1348 Resume data taking. Start with a flashing series. Then resume with yesterday's data settings, starting at -/+ 7V and ending with a repeat of +/- 8V.
1747 Fed Cricket 4 pellets.
1807 Filled LN2 cold trap.

Data Set 07120808_0041, 07120808_0131, 07120808_0221 with Ba-133 & Am-241 and DIB1 +12 V, DIB2 -12 V

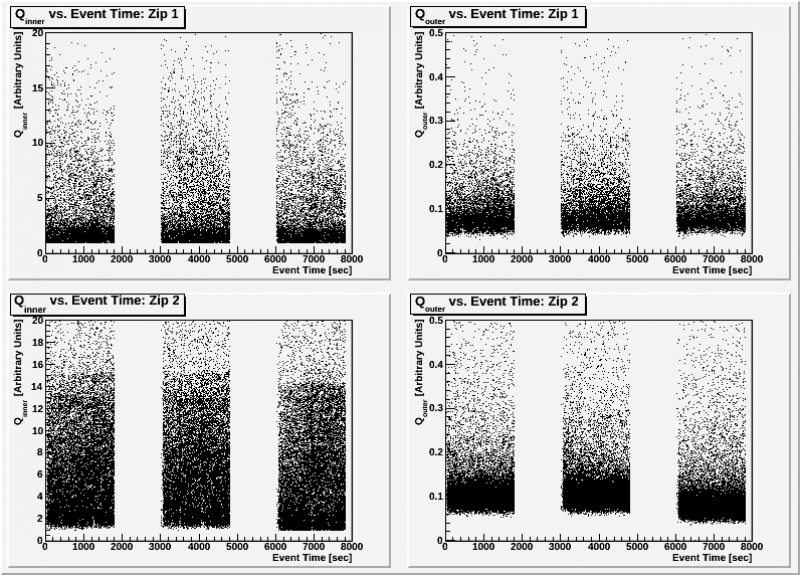

Figure 1: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.

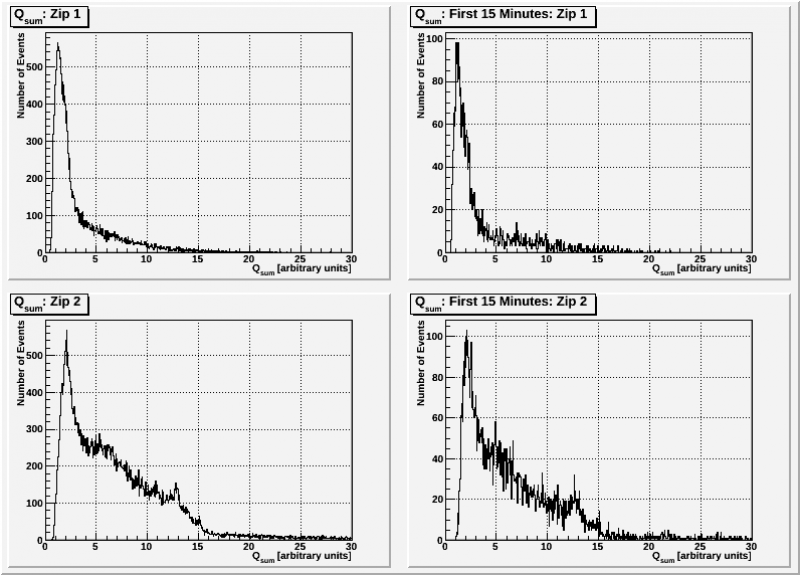

Figure 2: Qsum spectra. Qi and χ squared cuts.

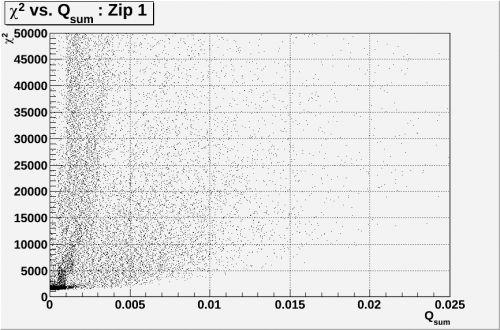

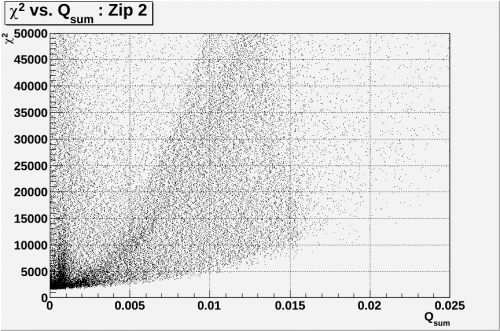

Figure 3: χ Squared vs. Qsum. Qi cut.

Data Set 07120808_0313, 07120808_0403, 07120808_0453 with Ba-133 & Am-241 and DIB1 -1 V, DIB2 = +1 V

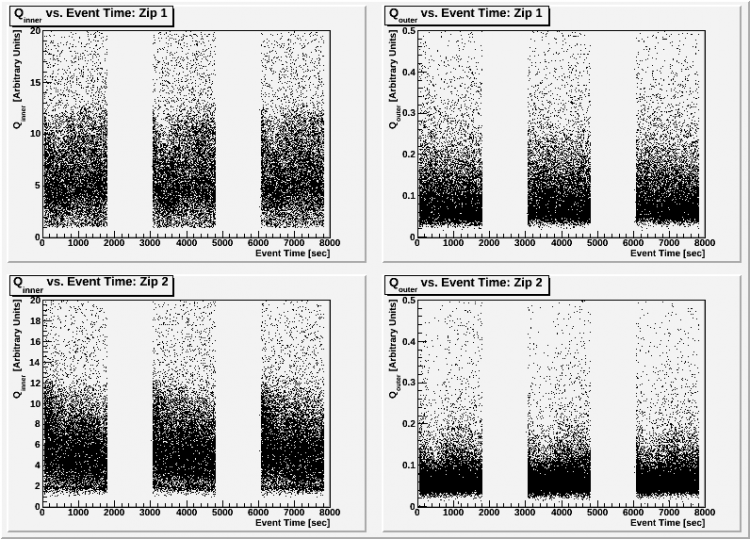

Figure 4: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.
Figure 5: Qsum spectra. Qi and χ squared cuts.

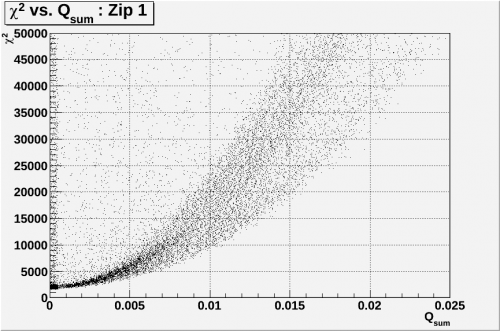

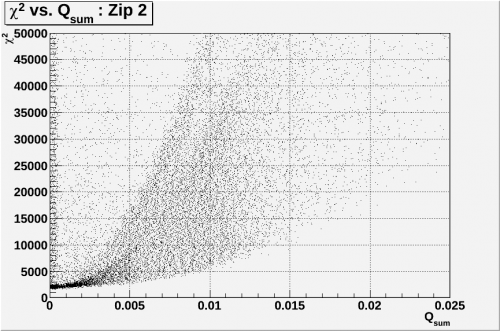

Figure 6: χ Squared vs. Qsum. Qi cut.

Data Set 07120808_0544, 07120808_0635, 07120808_0725 with Ba-133 & Am-241 and DIB1 -3 V, DIB2 = +3 V

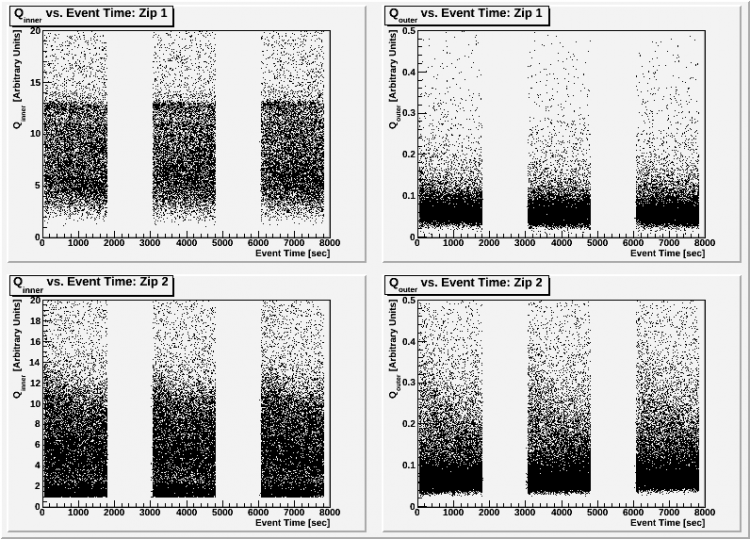

Figure 7: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.
Figure 8: Qsum spectra. Qi and χ squared cuts.

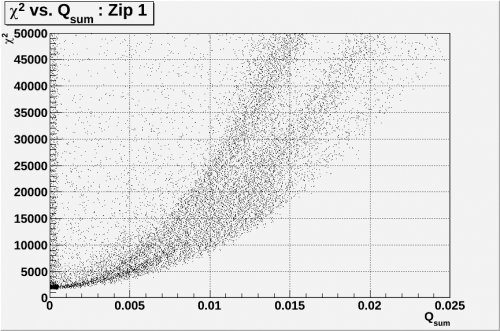

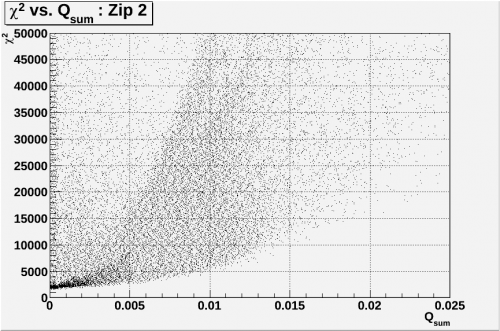

Figure 9: χ Squared vs. Qsum. Qi cut.

Data Set 07120808_0816, 07120808_0906, 07120808_0956 with Ba-133 & Am-241 and DIB1 -5 V, DIB2 = +5 V

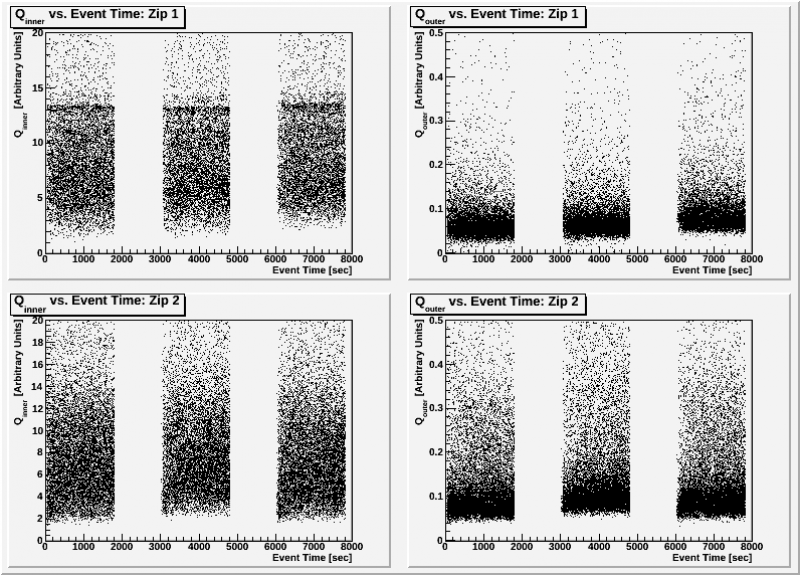

Figure 10: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.
Figure 11: Qsum spectra. Qi and χ squared cuts.

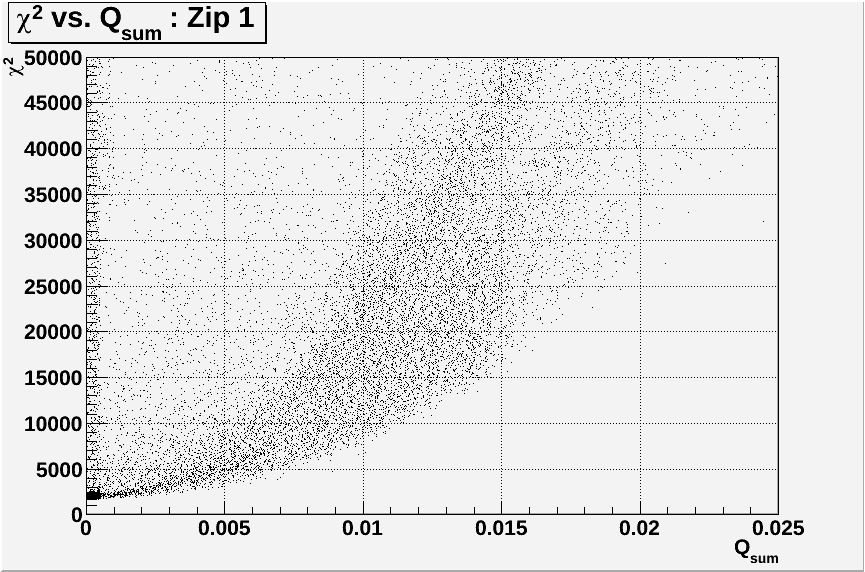

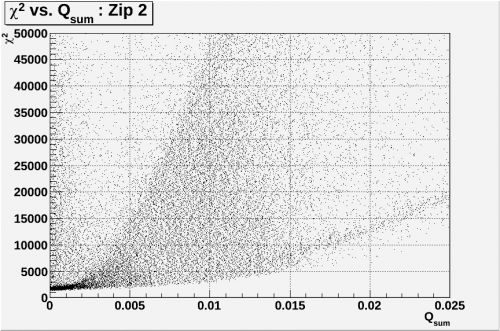

Figure 12: χ Squared vs. Qsum. Qi cut.

Data Set 07120808_1048, 07120808_1138, 07120808_1228 with Ba-133 & Am-241 and DIB1 -7 V, DIB2 = +7 V

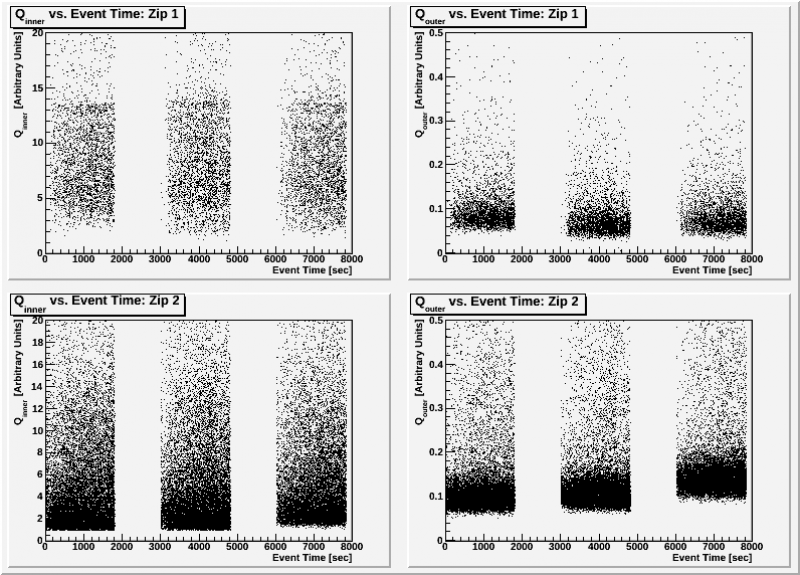

Figure 13: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.

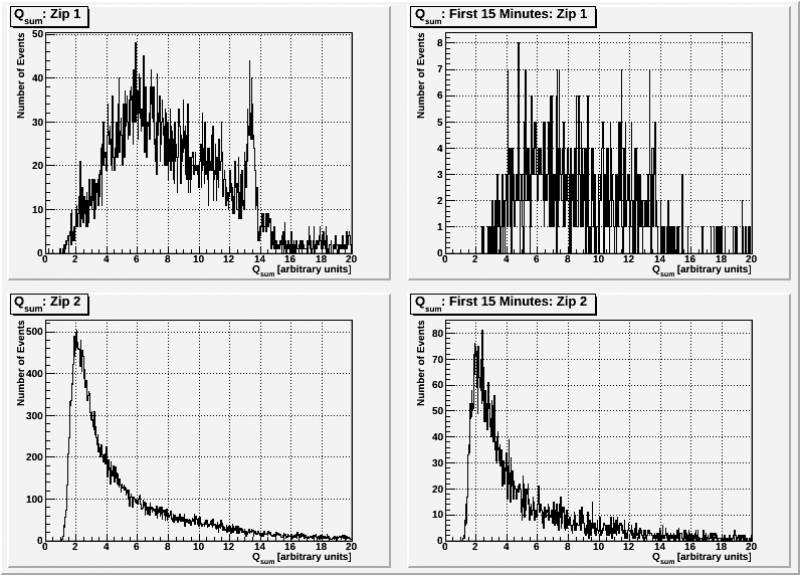

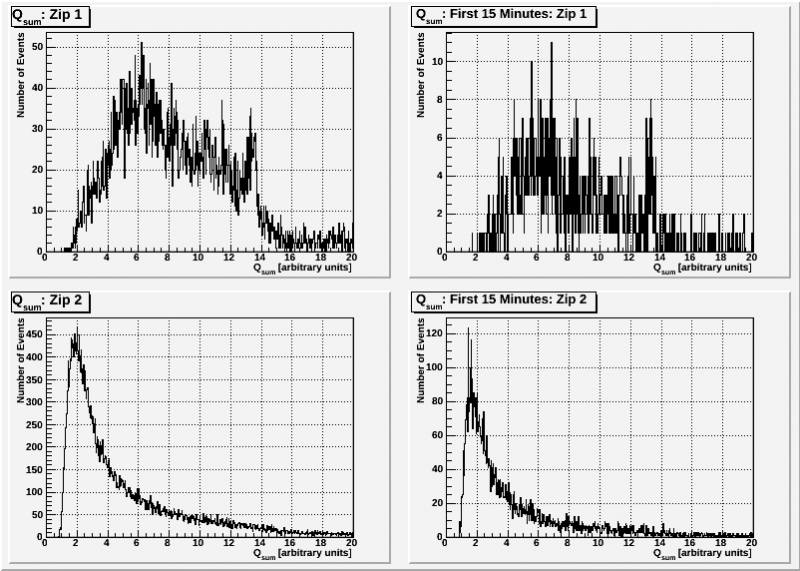

Figure 14: Qsum spectra. Qi and χ squared cuts.

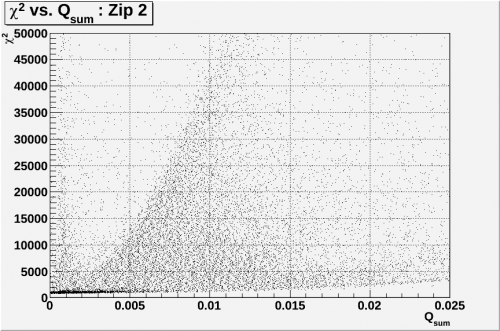

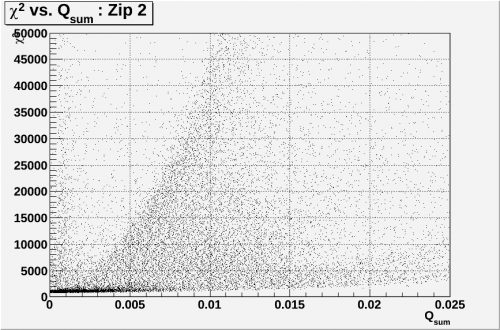

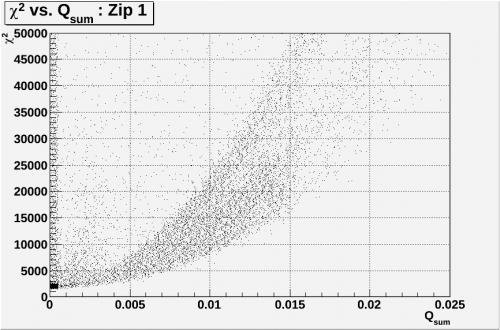

Figure 15: χ Squared vs. Qsum. Qi cut.

Data Set 07120808_1408, 07120808_1459, 07120808_1549 with Ba-133 & Am-241 and DIB1 -7 V, DIB2 = +7 V

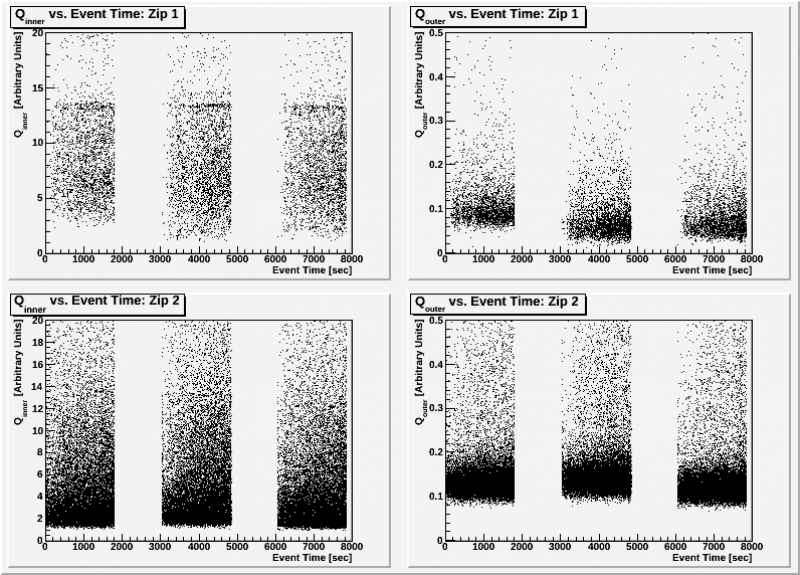

Figure 16: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.
Figure 17: Qsum spectra. Qi and χ squared cuts.
Figure 18: χ Squared vs. Qsum. Qi cut.

Data Set 07120808_1640, 07120808_1731, 07120808_1821 with Ba-133 & Am-241 and DIB1 -9 V, DIB2 = +9 V

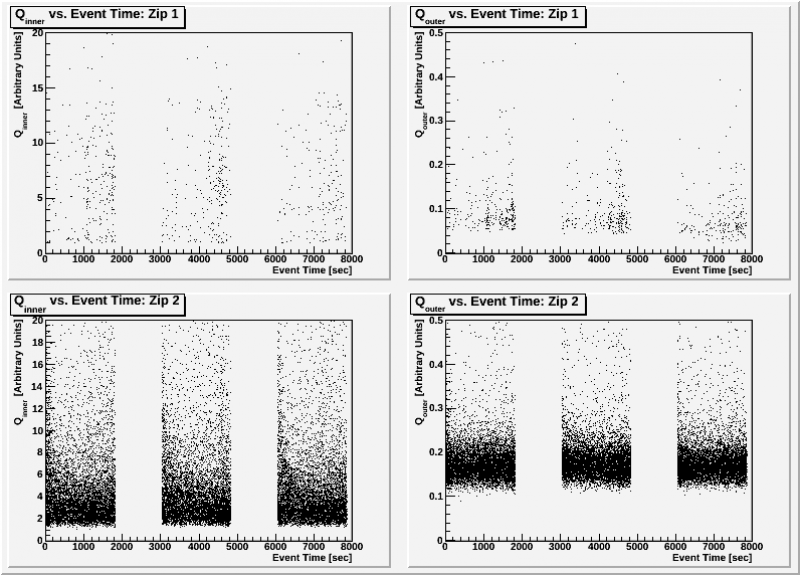

Figure 19: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.

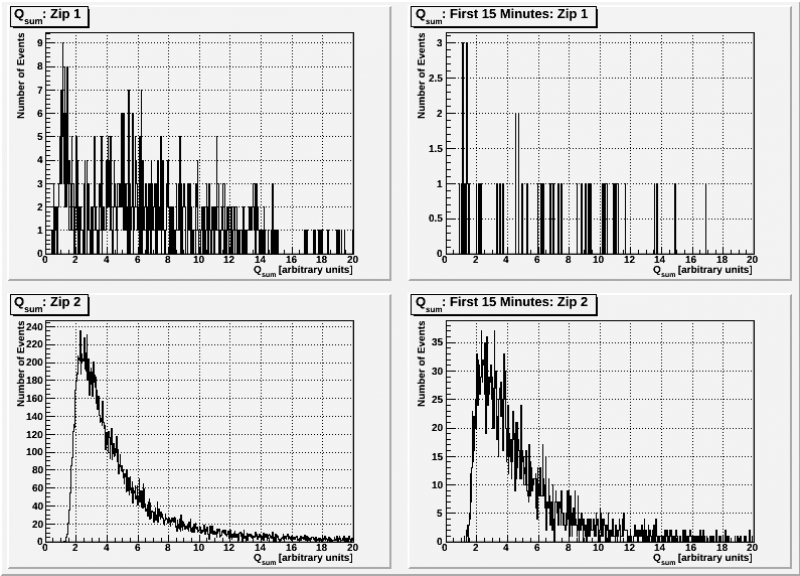

Figure 20: Qsum spectra. Qi and χ squared cuts.

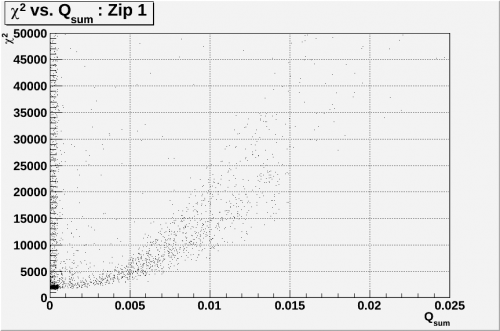

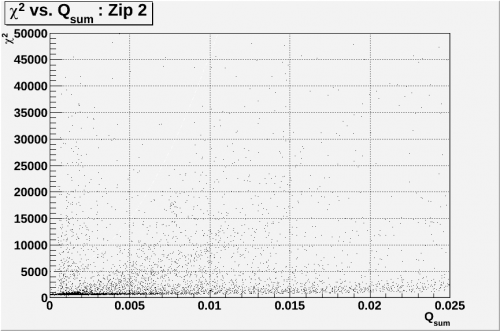

Figure 21: χ Squared vs. Qsum. Qi cut.

Data Set 07120808_1912, 07120808_2004, 07120808_2057 with Ba-133 & Am-241 and DIB1 -13 V, DIB2 = +13 V

Bad Data

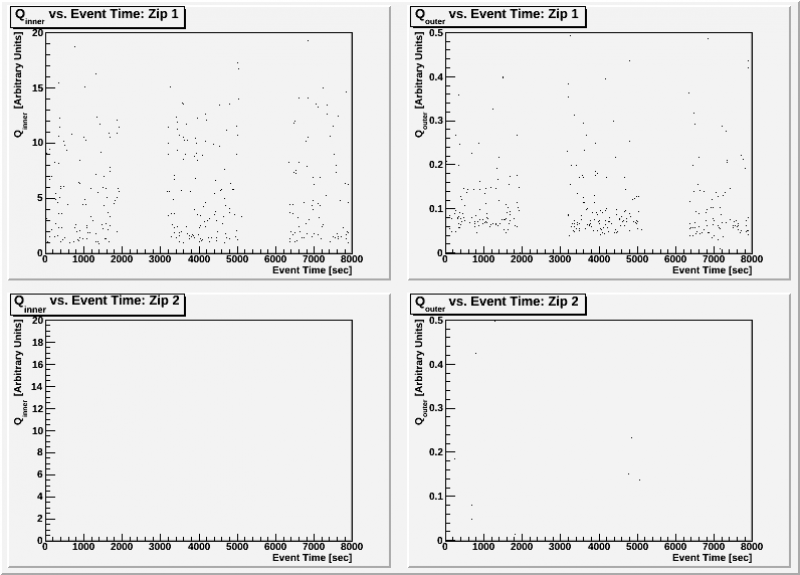

Figure 22: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.

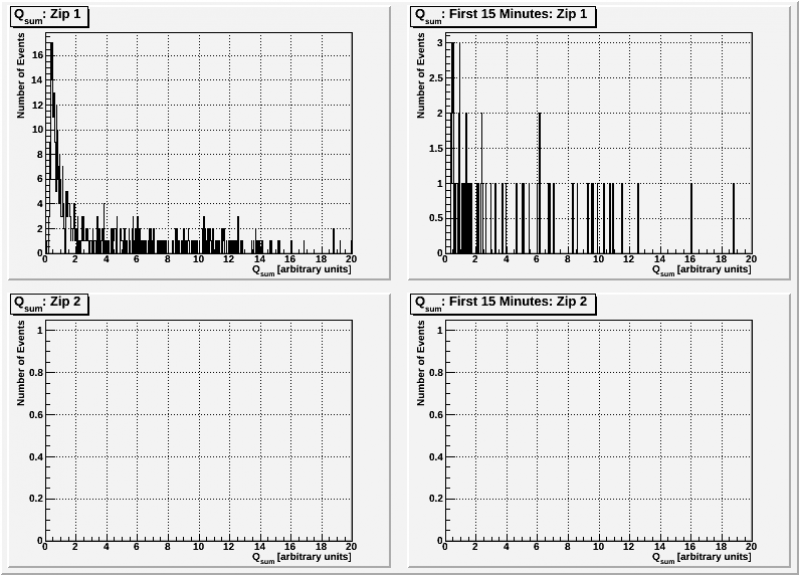

Figure 23: Qsum spectra. Qi and χ squared cuts.

Data Set 07120808_2043, 07120808_2234, 07120808_2324 with Ba-133 & Am-241 and DIB1 = +1 V, DIB2 = -1 V

Bad Data

Figure 22: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.

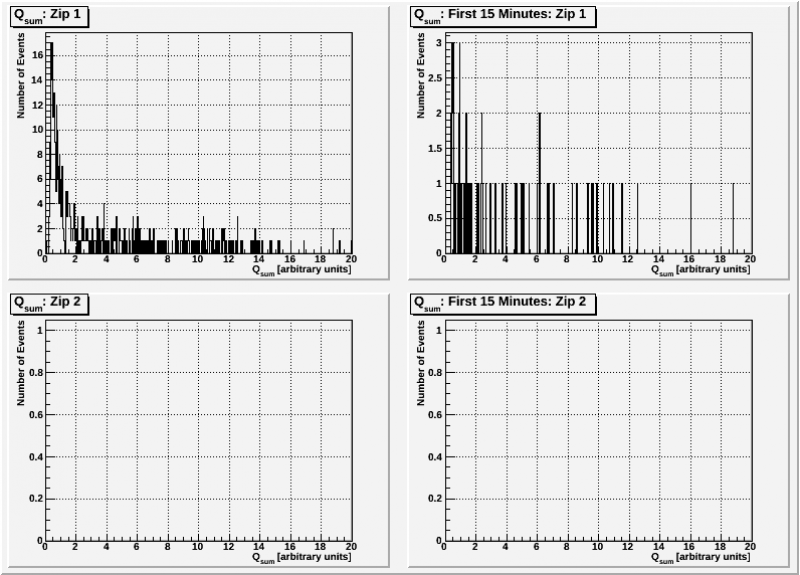

Figure 23: Qsum spectra. Qi and χ squared cuts.
