2012/08/07

0950 Fed Cricket 3 pellets.
1040 Filled LN2 cold trap.
1830 Begin LHe transfer (28.3%).
Stopped data taking at +/- 6 V.
1835 Fed Cricket 4 pellets.
1919 End LHe transfer (90.4%).
1937 Taking data 07120807_1937_F0001. DIB1/DCRC33=+8V, DIB2/DCRC32=-8V. Trace length 0.4096ms, pre-trigger 100us. Trigger on (Qi/DIB1, Qo/DIB1, Qi/DIB2, Qo/DIB2) at (56, 40, 32, 32) ADC bin. Data/flash/cooldown = 30/0.1/20/min. Ba-133 source is ~2 inches below top of mu metal shield. MC H35=79.4mK. Will take 3 series at this bias and then take data with same settings at DIB1 = +10, +12, -1, -3, -5, -7, -9, -13, +1, +3, +5, +7, +9, +13V, and DIB2=-DIB1 bias.
1955 Filled LN2 cold trap.

Data Set 07120807_0300, 07120807_0350, 07120807_0440 with Ba-133 & Am-241 and DIB1 -8 V, DIB2 +8 V

Data files half normal size. Irregular pulses.

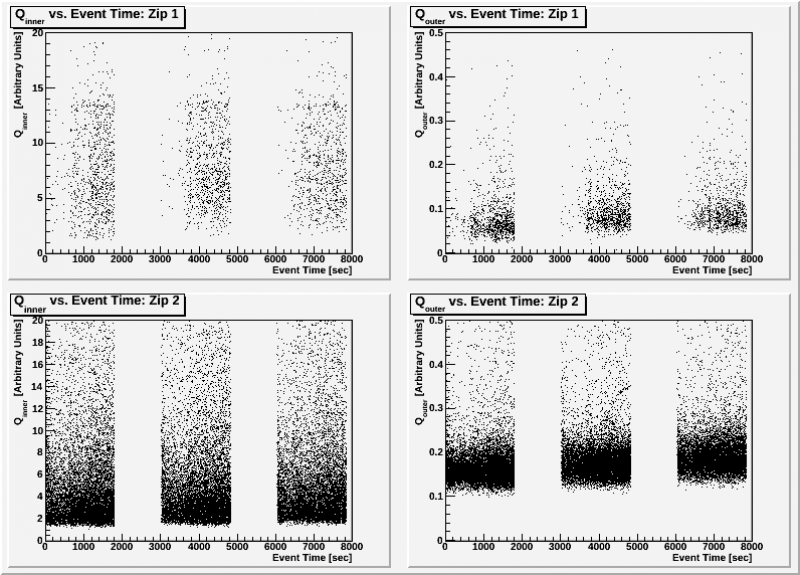

Figure 1: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.
Figure 2: Qsum spectra. Qi and χ squared cuts.

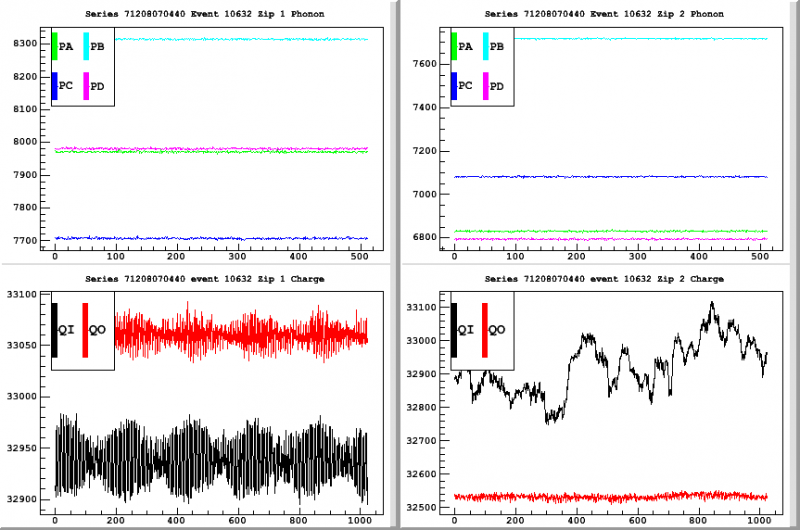

Figure 3: Raw Pulse for 07120806_0440

Data Set 07120807_0531, 07120807_0625, 07120807_0718 with Ba-133 & Am-241 and DIB1 -10 V, DIB2 +10 V

Irregular, reduced data file size.

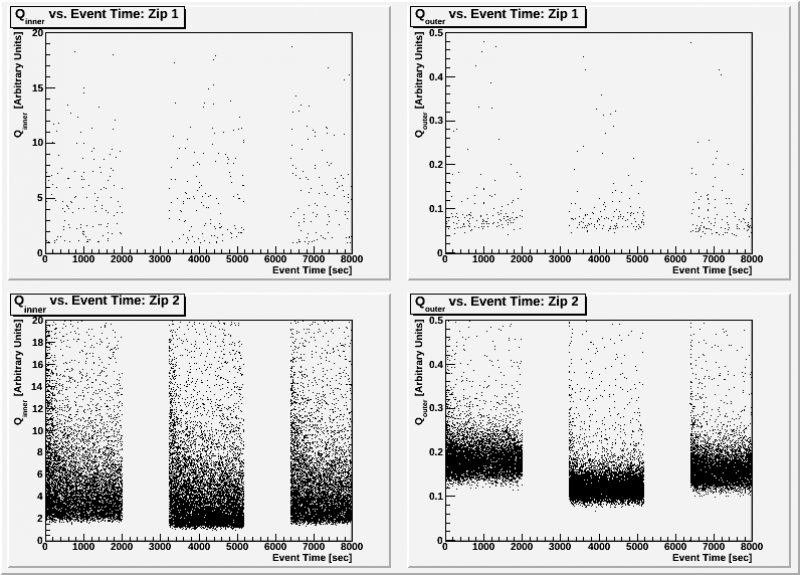

Figure 4: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.

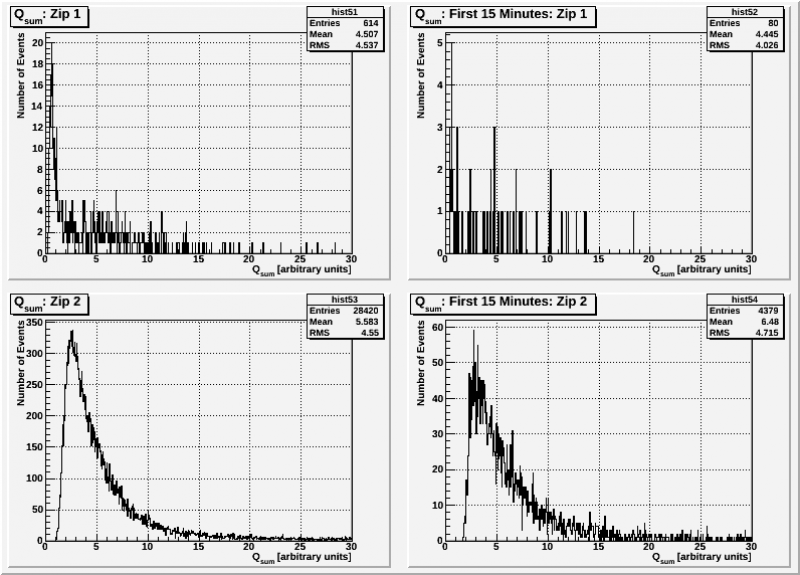

Figure 5: Qsum spectra. Qi and χ squared cuts.

Data Set 07120807_1035, 07120807_1125, 07120807_1215 with Ba-133 & Am-241 and DIB1 +2 V, DIB2 -2 V

Irregular, reduced data file size.

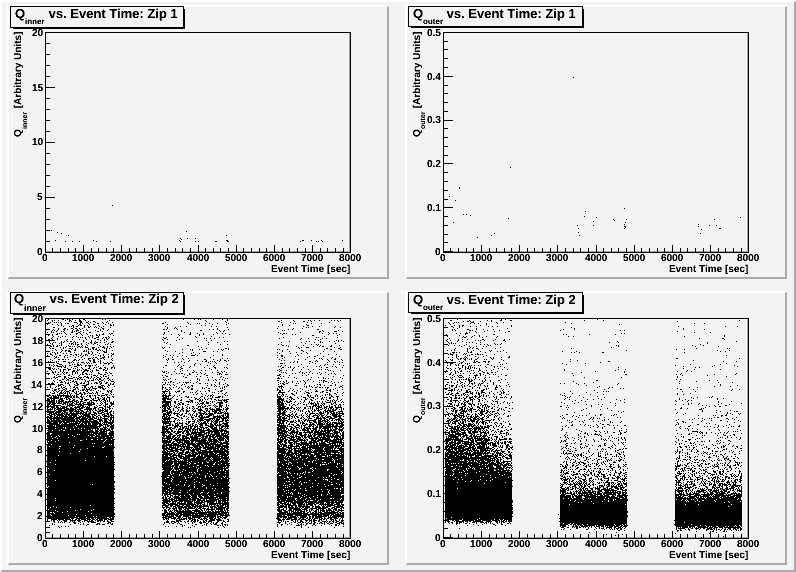

Figure 6: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.
Figure 7: Qsum spectra. Qi and χ squared cuts.

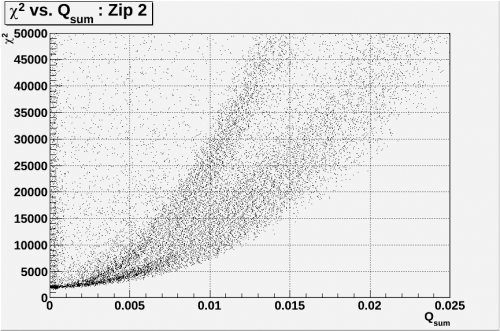

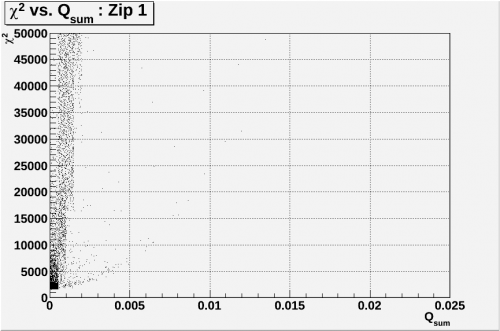

Figure 8: χ Squared vs. Qsum. Qi cut.

Data Set 07120807_1306, 07120807_1356, 07120807_1447 with Ba-133 & Am-241 and DIB1 +4 V, DIB2 -4 V

Irregular, reduced data file size.

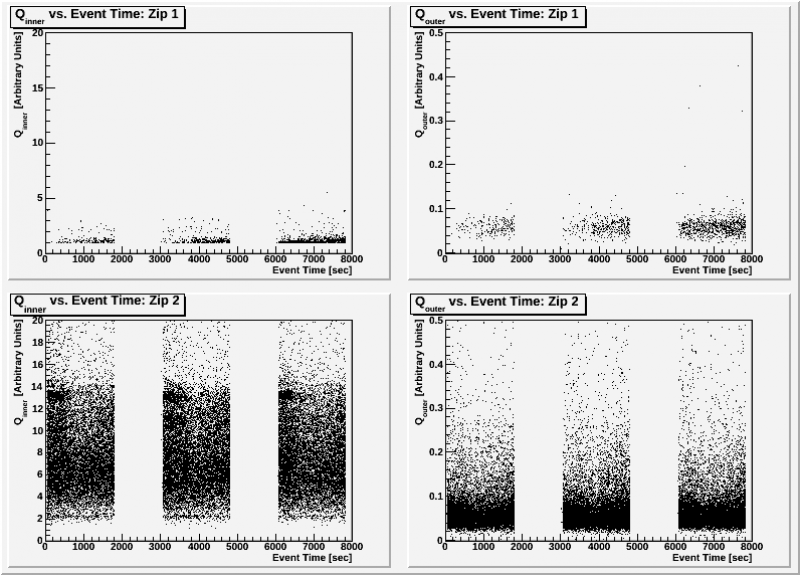

Figure 9: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.

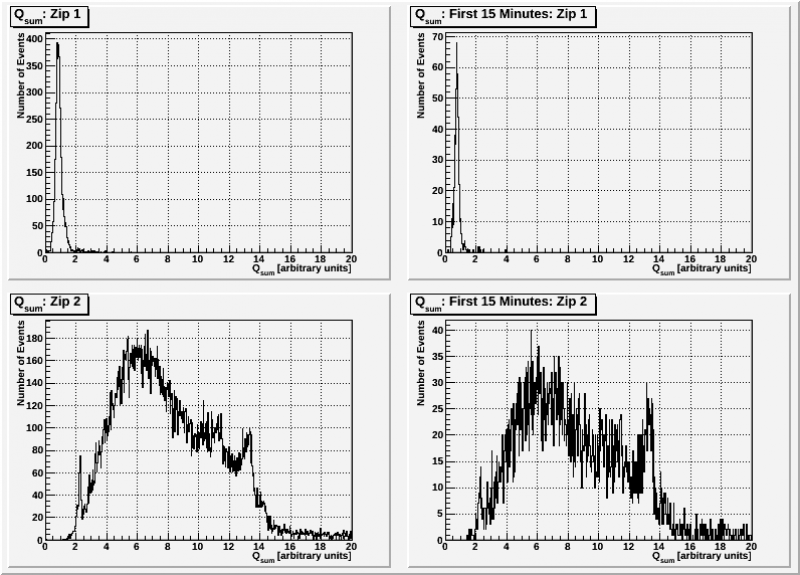

Figure 10: Qsum spectra. Qi and χ squared cuts.

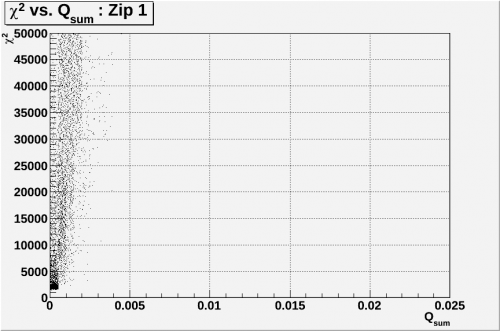

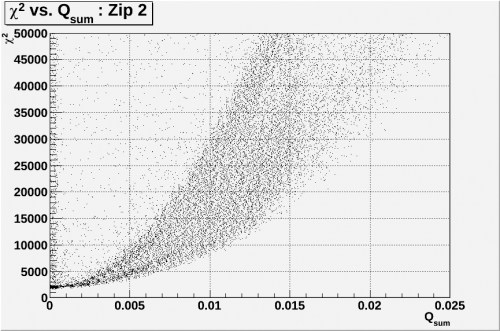

Figure 11: χ Squared vs. Qsum. Qi cut.

Data Set 07120807_1538, 07120807_1628, 07120807_1718 with Ba-133 & Am-241 and DIB1 +6 V, DIB2 -6 V

Irregular, reduced data file size.

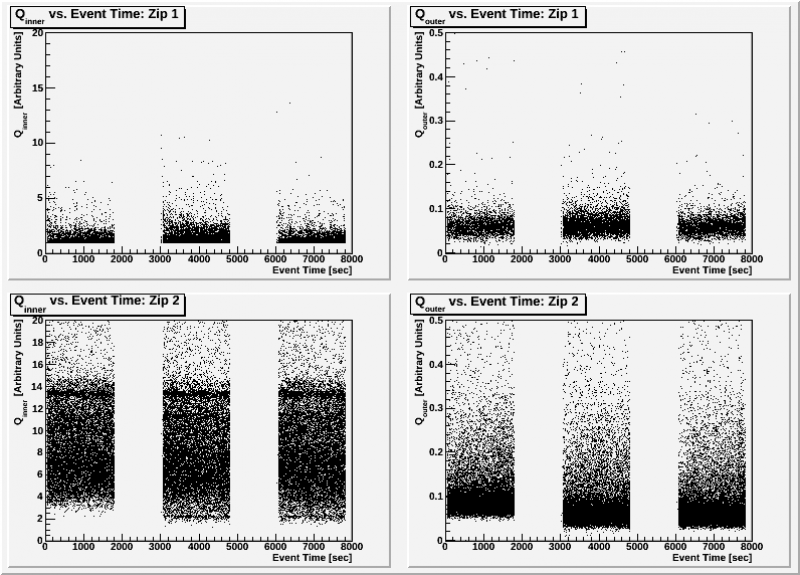

Figure 12: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.

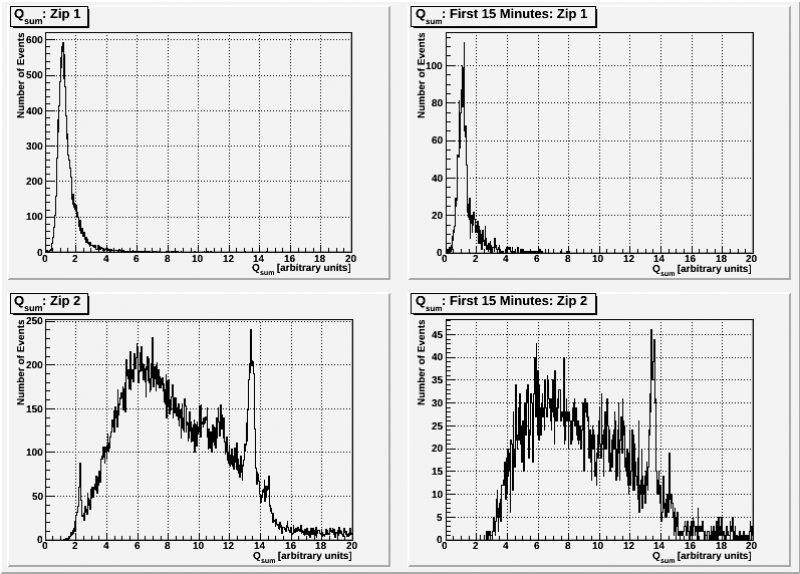

Figure 13: Qsum spectra. Qi and χ squared cuts.

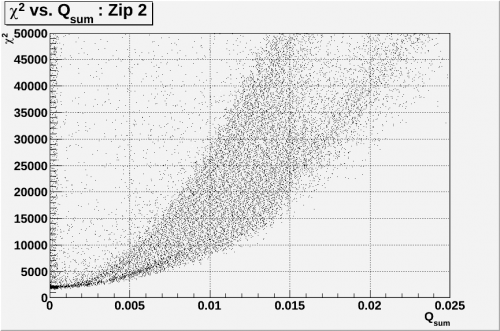

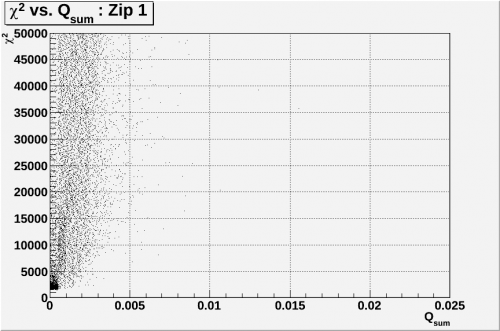

Figure 14: χ Squared vs. Qsum. Qi cut.

Data Set 07120807_1937, 07120807_2027, 07120807_2117 with Ba-133 & Am-241 and DIB1 +8 V, DIB2 -8 V

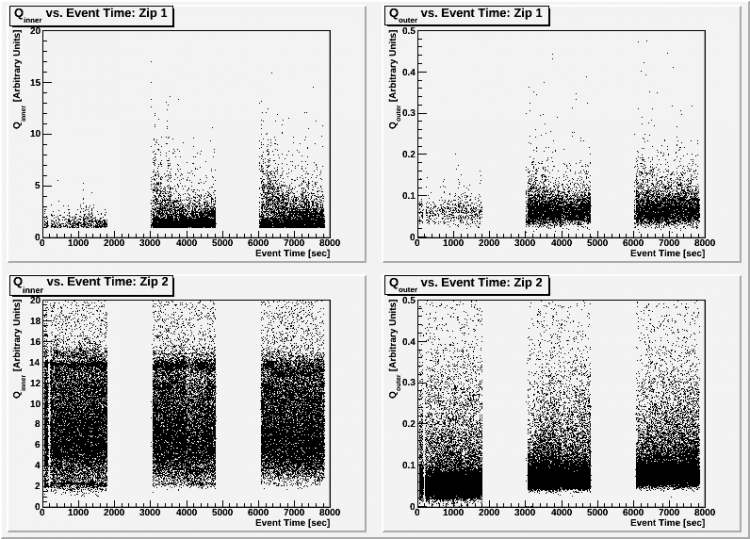

Figure 15: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.
Figure 16: Qsum spectra. Qi and χ squared cuts.

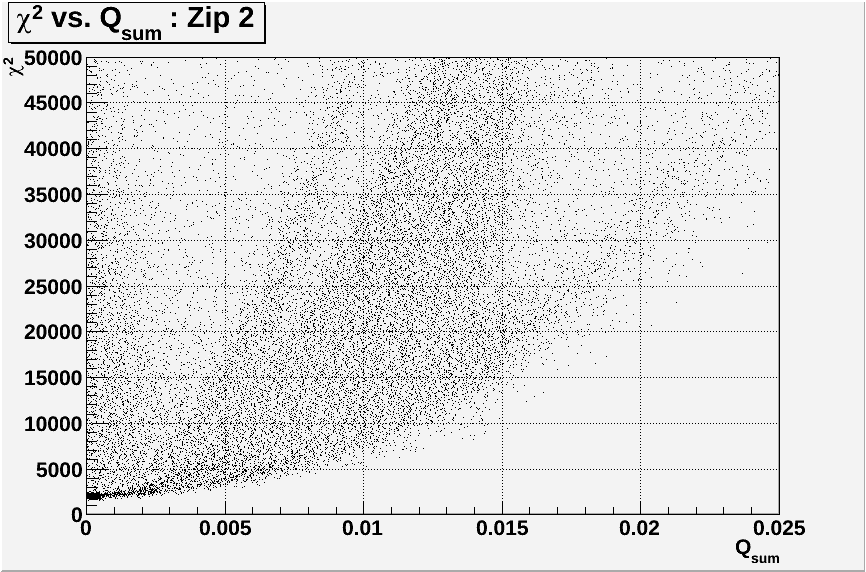

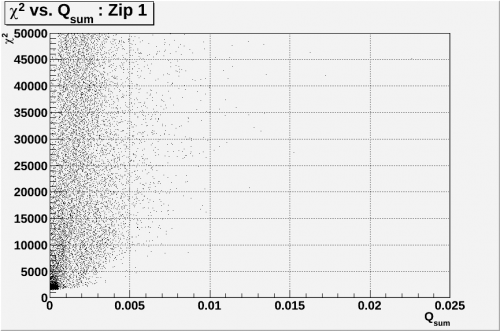

Figure 17: χ Squared vs. Qsum. Qi cut.

Data Set 07120807_2210, 07120807_2300, 07120806_2350 with Ba-133 & Am-241 and DIB1 +10 V, DIB2 -10 V

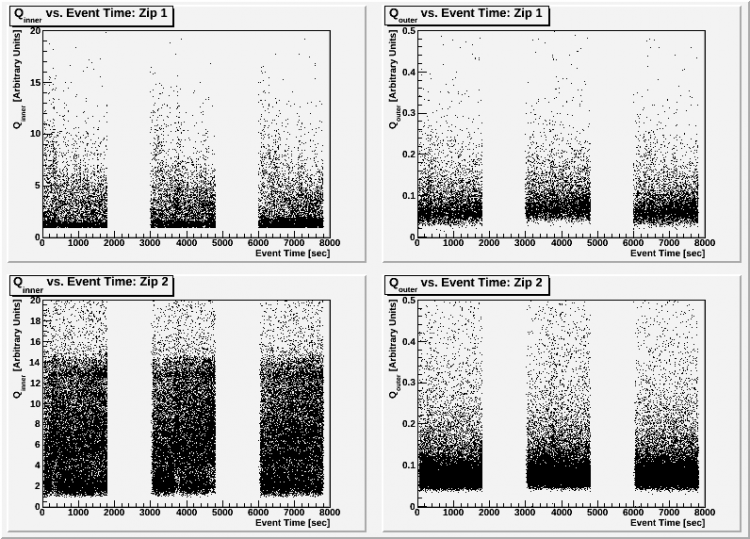

Figure 18: Qi and Qo vs Event Time for zip 1 and zip 2 (no cross talk). Bulk, Qi and χ squared cuts.

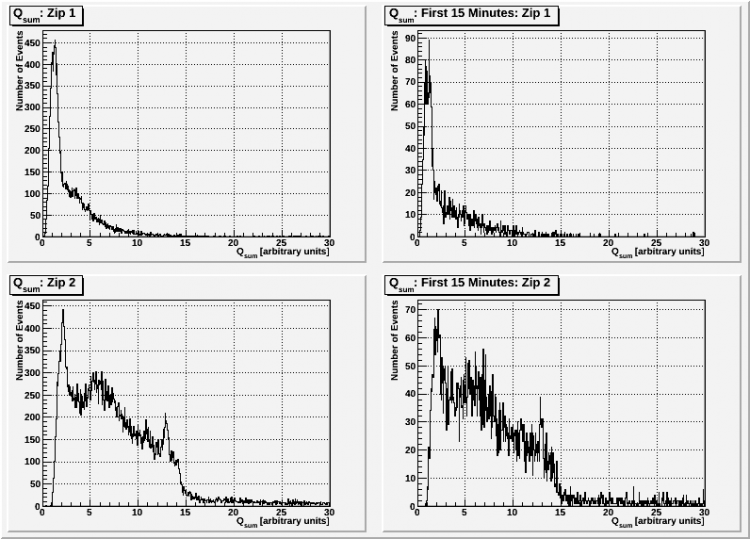

Figure 19: Qsum spectra. Qi and χ squared cuts.

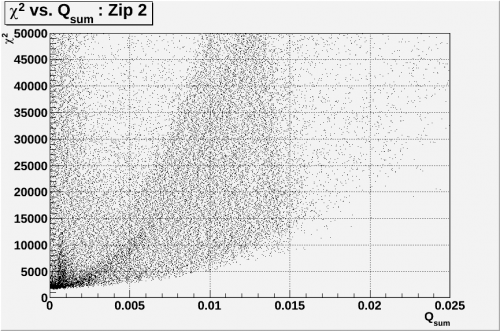

Figure 20: χ Squared vs. Qsum. Qi cut.
