2012/07/28
| 0020 | 0V test run looked OK. |
|---|---|
| 0027 | Filled N2 cold trap. |
| 0034 | Will flash 60min, cool down 80min then take data use the same bias settings as yesterday. |
| 1350 | Filled LN2 cold trap. |
| 1400 | Fed Cricket 3 pellets. |
| 1835 | Begin LHe transfer (31.8%). |
| 1925 | End LHe trasnfer (91.9%) |
| 1940 | Fed Cricket (4 pellets). |
| 2059 | Flash detector for 12 hours. |
| Figures 1-3 : 07120728_0737 - DIB1 -4 V, DIB2 +4 V |
|---|

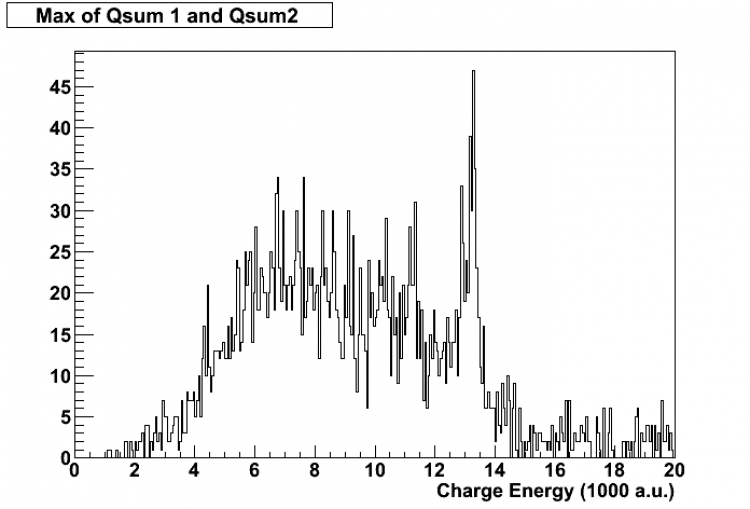

| Fig. 1: Maximum signal of Qsum1 and Qsum2 |
|---|
 |
| Timing cut, bulk cut, chi2 cut, and threshold cut |

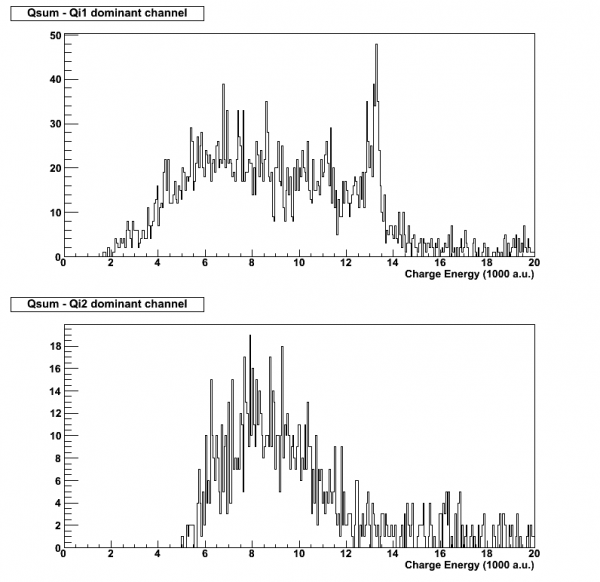

| Fig. 2: Qsum1 and Qsum2 separately |
|---|
 |
| Timing cut, bulk cut, chi2 cut, and threshold cut |
| Figures 4-6 : 07120728_0959 - DIB1 +4 V, DIB2 -4 V |
|---|

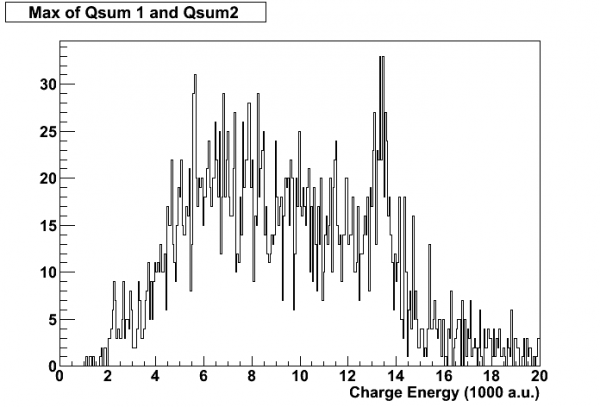

| Fig. 4: Maximum signal of Qsum1 and Qsum2 |
|---|
 |
| Timing cut, chi2 cut, threshold cut, and bulk cut |

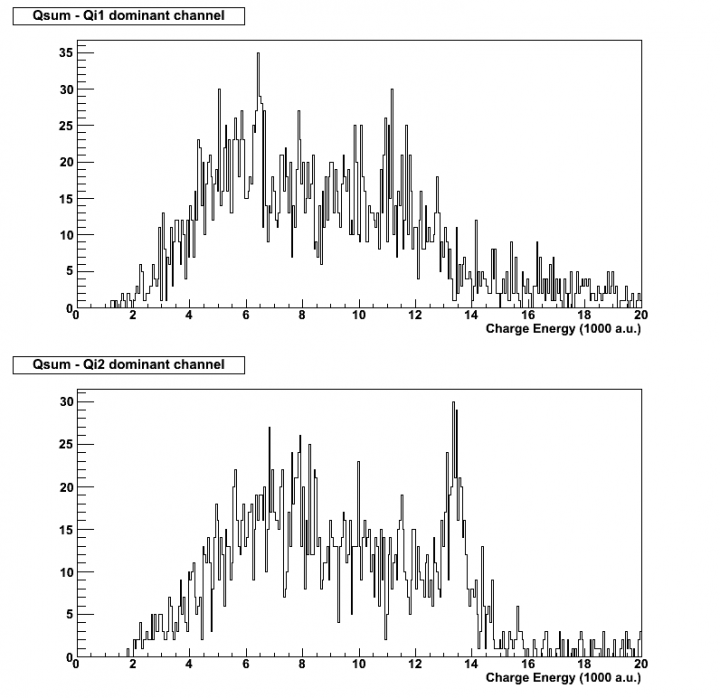

| Fig. 5: Qsum1 and Qsum2 separately |
|---|
 |
| Timing cut, bulk cut, chi2 cut, and threshold cut |

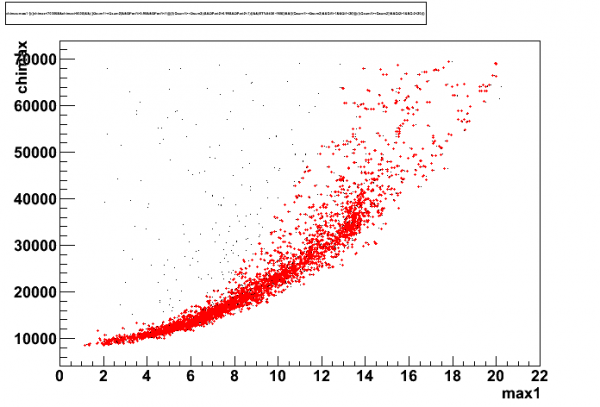

| Fig. 6: Max chi2 vs. Max Qsum |
|---|
 |
| bulk cut, and threshold cut |
| Figures 7-9 : 07120728_1442 - DIB1 +6 V, DIB2 -6 V |
|---|

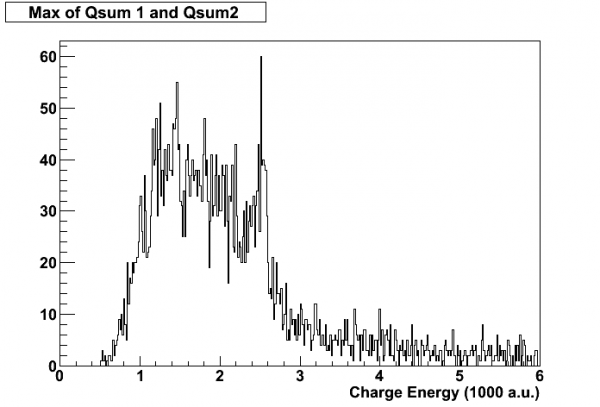

| Fig. 7: Maximum signal of Qsum1 and Qsum2 |
|---|
 |
| Timing cut and bulk cut |

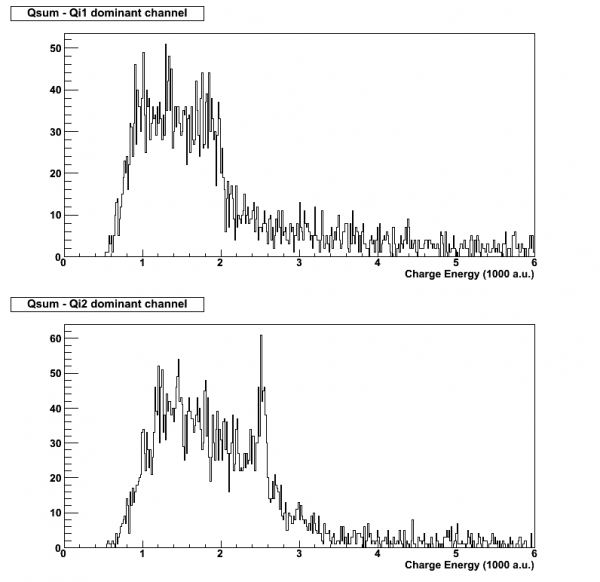

| Fig. 8: Qsum1 and Qsum2 separately |
|---|
 |
| Timing cut, bulk cut, and threshold cut |

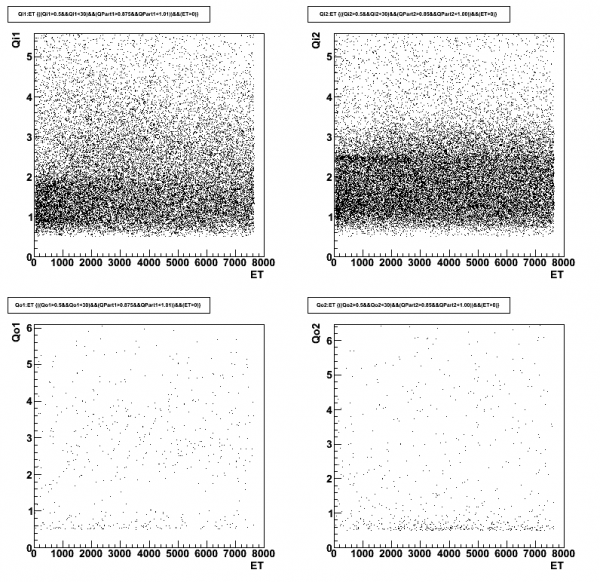

| Fig. 9: Charge vs. Time for all channels |
|---|
 |
| Bulk cut, and threshold cut |
