2012/04/29
| 1930 | Fill N2 cold trap full. |
|---|---|
| 2355 | Stop 1 K pot pump. Pump mixture into dump. Start warm up. |
Mechanical Vibrations Induced by 1 K Pot Pump

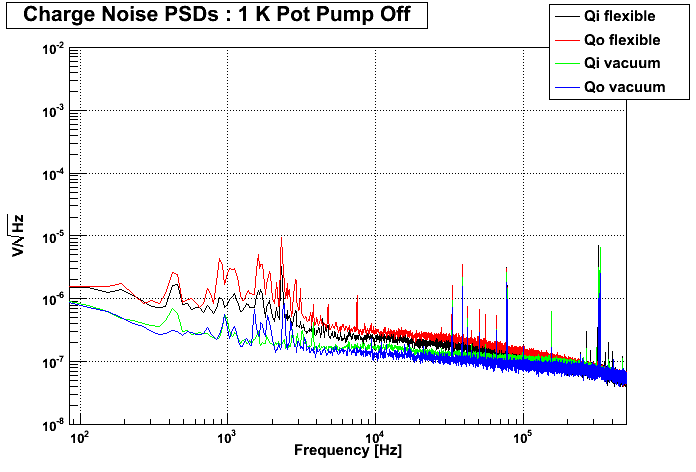

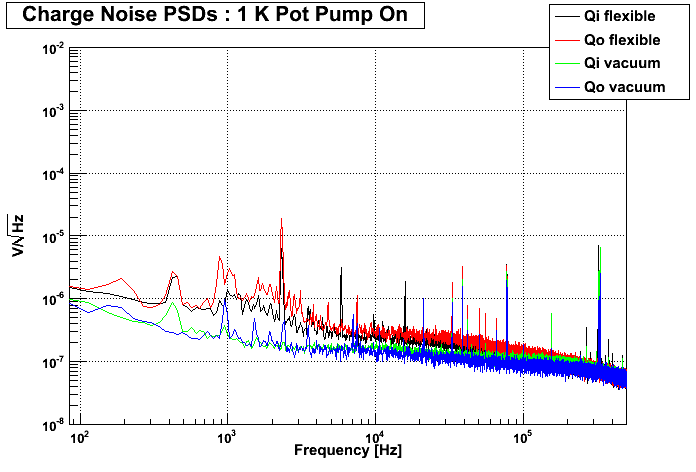

| Figure 1: DCRC32 attached to flexible side coax, DCRC33 attached to vacuum side coax: 1 K pot pump on (left); and off (right). | |
|---|---|
 |  |

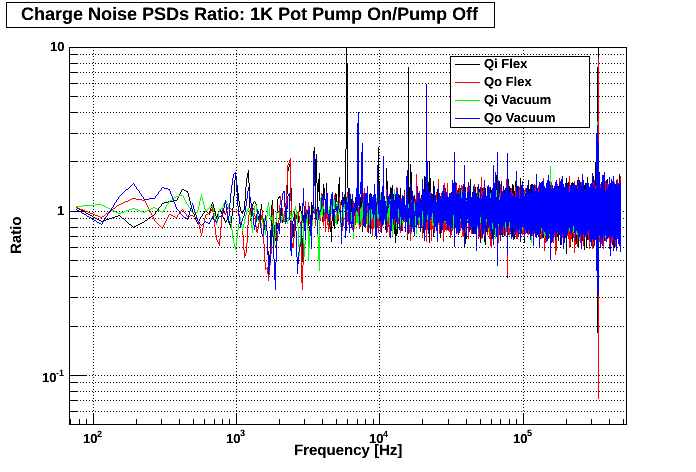

| Figure 2: DCRC32 attached to flexible side coax, DCRC33 attached to vacuum side coax: Ratio of PSD data for 1K pot pump on/1K pot pump off. | |
|---|---|
 | |
