2012/04/24
| 1100 | Filled LN2 cold trap. |
|---|
20cm Drop Test to At Rest Ratios
- The following graphs show the ratios of the noise profiles for each channel of the 20cm Drop Test divided by the At Rest tests.
- The y-axes are mislabeled as V/√Hz, when they should be unitless.

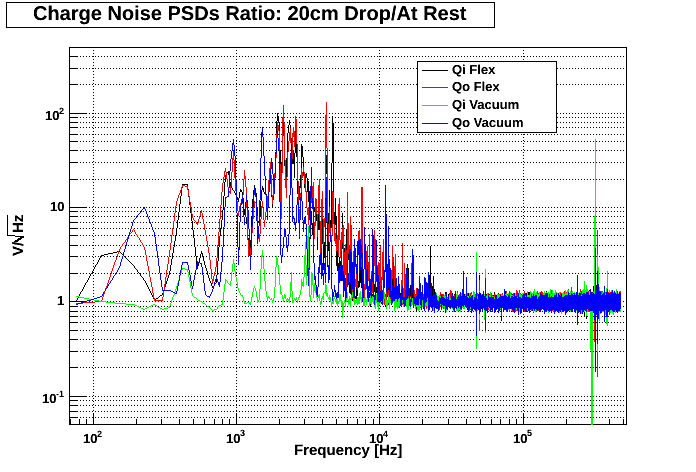

| Figure 1: DCRC32 attached to Flex v_3; DCRC33 attached to vacuum side coax. |
|---|
 |

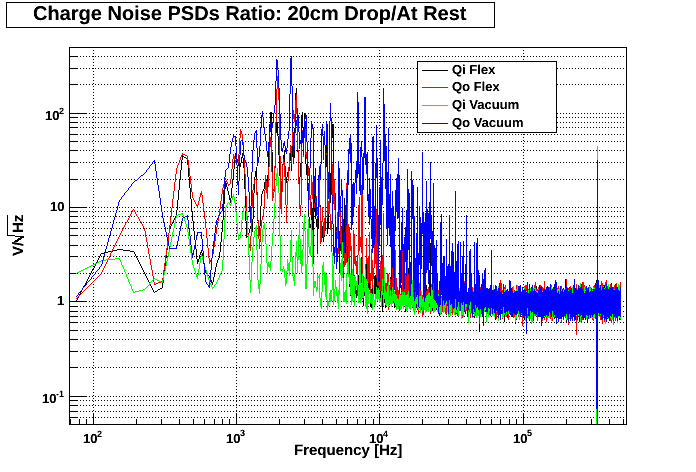

| Figure 2: DCRC33 attached to Flex v_3; DCRC32 attached to vacuum side coax. |
|---|
 |

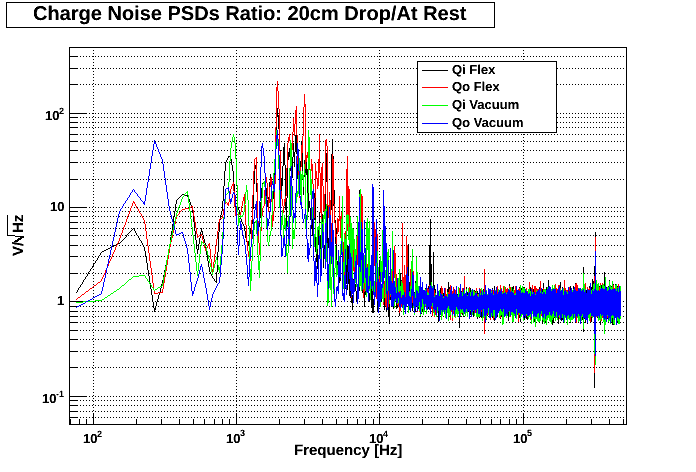

| Figure 3: DCRC32 attached to both side coaxes. |
|---|
 |

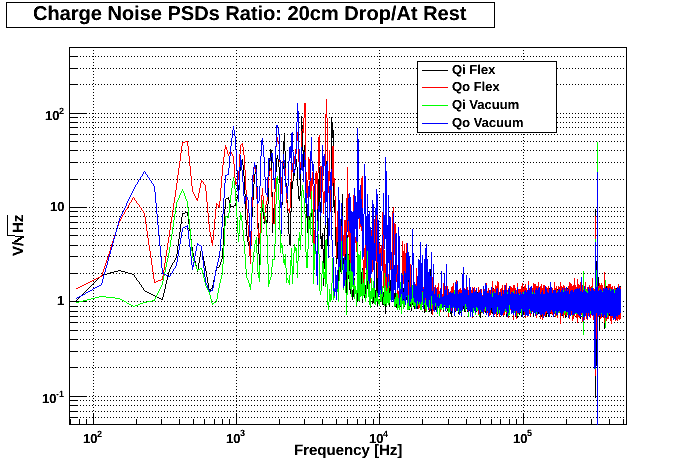

| Figure 4: DCRC33 attached to both side coaxes. |
|---|
 |
Charge Gain Measurement
| Table 1: Charge Gain Measurements. | ||
|---|---|---|
| Channel | Gain | Gain/4 |
| Qi vacuum | 512.8 | 128.2 |
| Qo vacuum | 472.2 | 118.1 |
| Qi flexible | 582.0 | 145.5 |
| Qo flexible | 615.6 | 153.9 |
Charge Noise PSDs (Gain Removed)
- Some of the PSDs taken on April 24th were reanalyzed by removing the gain for each channel.

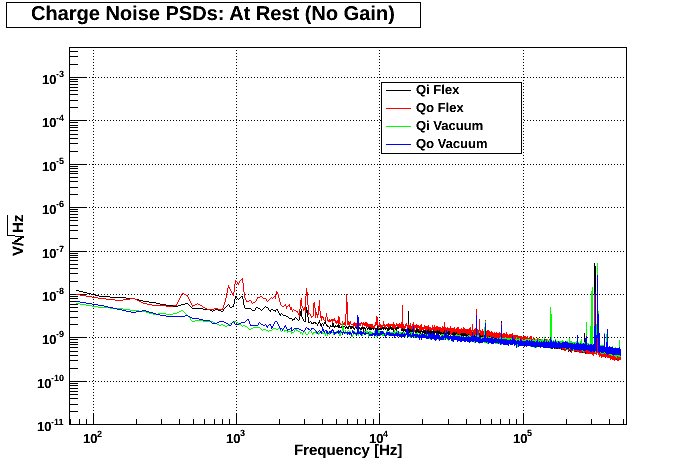

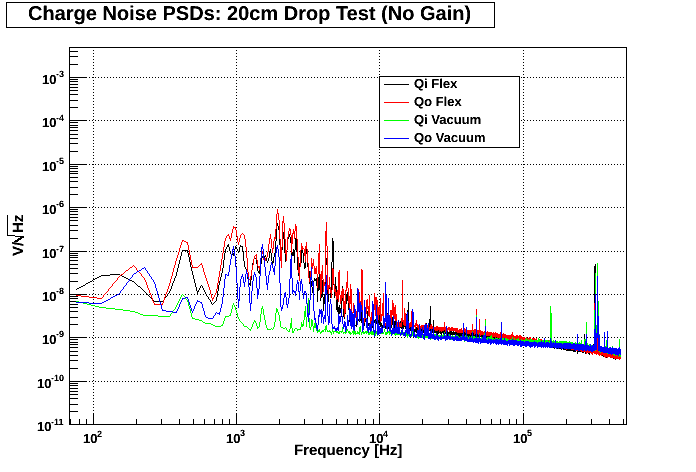

| Figure 5: DCRC32 attached to Flex v_3; DCRC33 attached to vacuum side coax. | |
|---|---|
 |  |
