2012/04/23
| 1155 | Filled LN2 cold trap. |
|---|---|
| 1315 | Start condensing mixture through nitrogen cold trap 1. |
| 1515 | Start circulating mixture. Switch to tower thermometer. |
| 1808 | Temp ~80mK. Start taking PSD data. |
| 2345 | Finish taking data. |

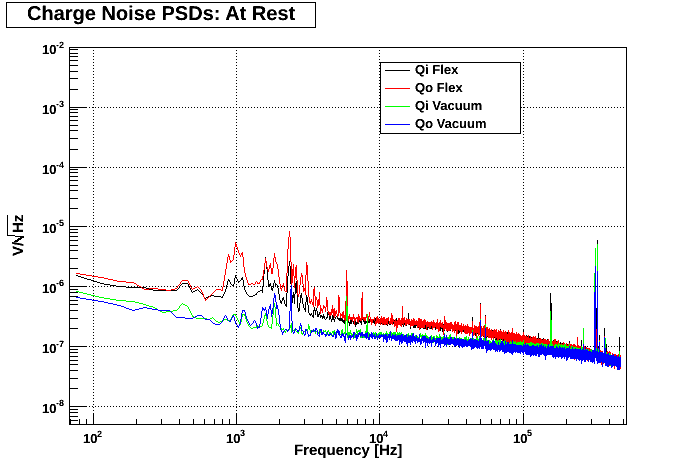

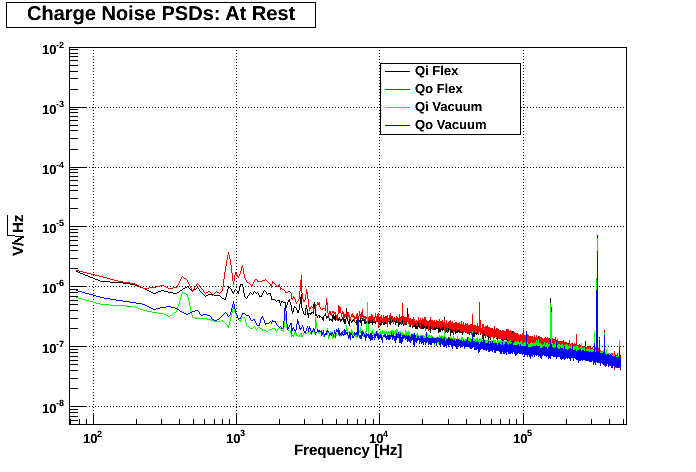

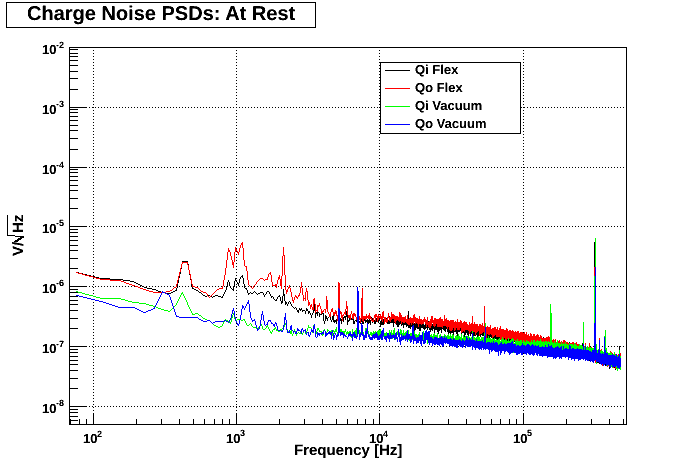

Charge Noise PSDs

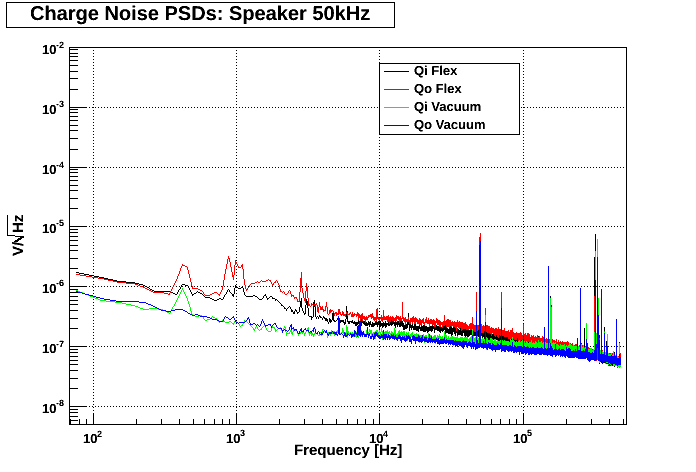

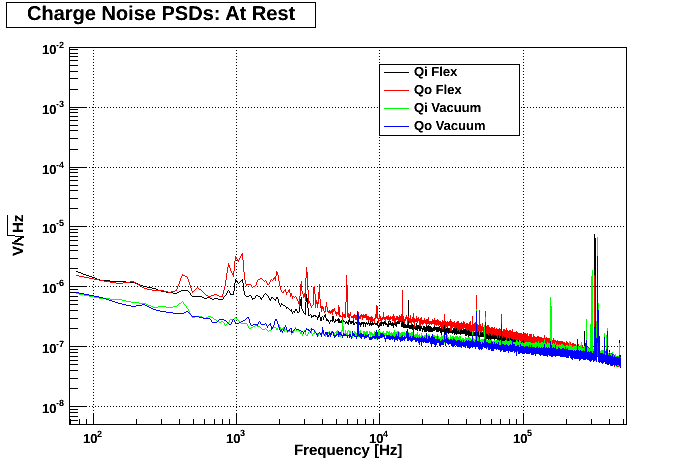

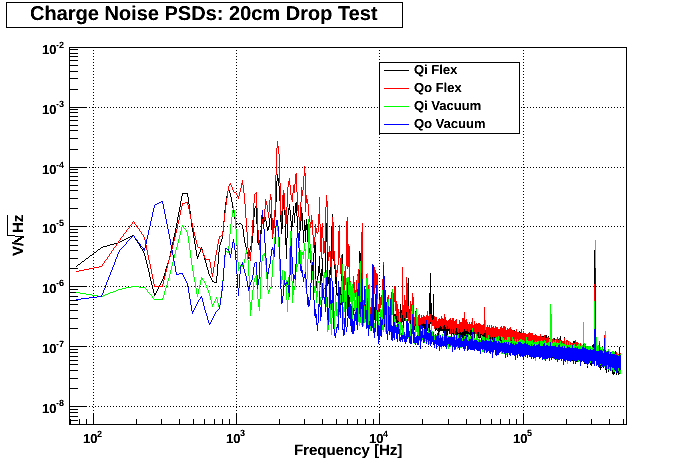

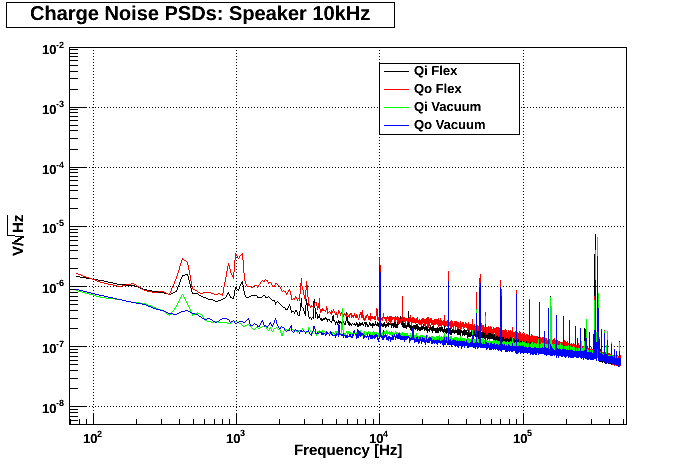

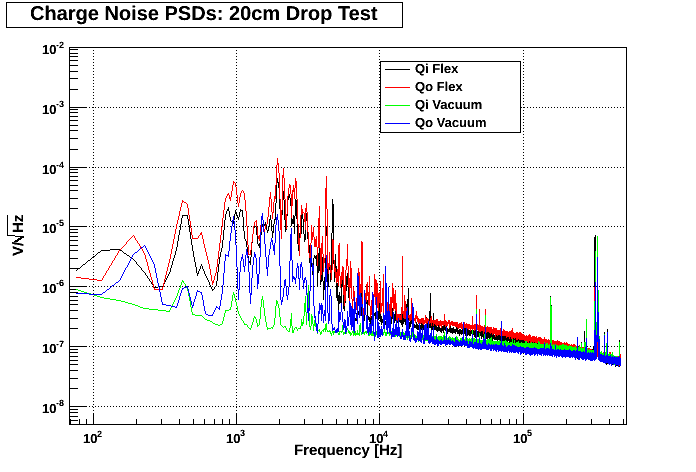

| Figure 1: DCRC32 attached to Flexible Side Coax; DCRC33 attached to Vacuum Side Coax. | |
|---|---|
 |  |
 |  |
 |  |
 |
|

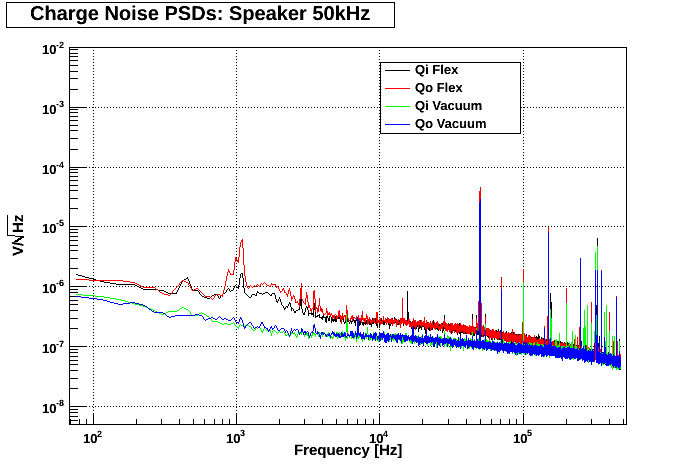

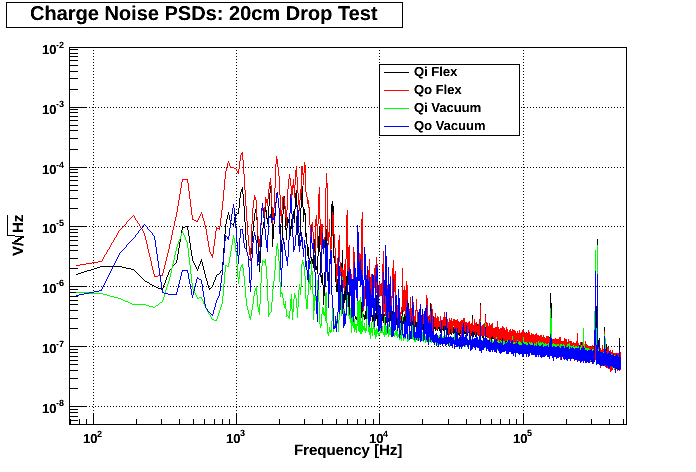

| Figure 2: DCRC33 attached to Flexible Side Coax; DCRC32 attached to Vacuum Side Coax. | |
|---|---|
 |  |
 |  |
 |  |
 |
|

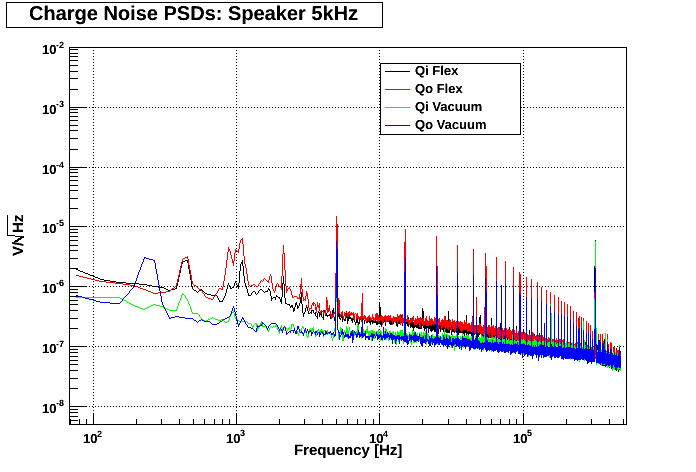

| Figure 3: DCRC32 attached to both side coaxes. | |
|---|---|
 |  |
 |  |
 |  |
 |
|

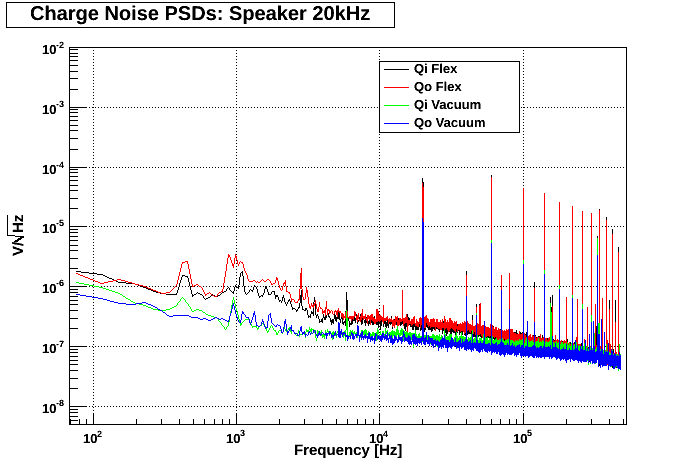

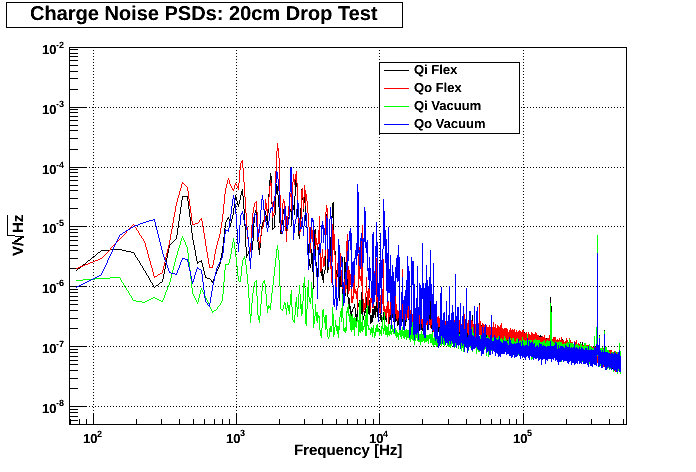

| Figure 4: DCRC33 attached to both side coaxes. | |
|---|---|
 |  |
 |  |
 |  |
 |
|
Speaker
- Speaker was mounted on fridge frame

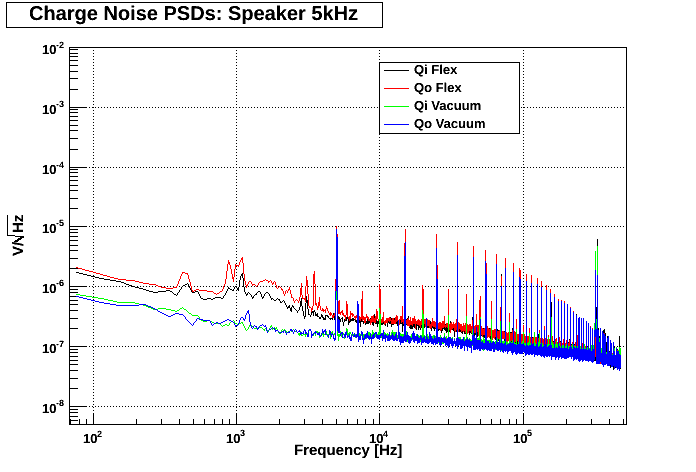

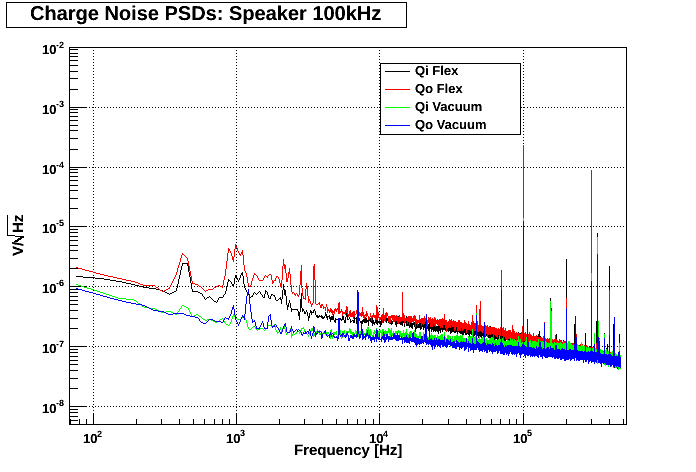

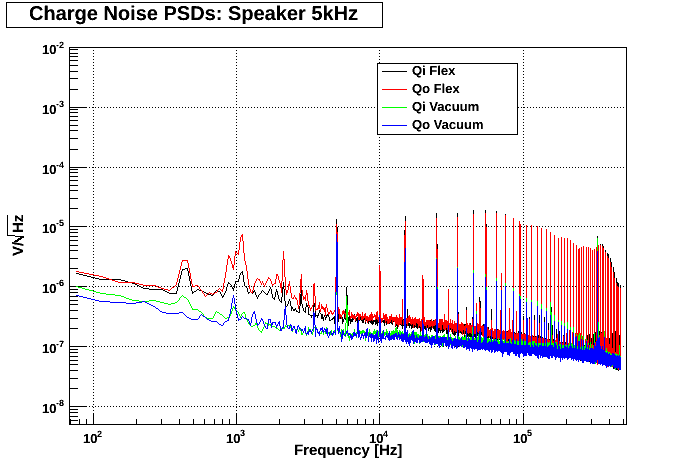

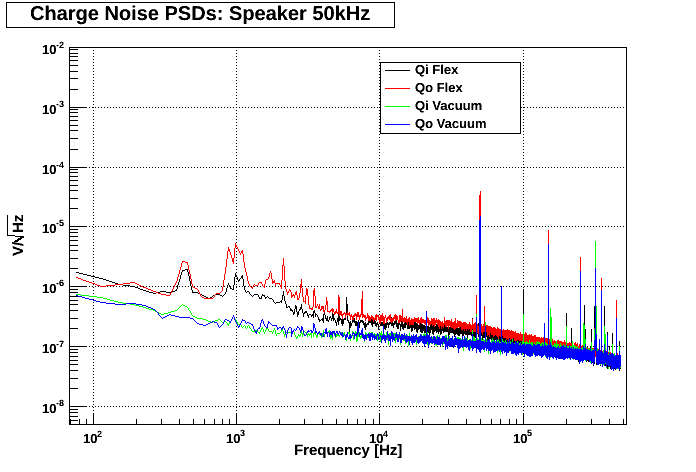

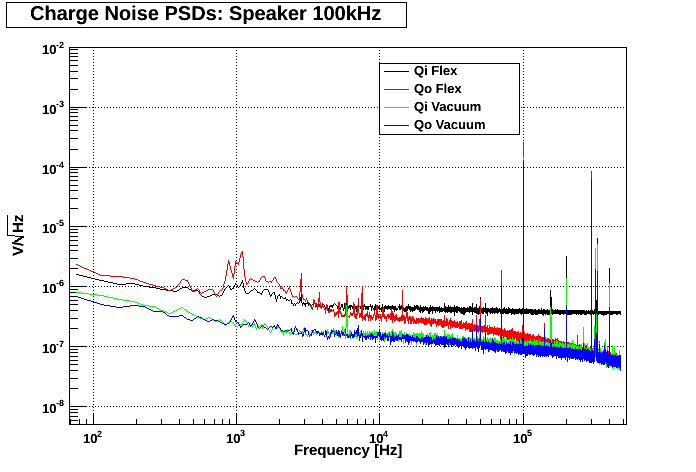

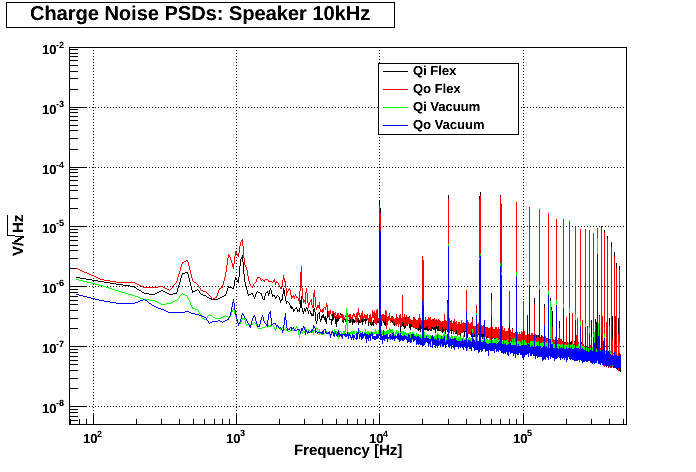

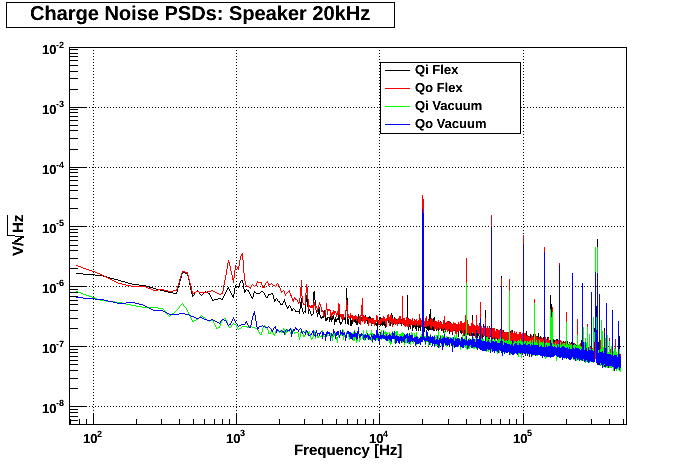

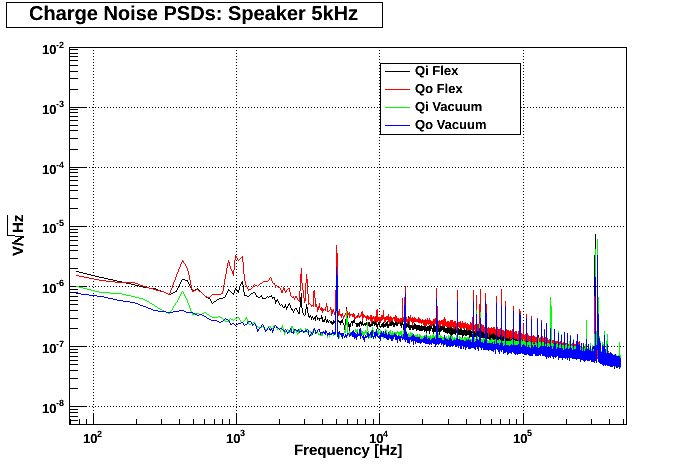

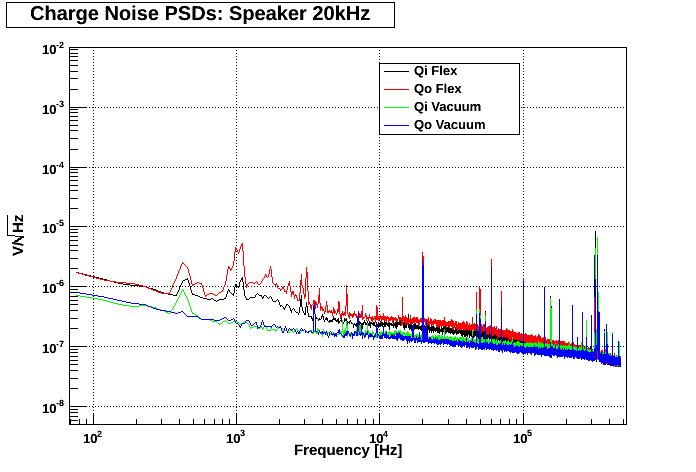

- 10Vpp square wave fed into speaker at 5, 10, 20, 50, and 100kHz

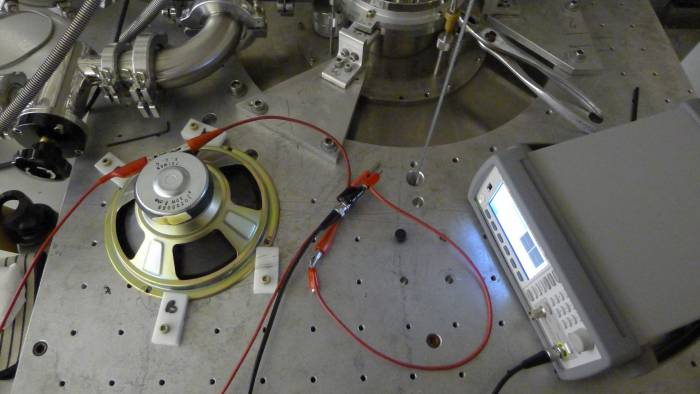

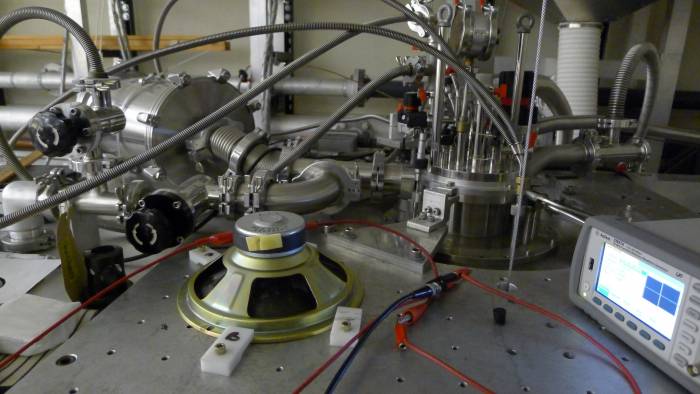

| Figure 5: Top and Side views of speaker mounted to fridge frame. | |
|---|---|
 |  |
