2012/03/21

0945 Fill LN2 cold trap.
Pump on 1K pot. Begin condensing.
1130 Abort condensing. G1/G2: 81/75 mbar. Begin circulation.
1140 1K pot temperature: 1.66 K. Tower temperature decreasing (currently ~ 600's mK)
1412 Tower temperature: 72 mK

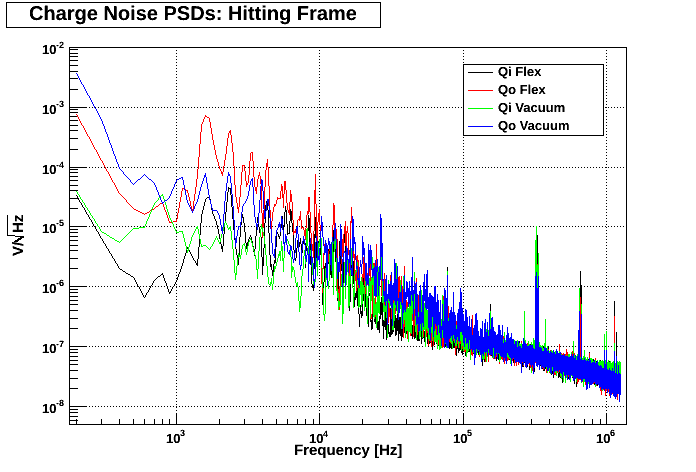

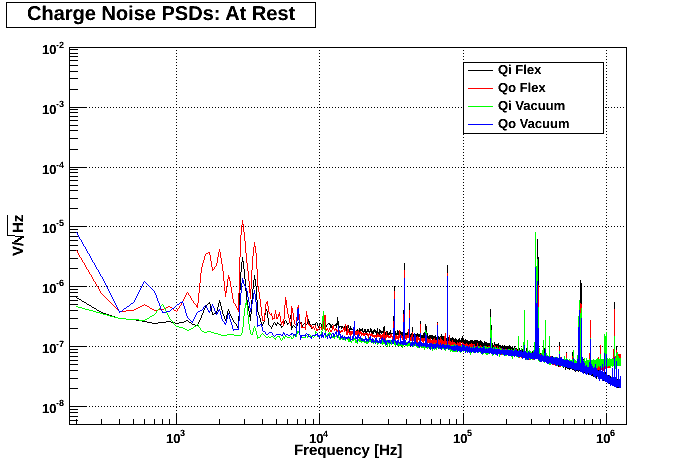

Charge Noise PSDs

Figure 1: DCRC33 attached to Flexible Side Coax; DCRC32 attached to Vacuum Side Coax.
