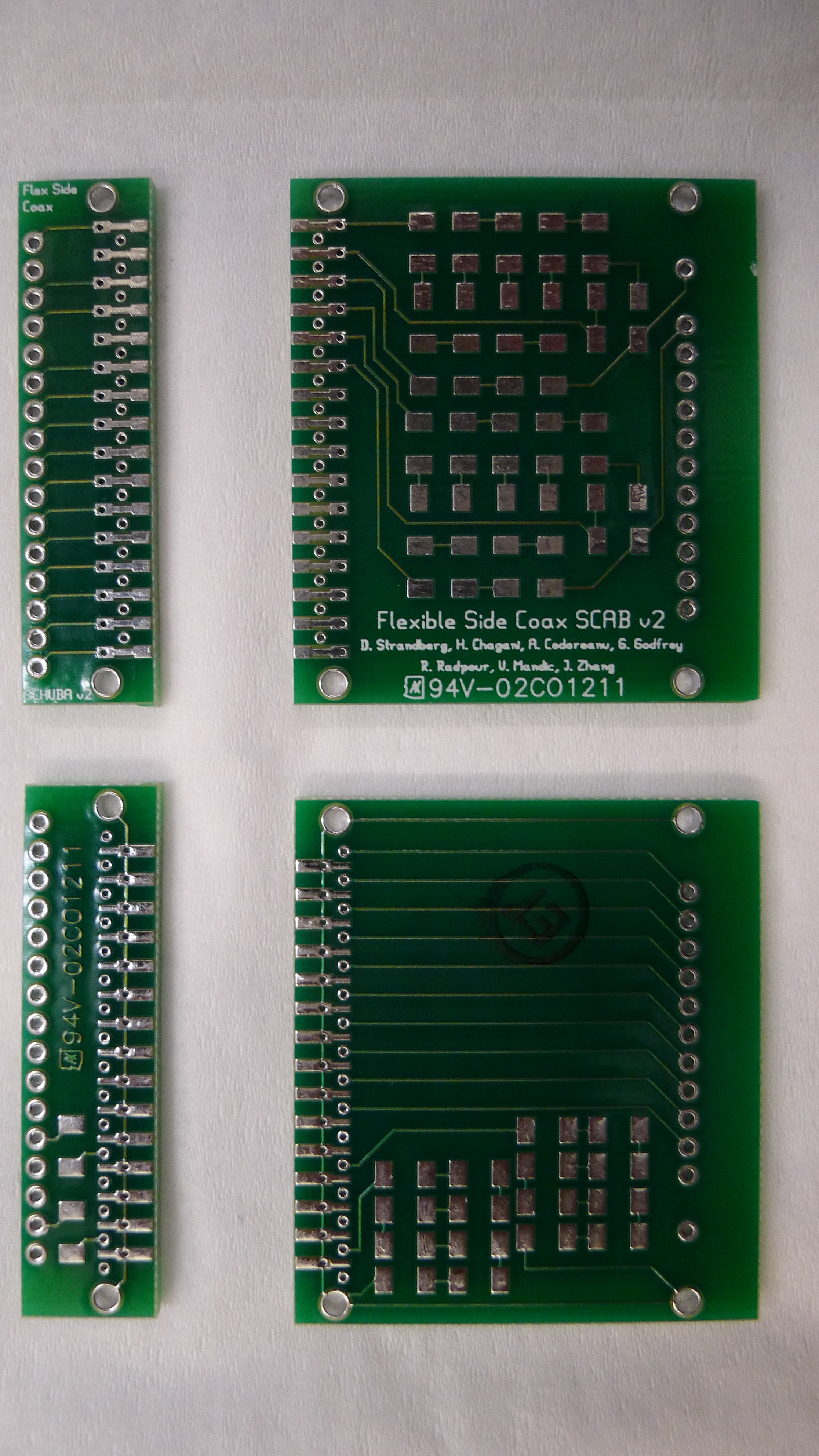

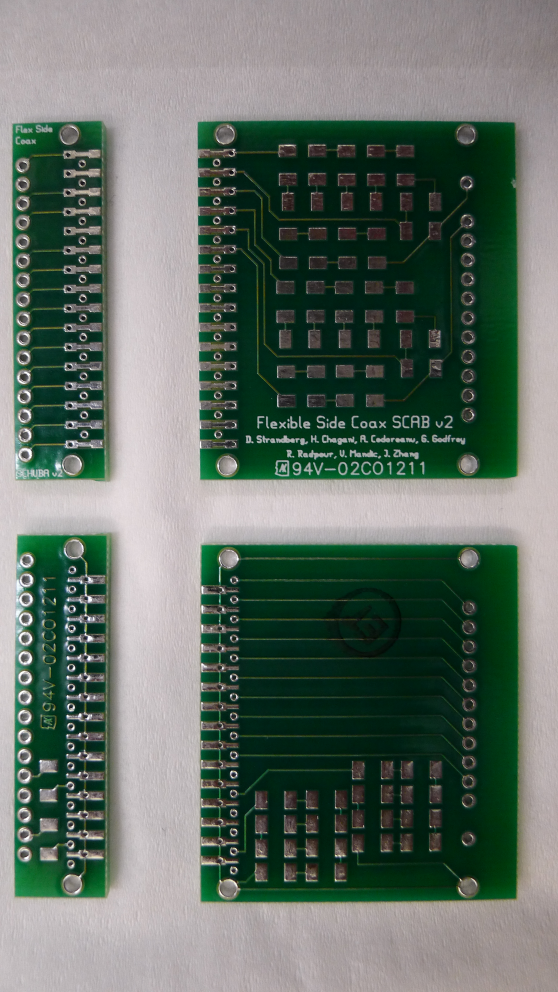

| Figure 1: Flexible Side Coax v2 SCAB & SCHUBA Component (top) and Solder (bottom) Sides. |
 |
| Larger image: 2232 x 3968 |

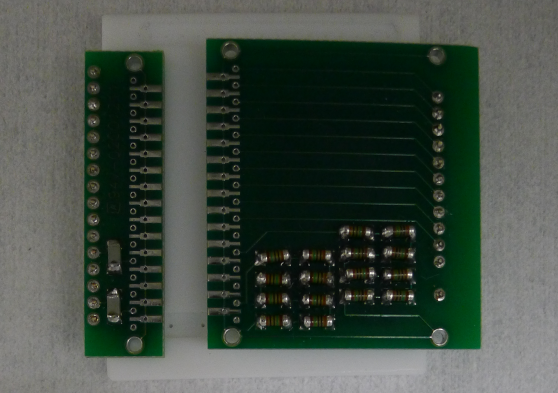

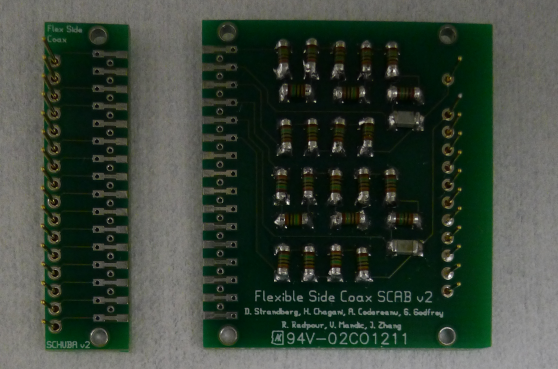

| Figure 2: Components Soldered on Flexible Side Coax v2 SCAB & SCHUBA Component (left) and Solder (right) Sides. |
 |  |
Gerber files: SCAB & SCHUBA.
Data sheets: 2.2 nF CoG/NP0 capacitor AVX 12065A222FAT2A & 10 MΩ metal film resistor Vishay Beyschlag MMA02040C1005FB300.
| Table 1: Electrical Check. |
| Qi Feedback | Qi Gate | 12.5 nS |
| Qi Gate | chassis | 12.5 nS |
| Qi Bias | Qi | 25.1 nS |
| Qi Gate | Qi | 2.5 nF |
| Qo Feedback | Qo Gate | 12.6 nS |
| Qo Gate | chassis | 12.6 nS |
| Qo Bias | Qo | 25.1 nS |
| Qo Gate | Qo | 2.5 nF |
