2012/03/07

1000 Filled LN2 cold trap
1220 Mixing chamber temperature 5.6 K. IVC pressure 4.6E-7 mbar. Looks good.
Close condenser speedivalve and gate valve. Start cryocleaning mixture through nitrogen cold trap 2.
1345 Interrupt cryocleaning. Pump mixture into dump in preparation for condensation.
1445 Switch to tower thermometer. Close all valves on IGN in preperation for condensation. Pressure in G2 612 mbar.
Start 1 K pot: temperature 1.8-1.9 K.
Open condenser speedivalve and gate valve. Start condensing mixture with automated procedure through nitrogen cold trap 1.
1615 Mixture mostly condensed, but automated procedure leaves some in dump. Open valve V9 periodically to extract it. Switch back to mixing chamber thermometer.

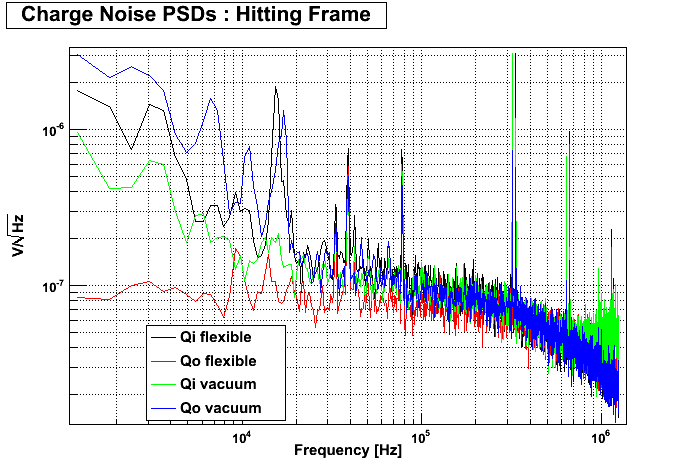

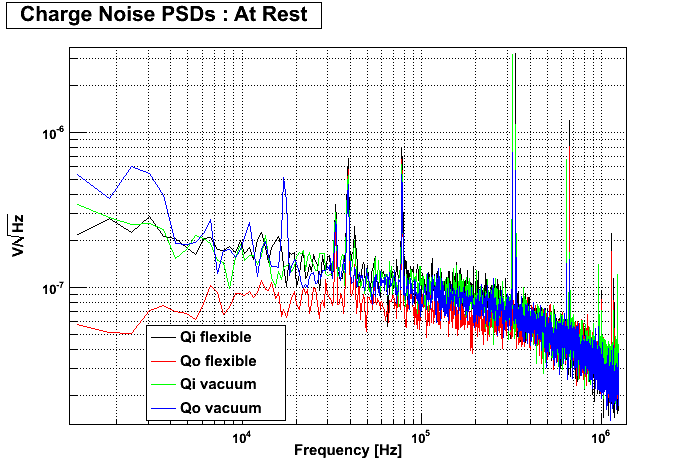

First Charge Noise PSDs
