−Table of Contents
High-energy LIPs search

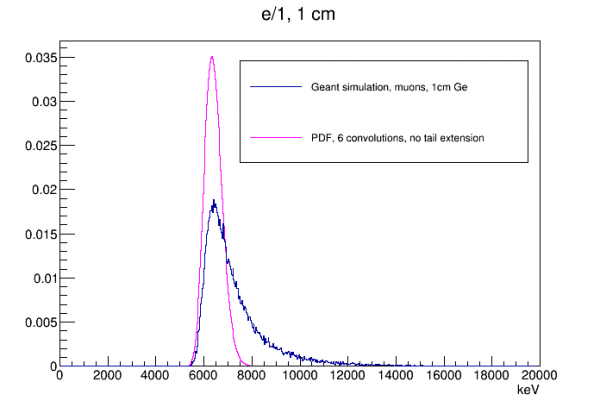

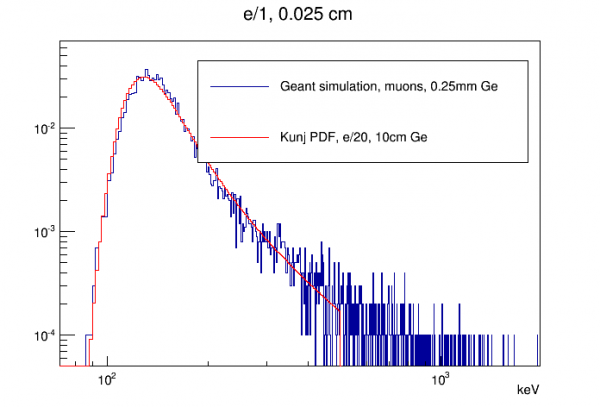

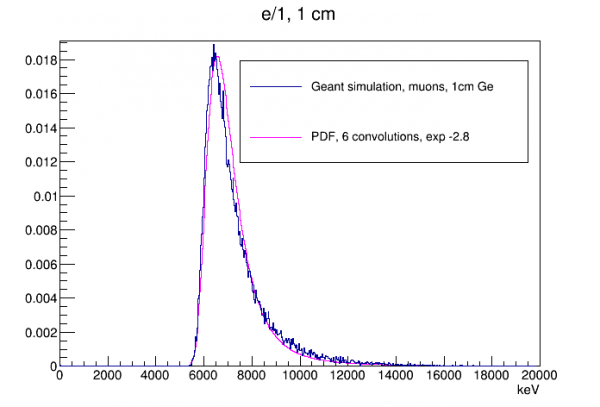

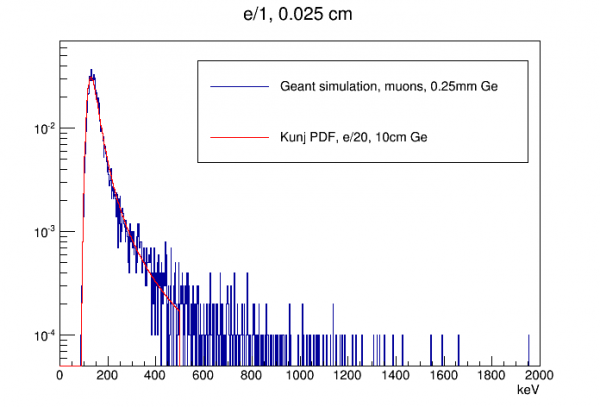

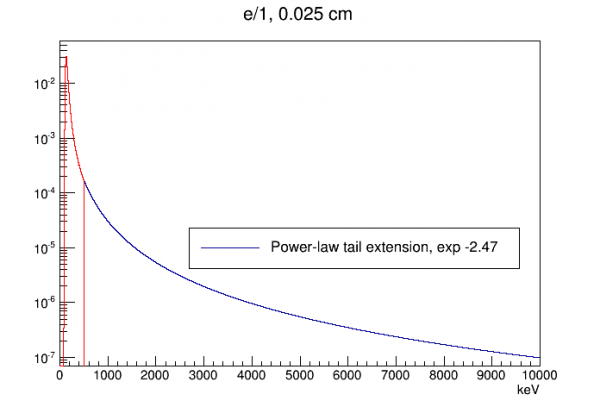

LIPs signal models
Data
- Data: 18 30-minute series with no external source from Run 56
- G106a iZIPv6, Pb-210 internal source
 |

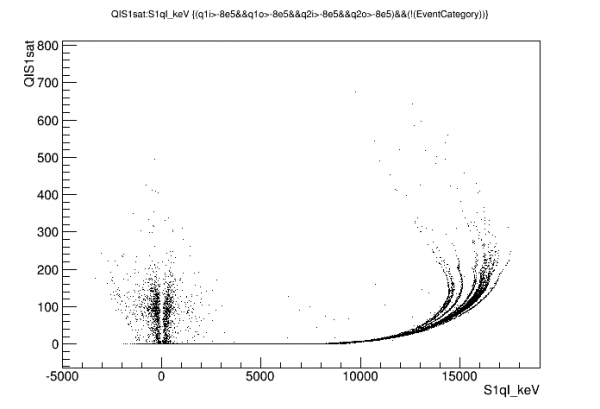

| Number of saturated samples versus calibrated OF amplitude |
 |

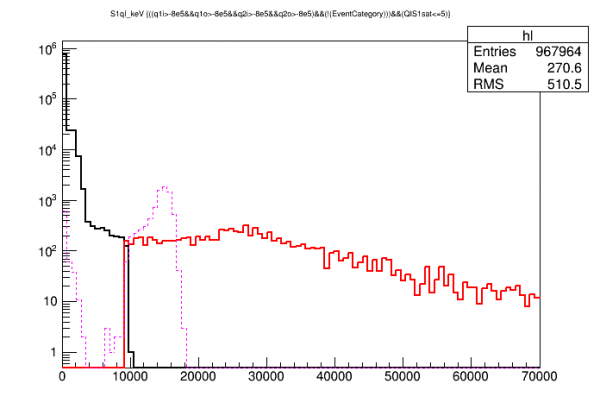

| High energy spectrum black: OF, unsaturated magenta dashed OF, saturated red: new calibration based on pulse shape and saturation width |
 |

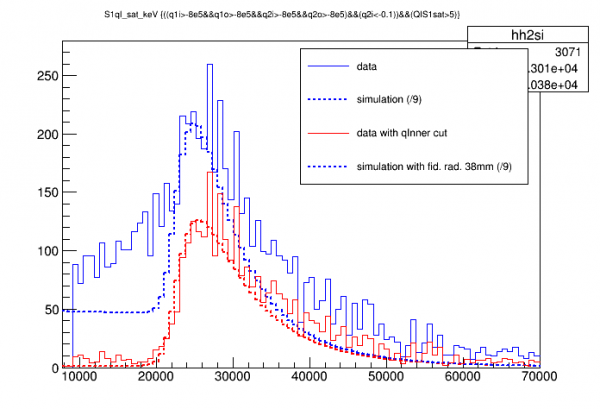

| charge symmetry cut applied blue = no fiducial cut, red = qInner cut simulated muon spectrum matches data but rate in data is 9x lower than sim |
