Tower slowly reached 75 mK this morning.
RevC Pulseviewer not working. I took two datasets without squid biased and one dataset with squid biased to see IbIs and noise.
Zapped SQUID:
Before:
After :

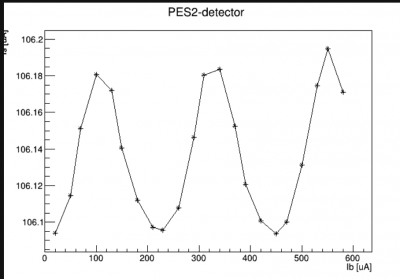

Shubham processed the IbIs dataset but it is showing sinusoidal pattern.

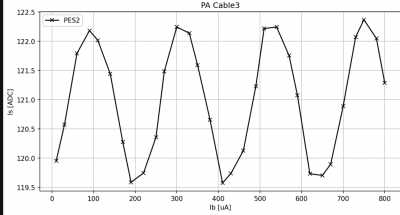

Before zapping:
After zapping:
IbIs curve after zapping with RevE:

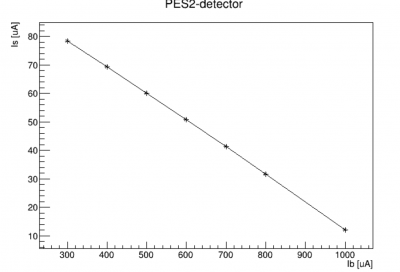

1000 to 300 uA :

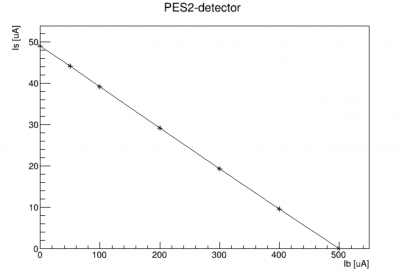

500 uA to 0 uA :
Noise with RevE:
The noise profile on other datasets need to be processed, but a manual look with RevE showing applying QET bias current leads to change in overall noise plateau.
Note:
