- Lab Update - Run 77
- With help from Matt, figured out the accessory wiring for the 4 motor coil wires and 2 endstops as listed below
| Run 78 accessory wiring | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| accessory | Motor Coil 1a | Motor Coil 1b | Motor Coil 2a | Motor Coil 2b | near endstop | far endstop | (screw term1) | Thermometer P1 | Thermometer P2(electrode1) | Thermometer P3(screw term2) | Thermometer P4 | |||||
| acc wire | Motor Coil 1 | Motor Coil 2 | ||||||||||||||
| Tower F4 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| interposer conns | brn | w brn | org | w org | blu | w blu | grn | blk | blk | pur | pur | |||||
| no soc | no soc | no soc | no soc | no soc | no soc | no soc | no soc | no soc | ||||||||
| stripline | 49 | 50 | 8 | 9 | 11 | 12 | 13 open | 45 | 2 | 46 | ||||||
| label | pBr3 | pBr4 | pCr3 | pCr4 | pAr3 | pAr4 | pAr5 | pDr3 | pAr1 | pDr4 | ||||||
| STRIPLINE ## | ||||||||||||||||
| CABLE # | ||||||||||||||||
| stripline D50 | 36 | 18 | 8 | 23 | 4 | 19 | 1 | 41 | 17 | 40 | ||||||
| DCRC/diverter Dsub | 48 | 33 | 10 | 28 | 14 | 32 | 17 | 43 | 1 | 44 | ||||||
| Dsub diverter board | U09-2 | U10-3 | U06-3 | U07-3 | U08-4 | U09-1 | U10-4 | U06-4 | U01-4 | U07-5 | ||||||

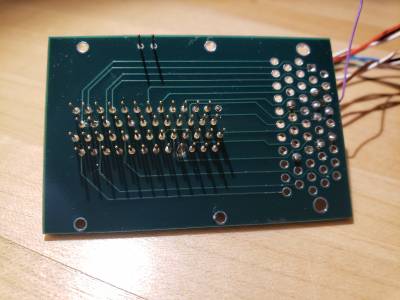

- Found that Pin 13 on the cold side diverter board is missing the pin. Tried removing the half-way stuck part of the pin, but it is not getting out of the way. If left in this state, it won't affect the setup, other than Pin 13 is not accessible for wiring.
- We can still use the RoX thermometer (2-wire measurement). Re-solder purple wires to complete that connection (earlier, one of the purple wires was disconnected in the cold-side diverter board)
- Will do 1d source mover test in room temperature to check for any issues today.

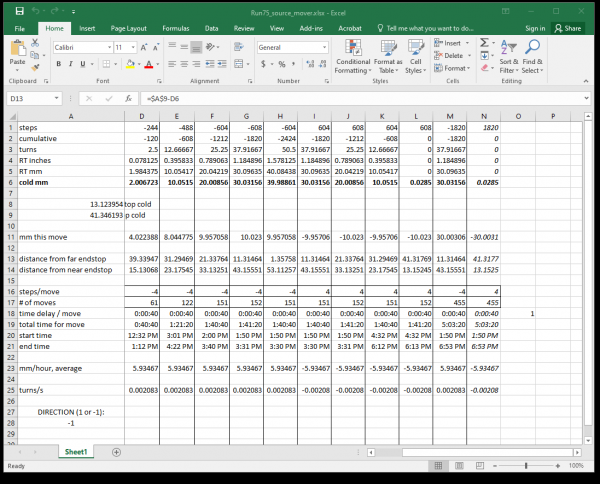

- Fond this excel sheet for steps calculation, not sure which values to plug in.
- Priority Updates
- General Updates
- Himangshu

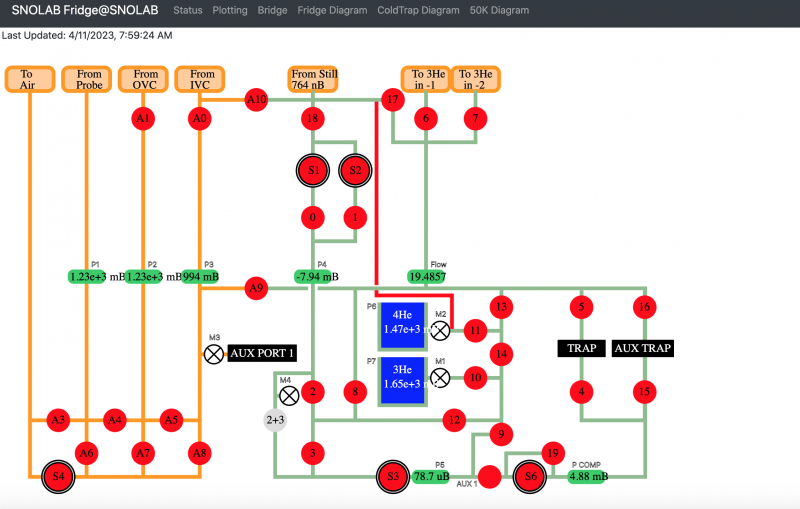

- I was also completing the high-priority task for the monitoring page. The two requested task is now complete. Task 1: display Still Pressure in the diagram and Task 2: Displaying Valve States with color changes in the diagram.
- Shubham
- Jack
- Derek
- Zach
- Scott
- Giulia
- Fun Update
