k100 simulation test
* Goals * To test neutron flux at the payload with full shielding * Test neutron capture and photon emission simulation * Check photon-flux and energy spectrum in NaI tiles
Neutron flux at the payload
- Using Anthony's k100 simulation repository to build and test framework: Github repo
- It already includes:

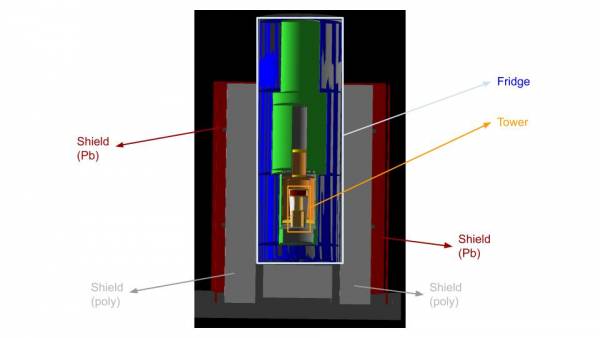

- Tower + fridge + Shielding + Other lab environment

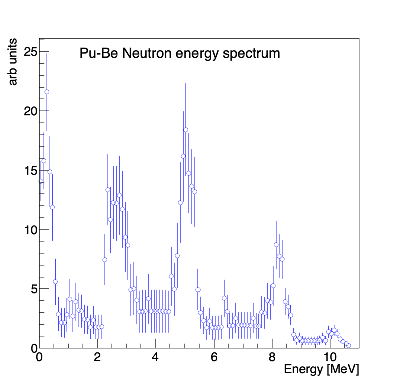

- Pu-Be energy spectrum data file → input for source particle gun:
- Generated 50k events: (uni-directional beam: 1 meter away from detector)

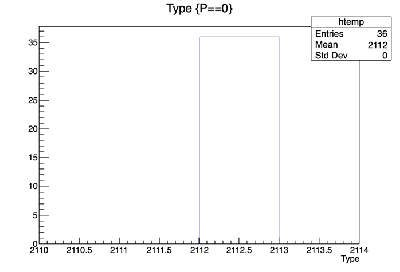

- Parent particle in the detector:

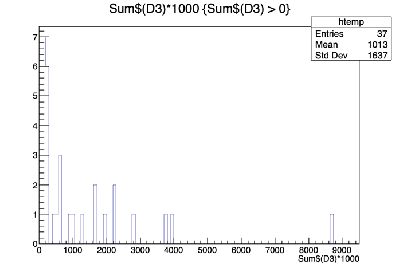

- Total deposited energy:
- Only ~ 36 out of 50k neutrons reaching the detector?

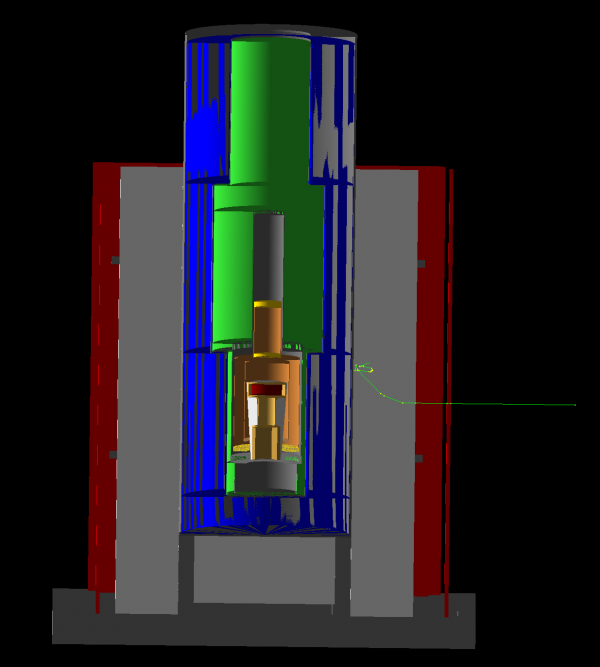

- Example event display:
